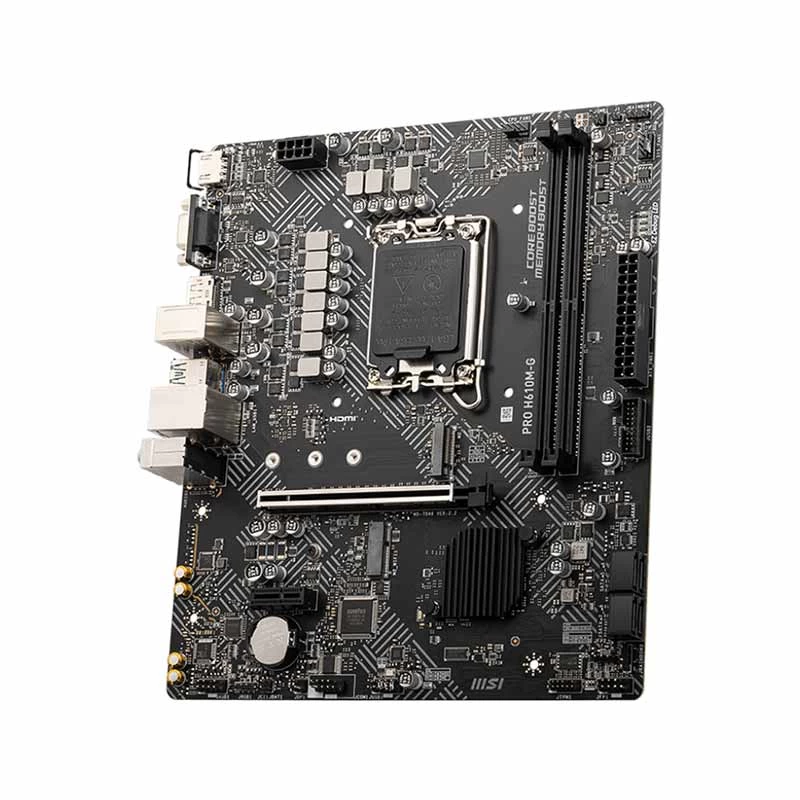

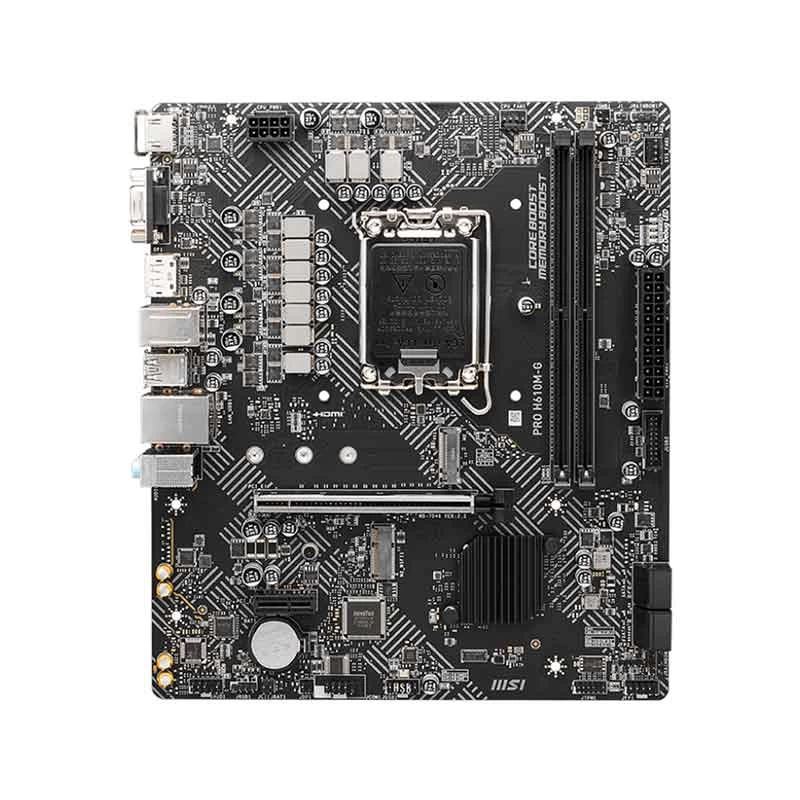

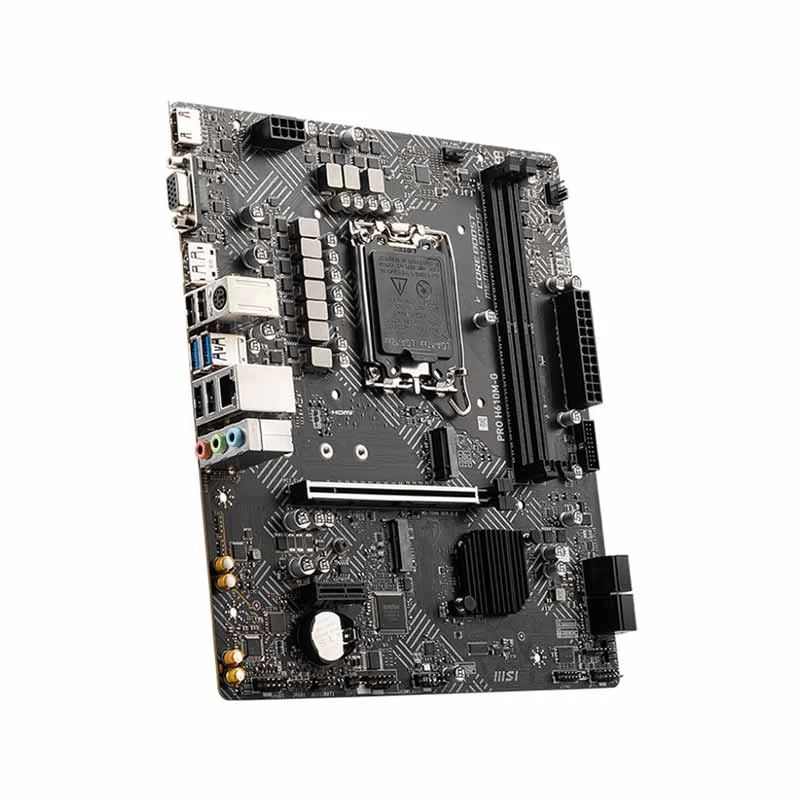

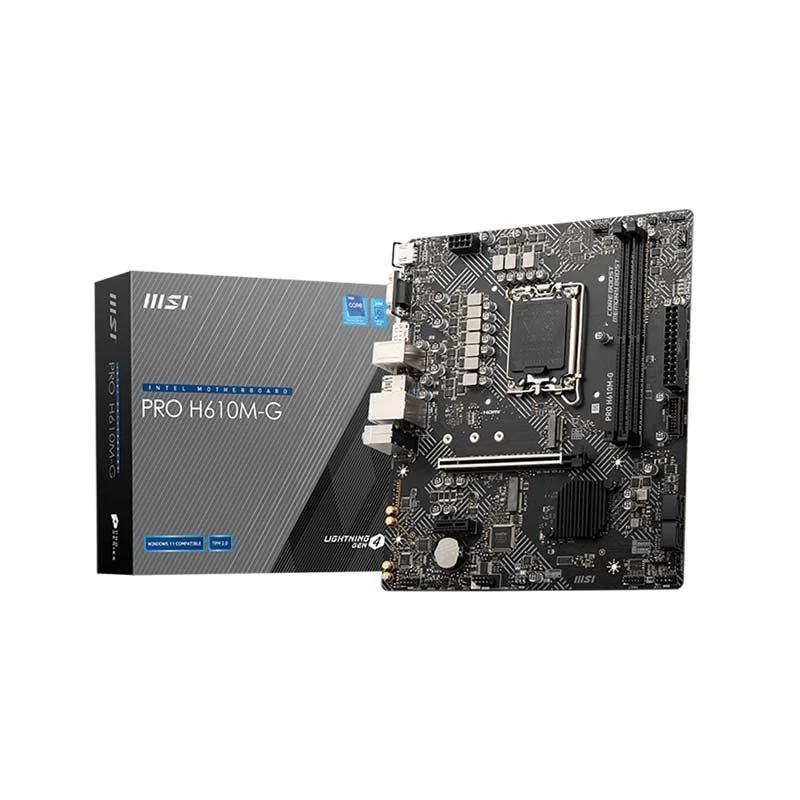

MSI PRO H610M-G DDR5 Intel Motherboard

Product Id: 02.01.033.392

Brand MSI

Regular Price Tk 12,370 Monthly EMI Tk 1,031
Special Price Tk 11,500

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 96GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI PRO H610M-G

Body Color
Grey


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
2

Memory Max.
96GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (1 x M.2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI-e x 16, 1 x PCI-e x 1 (PCI_e1 Gen PCIe 4.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset))


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel I219V 1Gbps LAN

LAN Speed (Mbps)
10/ 100/ 1000Mbps

WiFi
No


Ports
USB Port
4 x USB 2.0 Type-A, 2 x USB 3.2 Gen 1 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

RGB Support
RGB

RGB Connector
2 x Addressable RGB LED connector(JRAINBOW)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, Windows 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Lightning Gen4 Solution: The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. PCI-E Steel Armor: Protecting VGA cards against bending and EMI. EZ Debug LED: Easiest way to troubleshoot. Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value. Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Others
Internal I/O: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 1x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x RGB LED connector(JRGB), LED Feature: 4x EZ Debug LED, Back Panel Ports: Keyboard / Mouse, Audio Connectors

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
is it atx or mircro atx and is it officiial as this is ddr4 seen in lot of places also in startech and techland
By abdullah
A:
Dear Sir, motherboard's form factor - Micro-ATX and product is official original and authentic. Thanks for your query!
By Ryans Computers Ltd. , 16 Oct 2023 03:15:43 PM
Your Question

REVIEW

Customer Reviews
Looking at the details of the product, the product seems to be very good
By Ariful . August, 2023
Outstanding Quality!
By Nandita Biswas . August, 2023
It just works.
By Atul . August, 2023
Good product
By Farzana Yeasmin . August, 2023
Curently Working Good.
By Mr. Jisu . August, 2023
So far so good.
By Istiaque Hossain . August, 2023
Really good motherboard for gaming.
By Prosanta Kumar Datta . August, 2023
All Rounder
By Nafrin Jahan Nupur . August, 2023
Great product
By Joy . August, 2023
Outstanding Board
By SABBIR HOSSAIN . August, 2023
