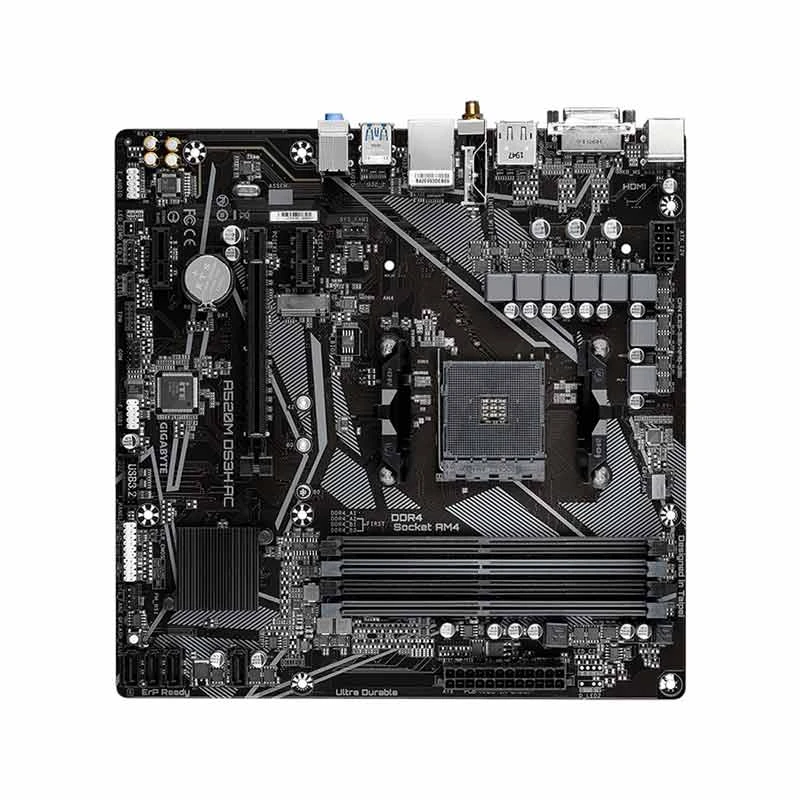

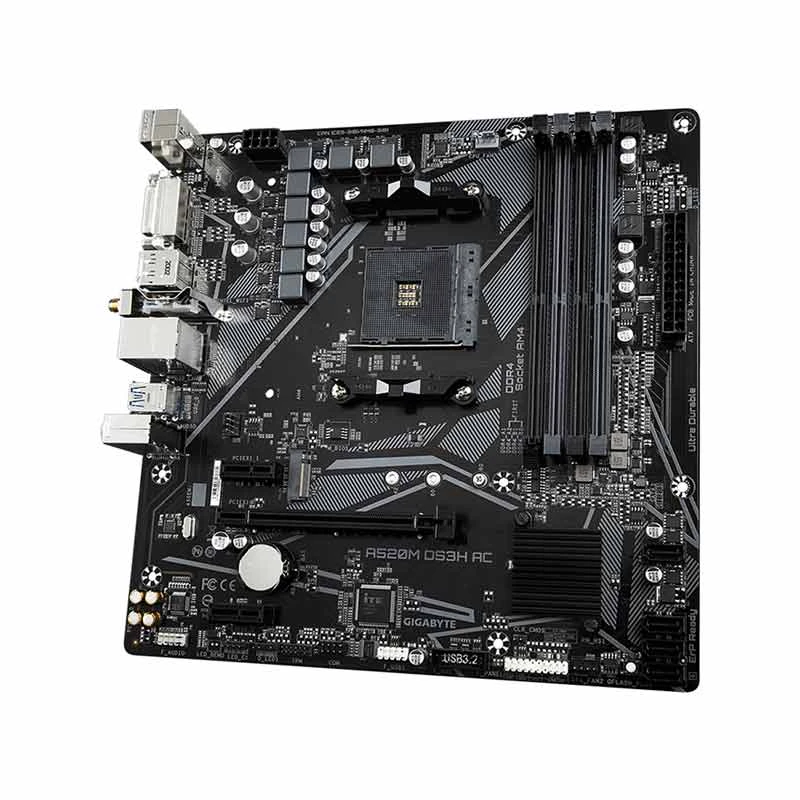

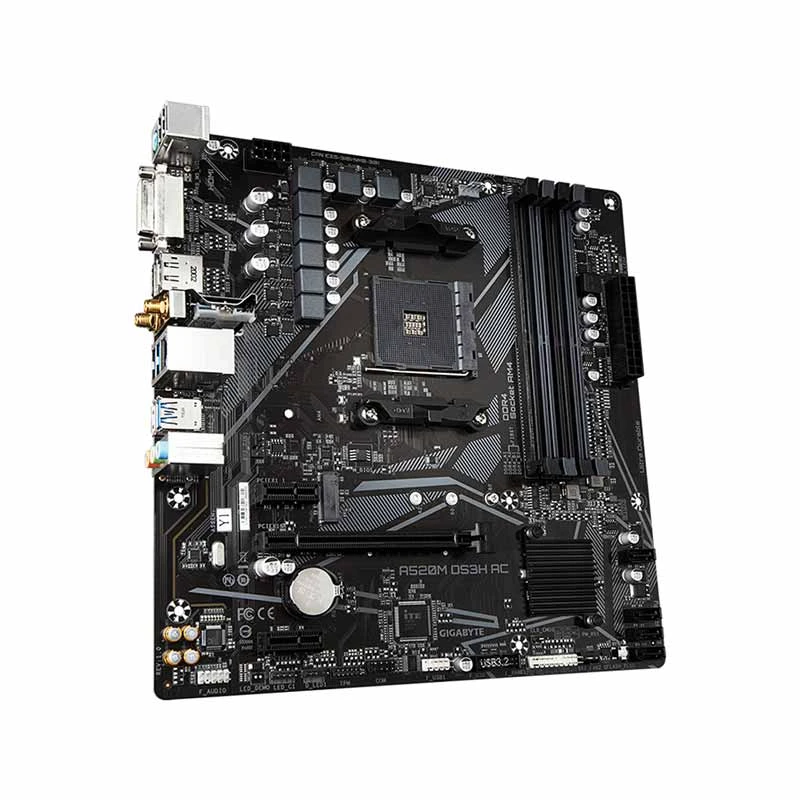

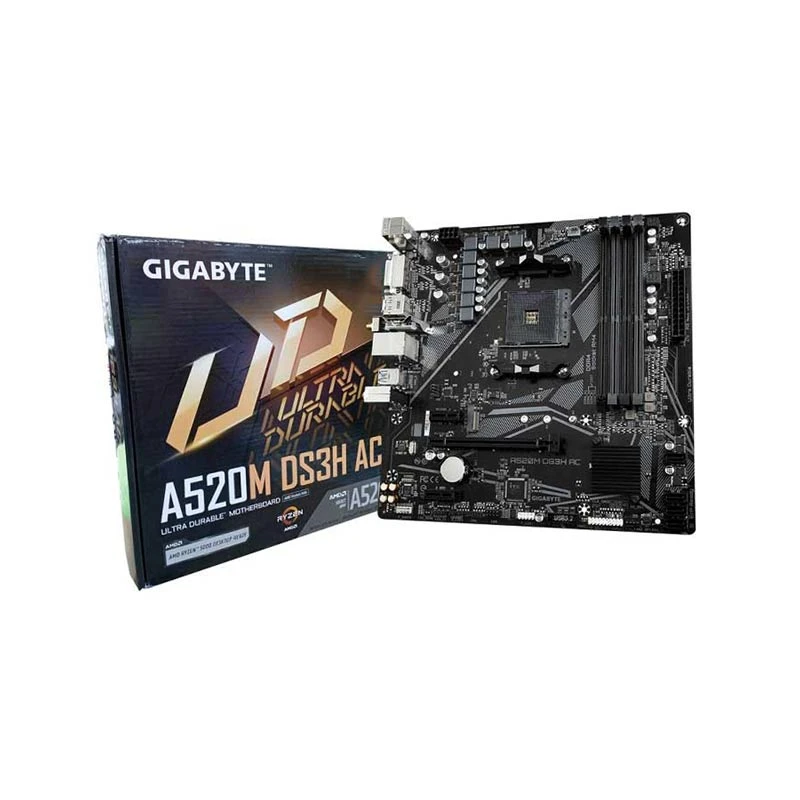

Gigabyte A520M DS3H AC (Wi-Fi 5) DDR4 AM4 Socket AMD Motherboard

Product Id: 02.02.018.466

Brand Gigabyte

Regular Price Tk 11,940 Monthly EMI Tk 995
Special Price Tk 11,000

Quick Overview

  • Chipset - AMD A520
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte A520M DS3H AC (Wi-Fi 5)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD A520

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Up to 128 GB (32 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16, 2 x PCI Express x1


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN

LAN Speed (Mbps)
10 / 100 Mbps

WiFi
Yes

WiFi Technology
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Bluetooth
Bluetooth 4.2

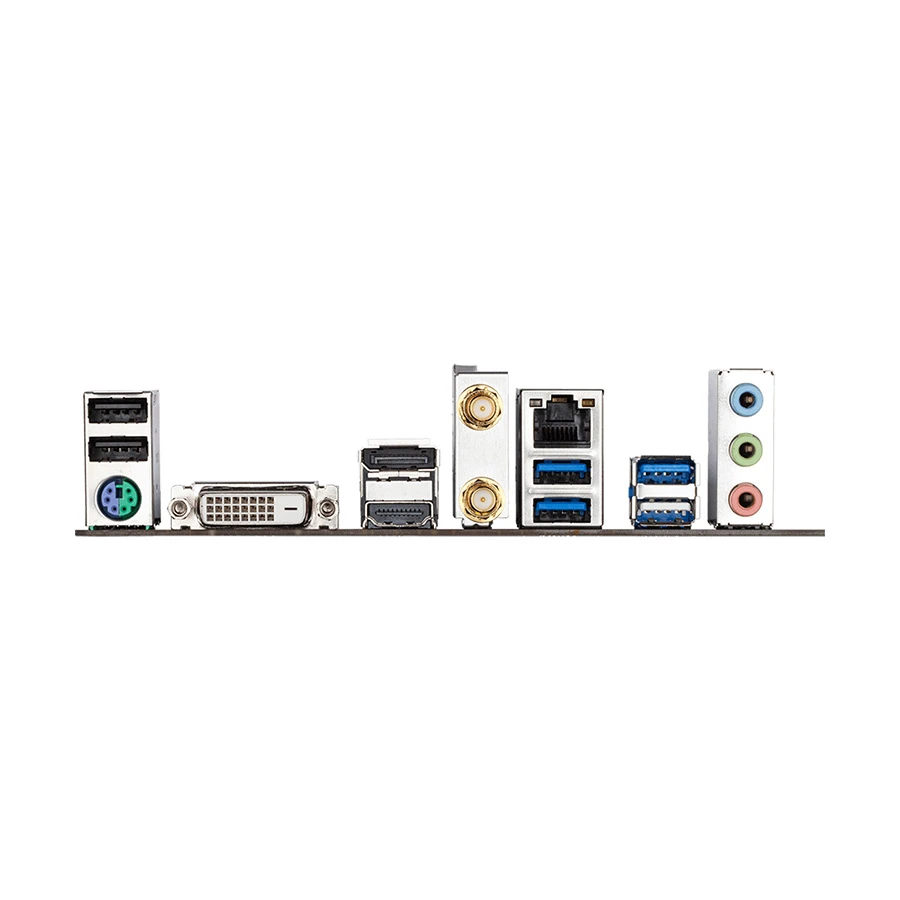

Ports
USB Port
4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, 11

Compatible Products
Ryzen 5 5500, Ryzen 5 4500, Ryzen 5 4600G Zen 2, Ryzen 5 5600G, Ryzen 5 5600X, Ryzen 5 5600G, Ryzen 5 5600X , Ryzen 5 5600


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector, Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, HDMI, DVI-D, Display Ports for Multiple Display, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card,

Others
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
intel arc a750 graphic card use kora jabe??
By Abdul Mumit
A:
প্রিয় গ্রাহক, জি! ব্যবহার করতে পারবেন, ধন্যবাদ!
By Ryans Computers Ltd. , 21 Oct 2023 03:48:52 PM
Q:
windows x86(32bit) OS support korbe?
By user
A:
প্রিয় গ্রাহক, এখন সব ৬৪ বিট ব্যবহার করা হয়, ধন্যবাদ!
By Ryans Computers Ltd. , 26 Nov 2023 03:07:38 PM
Q:
Ait te ki smart access memory ase
By Mehedi
A:
প্রিয় গ্রাহক, Gigabyte A520M DS3H AC (Wi-Fi 5) DDR4 AM4 Socket AMD Motherboard এ স্মার্ট এক্সেস মেমরি নেই, ধন্যবাদ!
By Ryans Computers Ltd. , 01 Apr 2024 03:38:11 PM
Q:
eitar sathe 5600 processor ta use korle kon gpu use kora ucit suggest me
By unkonwn
A:
প্রিয় গ্রাহক, কোনো গ্রাফিক্স কার্ড ব্যবহার করা উচিত এই ধরণের কোনো ইনফরমেশন দেওয়া সম্ভব নয়, আমাদের ওয়েবসাইট এ বিভিন্ন ব্রান্ডের বিভিন্ন মডেলের এবং বিভিন্ন প্রাইস এর গ্রাফিক্স কার্ড রয়েছে, আপনার প্রেফারেন্স অনুযায়ী সিলেক্ট করতে পারেন, ধন্যবাদ!
By Ryans Computers Ltd. , 17 Apr 2024 10:38:04 AM
Q:
Amar question chilo ai motherboard er jonno + ryzen 5 5600 g er akta pc er jonno kon power supply ta compatible hobee. Please kindly suggest korun.
By S . M. Asad
A:
প্রিয় গ্রাহক, 450W (Without Dedicated Graphics Card) এই পাওয়ার সাপ্লাই টি উপযুক্ত হবে, ধন্যবাদ!
By Ryans Computers Ltd. , 15 Apr 2023 03:53:30 PM
Q:
Not graphics card?
By Unknown
A:
Dear Sir, graphics card, built in with selective processor, thanks
By Ryans Computers Ltd. , 09 Apr 2023 05:34:57 PM
