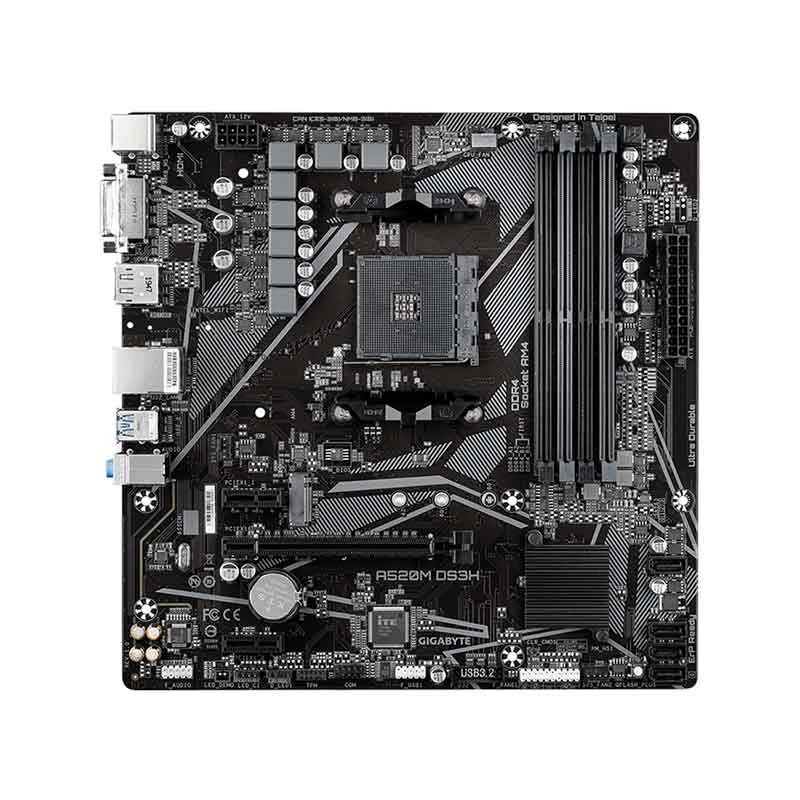

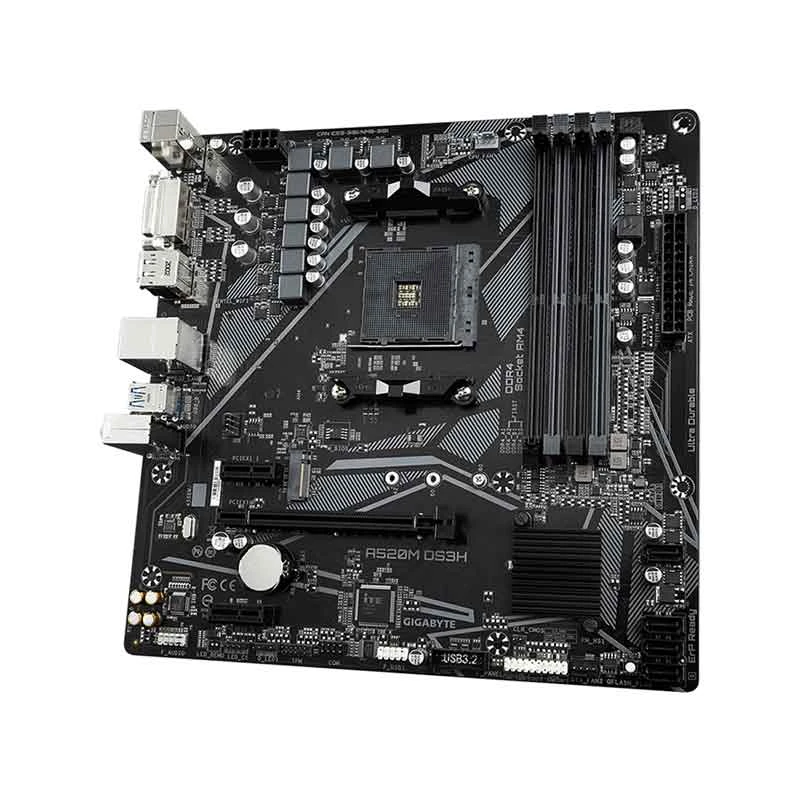

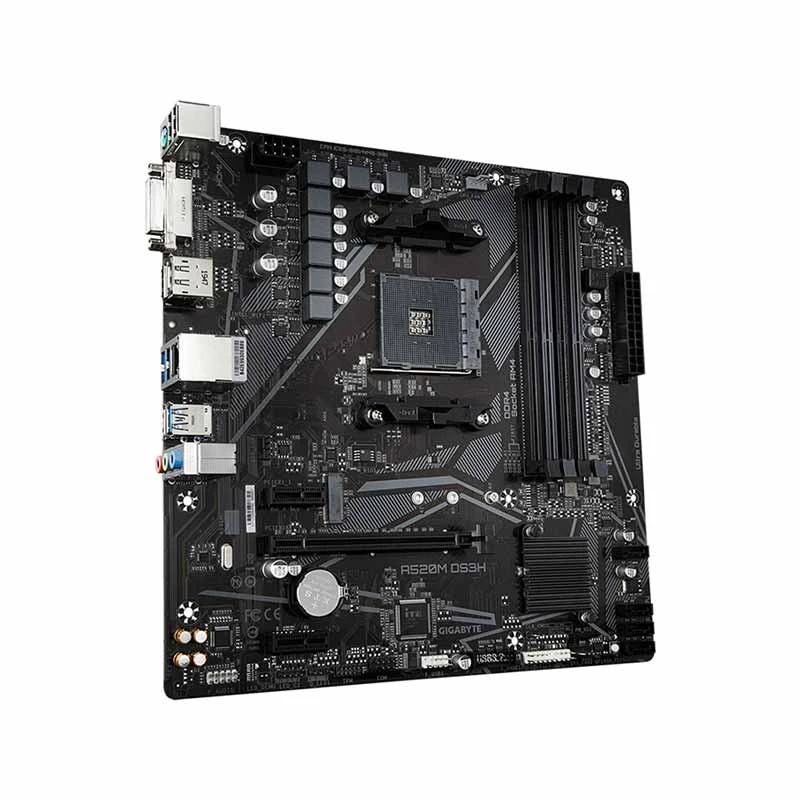

Gigabyte A520M DS3H AMD Motherboard

Item: Gigabyte A520M DS3H AMD Motherboard
Rating: 5
Author: Verified Buyer

2 reviews

Product Id: 02.02.018.336

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD A520
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen with Radeon Graphics
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte A520M DS3H

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte A520M DS3H

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen with Radeon Graphics

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz)

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (M key type 2242/2260/2280 PCIe 3.0 x4/x2)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

PCI Express Slot

1 x PCI Express x16 slot, 2 x PCI Express x1 slots

Audio & Video

Audio Chipset

Realtek ALC887 codec

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE

LAN Speed (Mbps)

100/1000

WiFi

Bluetooth

Ports

USB Port

5 x USB 3.2 Gen 1, 3 x USB 2.0

VGA Port

DVI Port

HDMI Port

IDE Port

SATA Port

Thunderbolt

TPM Port

Yes

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

RGB FUSION 2.0

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10, 11

Compatible Products

Ryzen 5000/ 5000 G-Series/ 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors

Warranty

3 year

Additional Info

Feature

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Supports 3rd Gen AMD Ryzen Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector, GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management, HDMI, DVI-D, Display Ports for Multiple Display, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Others

iTE I/O Controller Chip, 1 x PS/2 keyboard/mouse port 1, 1 x DisplayPort, 1 x RJ-45 port, 3 x audio jacks, 1 x front panel header, 1 x front panel audio header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte A520M DS3H Motherboard In Bangladesh

Gigabyte A520M DS3H AMD Motherboard Motherboard in Bangladesh

Gigabyte A520M DS3H motherboard is a renowned motherboard in Bangladesh. The Gigabyte A520M DS3H AMD Motherboard is an AMD mainboard. The motherboard used an AMD A520 chipset. AM4 Sockets Supported. In this motherboard, you can use an AMD Ryzen 5000 Series/ 3rd Generation AMD Ryzen with Radeon Graphics. The Gigabyte A520M DS3H mainboard has a Dual memory channel and 4 memory slot. It supports DDR4 AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz) ram. Maximum ram supports 128GB. Also, you can use1 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Gigabyte A520M DS3H AMD Motherboard comes with Integrated AMD Radeon Graphics PCI Express Slot are One PCI Express x16 slot, Two PCI Express x1 slots. The here audio chipset used Realtek ALC887 codec. Audio Channel available are2/4/5.1/7.1,, so you can enjoy crystal clear sound. For Network and Connectivity purposes the Gigabyte motherboard offers Realtek GbE lan chipset and it’s speeds 100/1000. USB port available Five USB 3.2 Gen 1, Three USB 2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Micro ATX motherboard. Yesit’s a RGB support motherboard, also you can 1 x RGB LED strip header RGB connector. The Gigabyte A520M DS3H AMD Motherboard supported operating system is Windows 10. You will get a 3 year brand warranty.

What is the Gigabyte A520M DS3H motherboard Price in Bangladesh?

The Gigabyte A520M DS3H motherboard Price in Bangladesh is given upper. Ryans computers offer Gigabyte A520M DS3H AMD Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Gigabyte A520M DS3H Motherboard In Bangladesh?

The price of Gigabyte A520M DS3H Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte A520M DS3H Motherboard from our website or visit our showrooms nearby.
