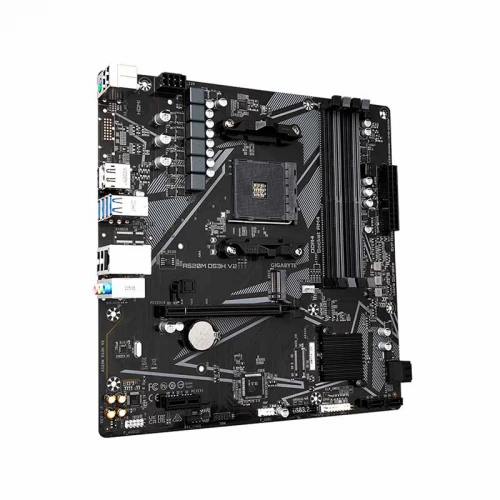

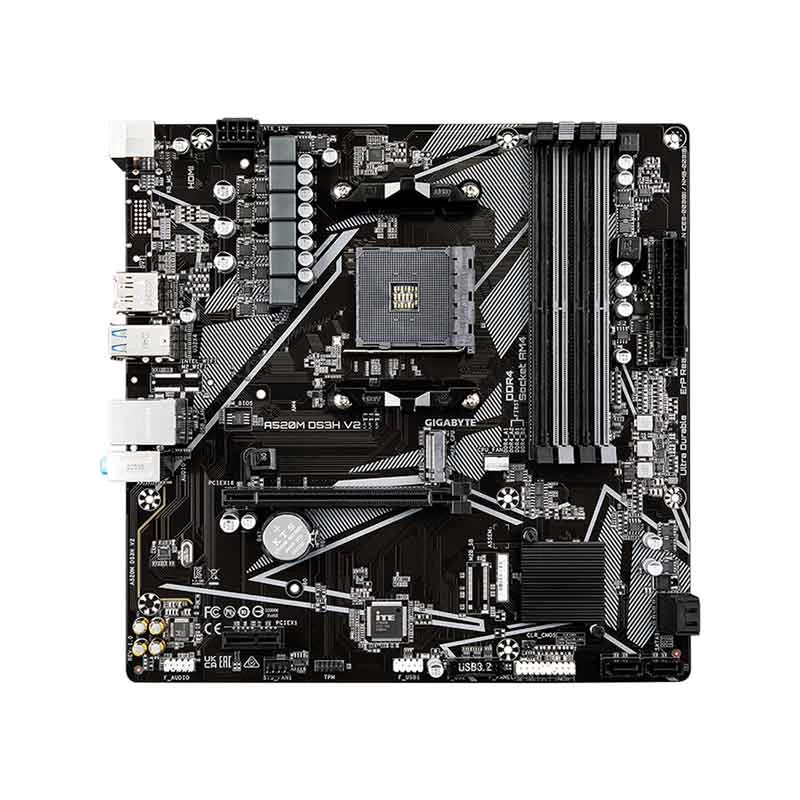

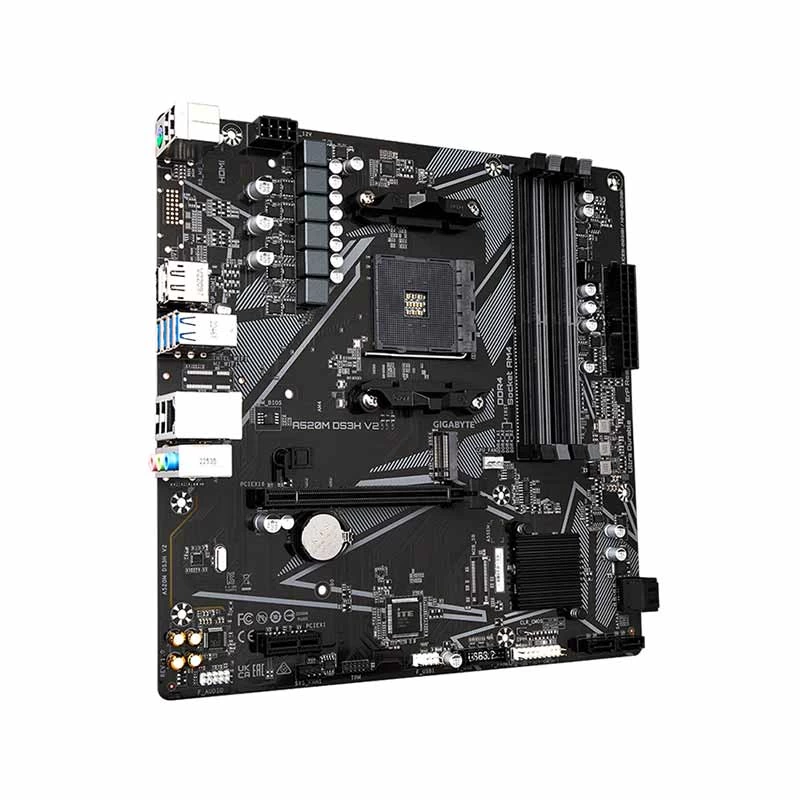

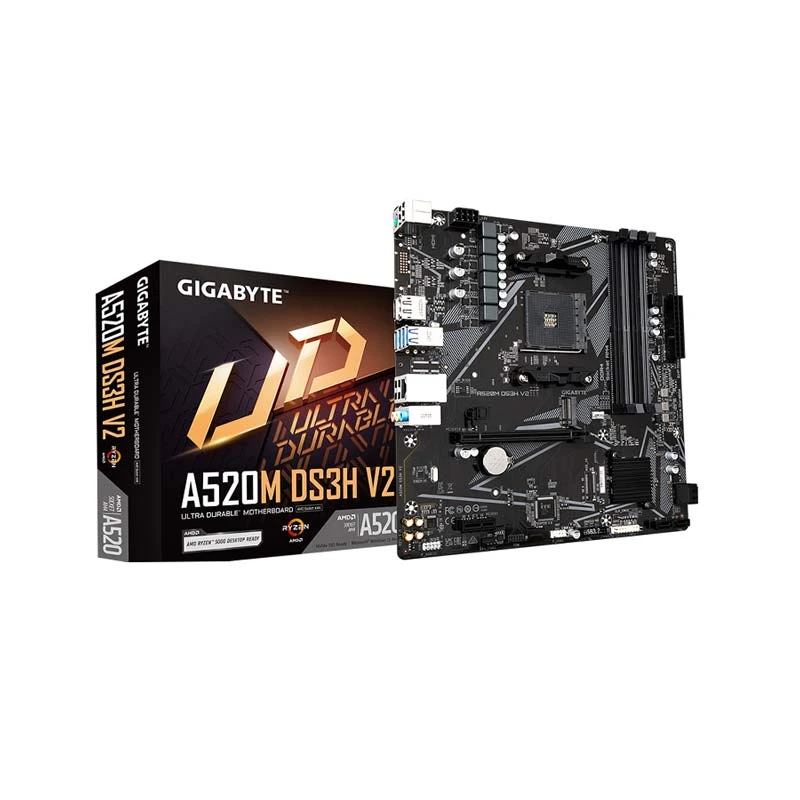

Gigabyte A520M DS3H V2 DDR4 AMD Motherboard

Product Id: 02.02.018.494

Brand Gigabyte

Regular Price Tk 10,850 Monthly EMI Tk 904
Special Price Tk 10,000

Quick Overview

  • Chipset - AMD A520
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - Support for AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte A520M DS3H V2

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD A520

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
Support for AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4733(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C)/ 3400(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz ECC, non-ECC & Un-buffered memory.

Memory Channel
2

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 slots M key type 2280 Supporting SATA and PCIe 3.0 x4/x2 SSDs


Graphics
Graphics
Integrated

Graphics Chipset
Integrated Graphics Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, Supporting PCIe 3.0 x16 mode, 1 x PCI Express x1 slot, Supporting PCIe 3.0 x1 mode


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip

LAN Speed (Mbps)
0/100/1000Mbps

WiFi
No

Bluetooth
No

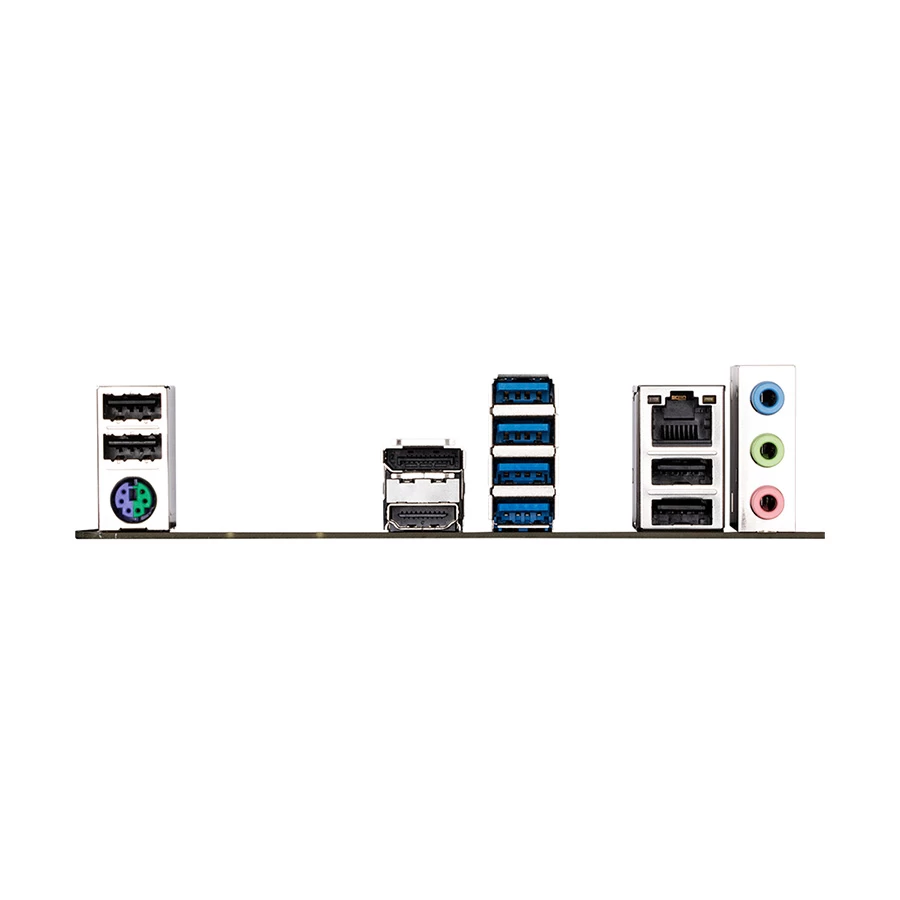

Ports
USB Port
4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0/1.1 Type-A

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with AM4 Socket AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Others
Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper), Back Panel Connectors: (1 x PS/2 keyboard/mouse port 1 x RJ-45 port 3 x audio jacks)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details
