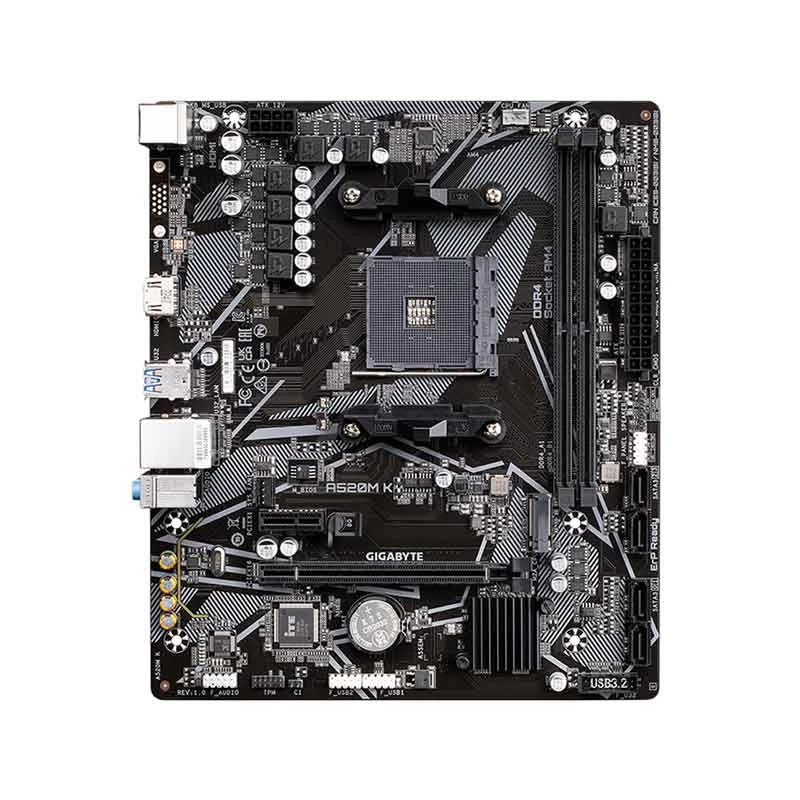

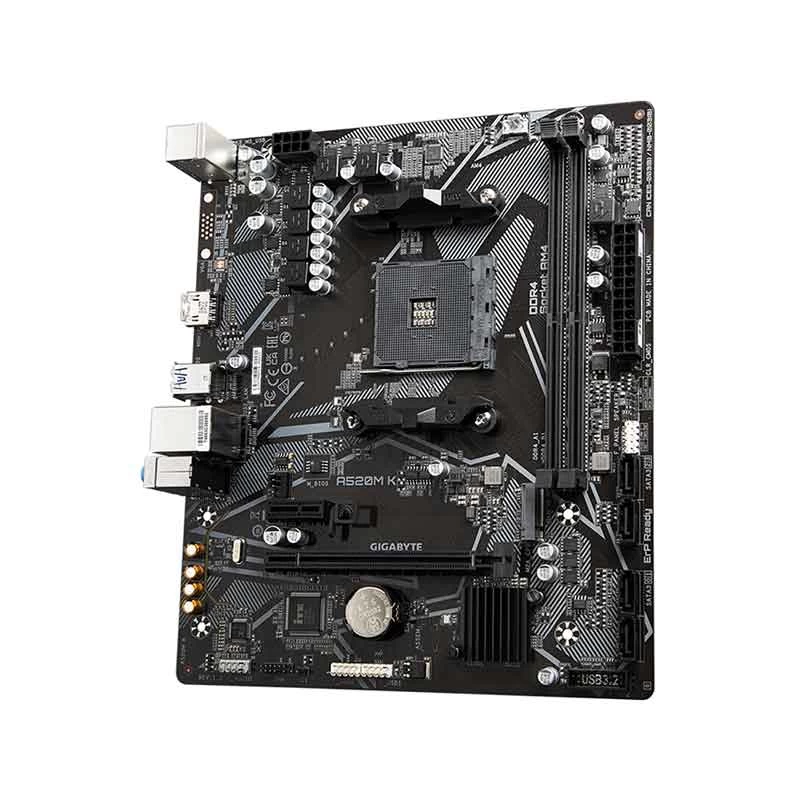

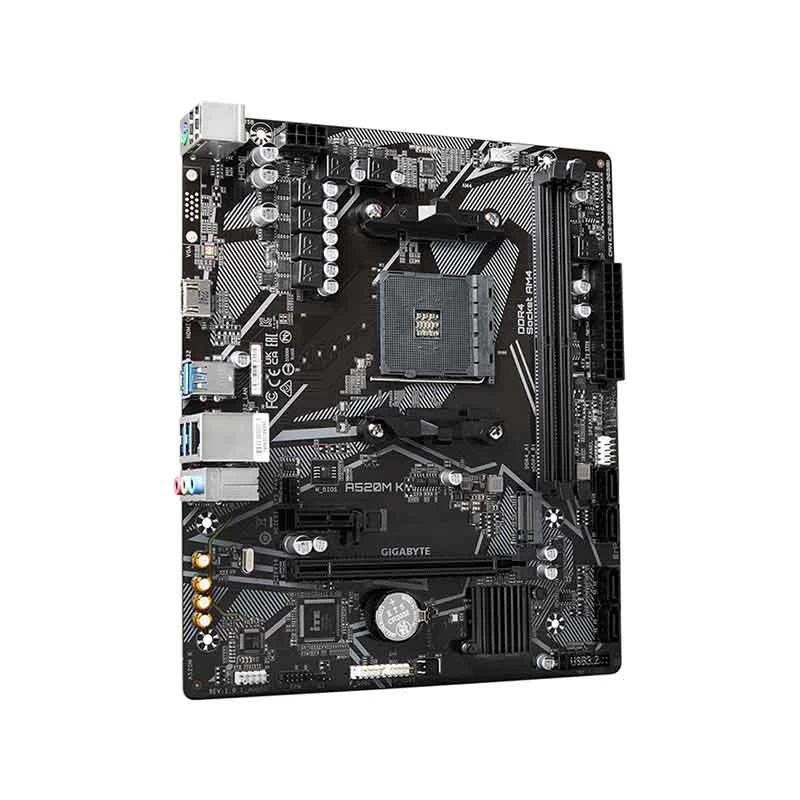

Gigabyte A520M K DDR4 AM4 Socket AMD Motherboard

Item: Gigabyte A520M K DDR4 AM4 Socket AMD Motherboard
Rating: 5
Author: Verified Buyer

3 reviews

Product Id: 02.02.018.470

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD A520
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte A520M K

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte A520M K

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD A520

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

5100(O.C.)/ 4800(O.C.)/ 4600(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C)/ 3400(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133MHz memory modules

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCI Express x 16 (supporting PCIe 3.0 and running at x16), 1 x PCI Express x 1 (supporting PCIe 3.0 and running at x1)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN

LAN Speed (Mbps)

10/ 100/ 1000Mbps

WiFi

Bluetooth

Ports

USB Port

4 x USB 3.2 Gen 1, 2 x USB 2.0/1.1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10, 11

Compatible Products

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series

Warranty

3 year

Additional Info

Feature

H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Unique Features: Support for APP Center, Support for Q-Flash, Support for Xpress Install

Others

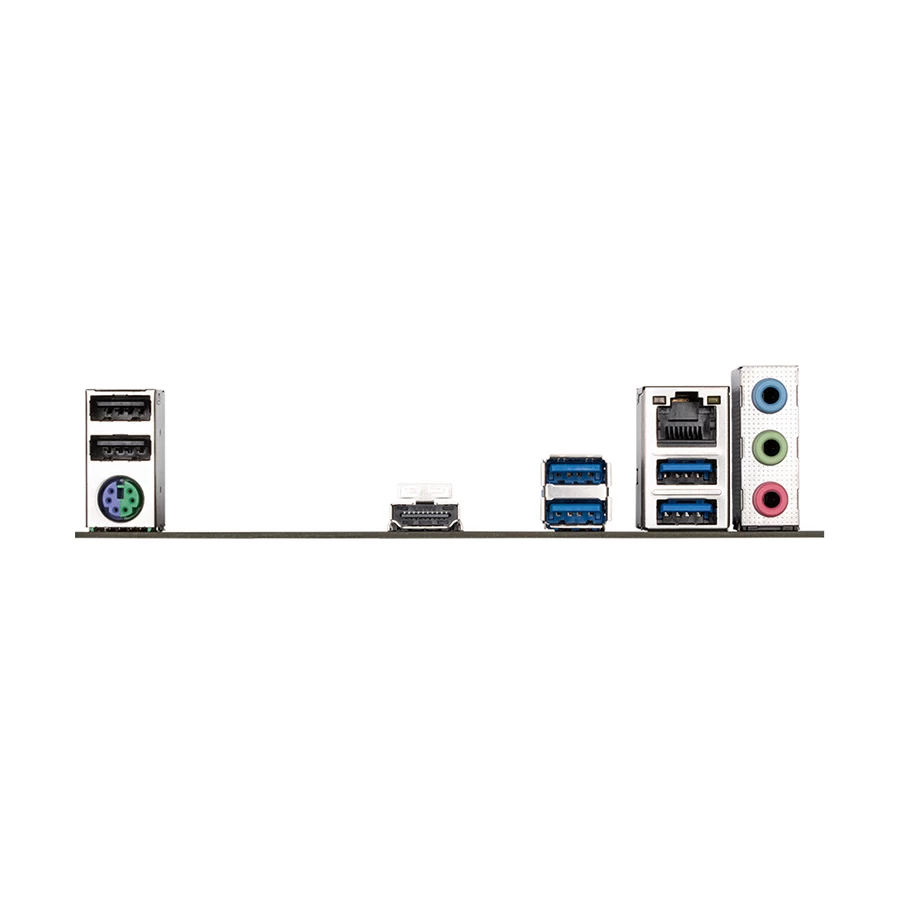

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x speaker header, 1 x Clear CMOS jumper, 1 x chassis intrusion header, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port, 3 x audio jacks

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte A520M K Motherboard In Bangladesh

AMD A520 Ultra Durable Motherboard with GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors Design

Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
GbE LAN with Bandwidth Management
8-Channel HD Audio with High Quality Audio Capacitors
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use

CONNECTIVITY

NVMe PCIe Gen 3x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

*Actual support may vary by CPU.

GbE LAN with Bandwidth Management

GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

COOLING

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Connectors

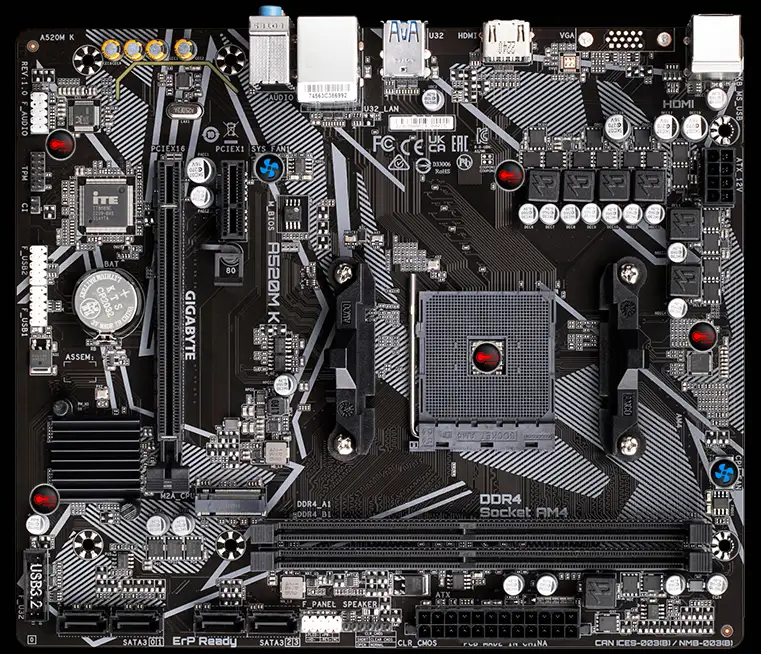

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Hybrid Fan Headers

■ 5 Temperature Sensors
■ 2 Fan Pin Headers
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control

Smart Fan 5 Software

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
