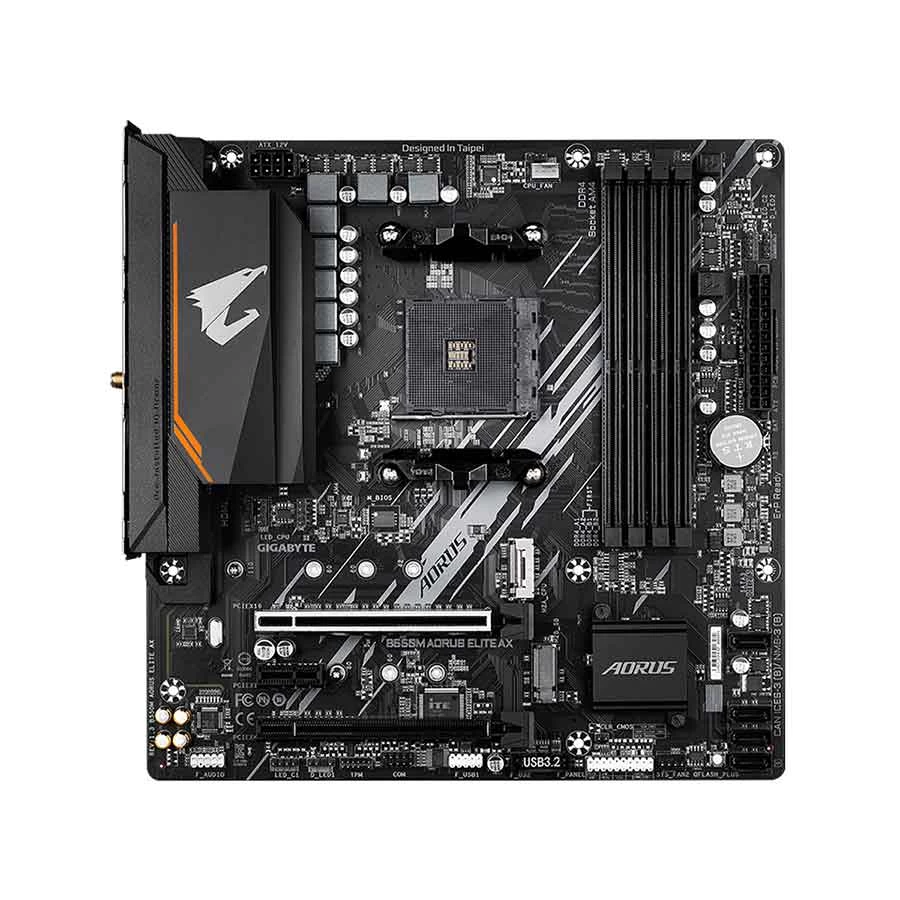

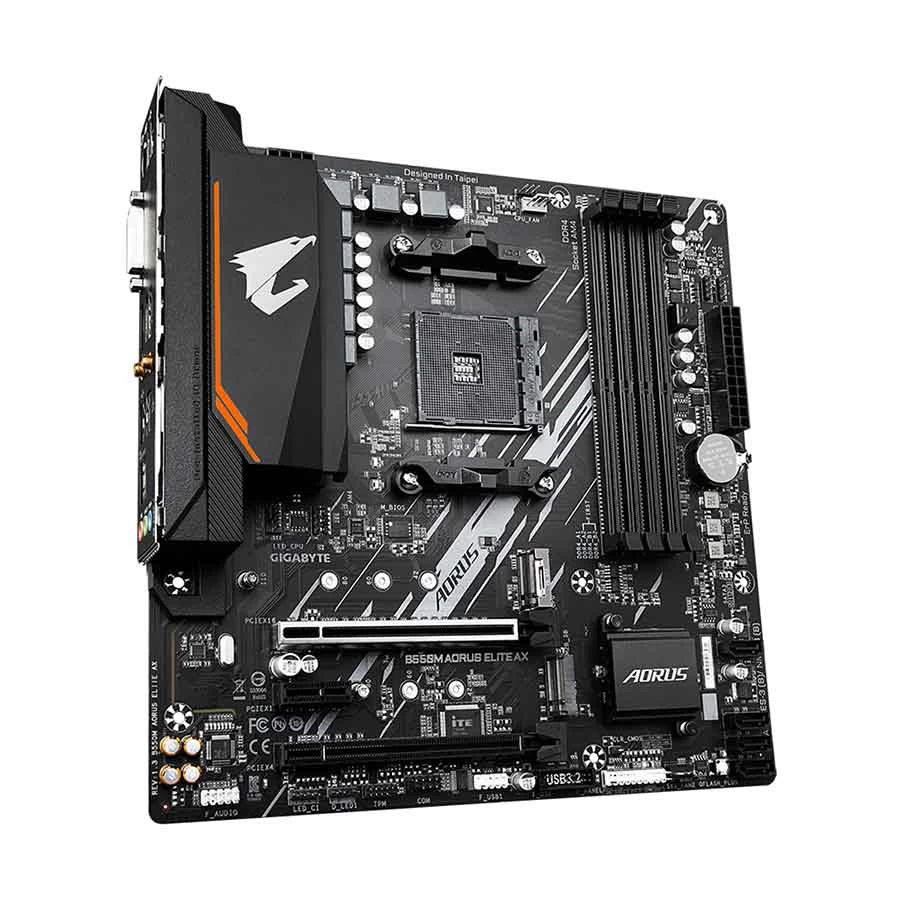

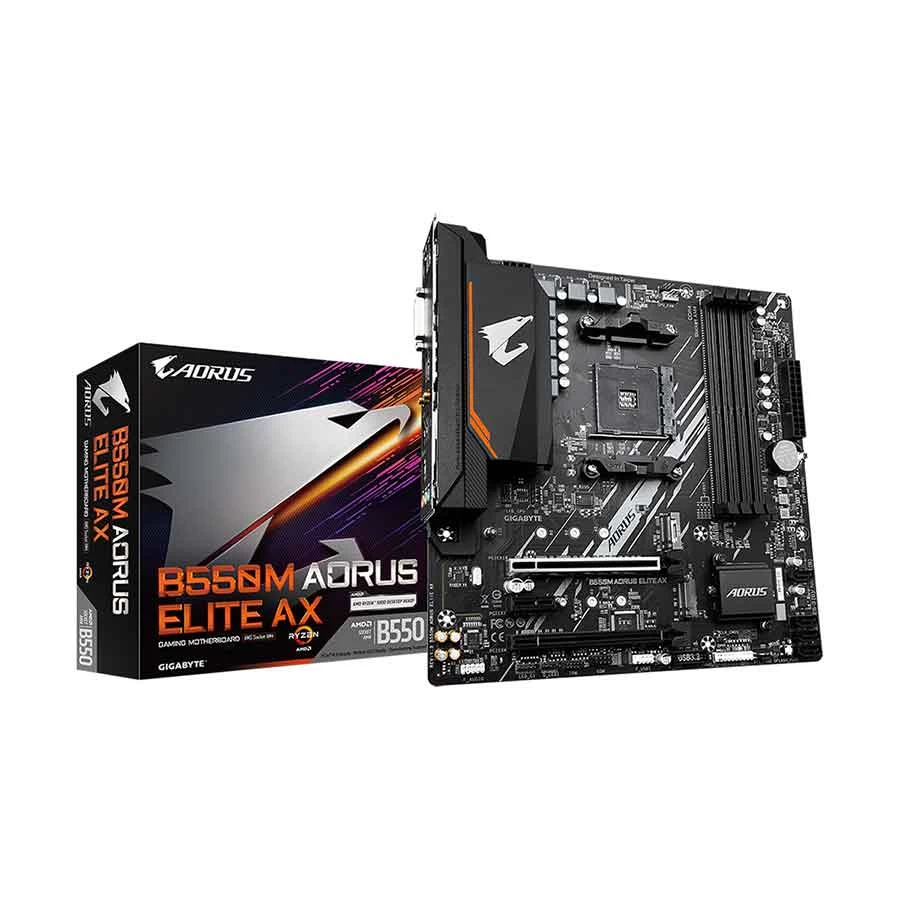

Gigabyte B550M AORUS ELITE AX (Wi-Fi 6E) DDR4 AMD Gaming Motherboard

Product Id: 02.02.018.496

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B550M AORUS ELITE AX

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz ECC, non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4

Memory Max.
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 connector(M2A_CPU), M key, type 2242/2260/2280/22110 SSDs, 1 x M.2 connector (M2B_SB), M key, type 2242/2260/2280 SSDs.


Graphics
Graphics
Integrated

Graphics Chipset
Integrated with Processor

PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX4), 1 x PCI Express x1 slot (PCIEX1)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip (1 Gbps/100 Mbps)

LAN Speed (Mbps)
0/100/1000Mbps

WiFi
Yes

WiFi Technology
Realtek Wi-Fi 6E RTL8852CE

Bluetooth
BLUETOOTH 5.3


Ports
USB Port
4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4

Thunderbolt
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0 , 1 , 10

RGB Support
RGB

RGB Sync
RGB FUSION 2.0

RGB Connector
2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11 64-bit

Compatible Products
AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra Durable PCIe 4.0 Ready x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, Realtek GbE LAN with Bandwidth Management, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.

Others
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands. Internal I/O Connectors - 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x CPU cooler LED strip/RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only), 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. Back Panel Connectors - 1 x PS/2 keyboard/mouse port, 1 x DVI-D port, 1 x HDMI port, 2 x SMA antenna connectors (2T2R), 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks. I/O Controller - iTE I/O Controller Chip.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
