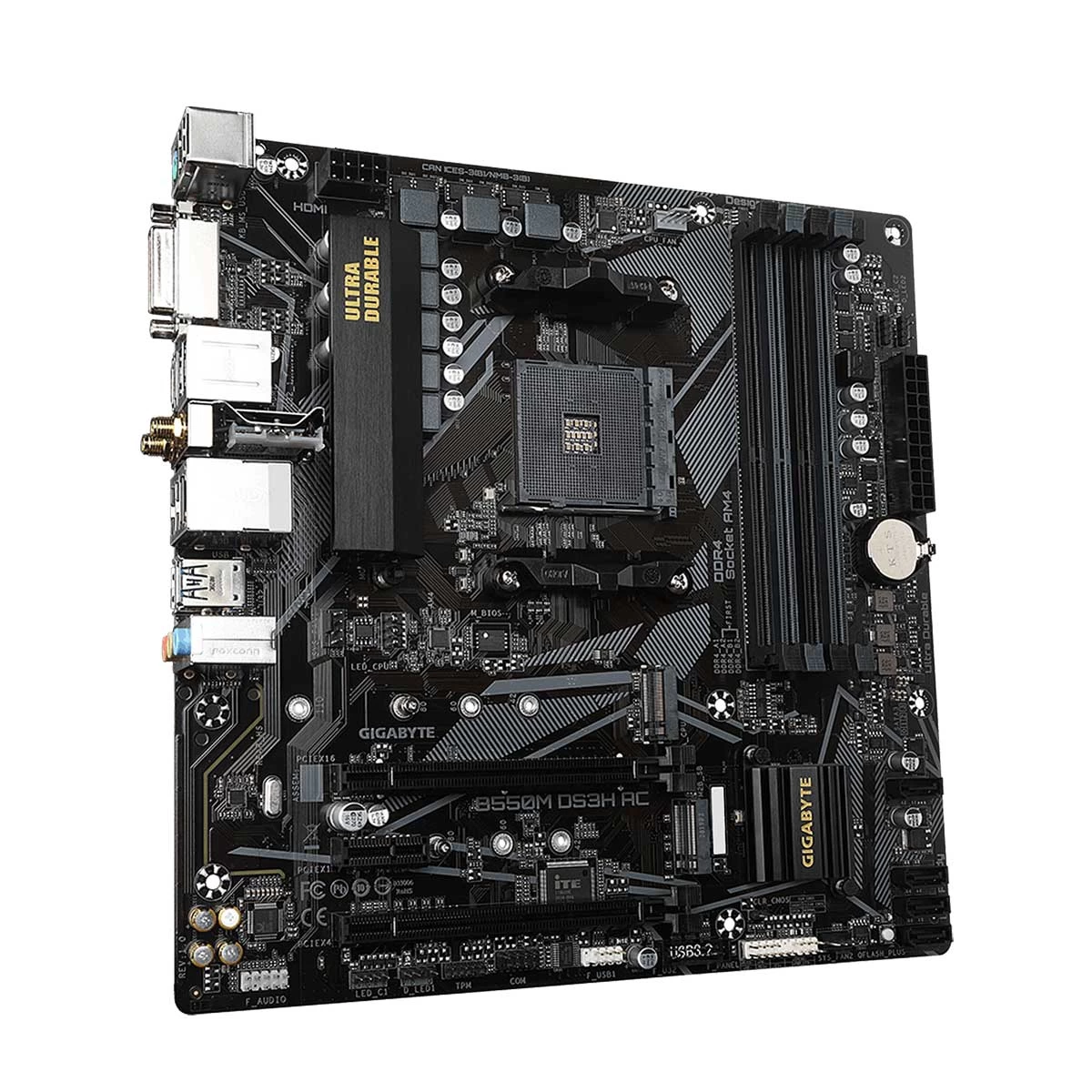

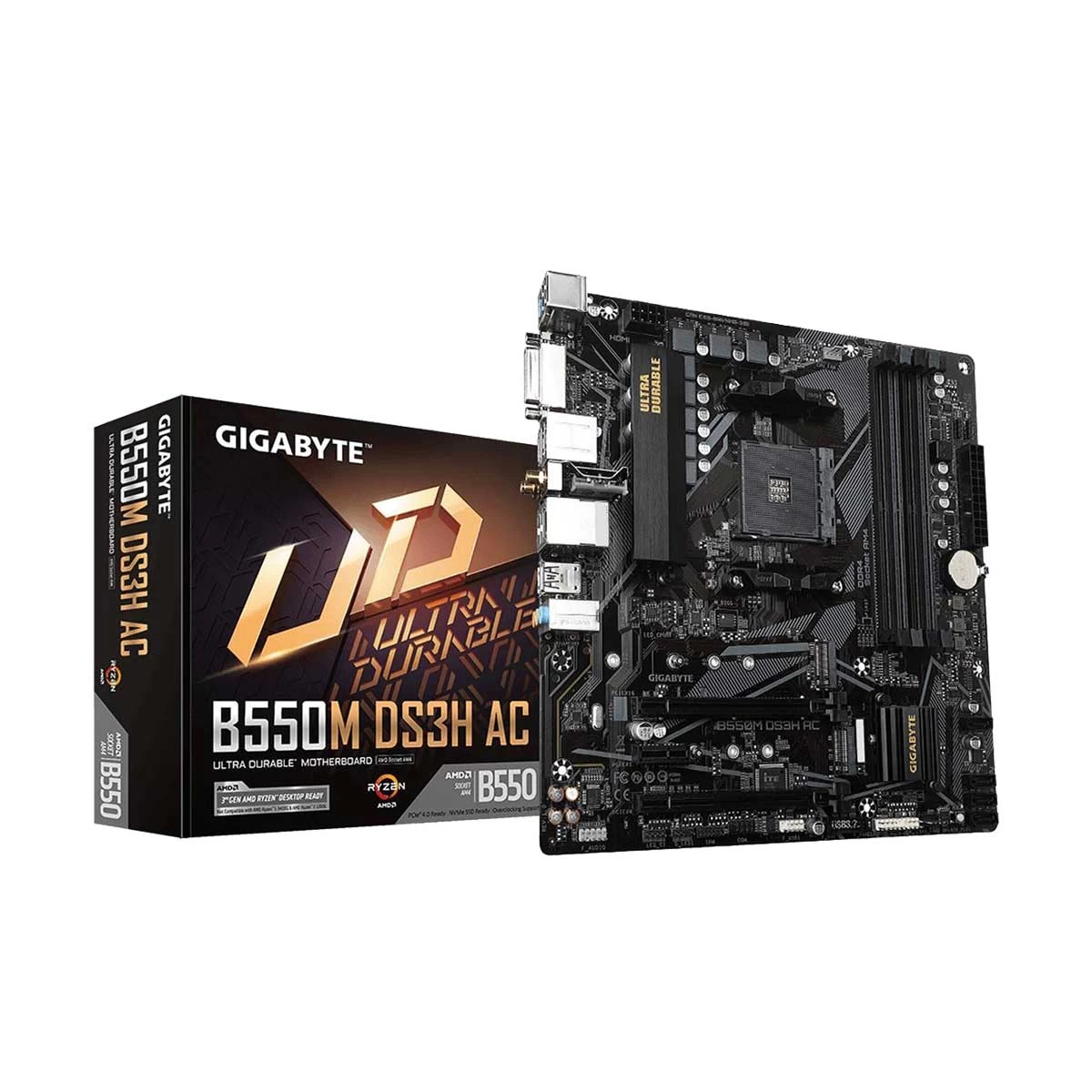

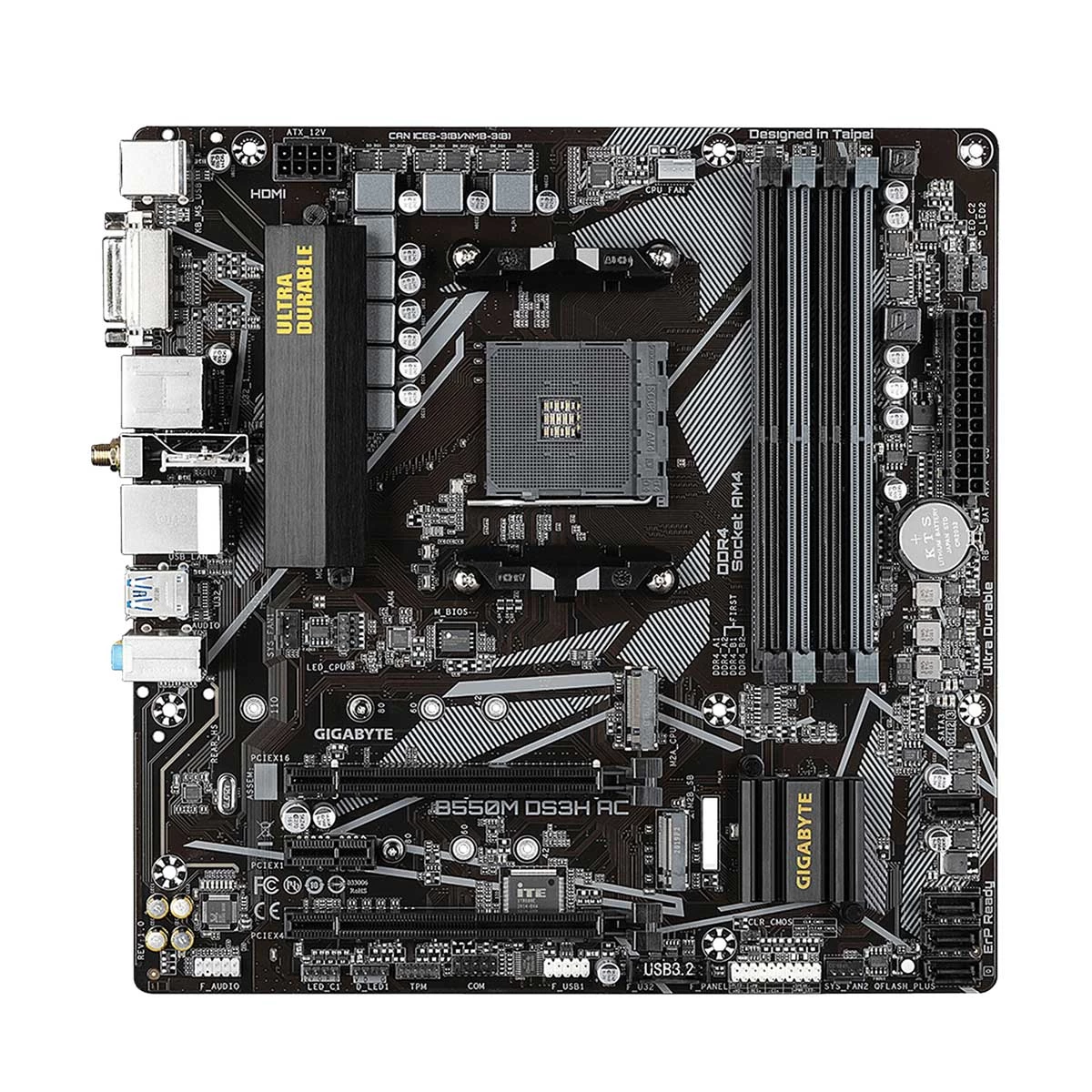

Gigabyte B550M DS3H AC Wi-Fi DDR4 AMD AM4 Socket Motherboard

Product Id: 02.02.018.345

Brand Gigabyte

Regular Price Tk 15,300 Monthly EMI Tk 1,275
Special Price Tk 14,200

Quick Overview

  • Chipset - AMD B550
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000 Series/ 3rd Gen Ryzen with Radeon Graphics Processors
  • Generation - Not Applicable
General
Brand
Gigabyte

Model
Gigabyte B550M DS3H AC

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B550

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000 Series/ 3rd Gen Ryzen with Radeon Graphics Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
AMD Ryzen 5000 series (4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen (4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz), AMD Ryzen 3rd Gen with Radeon Graphics (4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133MHz)

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
32 GB single DIMM capacity

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (PCIe 4.0 x4/ x2, 2242/ 2260/ 2280/ 22110 & PCIe 3.0 x4/ x2, 2242/ 2260/ 2280)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCI Express x16 (PCIE 16), 1 PCI Express x16 (PCIE 4), 1 PCI Express x1 (PCIE 1)


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN chip

LAN Speed (Mbps)
10/100/1000 Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi AC 3168 802.11a, b, g, n, ac (Dual-Band)

Bluetooth
Bluetooth 4.2


Ports
USB Port
5 x USB 3.2 Gen 1, 5 x USB 2.0

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Sync
RGB FUSION 2.0

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI EFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10

Compatible Products
Sockets Supported AM4: AMD Ryzen 5000 Series/ 3rd Gen


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, Intel Dual Band 802.11ac WIFI, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus, Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors, Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs, 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs, Ultra Durable PCIe 4.0 Ready x16 Slot, Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors, Onboard Intel Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna, High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality, GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management, Rear HDMI & DVI Support, RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips, Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card, Anti-Sulfur Resistors Design

Others
The DVI-D port does not support D-Sub connection by adapter, HDMI version: 2.1, HDCP 2.3, and HDR, 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 1 x front panel header 1 x front panel audio header, 1 x serial port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button, 1 x PS/2 keyboard/mouse port, 2 x SMA antenna connectors (1T1R), 1 x RJ-45 port, 3 x audio jacks, Rev 1.7.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
can i use Asus TUF Gaming GeForce GTX 1660 SUPER OC Edition 6GB GDDR6 Graphics Card with this motherboard?
By mufti
Q:
hii, will this motherboard support the EVGA GeForce RTX 2060 SC OC Gaming 6GB GDDR6 Graphics Card?
By rudra
A:
Dear Sir, Yes! It will support the EVGA GeForce RTX 2060 SC OC Gaming 6GB GDDR6 Graphics Card, Thanks for your query!
By Ryans Computers Ltd. , 05 Oct 2023 05:38:48 PM
Q:
Will this motherboard support Zotac Gaming GeForce RTX 3050 SOLO 8GB GDDR6 Graphics Card??
By dipti
A:
Dear Sir, Yes! It will support Zotac Gaming GeForce RTX 3050 SOLO 8GB GDDR6 Graphics Card. Thanks for your query!
By Ryans Computers Ltd. , 04 Oct 2023 04:41:57 PM
Q:
Will it support Crucial P3 Plus M.2 2280, and Samsung 980 Pro are the two?
By Computer
A:
Dear Sir, Yes! It will support - Crucial P3 Plus M.2 2280, and Samsung 980 Pro. Thanks for your query!
By Ryans Computers Ltd. , 30 May 2023 03:45:48 PM
Q:
Ei Motherboard e ki inbuilt tpm ase
By Sohan
A:
প্রিয় গ্রাহক, জি! TPM পোর্ট রয়েছে একটি, ধন্যবাদ!
By Ryans Computers Ltd. , 27 May 2023 05:19:11 PM
Q:
This board inbuild Tom?
By Rabat
A:
Dear Sir, This motherboard has a TPM header, one can insert a GC-TPM2.0_S TPM module. There is no inbuilt TPM. Thanks for your query!
By Ryans Computers Ltd. , 27 May 2023 06:34:04 PM
Q:
Windows 11 support Korbe na ki
By Rahat
A:
প্রিয় গ্রাহক, সাপোর্টেড অপারেটিং সিস্টেম উইন্ডোজ ১০, ধন্যবাদ!
By Ryans Computers Ltd. , 22 May 2023 02:29:21 PM
Q:
Bundle with PC er mane ki ektu bolben??ami PC build korbo.Bundle with PC mane ki?
By Siam
A:
প্রিয় গ্রাহক, বান্ডেল উইথ পিসি অর্থ পুরো কম্পিউটার সেট একই সাথে নিতে হয়, ধন্যবাদ!
By Ryans Computers Ltd. , 17 May 2023 02:39:04 PM
Q:
Does it support windows 11 available and NVIDIA GeForce 3060?
By FI
A:
Dear Sir, It's support Windows 10, and please share your GPU full details. Thanks for your query!
By Ryans Computers Ltd. , 02 May 2023 10:19:20 PM
Q:
Does it support Ryzen 7 5800x and windows 11
By Niloy Rudra
A:
Dear Sir, It will be support AMD Ryzen 5000 Series/ 3rd Gen Ryzen with Radeon Graphics Processors. Thanks!
By Ryans Computers Ltd. , 02 May 2023 03:27:30 PM
Your Question

REVIEW

Customer Reviews
Good product
By NAIMUL AHSAN . October, 2022
Your Review
