Gigabyte B550M H ARGB DDR4 AM4 Socket Motherboard

Item: Gigabyte B550M H ARGB DDR4 AM4 Socket Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.02.018.614

Coming Soon

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte B550M H ARGB

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10/ 11

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte B550M H ARGB

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 Slot (1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCI Express x 16 (AMD Ryzen 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode, AMD Ryzen 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode), 1 x PCI Express x 1 (PCIe 3.0 x1 mode)

Audio & Video

Audio Chipset

Realtek Audio CODEC

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB 2.0/1.1, 4 x USB 3.2 Gen 1

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

ARGB

RGB Connector

3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 10/ 11

Compatible Products

AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Processors

Warranty

3 year

Additional Info

Feature

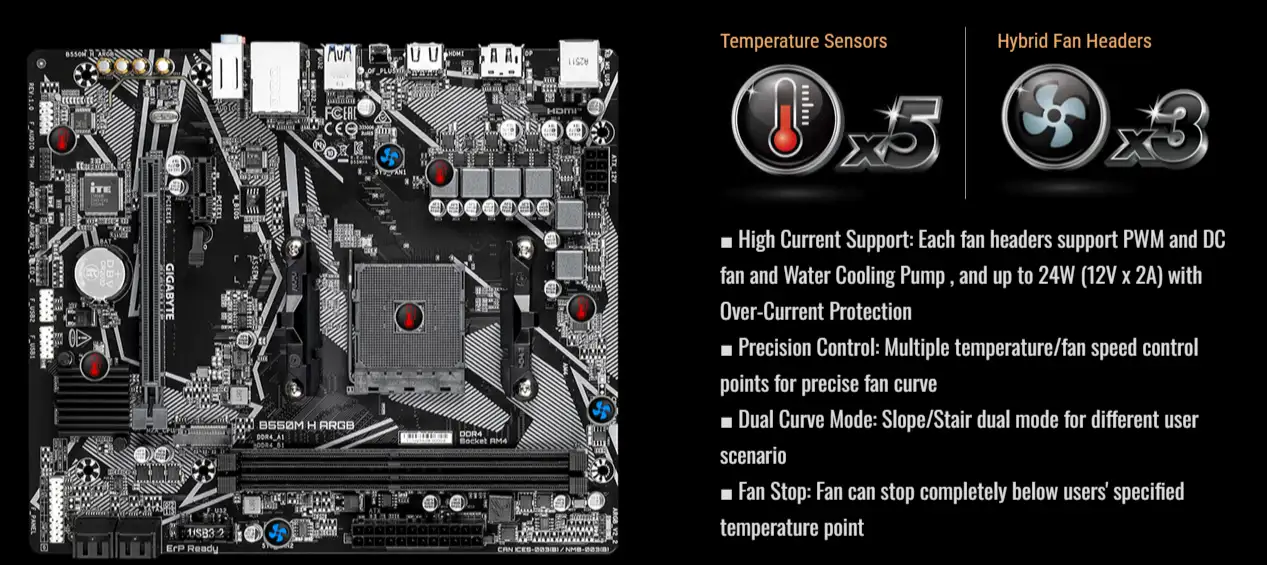

Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs, Integrated ARGB header and Q-Flash Plus button, PCIe Gen4.0 x4 M.2 with PCIe NVMe & SATA mode support, Fast Network: GbE LAN, 8-Channel HD Audio with High Quality Audio Capacitors, Rear HDMI and DisplayPort for Multi-display Support, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use

Others

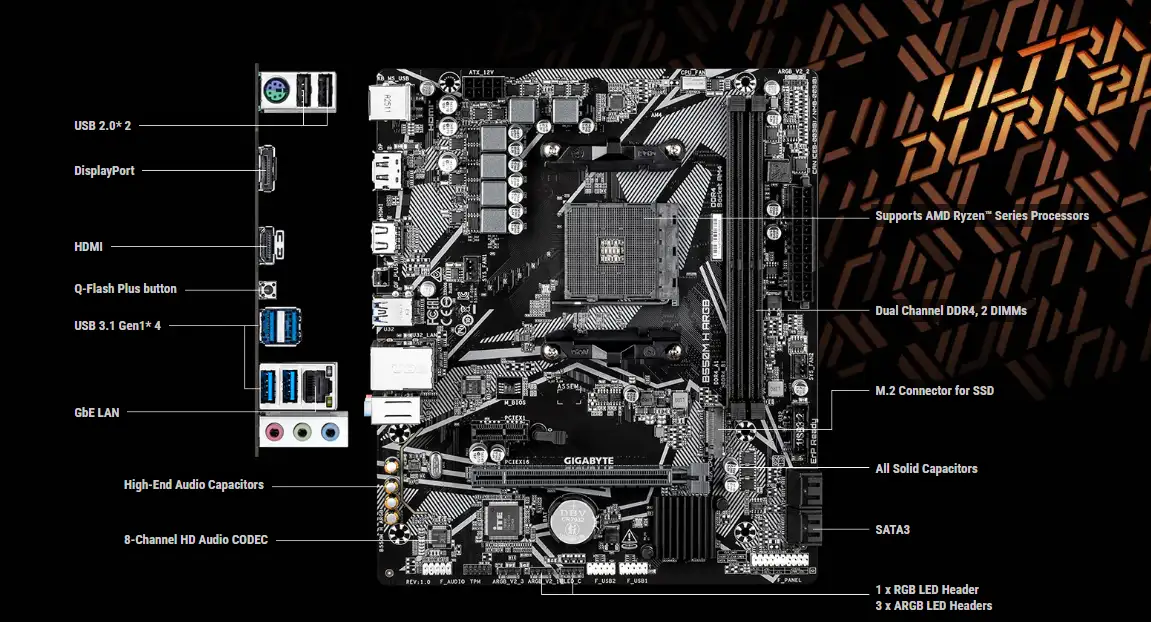

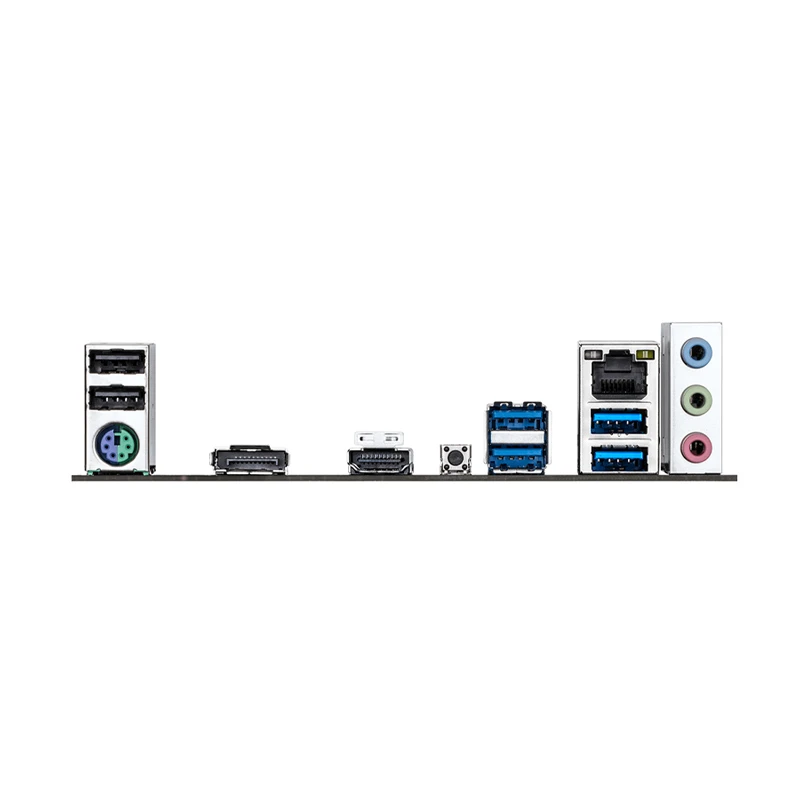

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan header, 1 x front panel header, 1 x front panel audio header, 1 x Clear CMOS jumper, Back Panel Connectors: 1 x PS/2 keyboard/mouse port, 1 x RJ-45 port,, 3 x audio jacks, 1 x Q-Flash Plus button, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Overheating warning, Fan fail warning, Fan speed control. I/O Controller: iTE I/O Controller Chip

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B550M H ARGB Motherboard In Bangladesh

What is the price of Gigabyte B550M H ARGB Motherboard In Bangladesh?

The price of Gigabyte B550M H ARGB Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte B550M H ARGB Motherboard from our website or visit our showrooms nearby.
