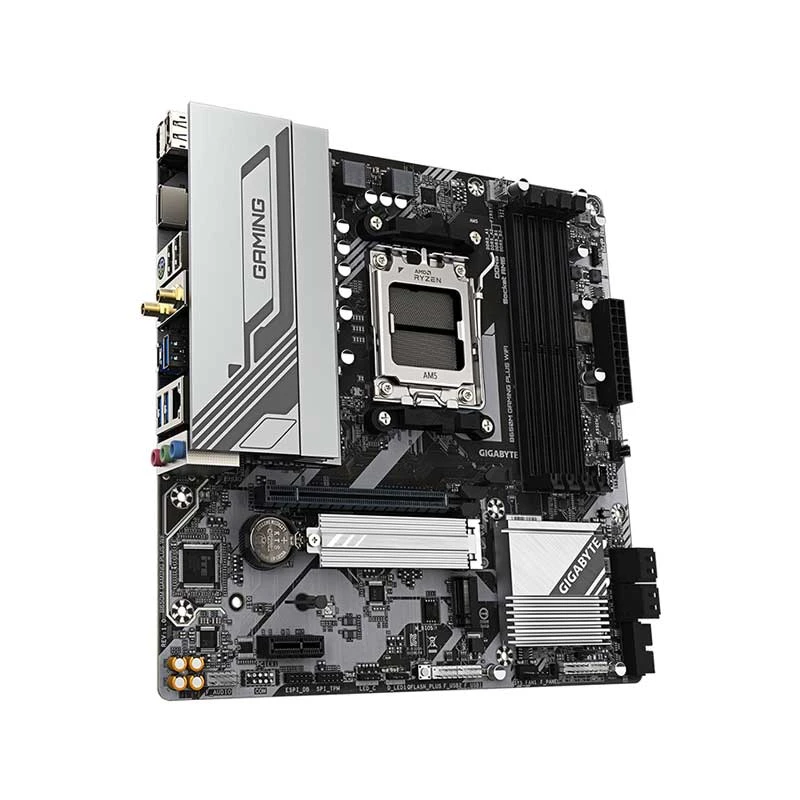

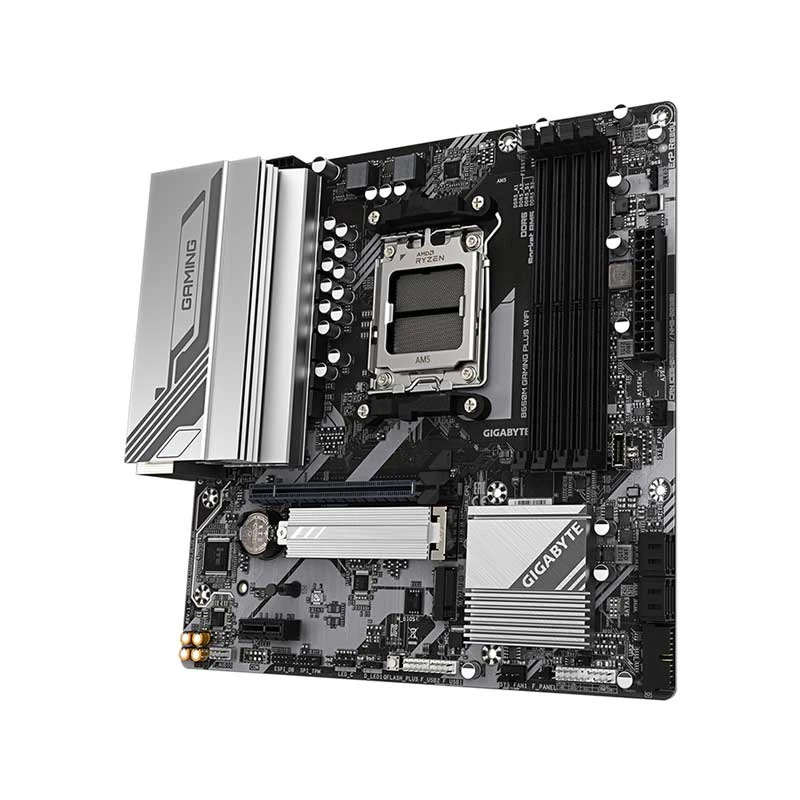

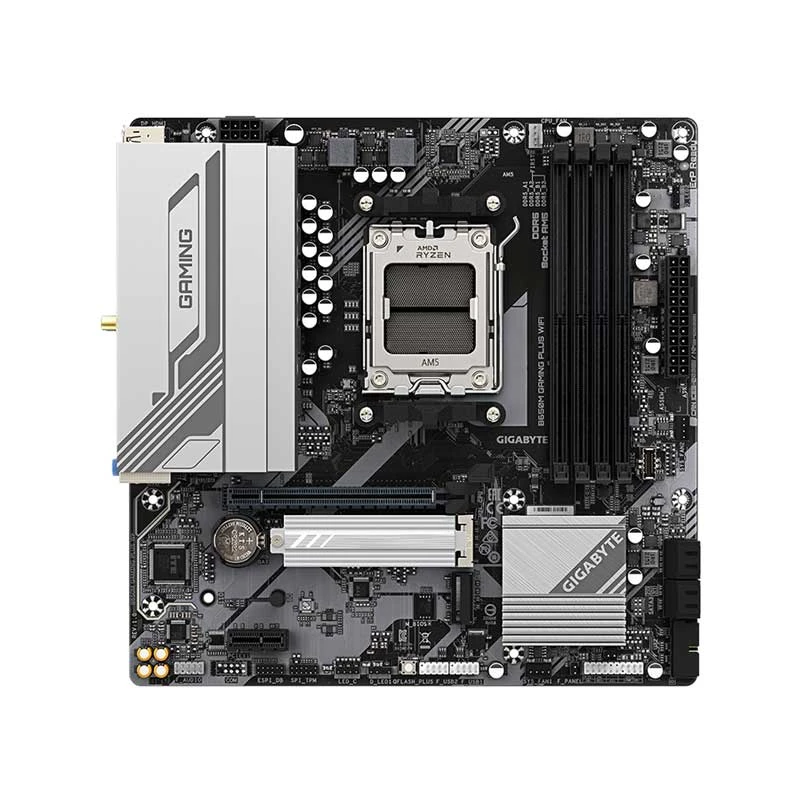

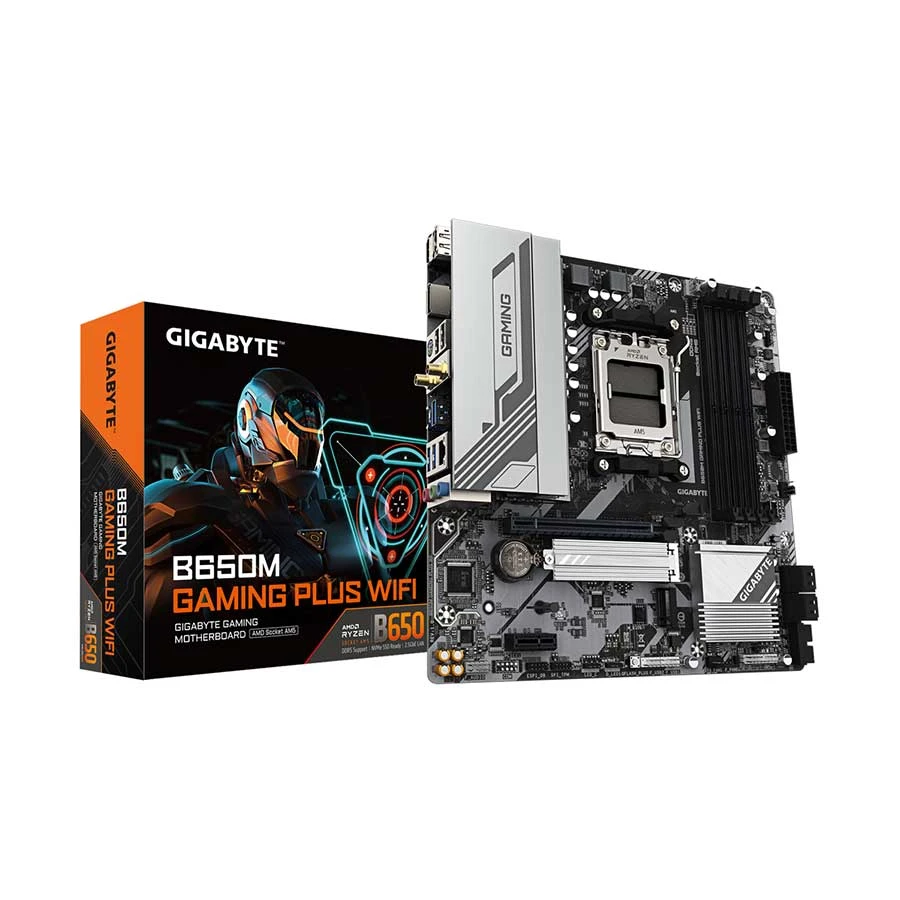

Item: Gigabyte B650M GAMING PLUS (Wi-Fi 6E) DDR5 AMD Motherboard
Rating: 5
Author: Verified Buyer

Brand

Gigabyte

Model

Gigabyte B650M GAMING PLUS (Wi-Fi 6E)

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

Micro-ATX

Supported Operating System

Windows 11, Windows 10

Body Color

Black & Silver

Warranty Details

3 year

General

Brand

Gigabyte

Model

Gigabyte B650M GAMING PLUS (Wi-Fi 6E)

Body Color

Black & Silver

CPU

Chipset Brand

AMD

Chipset

AMD B650

Sockets Supported

AM5

Built-in Processor

Supported CPU

AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR5

Memory MHz

7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/4800/4400 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel

Dual

Memory Slot

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

2 x M.2 ((1 x M.2, supporting Socket 3, M key, type 2580 SSDs), (1 x M.2, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs))

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

AMD Radeon Graphics support

Multi-GPU Support

PCI Express Slot

1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x1 slot

Audio & Video

Audio Chipset

Realtek Audio CODEC, High Definition Audio

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek 2.5GbE LAN chip

LAN Speed (Mbps)

100/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 6E RTL8852CE

Bluetooth

Bluetooth 5.3

Ports

USB Port

1 x USB Type-C port, with USB 3.2 Gen 1 support, 3 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports,

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

RGB

RGB Sync

RGB FUSION

RGB Connector

1 x RGB LED strip header

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 256 Mbit flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 11, Windows 10

Compatible Products

AMD Socket AM5, AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors

Warranty

Warranty Details

3 year

Additional Info

Feature

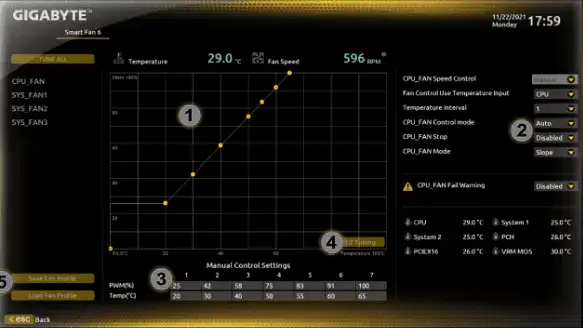

AMD Socket AM5: Supports AMD Ryzen 7000 Series/ Ryzen 8000/ Ryzen 9000 Series Processors, Unparalleled Performance: 5+2+2 Phases Digital VRM Solution, Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support, SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector, EZ-Latch: PCIe x16 Slot with Quick Release Design, Fast Networks: Wi-Fi 802.11ax & 2.5GbE LAN, Extended Connectivity: 2 x DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Others

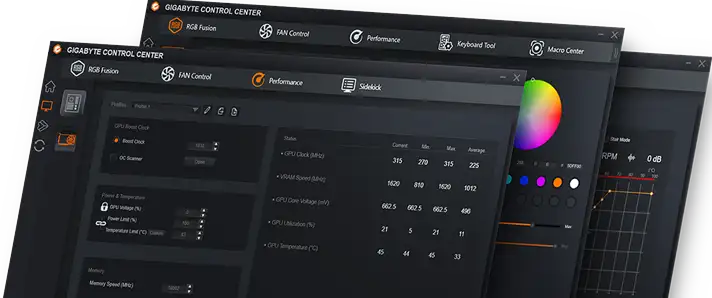

Internal I/O Connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 2 x addressable LED strip headers, 1 x RGB LED strip header, 2 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper, H/W Monitoring: Voltage detection, Temperature detection, Fan speed detection, Fan fail warning, Fan speed control, Unique Features: Support for GIGABYTE Control Center (GCC), Support for Q-Flash, Support for Q-Flash Plus

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte B650M GAMING PLUS (Wi-Fi 6E) Motherboard In Bangladesh

Gigabyte B650M GAMING PLUS (Wi-Fi 6E) DDR5 AMD Motherboard: A Deep Dive

The Gigabyte B650M GAMING PLUS (Wi-Fi 6E) DDR5 is a well-rounded motherboard that offers a compelling combination of performance, features, and value. If you're looking to build a powerful and capable AMD-based system, this board deserves serious consideration. This board offers a compelling balance of performance, features, and affordability, making it a strong contender for gamers and enthusiasts.

Key Specifications

Chipset: AMD B650
Sockets Supported: AM5
Supported CPU: AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
Memory Slots: 4
Memory Max: 256GB
Graphics Chipset: AMD Radeon Graphics support
M.2/SSD Expansion Slots: 2
WiFi: Yes (Wi-Fi 6E)
Bluetooth: Bluetooth 5.3
Form Factor: Micro-ATX
Supported Operating System: Windows 11, Windows 10
Body Color: Black & Silver

What Makes it Special?

This Gigabyte motherboard boasts several features that set it apart:

Robust VRM: The B650M GAMING PLUS utilizes a solid VRM (Voltage Regulator Module) to ensure stable power delivery to demanding CPUs.
Fast Connectivity: Wi-Fi 6E provides blazing-fast wireless speeds, while Bluetooth 5.3 offers a stable and low-latency connection for peripherals.
Efficient Cooling: The board incorporates effective heatsinks and fans to maintain optimal temperatures for both the CPU and chipset.

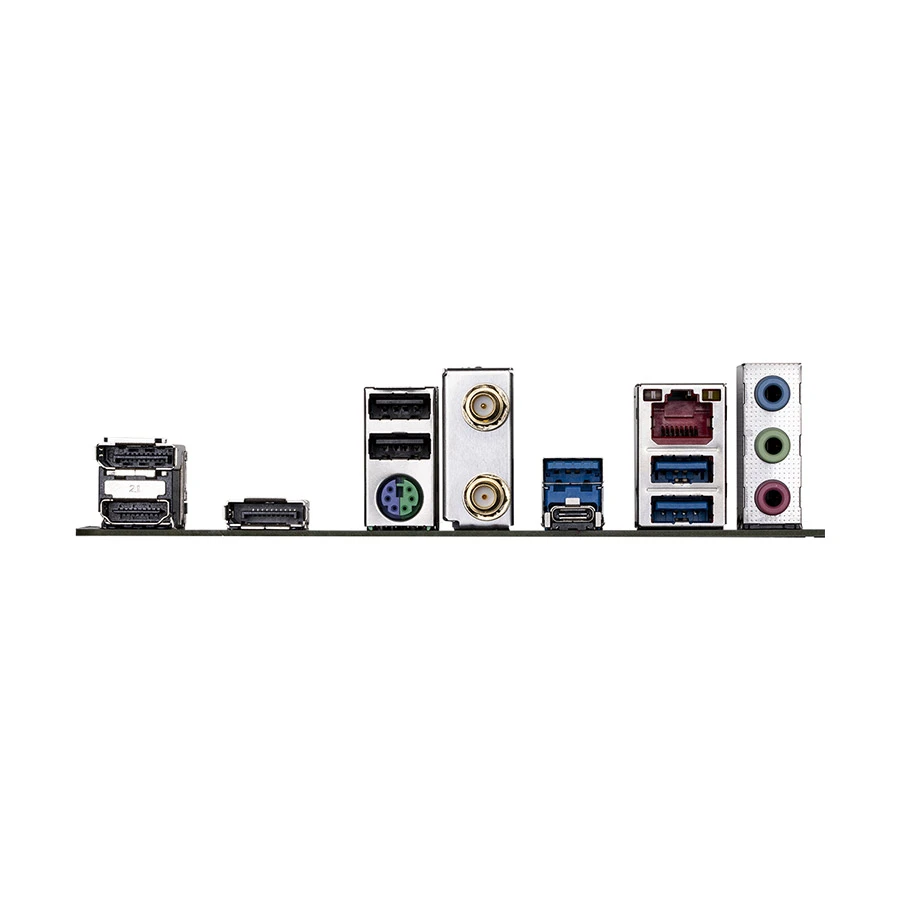

Extensive I/O: The B650M GAMING PLUS offers a comprehensive selection of ports, including USB 3.2 Gen 2x2, HDMI, DisplayPort, and ample audio connectors.
RGB Fusion 2.0: Customize the aesthetics of your build with Gigabyte's RGB Fusion 2.0 software, allowing you to control the lighting effects of compatible components.

Who Should Buy an B650M GAMING PLUS?

This motherboard is an excellent choice for:

Gamers: The robust VRM, fast connectivity, and efficient cooling make it ideal for gaming rigs that demand high performance.
Enthusiasts: Those who prioritize performance and features will appreciate the B650M GAMING PLUS's capabilities.
Budget-conscious builders: While offering a solid feature set, the B650M GAMING PLUS remains competitively priced, making it an attractive option for those on a budget.
PC builders seeking a balance of performance and value: This motherboard strikes a great balance between features, performance, and affordability.

What is the price of Gigabyte B650M GAMING PLUS (Wi-Fi 6E) Motherboard In Bangladesh?

The price of Gigabyte B650M GAMING PLUS (Wi-Fi 6E) Motherboard starts from 20,900 . The price may vary due to your customization and product availability. You can buy Gigabyte B650M GAMING PLUS (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

এটা কি Pcie gen5 *16 সাপোর্টেড?

Asked By Sanjoy

প্রিয় গ্রাহক,
না, M.2/SSD Up to Gen 4 সাপোর্টেড |
ধন্যবাদ

Answered By Ryans Computers Ltd. , 12 Dec 2025
