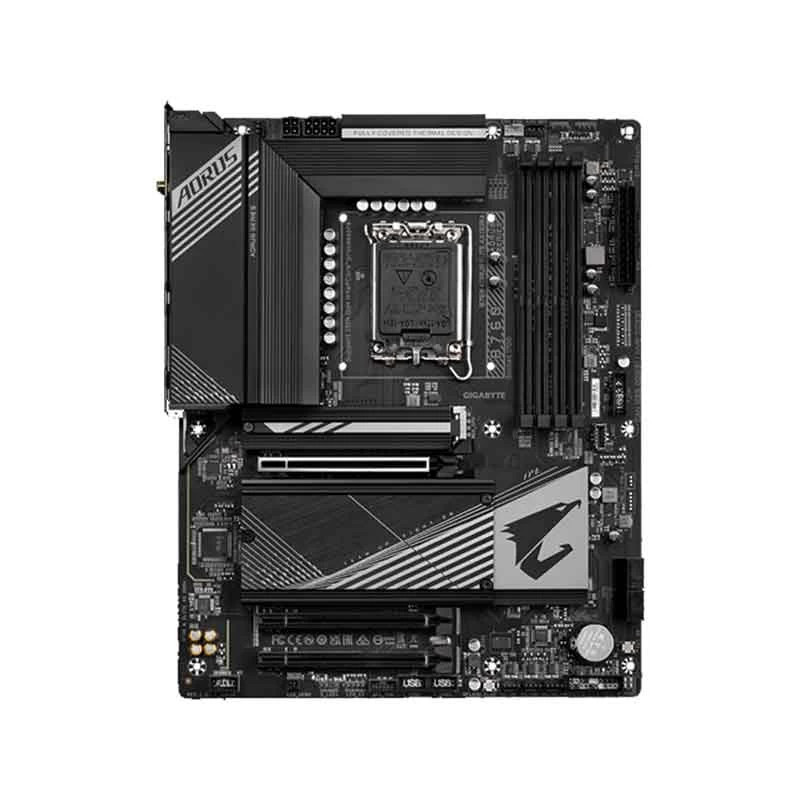

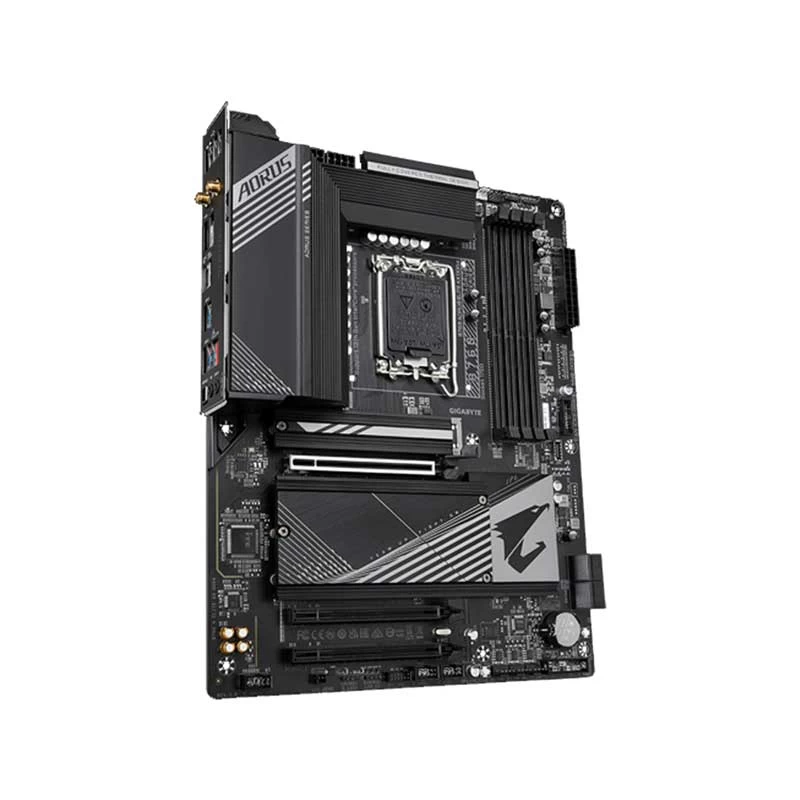

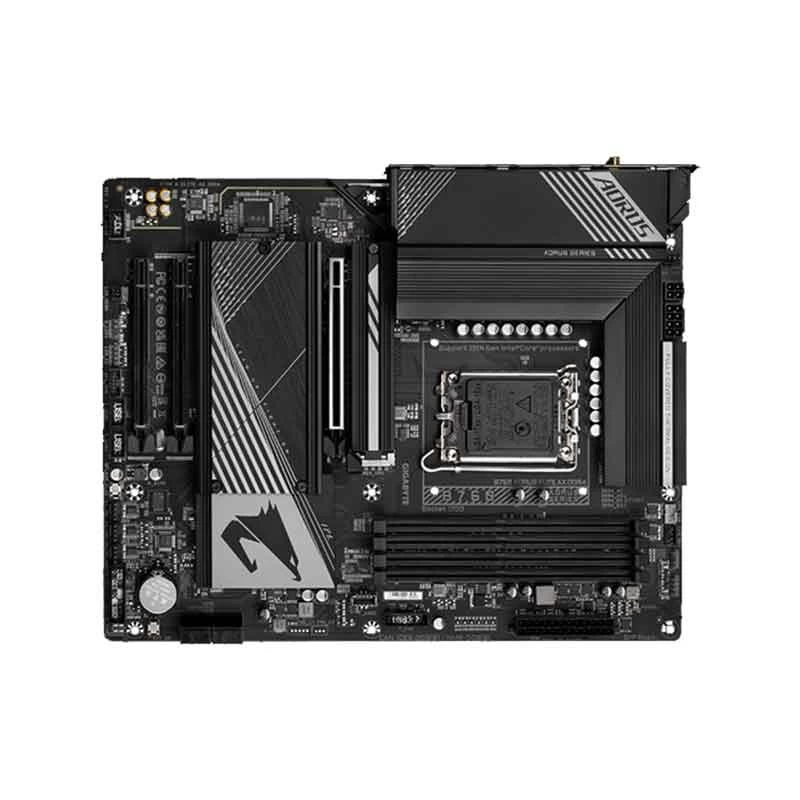

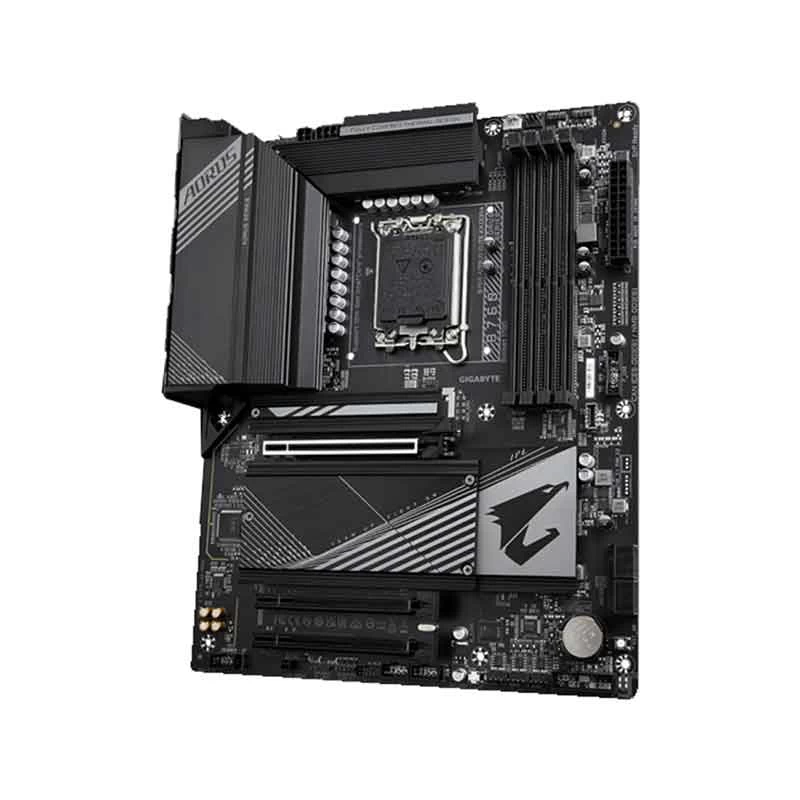

Gigabyte B760 AORUS ELITE AX (Wi-Fi 6E) DDR4 Intel Gaming Motherboard

Product Id: 02.01.018.459

Brand Gigabyte

Regular Price Tk 0
Special Price Tk 0

This item is discontinued.

See similar model

Quick Overview

  • Chipset - Intel B760
  • Sockets Supported - LGA1700
  • Supported CPU - 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
  • Generation - 12th/13th
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Gigabyte

Model
Gigabyte B760 AORUS ELITE AX (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.

Generation
12th/13th


Memory Support
Memory Type
DDR4

Memory MHz
5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133MHz non-ECC Un-buffered DIMM.

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
Up to 128 GB (32 GB single DIMM capacity)

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2, ((1 x M.2, type 22110/2280 PCIe 4.0 x4/x2 SSD),(2 x M.2, type 22110/2280 PCIe 4.0 x4/x2 SSD))


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 2.5GbE

LAN Speed (Mbps)
10/100/1000/2500 Mbps

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6E 802.11ax

Bluetooth
Bluetooth 5.3

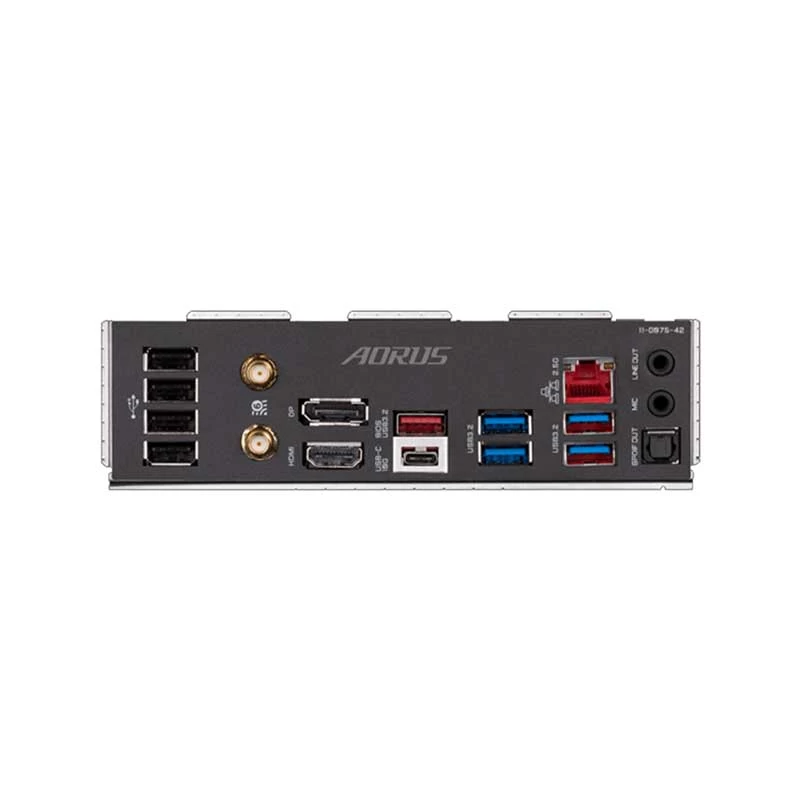

Ports
USB Port
1 x USB Type-C, with USB 3.2 Gen 2 ,1 x USB 3.2 Gen 2 Type-A(red), 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Sync
RGB LED strip headers

RGB Connector
2 x RGB LED strip headers

Approx. Power Consumption
70W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Intel Core, Pentium Gold and Celeron Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Fast Networks: 2.5GbE LAN & Intel Wi-Fi 6E 802.11ax li Extended Connectivity: Rear and Front USB-C 10Gb/s, DP, HDMI, Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card.

Others
Advanced Thermal Design & M.2 Thermal Guard To Ensure VRM Power Stability & M.2 SSD Performance, EZ-Latch Plus M.2 Connectors with Quick Release & Screwless Design,

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
