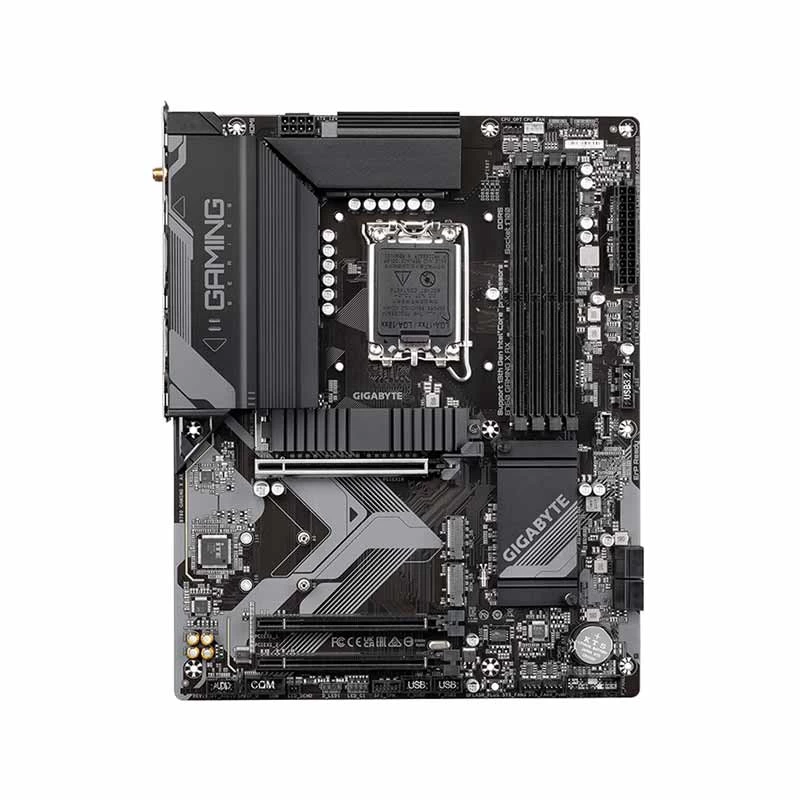

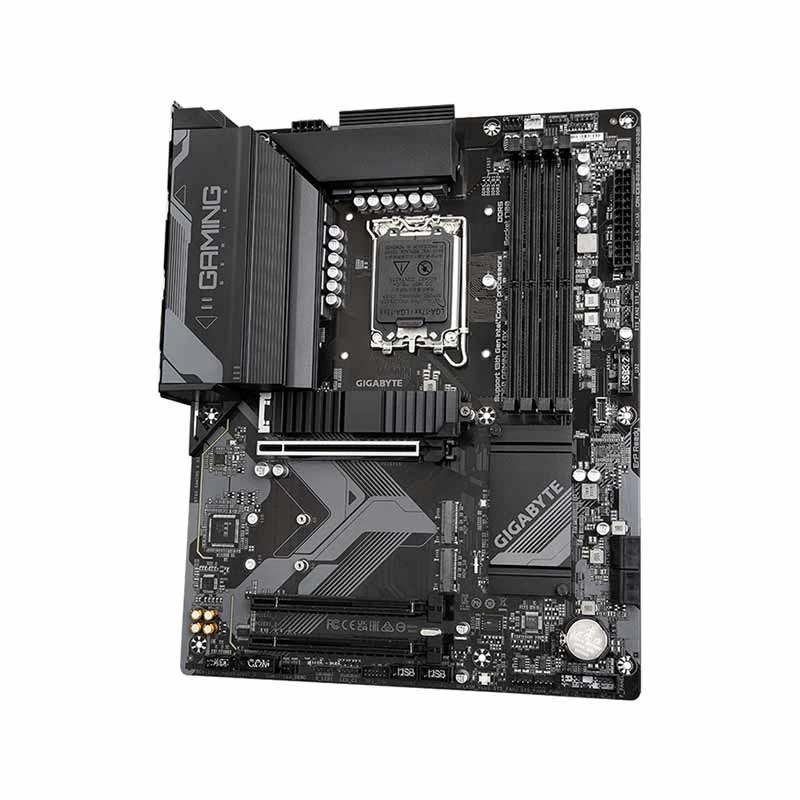

Gigabyte B760 GAMING X AX (Wi-Fi 6E) DDR5 Intel Motherboard
Product Id: 02.01.018.483
Brand
Gigabyte
Regular Price Tk 25,720
Monthly EMI Tk 2,143
Special Price Tk 23,900
Quick Overview
- Chipset - Intel B760
- Memory Max. - 192GB
- Memory Slot - 4
- Sockets Supported - LGA1700
- Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
- Generation - 12th/13th/14th
General
Brand
Gigabyte
Model
Gigabyte B760 GAMING X AX (Wi-Fi 6E)
Body Color
Black
CPU
Chipset Brand
Intel
Chipset
Intel B760
Sockets Supported
LGA1700
Built-in Processor
No
Supported CPU
13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors.
Generation
12th/13th/14th
Memory Support
Memory Type
DDR5
Memory MHz
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400(O.C.)/ 6200(O.C.)/ 6000(O.C.)/ 5800(O.C.)/ 5600(O.C.)/ 5400(O.C.)/ 5200(O.C.)/ 4800/ 4000Mhz non-ECC Un-buffered memory.
Memory Channel
Dual
Memory Slot
4
Memory Slot (Additional Info)
4 x DIMM
Memory Max.
192GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
3
M.2/SSD Expansion Slot Details
3 x M.2 Slots ( 1 x M.2 connector Socket 3 M key type 22110/2280 supports PCIe 4.0 x4/x2 SSD, 2 x M.2 connectors Socket 3 M key type 22110/2280 Supports PCIe 4.0 x4/x2 SSD)
Graphics
Graphics
Integrated
Graphics Chipset
Intel HD Graphics support
Multi-GPU Support
No
PCI Express Slot
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1-1, PCIEX1-2)
Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Realtek 2.5GbE LAN chip
LAN Speed (Mbps)
10/100/1000/2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1 Type-A, 5 x USB 2.0 Type-A, 1 x USB 3.2 Gen 1 Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
2 x RGB LED strip headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10 / 11
Compatible Products
Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning,
Others

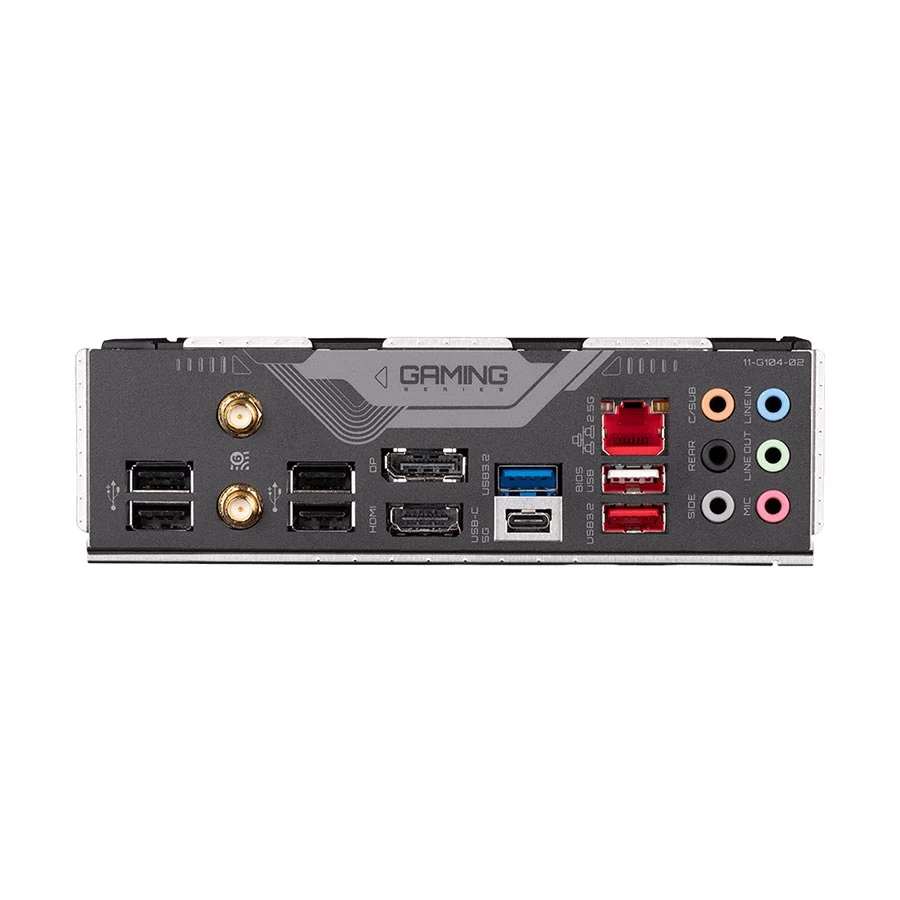

I/O Controller: iTE I/O Controller Chip, Back Panel Connectors: (2 x SMA antenna connectors (2T2R) 1 x RJ-45 port 6 x audio jacks), Internal I/O Connectors: (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper)
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B760 GAMING X AX (Wi-Fi 6E) Motherboard In Bangladesh
UNPARALLELED PERFORMANCE
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

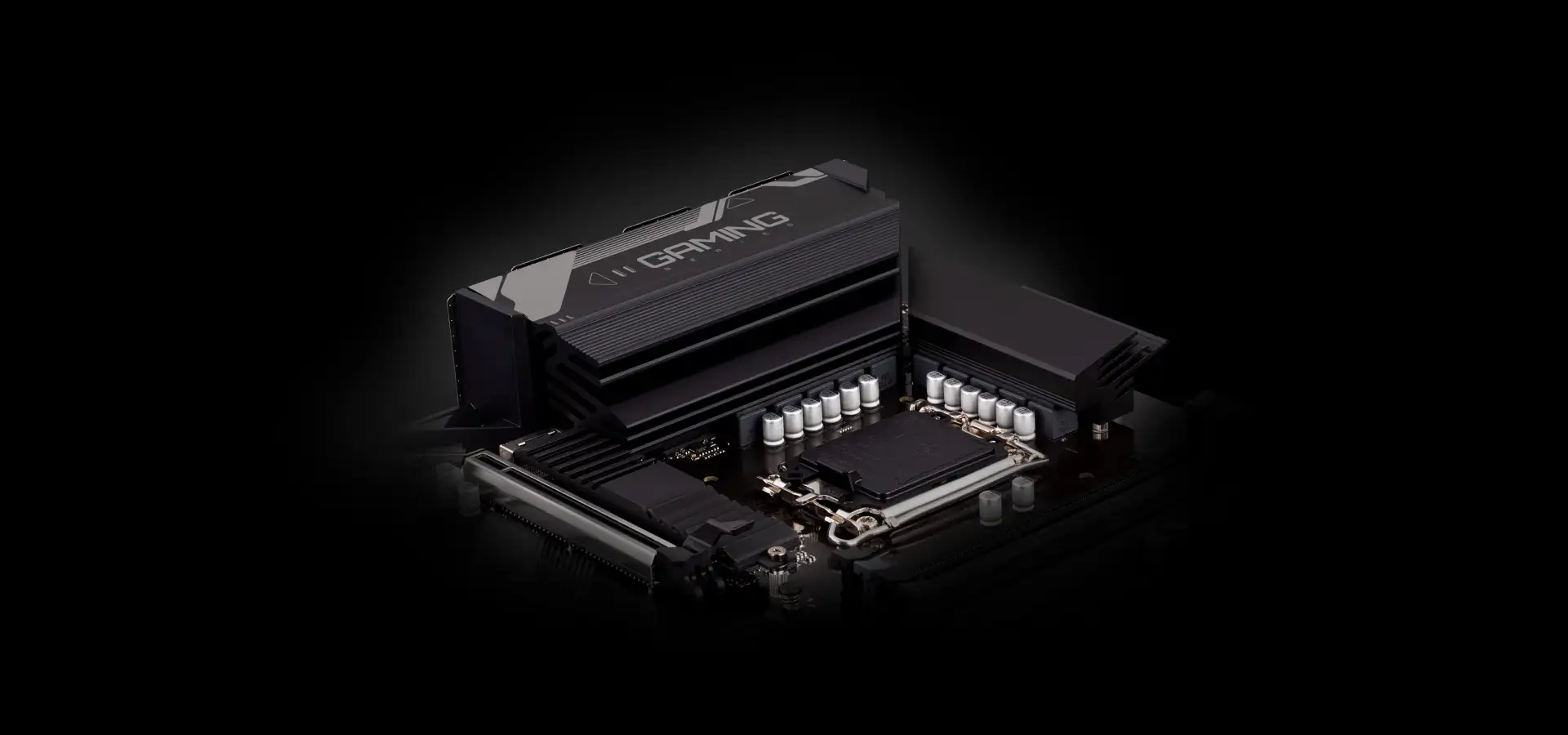

OUTSTANDING THERMAL DESIGN
GIGABYTE Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
GIGABYTE Ultra Durable design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
What is the price of Gigabyte B760 GAMING X AX (Wi-Fi 6E) Motherboard In Bangladesh?
The price of Gigabyte B760 GAMING X AX (Wi-Fi 6E) Motherboard starts from 23,900 . The price may vary due to your customization and product availability. You can buy Gigabyte B760 GAMING X AX (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
QUESTION & ANSWER
Customer Questions
Q:
which type of gpu supperted
By hisham
A:
Dear Sir, GPU PCI Express Slot -
1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 (PCIEX16), 2 x PCI Express x16 slots supporting PCIe 3.0 and running at x1 (PCIEX1-1, PCIEX1-2), Thanks for your query!
By Ryans Computers Ltd. , 21 Aug 2023 02:35:58 PM
Your Question
REVIEW
Customer Reviews
Good product
Service is very good according to the price
Absolutely love it
Solid board, Easy Install M.2, Fast Wi-Fi
Build Quality is good
Fast and upgradeable
Good mainboard
