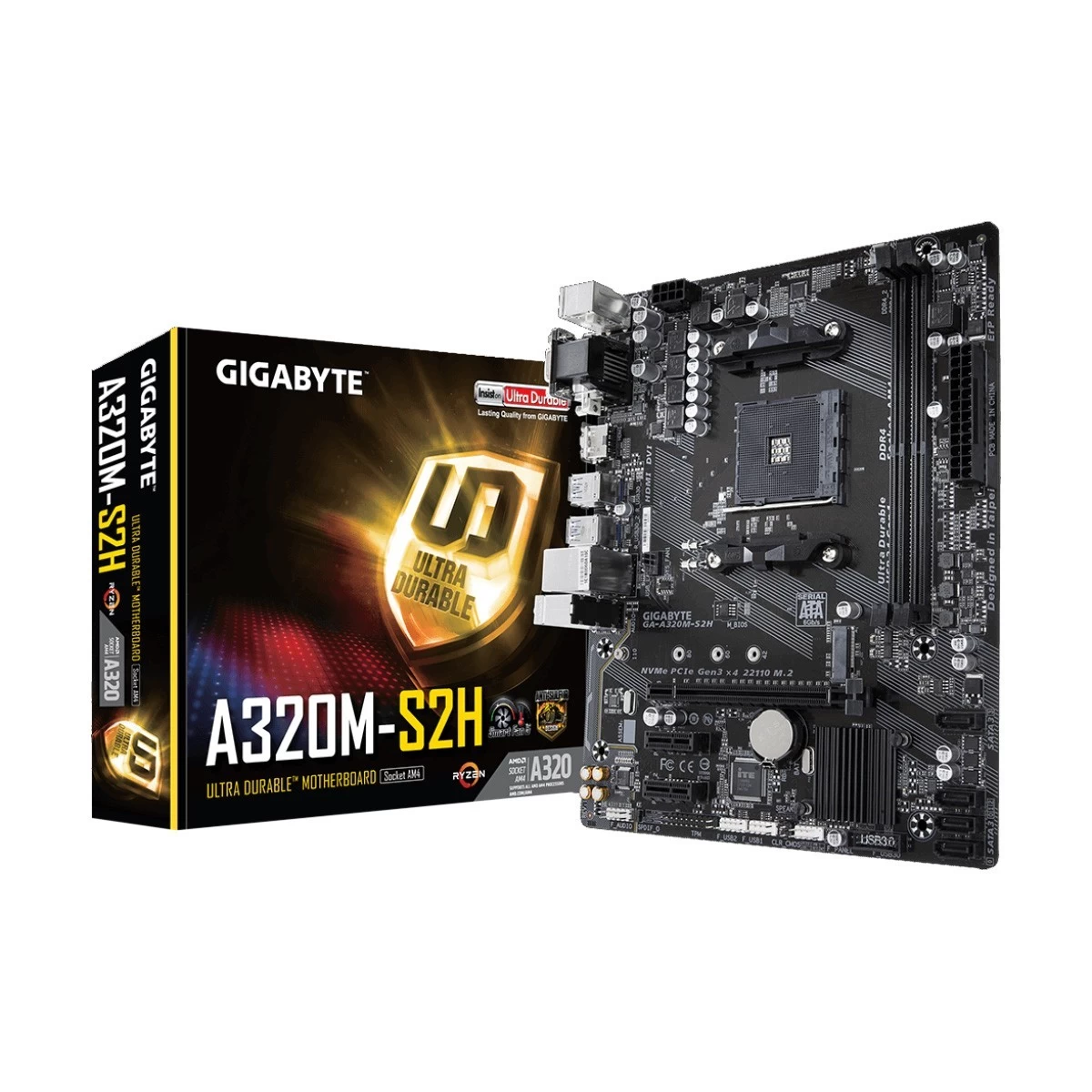

Gigabyte GA-A320M-S2H AMD Motherboard

Item: Gigabyte GA-A320M-S2H AMD Motherboard
Rating: 5
Author: Verified Buyer

1 reviews

Product Id: 02.02.018.220

This item is discontinued.

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD A320
Sockets Supported - AM4
Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & 7th Generation A-series/Athlon X4 Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 32GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Gigabyte

Model

Gigabyte GA-A320M-S2H

Chipset

AMD A320

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

32GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 7 / 10

Body Color

Black

Warranty

3 year

General

Brand

Gigabyte

Model

Gigabyte GA-A320M-S2H

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD A320

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & 7th Generation A-series/Athlon X4 Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

3200(O.C.)/ 2933(O.C.)/ 2667/ 2400/ 2133MHz

Memory Channel

Dual

Memory Slot

Memory Max.

32GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 Socket 3 (type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Integrated With Processor

PCI Express Slot

1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1

Audio & Video

Audio Chipset

Realtek ALC887

Audio Channel

2/4/5.1/7.1

Network & Connectivity

LAN Chipset

Realtek GbE LAN

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Bluetooth

Ports

USB Port

2 x USB3.1 Gen 1, 6 x USB2.0

VGA Port

DVI Port

HDMI Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

Yes

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 10

RGB Support

Approx. Power Consumption

65W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 128 Mbit Flash

BIOS Model

AMI UEFI BIOS

BIOS Version

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Compatibility

Supported Operating System

Windows 7 / 10

Warranty

3 year

Additional Info

Feature

3D OSD, AutoGreen, Cloud Station, Color Temperature, EasyTune, Fast Boot, Game Boost, Smart Backup, Smart Keyboard, Smart TimeLock, System Information Viewer, USB Blocker, V-Tuner, Q-Flash, Xpress Install

Others

1 x M.2, 1 x chassis intrusion header, 1 x Clear CMOS jumper, 1 x Trusted Platform Module (TPM) header, 1 x system fan header, 1 x CPU fan header, 3 x audio jacks

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Gigabyte GA-A320M-S2H Motherboard In Bangladesh

Gigabyte GA-A320M-S2H AMD Motherboard Motherboard in Bangladesh

Gigabyte GA-A320M-S2H motherboard is a renowned motherboard in Bangladesh. The Gigabyte GA-A320M-S2H AMD Motherboard is an AMD mainboard. The motherboard used an AMD A320 chipset. AM4 Sockets Supported. In this motherboard, you can use an AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & 7th Generation A-series/Athlon X4 Processors. TheGigabyte GA-A320M-S2H mainboard has a Dual channel memory channel and 2 memory slot. It supports DDR4 3200(O.C.), 2933(O.C.), 2667, 2400, 2133MHz ram. Maximum ram supports 32GB. Also, you can use 1 M.2/SSD Expansion Slot. Storage Interface is 6.0Gb/s. Gigabyte GA-A320M-S2H AMD Motherboard comes with Integrated Graphics. PCI Express Slot are 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1. The here audio chipset used Realtek ALC887. Audio Channel available are 2/4/5.1/7.1 so you can enjoy crystal clear sound. For Network and Connectivity purposes the Gigabyte motherboard offers Realtek GbE LAN lan chipset and it’s speeds 10/100/1000Mbps USB port available 2 x USB3.1 Gen 1, 6 x USB2.0. Also, you will get VGA Port, DVI Port,HDMI Port, SATA Port and TPM Port. . It’s a Micro ATX motherboard. RGB Support it’s a RGB support motherboard, also you can RGB Connector RGB connector. The Gigabyte GA-A320M-S2H AMD Motherboard supported operating system is Windows 7 / 10. You will get a 3Year brand warranty.

What is the Gigabyte GA-A320M-S2H motherboard Price in Bangladesh?

The Gigabyte GA-A320M-S2H motherboard Price in Bangladesh is given upper. Ryans computers offer Gigabyte GA-A320M-S2H AMD Motherboard is the competitive price in BD. You can purchase it from our website or computer shop.

What is the price of Gigabyte GA-A320M-S2H Motherboard In Bangladesh?

The price of Gigabyte GA-A320M-S2H Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Gigabyte GA-A320M-S2H Motherboard from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

QUESTION & ANSWER

Customer Questions

Boya BY M1 Omni Directional Lavalier Microphone can support on this mothar board ?

Asked By

Dear customer, this microphone will be supported on PC.

Answered By Ryans Computers Ltd. , 07 Aug 2024

Ei motherboard Kobe paoa Jabe ???

Asked By Robiul

প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, এবং কবে নাগাদ স্টক এ আসবে তা নির্দিষ্ট করে বলা সম্ভব হচ্ছে না, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ!

Answered By Ryans Computers Ltd. , 09 Mar 2024

মাদারবোর্ডটা কি ভালো হবে

Asked By Sohid Afridi

প্রিয় গ্রাহক, এই প্রোডাক্ট টি বর্তমানে স্টক এ নেই, যখন ই স্টক এ আসবে পণ্যের বিবরণ, স্টক এবং প্রাইস আপডেট করে দেওয়া হবে, অনুগ্রহ করে আমাদের অফিসিয়াল ওয়েবসাইট এ চোখ রাখুন, ধন্যবাদ !

Answered By Ryans Computers Ltd. , 02 Sep 2023

এটায় কি hdd & 2.5inch ssd একসাথে ইনস্টল করা যাবে?

Asked By Rude

প্রিয় গ্রাহক, জী ! HDD এবং 2.5inch ssd একসাথে ইনস্টল করা যাবে । ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 29 Oct 2022

Ryzan 5 5000 Support করবে?

Asked By Sani

প্রিয় গ্রাহক, জী ! সাপোর্ট করবে । ধন্যবাদ ।

Answered By Ryans Computers Ltd. , 20 Jun 2022

Ryzen5 3400g processor can support in this motherboard. ?

Asked By Md akash

Dear Customer, Yes! Ryzen5 3400g processor can support this motherboard. Thanks for your query.
