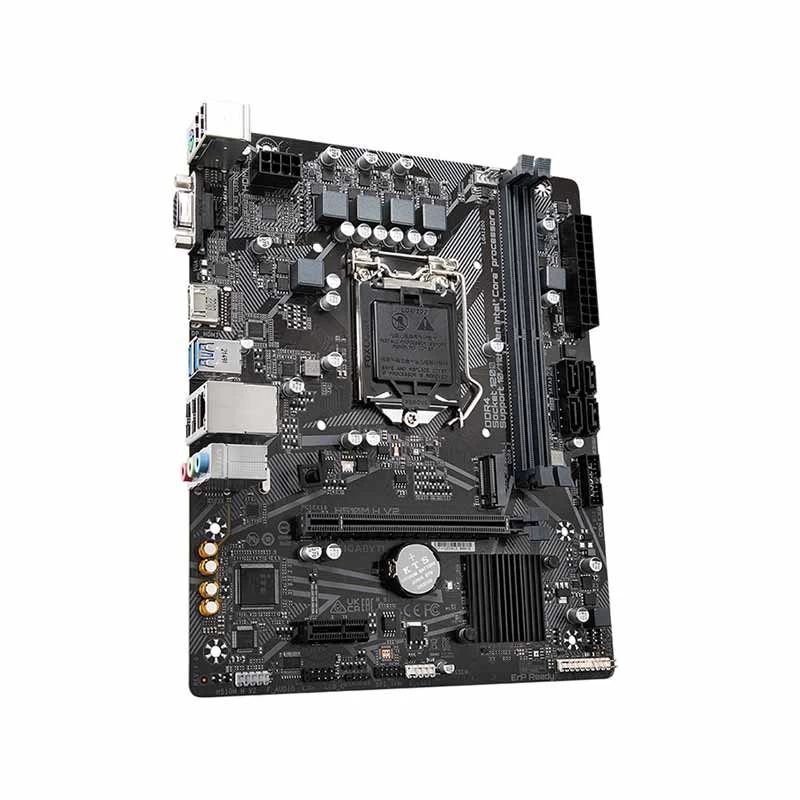

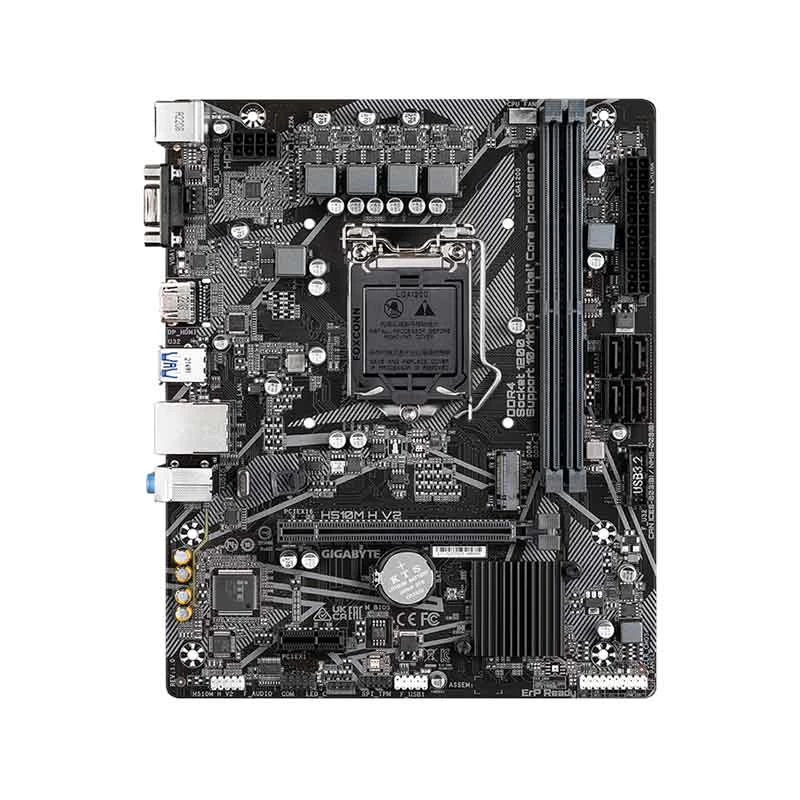

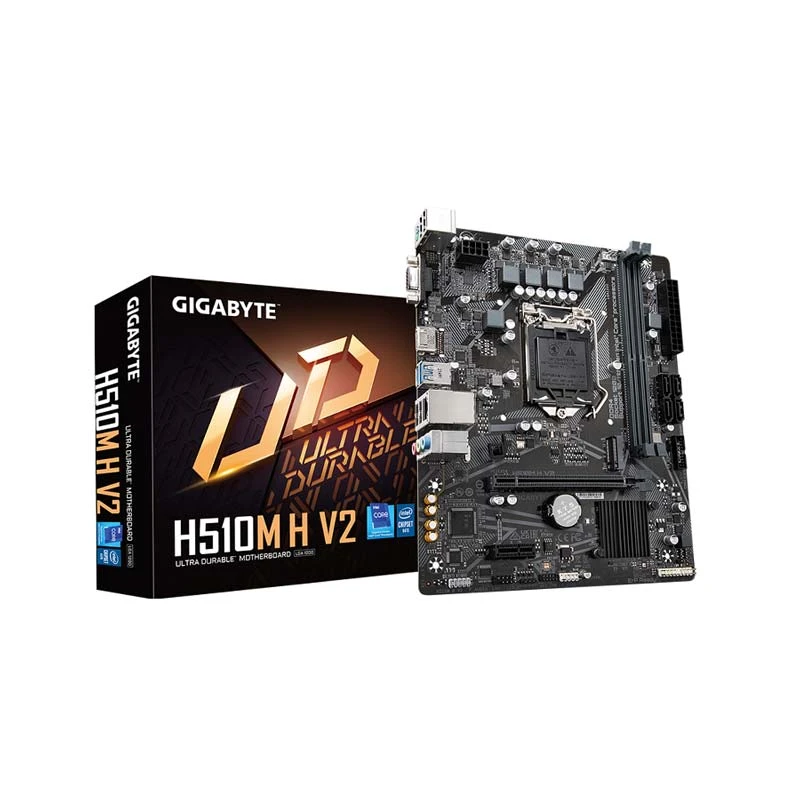

Gigabyte H510M H V2 DDR4 Intel Motherboard

Product Id: 02.01.018.489

Brand Gigabyte

Regular Price Tk 10,630 Monthly EMI Tk 886
Special Price Tk 9,800

Quick Overview

  • Chipset - Intel H470
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - 10th/11th Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors.
  • Generation - 10th/11th
General
Brand
Gigabyte

Model
Gigabyte H510M H V2

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H470

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
10th/11th Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors.

Generation
10th/11th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz ECC/non-ECC Un-buffered memory.

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DIMM

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 connector Socket 3 M key type 2280 SATA and PCIe 3.0 x4/x2 SSD support


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot supporting PCIe 3.0 and running at x16, 1 x PCI Express x1 slot supporting PCIe 3.0 and running at x1


Audio & Video
Audio Chipset
Realtek Audio CODEC High Definition Audio

Audio Channel
2/4/5.1/7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN

LAN Speed (Mbps)
10/100/1000Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1 x RGB LED strip header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with LGA1200 Socket 10th & 11th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Support for Q-Flash, Support for Xpress Install, HDMI port supporting a maximum resolution of 4096x2160@30Hz Support for HDMI 1.4 version and HDCP 2.3., D-Sub port supporting a maximum resolution of 1920x1200@60Hz The D-Sub port is only available with the 10th Generation.

Others

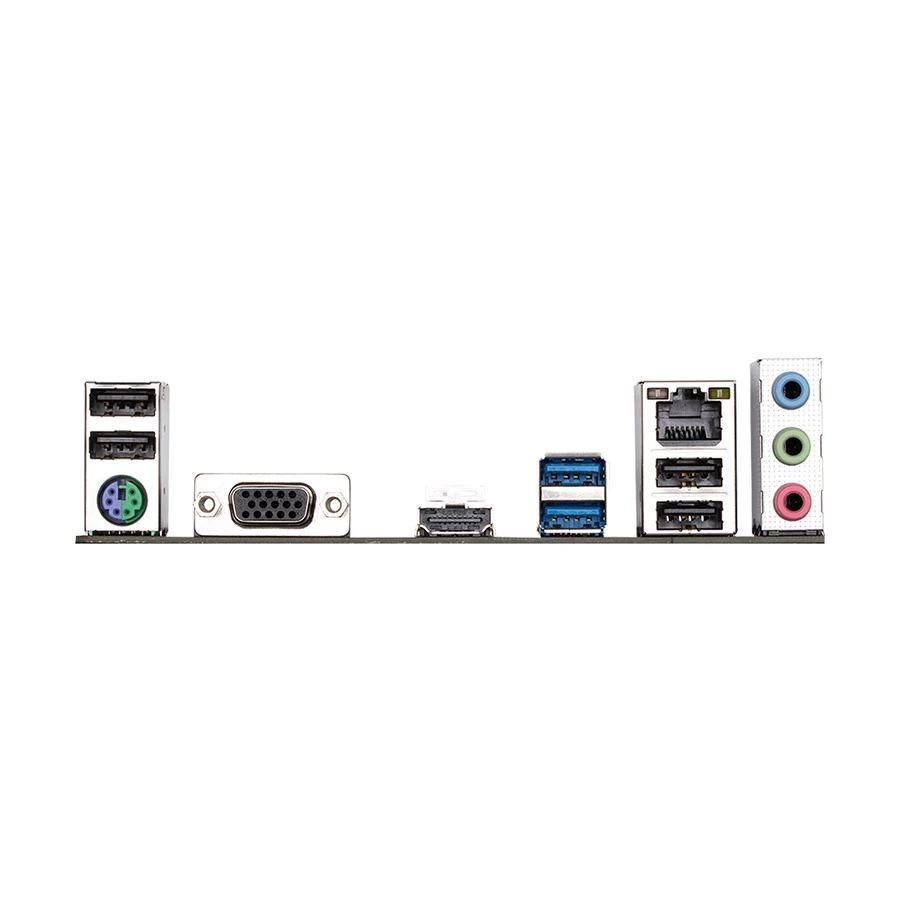

Back Panel Connectors: (1 x PS/2 keyboard/mouse port 1 x RJ-45 port 3 x audio jacks), Internal I/O Connectors (1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper)

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
