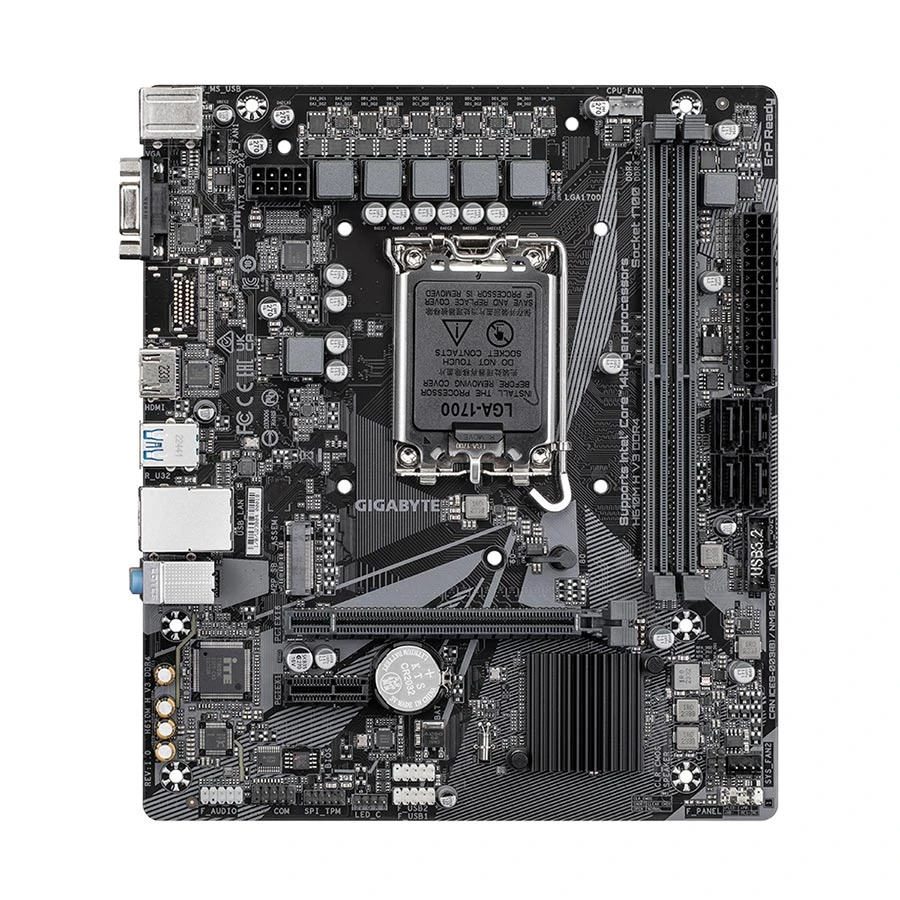

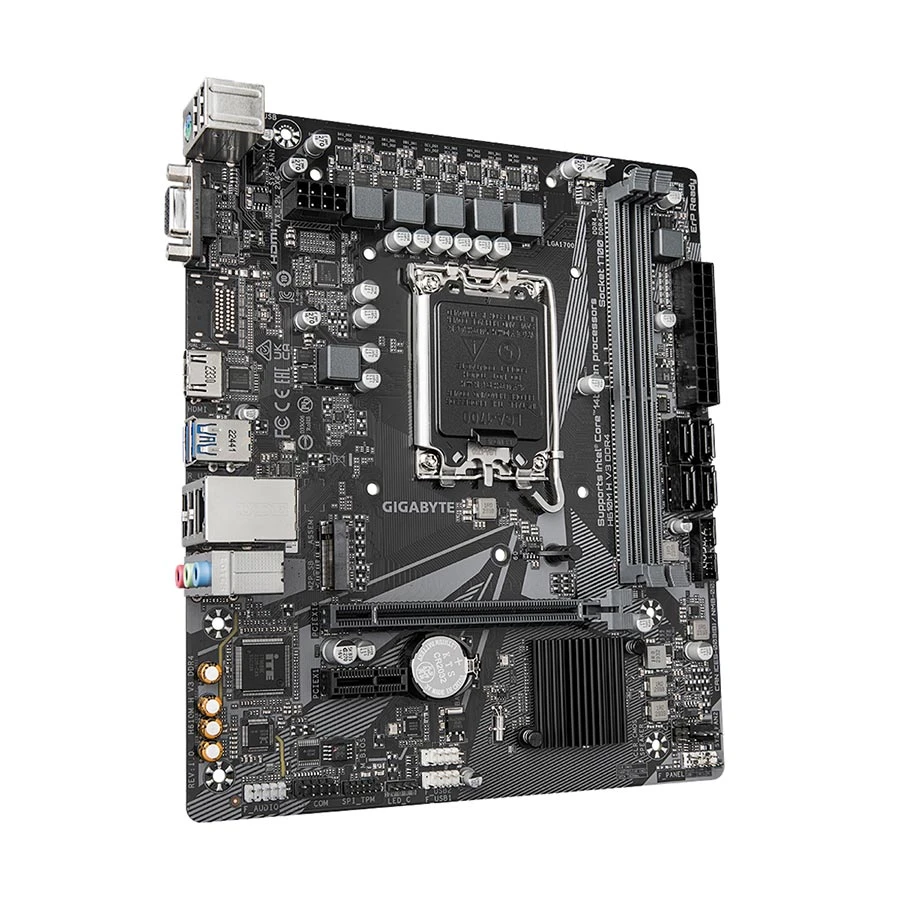

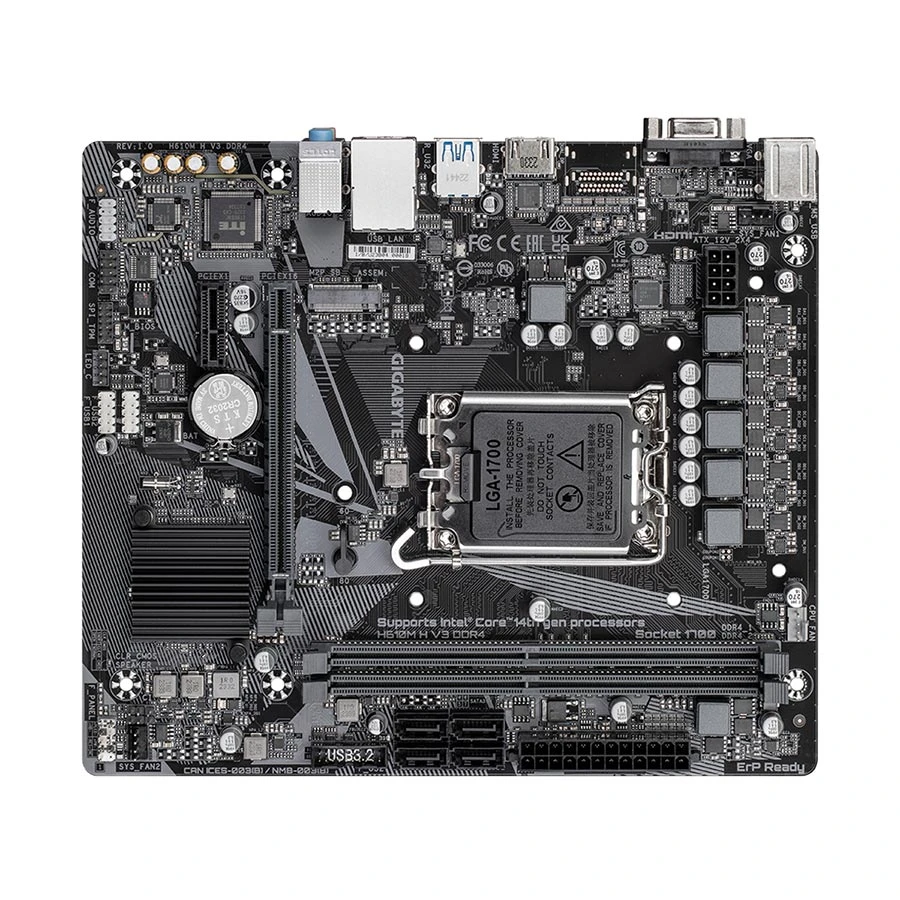

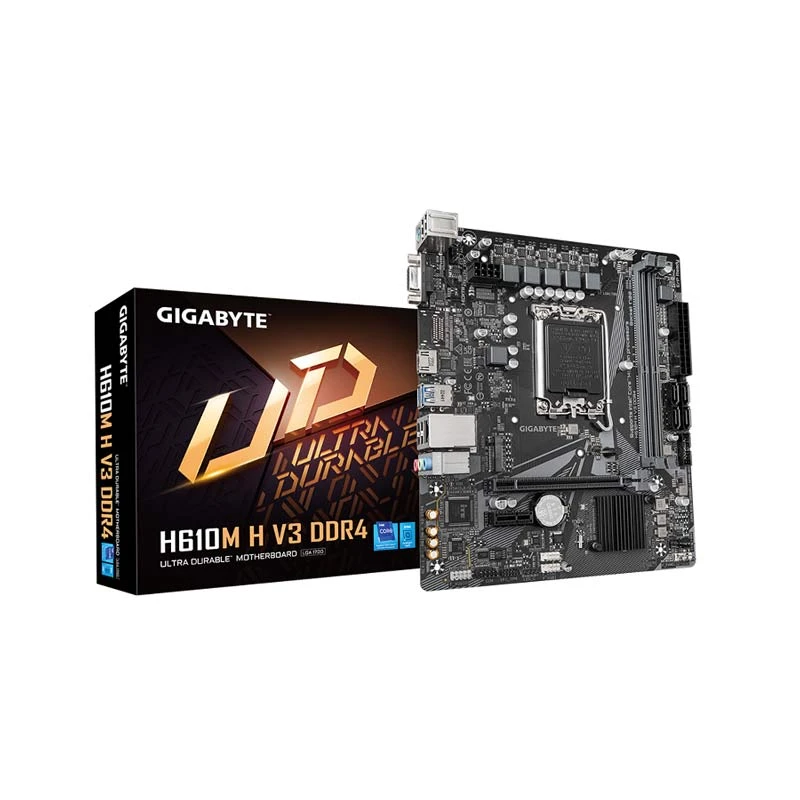

Gigabyte H610M H V3 DDR4 Intel Motherboard

Product Id: 02.01.018.512

Brand Gigabyte

Regular Price Tk 12,480 Monthly EMI Tk 1,040
Special Price Tk 11,600

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
Gigabyte

Model
Gigabyte H610M H V3

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules, non-ECC Un-buffered DIMM

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)


Graphics
Graphics
Integrated

Graphics Chipset
Intel HD Graphics support

Multi-GPU Support
No

PCI Express Slot
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16, 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1


Audio & Video
Audio Chipset
Realtek Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek GbE LAN

LAN Speed (Mbps)
0/100/1000 Mbps

WiFi
No

WiFi Technology
No

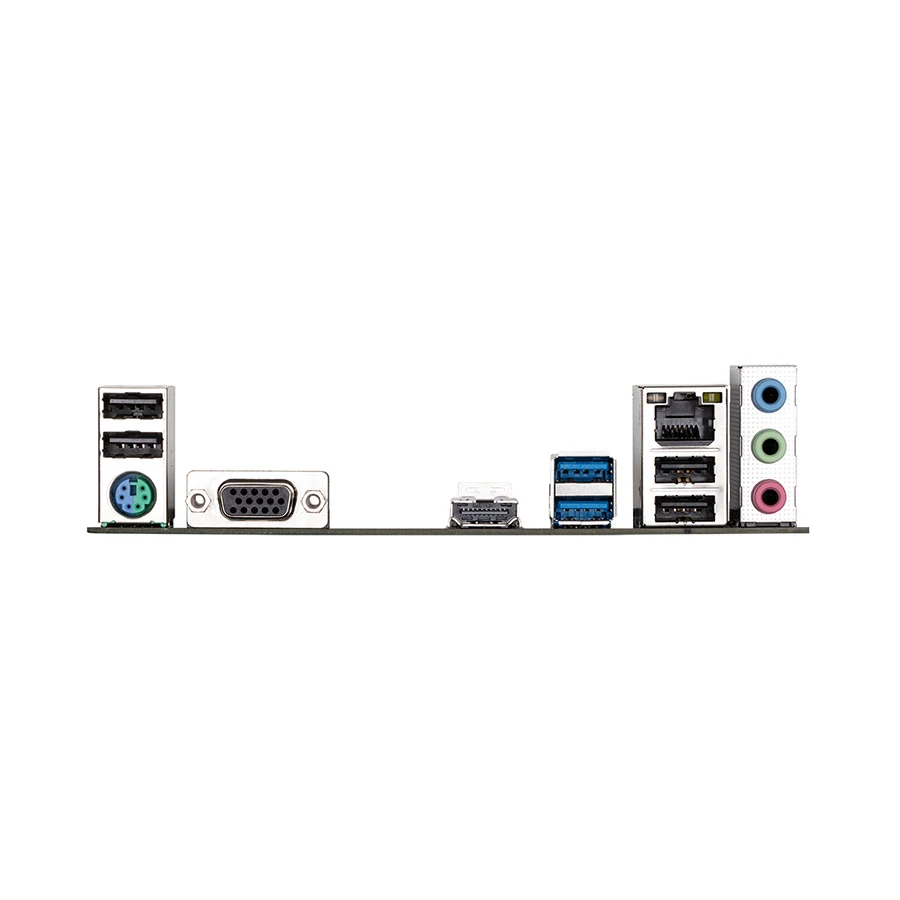

Ports
USB Port
2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

RGB Support
RGB

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
1 x 128 Mbit flash

BIOS Model
AMI UEFI BIOS

BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Compatibility
Supported Operating System
Windows 10, Windows 11

Compatible Products
Core i3 13100, Core i9 14900, Core i7 14700F, Core i5 14400F, Core i7 14400F, Core i5 14600K, Core i5 12400, Core i9 12900K, 14th/ 13th/ 12th Generation Intel Core, Pentium Gold and Celeron Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Others

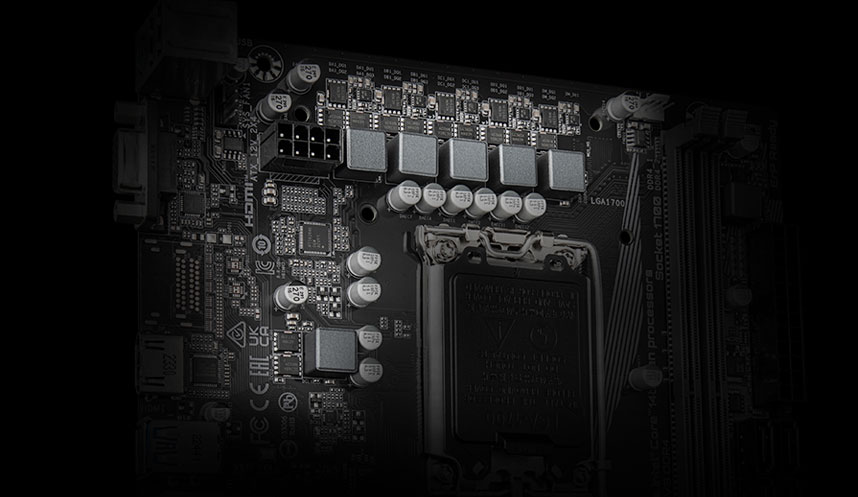

Supports Intel Core 14th/ 13th /12th processors, Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, 4+1+1 Hybrid Digital VRM Design, GbE LAN with Bandwidth Management, NVMe PCIe 3.0 x4 M.2, High Quality Audio Capacitors and Audio Noise Guard, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, GIGABYTE APP Center, Simple and Easy Use, Anti-Sulfur Resistors Design

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
