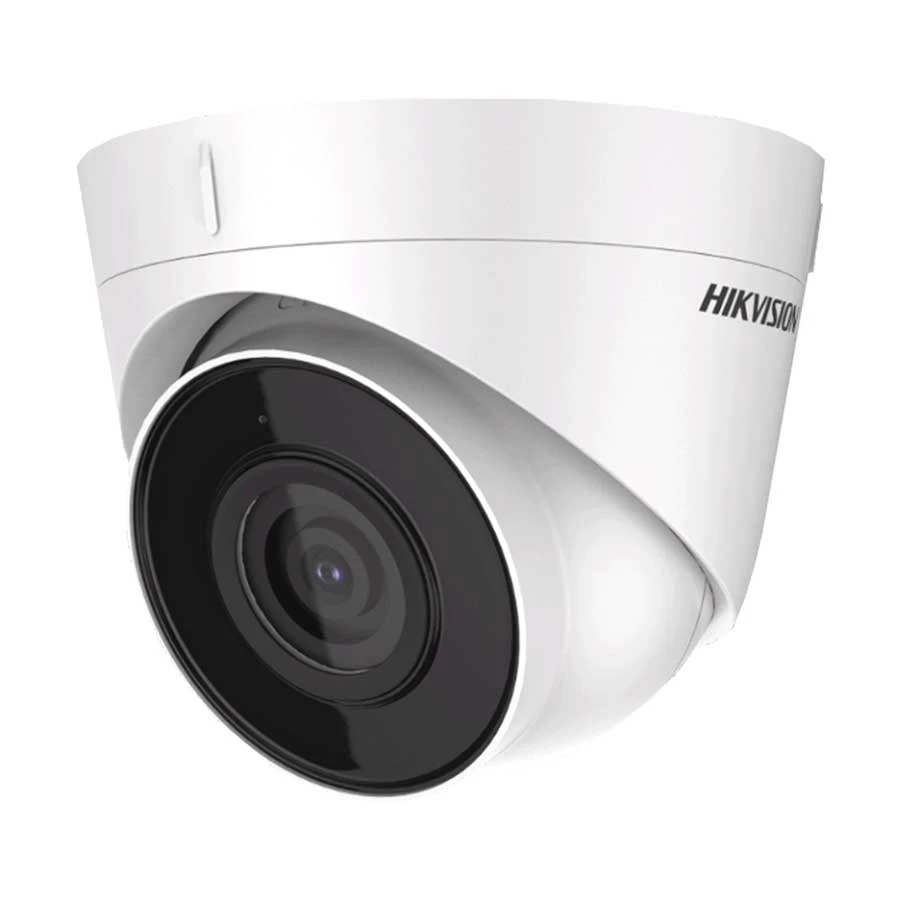

Hikvision DS-2CD1323G0-IUF (2.8mm) (2.0MP) Dome IP Camera

Product Id: 127.03.485.236

Brand Hikvision

Regular Price
Tk 0
Out Of Stock

See similar model

Quick Overview

  • Usage - Indoor
  • Form-Factor - Dome
  • Mega Pixels (MP) - 2.0
  • Night Vision Mode - Black and White
  • Working Distance - Unmentioned
General
Brand
Hikvision

Model
Hikvision DS-2CD1323G0-IUF

Usage
Indoor

Type
IP Camera


Camera
Camera Type
Fixed

Mega Pixels (MP)
2.0

Max. Camera Resolution
1920 x 1080

Image Sensor
1/2.7 Inch Progressive Scan CMOS

Resolution
1920 x 1080

Shutter Speed
1/3 s to 1/100, 000 s

Slow Shutter
Yes

Day & Night
Yes

Night Vision
Yes

Night Vision Mode
Black and White


Lens
Lens
2.8mm

Lens Mount
M12

Lens Adjustment Range
Pan: 0 Degree to 360 Degree, tilt: 0 Degree to 75 Degree, rotate: 0 Degree to 360 Degree

Focal Length
Horizontal FOV 112.1 Degree, vertical FOV 60.0 Degree, diagonal FOV 132.2 Degree

PTZ
No

Viewing Angle.
Pan: 0 Degree to 360 Degree, tilt: 0 Degree to 75 Degree, rotate: 0 Degree to 360 Degree, Aperture: F2.0,


General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Frame Rate
Main Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 720), 60 Hz: 30 fps (1920 x 1080, 1280 x 720), Sub-Stream: 50 Hz: 25 fps (640 x 480, 640 x 360), 60 Hz: 30 fps (640 x 480, 640 x 360)

Digital Noise Reduction (DNR)
Digital WDR

Wide Dynamic Range (WDR)
DWDR

Anti-Flicker
Yes


Network & Connectivity
Interface(s)
1 x RJ45 10 M/100 M self-adaptive Ethernet port

Wi-Fi
No

Wi-Fi Details
No

Wi-Fi Pairing
No


Security
Password Protection
Yes

Watermark
Yes

Motion Detection
Yes

Human Detection
Yes

Dust Protection
IP67

Weather Proof
IP67

Simultaneous Live View
Up to 6 channels


Technical Info
Video Type
H.265/H.264/MJPEG

Wavelength
850nm

Mic & Speaker
Only Mic

Audio Communication
No

Ingress Protection Grade
IP67

Working Distance
Unmentioned

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS


Physical Description
Form-Factor
Dome

Card Slot
Yes

Storage Type
MicroSD

Storage Supported
256GB

Body Material
Metal/Plastic

Color
Black & White

Dimensions
110 x 85.3mm

Weight (gm)
320 gm


Power
Power
12 VDC + - 25%

Power Supply
12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W

Approx. Power Consumption
Max. 5W

Operating Temperature
-30 Degree C to 60 Degree C

Storing/Storage Temperature
-30 Degree C to 60 Degree C

Operating Humidity
Humidity: 95% or less (non-condensing)

Storing/Storage Humidity
Humidity: 95% or less (non-condensing)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others
Min. Illumination: Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR, IR Range: Up to 30m, Video Bit Rate: 32 Kbps to 8 Mbps, H.264 Type: Baseline Profile/Main Profile/High Profile, H.265 Type: Main Profile, H.264+: Main Stream supports, H.265+: Main Stream supports, Region of Interest (ROI): 1 fixed region for main stream. Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC. Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC). Audio Sampling Rate: 8 kHz/16 kHz. Environment Noise Filtering: Yes, API: Open Network Video Interface, ISAPI, User/Host: Up to 32 users. 3 levels: administrator, operator and user. Client: iVMS-4200, Hik-Connect. Web Browser: Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+. Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser, Hardware Reset: Yes, Basic Event: Motion detection, video tampering alarm, exception. Linkage Method: Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

Specialty
High quality imaging with 2 MP resolution, Efficient H.265+ compression technology, EXIR 2.0: advanced infrared technology with long IR range.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
