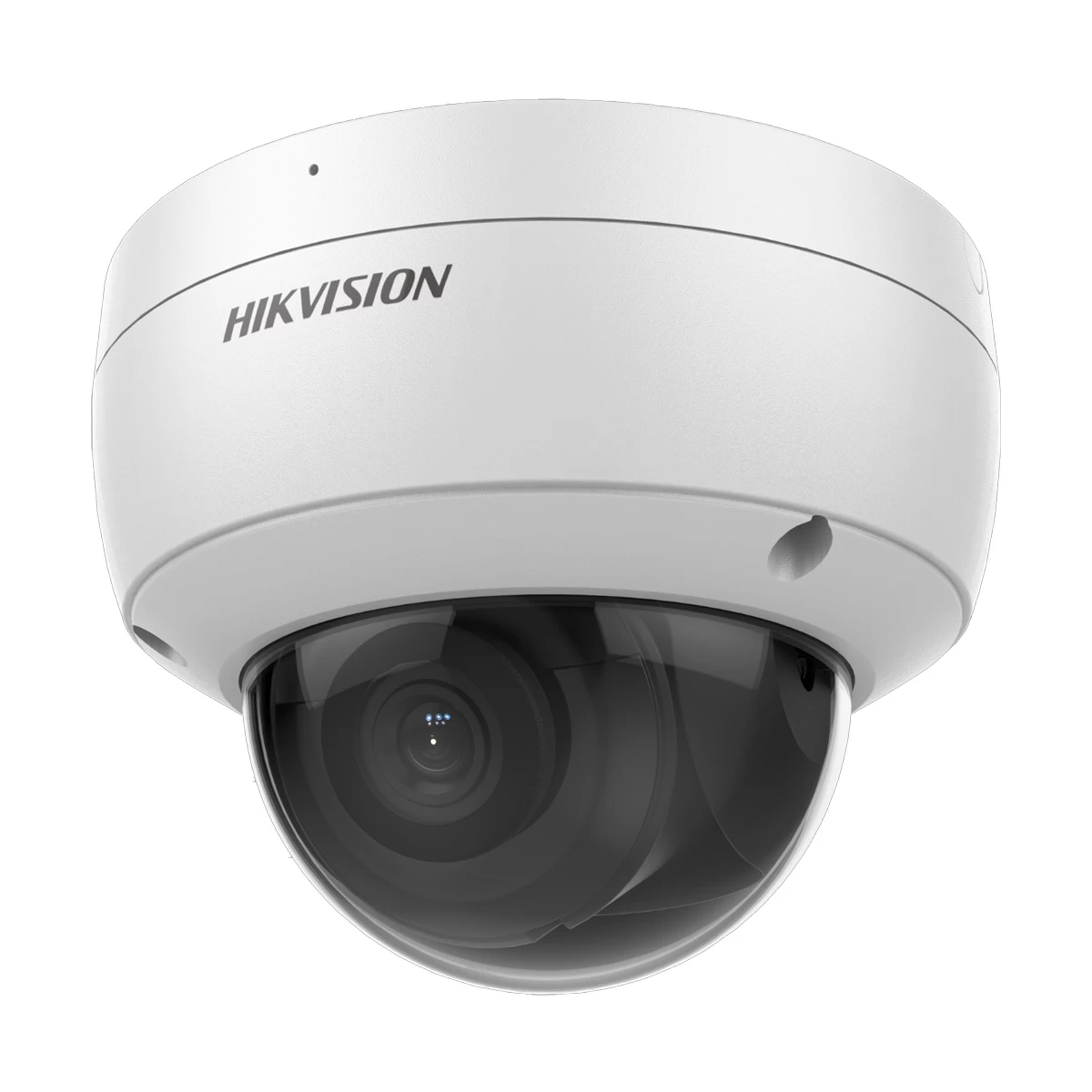

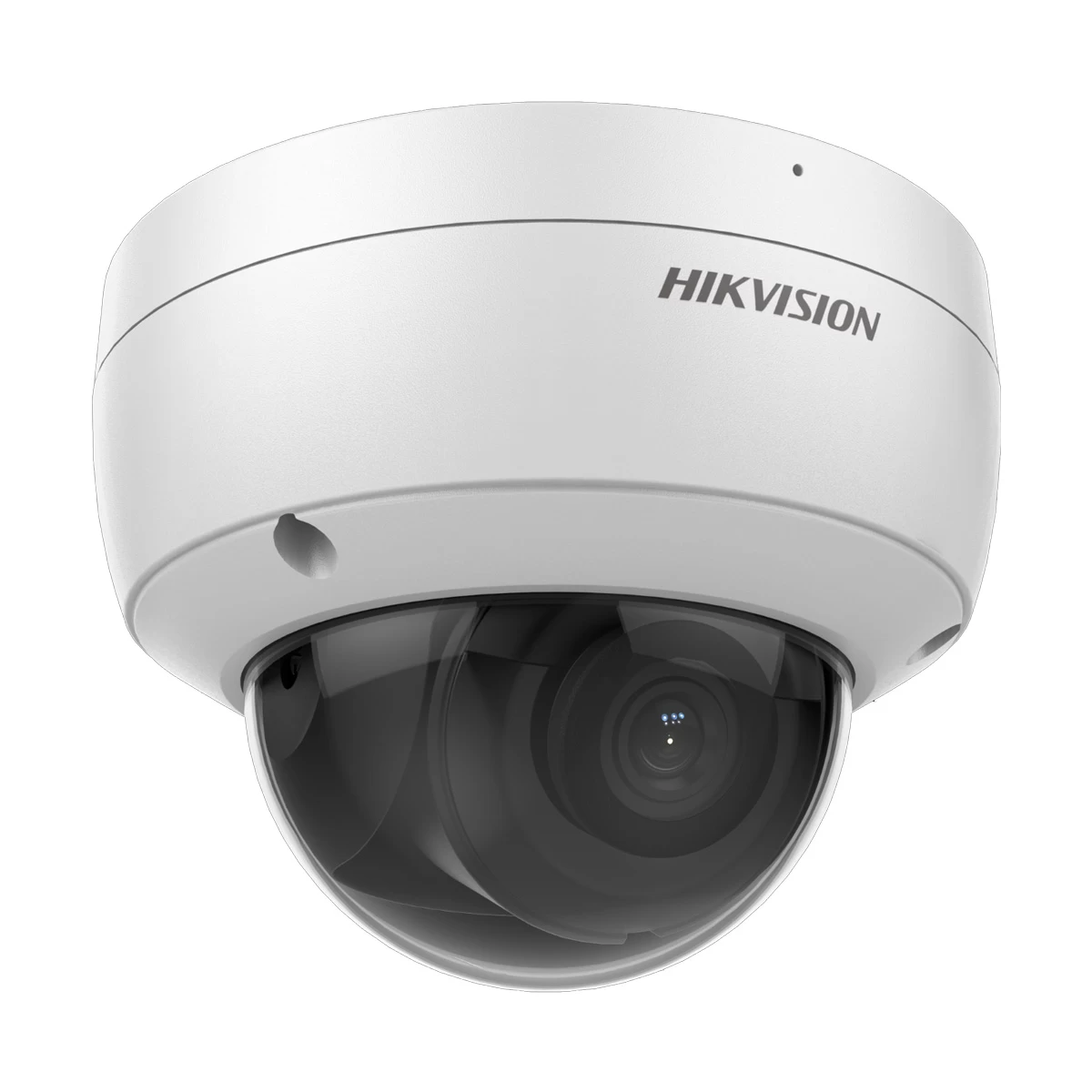

Hikvision DS-2CD2143G2-IU 4.0MP Dome IP Camera

Product Id: 127.03.485.219

Brand Hikvision

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Usage - Indoor
  • Form-Factor - Dome
  • Mega Pixels - 4.0MP
  • Night Vision Mode - Black and White
  • Working Distance - Unmentioned
General
Brand
Hikvision

Model
Hikvision DS-2CD2143G2-IU

Usage
Indoor

Type
Dome IP Camera


Camera
Camera Type
Fixed

Mega Pixels
4.0MP

Max. Camera Resolution
2688 x 1520

Image Sensor
1/3 Inch Progressive Scan CMOS

Resolution
2688 x 1520

Shutter Speed
1/3 s to 1/100,000 s

Slow Shutter
Yes

Day & Night
IR cut filter

Night Vision
Yes


Lens
Lens
2.8mm

Lens Mount
M12

Lens Adjustment Range
Pan: 0 to 355 Degree, Tilt: 0 to 75 Degree, Rotate: 0 to 355 Degree

Focal Length
2.8 mm, 4 mm

Viewing Angle.
103 Degree(H), 55 Degree(V), 122 Degree(D)


General Function
Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Triple-Stream
Yes

Digital Noise Reduction (DNR)
3D DNR

Wide Dynamic Range (WDR)
120 dB

Anti-Flicker
Yes


Network & Connectivity
Interface(s)
1 x RJ45 10M/100M self-adaptive Ethernet port

Wi-Fi
No

Wi-Fi Details
No

Wi-Fi Pairing
No


Security
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface, Image Parameters Switch: Yes

Password Protection
Yes

Motion Detection
Yes

Dust Protection
Yes

Water Protection
IP67

Simultaneous Live View
Up to 6 channels


Technical Info
Scanning System
Progressive

Video Type
H.265/H.264/H.264+/H.265+, MJPEG

Wavelength
850nm

Mic & Speaker
Only Mic

Ingress Protection Grade
IP67

Working Distance
Unmentioned

Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE


Physical Description
Form-Factor
Dome

Card Slot
Yes

Storage Type
MicroSD

Storage Supported
512GB

Body Material
Aluminum, Plastic

Color
White

Dimensions
121.4 x 92.2mm

Weight (gm)
570gm


Power
Power
Coaxial Power Plug

Power Supply
12 VDC + - 25%, 0.4 A

Approx. Power Consumption
Max. 5W

Operating Temperature
-30 Degree C to 60 Degree C

Storage Temperature
-30 degree C - 60 degree C

Operating Humidity
Humidity 95% or less (non-condensing)

Storage Humidity
Humidity 95% or less (non-condensing)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Night Vision Mode
Black and White

Others
Aperture: F1.6, Iris Type: Fixed, DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m, 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m, Illuminator: Supplement Light Type: IR, Supplement Light Range: Up to 30m, Smart Supplement Light: Yes, Video Bit Rate: 32 Kbps to 8 Mbps, H.264 Type: Baseline Profile/Main Profile/ High Profile, H.265 Type: Main Profile. Bit Rate Control: CBR/VBR, Scalable Video Coding (SVC): Yes, Region of Interest (ROI): 1 fixed region for main stream and sub-stream, Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC, Audio Bit Rate: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3), Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz, Environment Noise Filtering: Yes, API: Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, User/Host: Up to 32 users. 3 user levels: administrator, operator and user, Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser, Day/Night Switch: Day, Nigh, Auto, SNR: >52dB, Image Enhanement: BLC, HLC, 3D DNR, Reset Key: Yes, General Function: Heartbeat, Password Reset Via e-mail, pixel counter.

Specialty
4 MP Vandal Built-in Mic Fixed Dome Network Camera. High quality imaging with 4 MP resolution. Clear imaging against strong backlight due to 120 dB WDR technology. Efficient H.265+ compression technology. Built-in microphone for real-time audio security. Water and dust resistant (IP67) and vandal resistant (IK10). Focus on human and vehicle targets classification based on deep learning.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
