N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

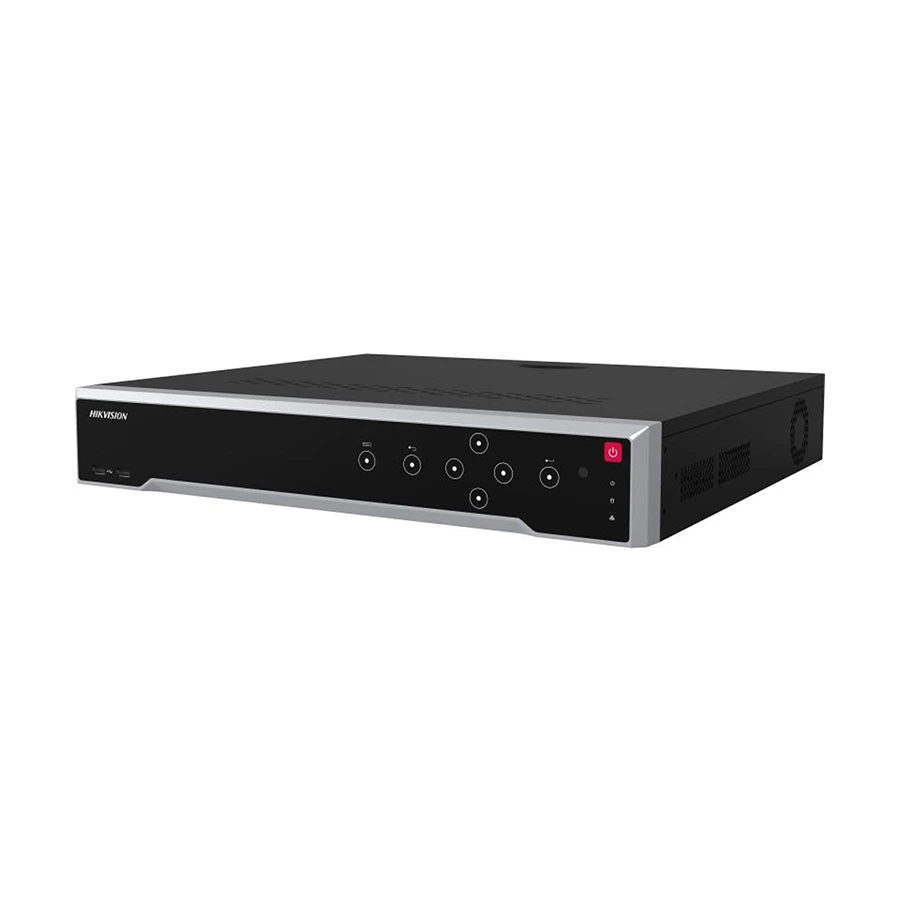

Hikvision DS-7764NI-M4 64 Channel 1.5U 8K NVR

Product Id: 127.04.485.363

Brand Hikvision

Regular Price Tk 54,790 Monthly EMI Tk 4,566
Special Price Tk 51,500

Delivery in 1 days

Quick Overview

  • Dual Stream Support - Yes
  • Number HDD Interface (SATA) - 4 SATA
  • Video Recording Res. - 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
  • Max. Storage Support - 80TB
Brand
Hikvision

Model
Hikvision DS-7764NI-M4

Type
8K NVR

Video Compression/Format
H.265+/H.265/H.264+/H.264

Video Output (VGA)
1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (DVI)
No

Video Output (HDMI)
8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (BNC)
No

Video Recording Res.
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Max. Video Recording Res.
7680 x 4320

IP Video Input
64 Channel

Audio Compression
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Audio Output Channel
1-ch, RCA (Linear, 1 K)

Two way Audio
1-ch, RCA (2.0 Vp-p, 1 K, using the audio input)

Stream Type
Video, Video & Audio

Dual Stream Support
Yes

Decoding Capability
2-ch@32 MP (30 fps)+2-ch@8MP (30fps) /10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)

Synchronous Playback
16-ch

Network Protocol
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS

Number HDD Interface (SATA)
4 SATA

Max HDD Support (GB,TB)
Up to 16TB capacity for each HDD

Max. Storage Support
80TB

eSATA
1 eSATA

Network Interface (RJ45)
2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Serial Interface
2 RS-485 (half-duplex), 1 RS-232

USB Port
Front panel: 2 x USB 2.0, Rear panel: 1 x USB 3.0

Remote Connections
128

Incoming Bandwidth
400 Mbps

Outgoing Bandwidth
400 Mbps

Chassis
19-inch rack-mounted 1.5U chassis

Power Supply
100 to 240 VAC, 50 to 60 Hz

Approx. Power Consumption
< 15W (without HDD)

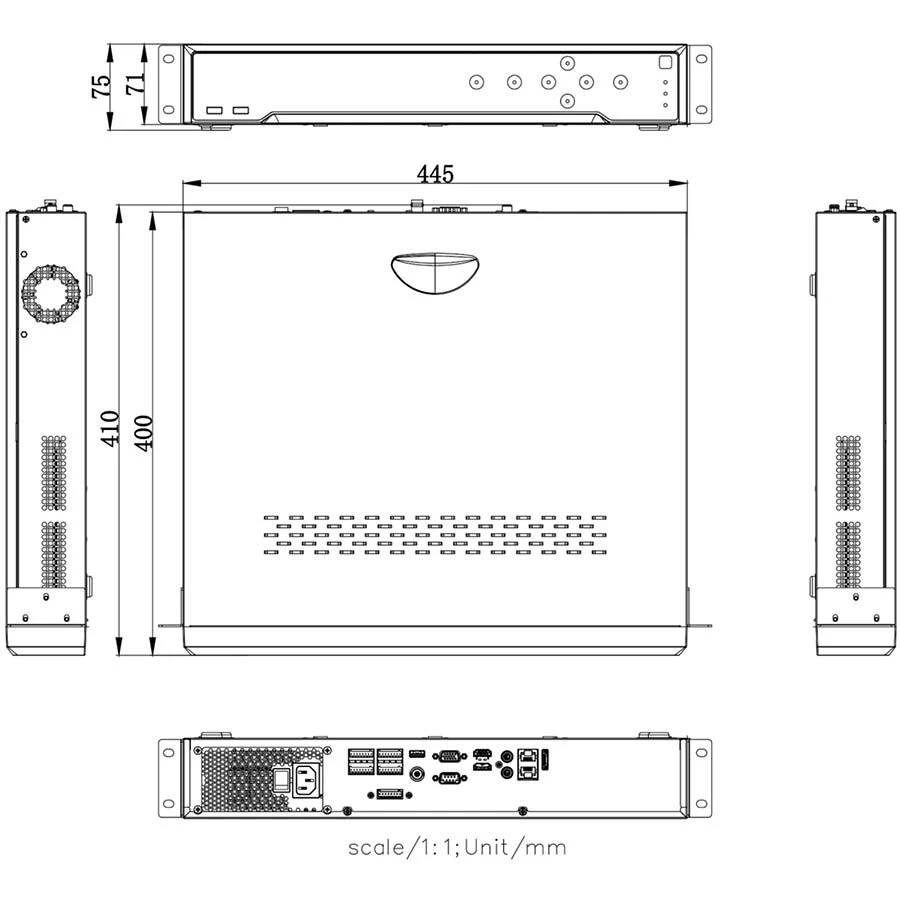

Dimensions
445 x 400 x 75mm

Weight (Kg)
< 5 kg (without HDD)

Smart Phone Supported
Yes

Feature
H.265+/H.265/H.264+/H.264 video formats, Up to 64-ch IP camera inputs, Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity, Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, 2 HDMI and 1 VGA interfaces, 8K or dual 4K video outputs

Others
CVBS Output: 1-ch, BNC (1.0 Vp-p, 75), resolution: PAL: 704 x 576, NTSC: 704 x 480, Alarm In/Out: 16/9, Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. Working Temperature: -10 Degree C to 55 Degree C, Working Humidity: 10% to 90%

Warranty Details
1 year

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
