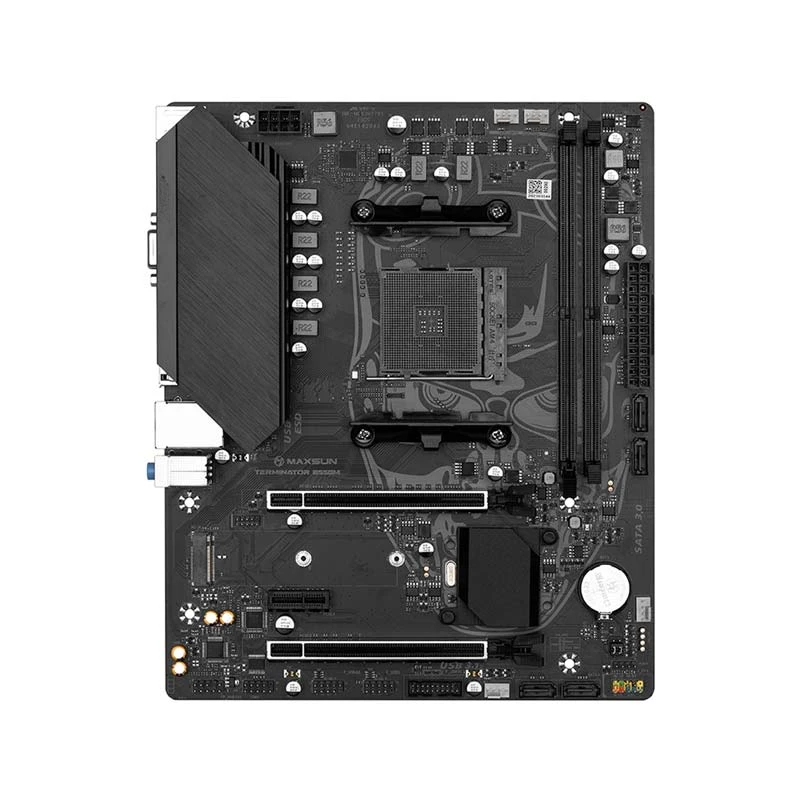

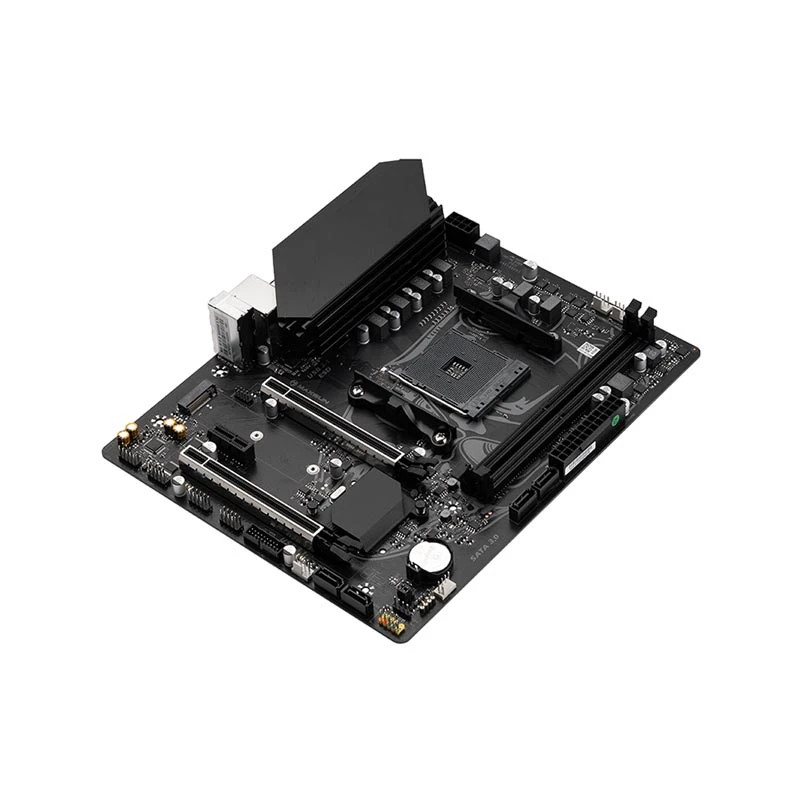

MAXSUN Terminator B550M DDR4 AMD Motherboard #MS-Terminator B550M

Item: MAXSUN Terminator B550M DDR4 AMD Motherboard #MS-Terminator B550M
Rating: 5
Author: Verified Buyer

Product Id: 02.02.970.17

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors
Generation - Not Applicable
Memory Slot - 2
Memory Max. - 64GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Maxsun

Model

Maxsun Terminator B550M

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10, 11 (64-bit)

Body Color

Black

Warranty

3 Year Replacement

General

Brand

Maxsun

Model

Maxsun Terminator B550M

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

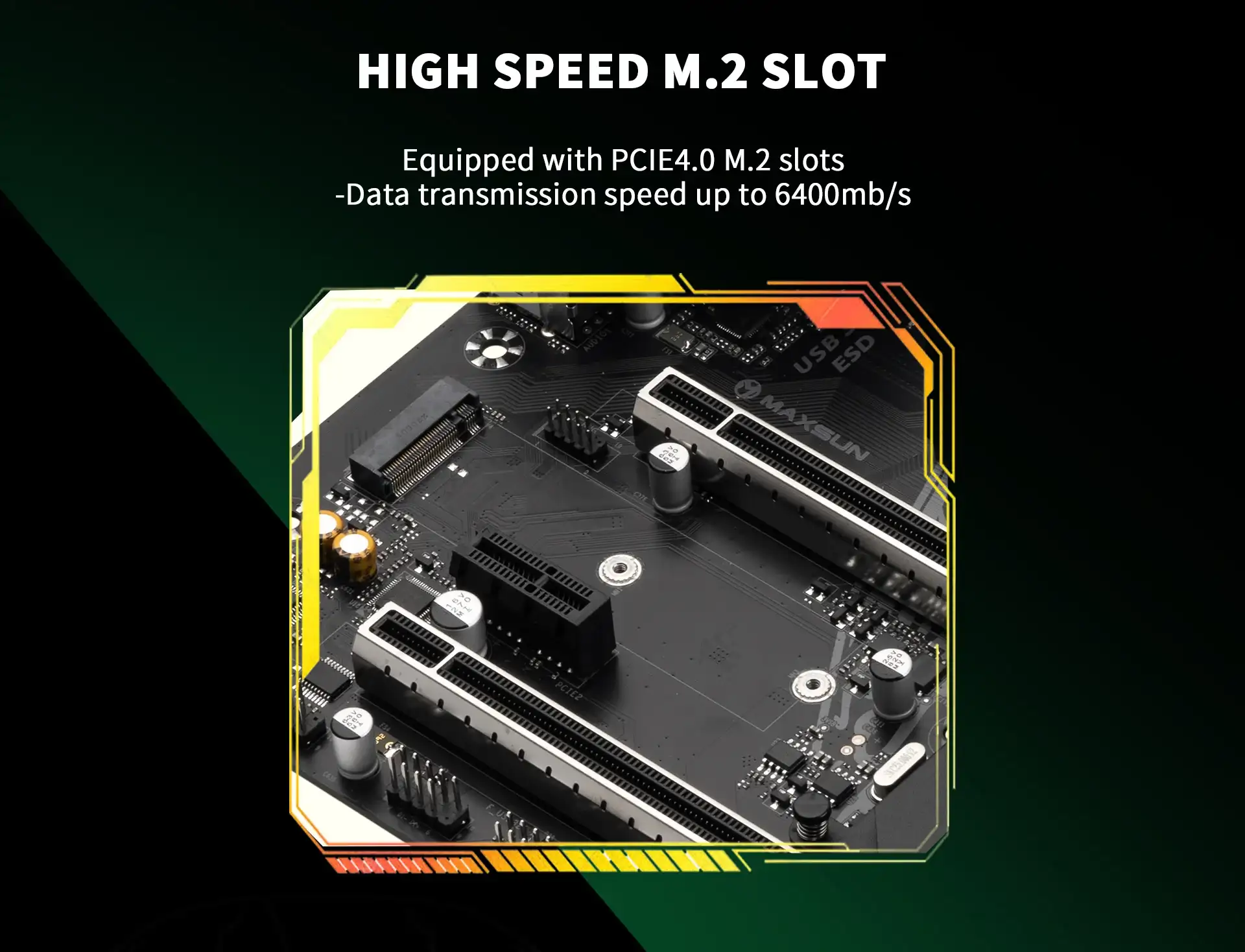

1 x M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x4 slot, 1 x PCIe 3.0 x1 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

5.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H 1G LAN

LAN Speed (Mbps)

10/100/1000Mbps

WiFi

Bluetooth

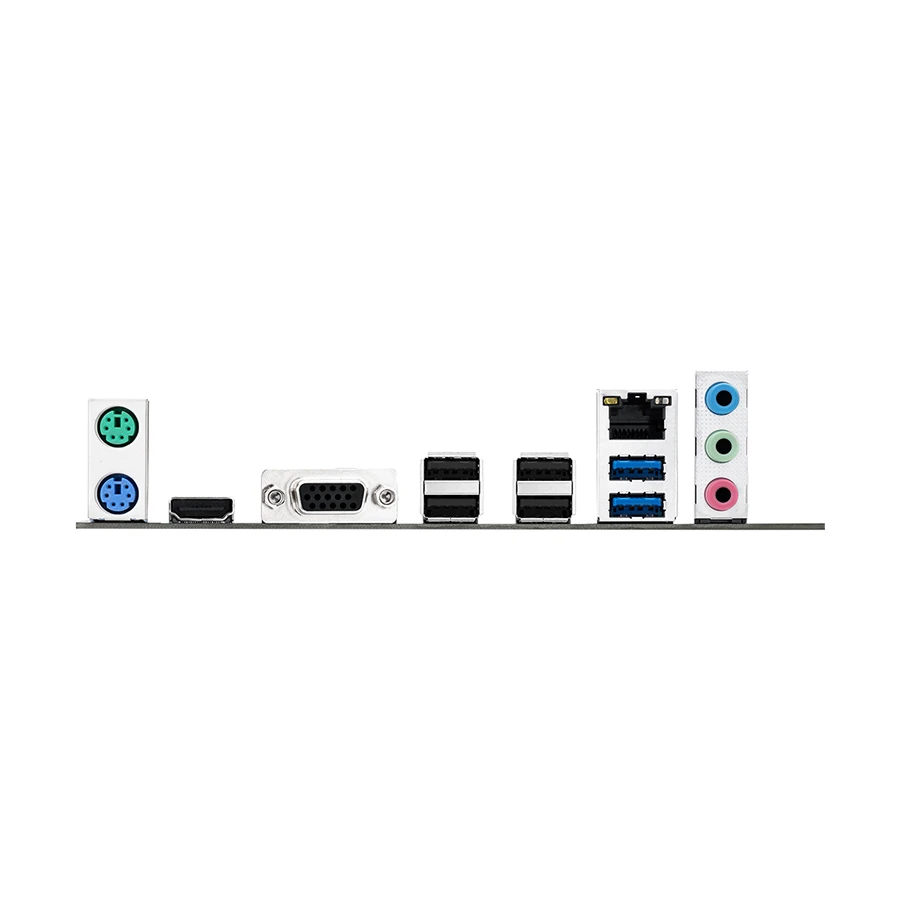

Ports

USB Port

2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Compatibility

Supported Operating System

Windows 10, 11 (64-bit)

Compatible Products

AMD AM4 Socket Ryzen 5000, 4000 & 3000 Series Desktop Processors

Warranty

3 Year Replacement

Additional Info

Feature

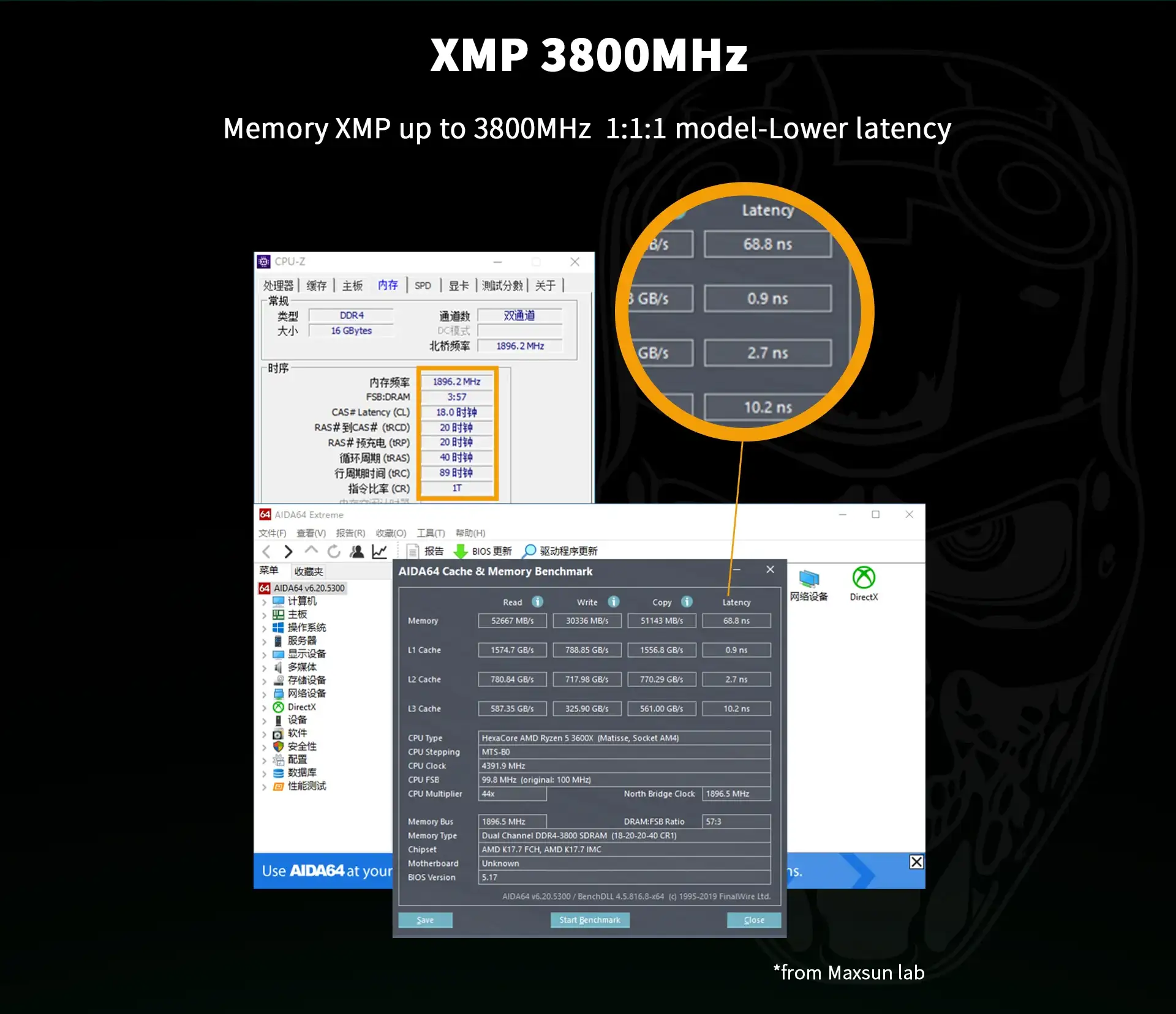

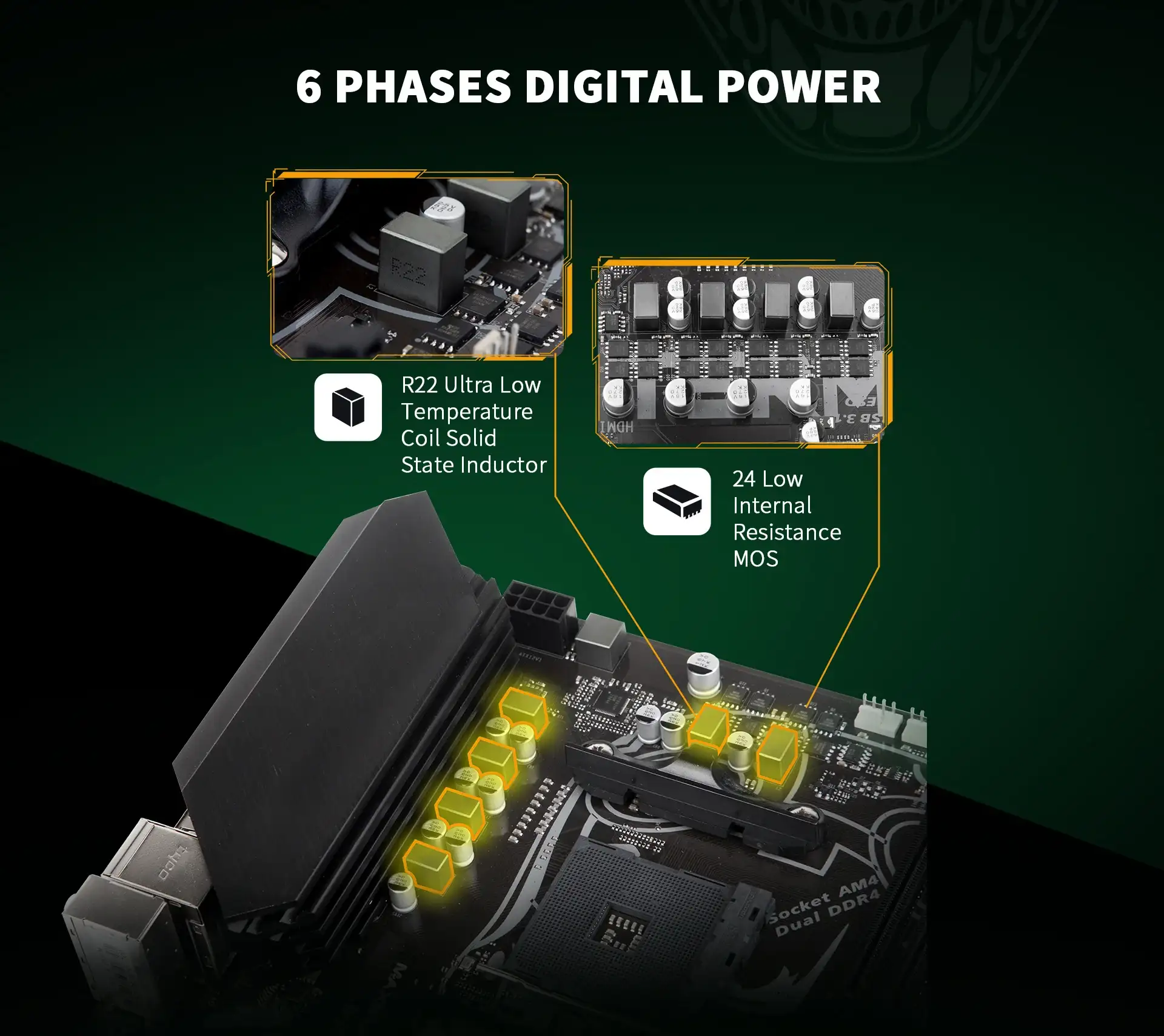

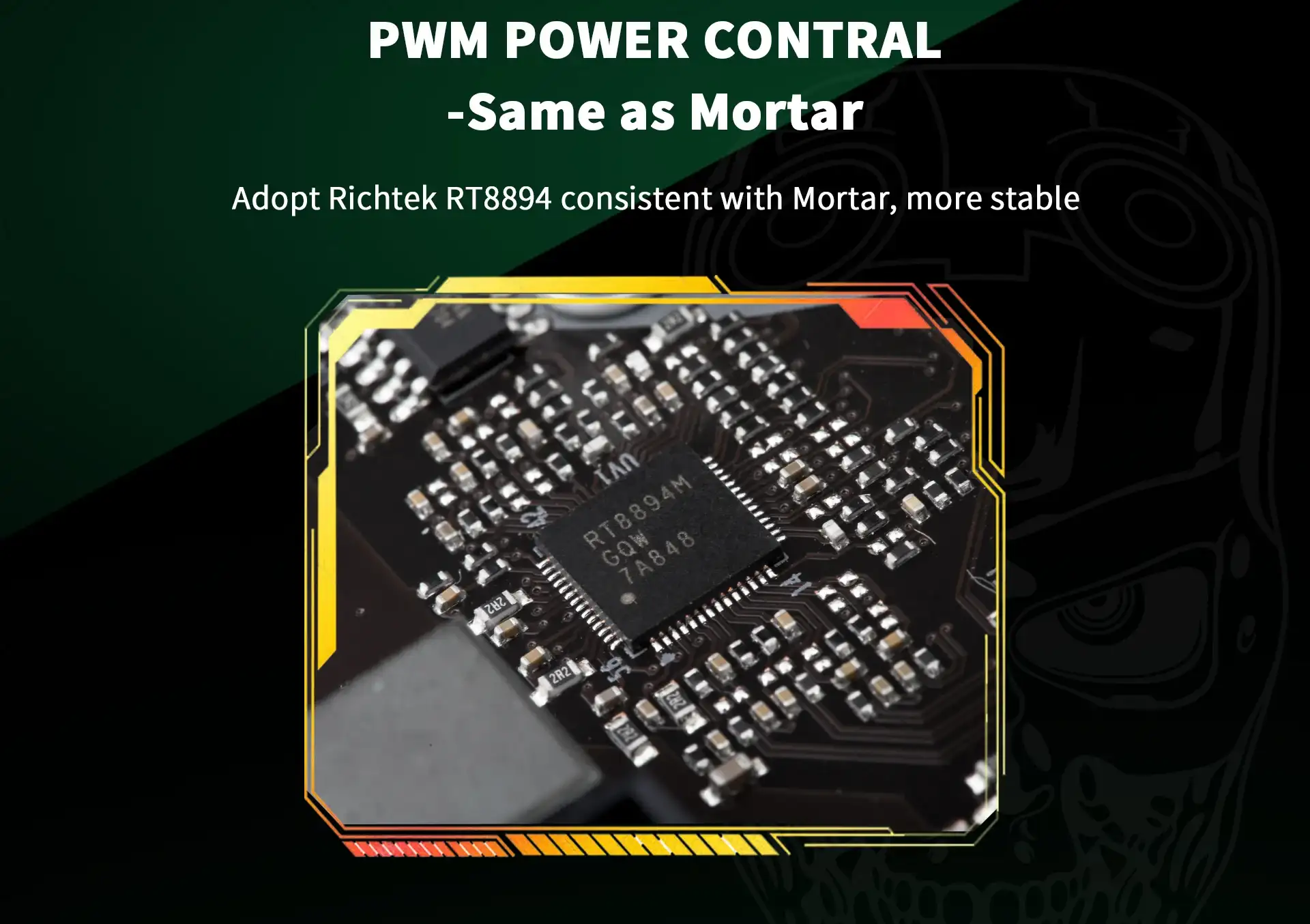

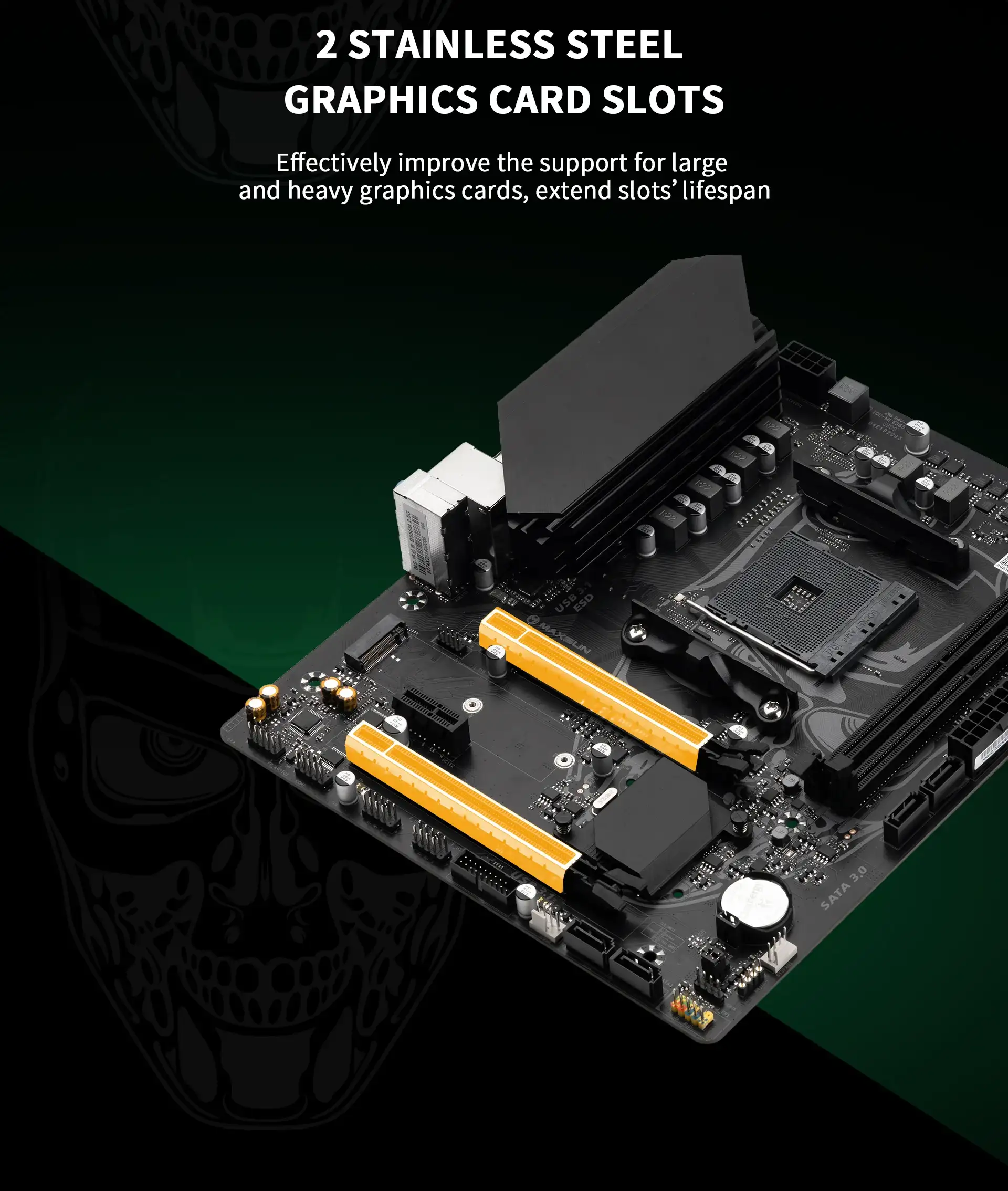

RT8894 mortar with the same PWM case, 6 phase enhanced power supply, 2 up 2 down 24 MOS, R5 5600X stable super 4.6G, XMP 3800MHz, Large area alloy cooling armor, Dual alloy armor graphics card slots, PCIE 4.0 technology.

Others

Supports AMD A-XMP OC, Supports Dual-Controller Dual-Channel mode, Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, HDMI port supports up to 4K@30Hz.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of Maxsun Terminator B550M Motherboard In Bangladesh

Maxsun Terminator B550M DDR4 AMD Motherboard

The Maxsun Terminator B550M DDR4 is a well-rounded motherboard that offers excellent value for the price. Its B550 chipset, AM4 socket compatibility, and Micro-ATX form factor make it a versatile choice for a wide range of PC builds. If you're looking for a budget-friendly and capable motherboard for your next AMD Ryzen build, the Maxsun Terminator B550M DDR4 is definitely worth considering.

Key Specifications

Chipset: AMD B550
Sockets Supported: AM4
Memory Slots: 2
Memory Max: 64GB
Form Factor: Micro-ATX
Supported Operating System: Windows 10, 11 (64-bit)
Body Color: Black
Supported CPU: AMD Ryzen 5000 G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series Processors/ AMD Ryzen 3000 Series Processors

What Makes it Special?

B550 Chipset: The B550 chipset provides excellent performance and features, including PCIe 4.0 support for high-speed storage devices like NVMe SSDs. This translates to faster game loading times and smoother overall system performance.
AM4 Socket Compatibility: The motherboard supports a wide range of AMD Ryzen processors, from entry-level to high-end models. This gives you flexibility in choosing a CPU that fits your budget and needs.
Micro-ATX Form Factor: The compact Micro-ATX form factor makes it ideal for smaller builds or cases with limited space.
Cost-Effective: The Maxsun Terminator B550M DDR4 offers a compelling price-to-performance ratio, making it an excellent choice for budget-conscious builders.

Who Should Buy an Maxsun Terminator B550M DDR4?

Gamers on a budget: If you're looking to build a capable gaming PC without breaking the bank, the Maxsun Terminator B550M DDR4 is an excellent option.
Budget-conscious builders: Whether you're building a home server, a workstation, or a general-purpose PC, this motherboard provides a solid foundation at an affordable price.
Those who prioritize value: If you're looking for a motherboard that offers good performance and features without sacrificing affordability, the Maxsun Terminator B550M DDR4 is worth considering.

What is the price of Maxsun Terminator B550M Motherboard In Bangladesh?

The price of Maxsun Terminator B550M Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy Maxsun Terminator B550M Motherboard from our website or visit our showrooms nearby.
