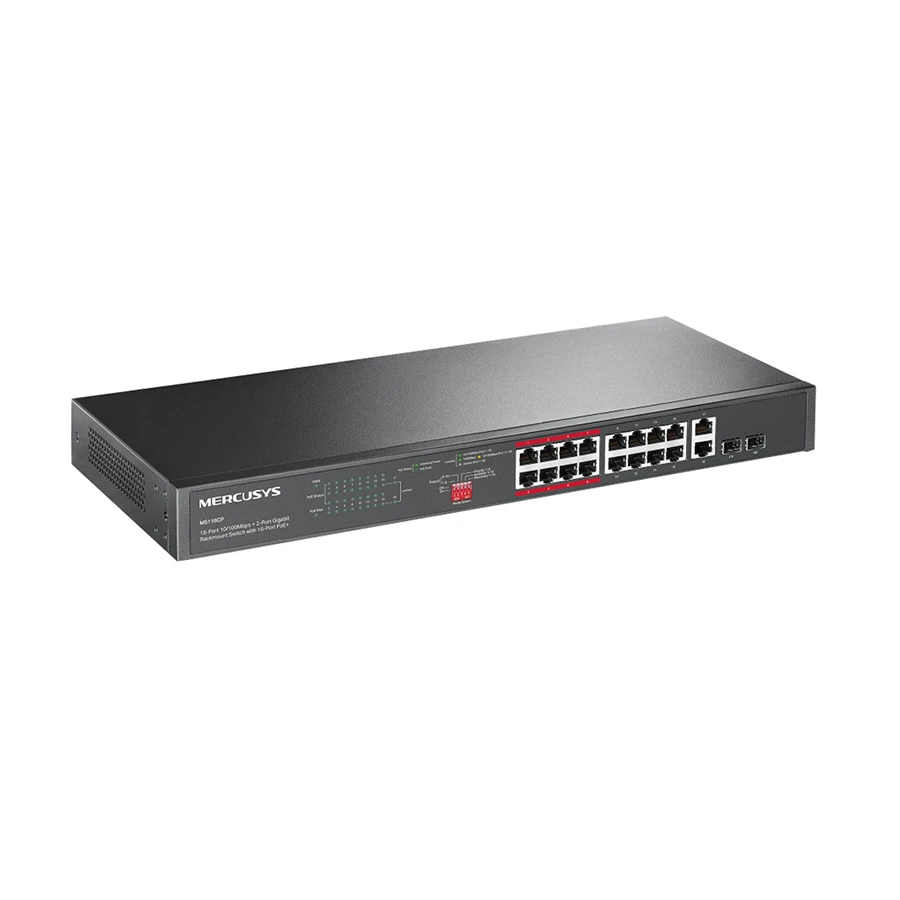

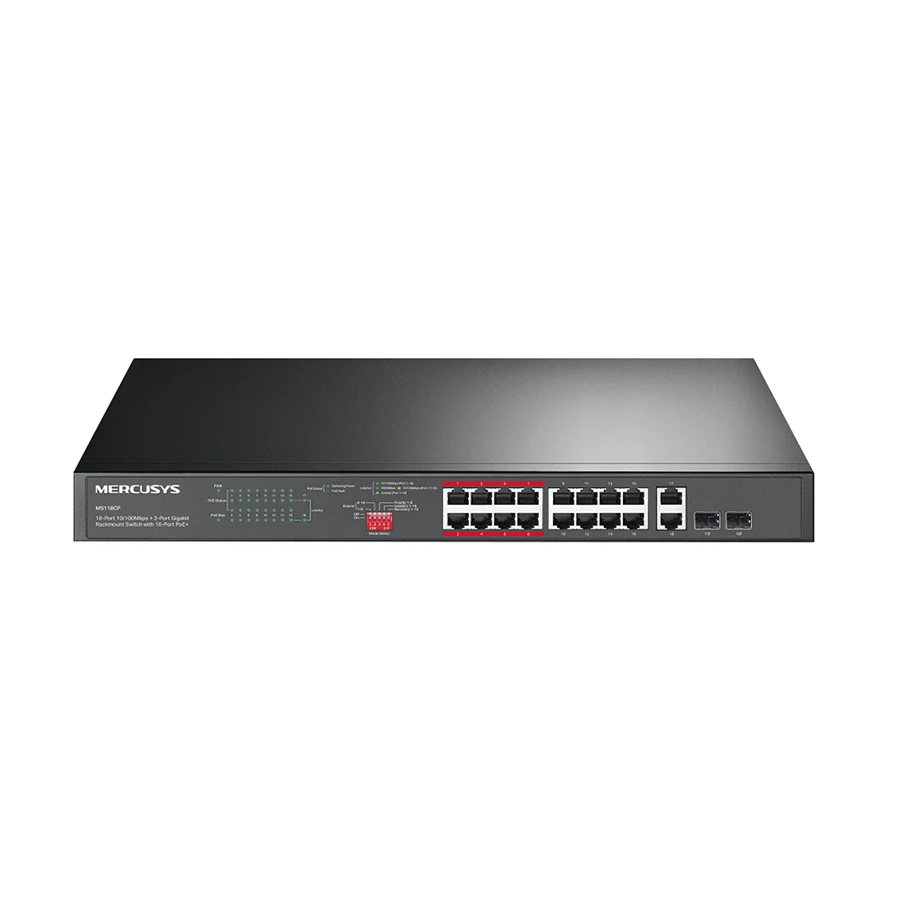

16 x PoE+ 10/100 Mbps RJ45 Ports, 2 x 10/100/1000 Mbps RJ45 Ports, 2 x Combo Gigabit SFP Slots.
Data Transfer Rate
10/100/1000 Mbps
Connector Type
RJ45
Switching Capacity
7.2 Gbps
Physical Description
Fan/Fanless
2 Fan
Body Color
Black
Form Factor
Rackmount
Dimension
440 x 180 x 44mm
Packet Contents
MS118CP, Power Cable, Installation Guide, Two mounting brackets and the fittings.
Power
Power Supply
100 - 240V AC, 50/60Hz
Approx. Power Consumption
13.07 W (220/50Hz. no PD connected), 218.91 W (220/50Hz. with 190W PD connected)
Warranty
Warranty Details
1 Year (Without Adapter)
Additional Info
Others
PoE Ports: RJ45, Standard: 802.3at/802.3af compliant, PoE Ports: Ports 1-16, PoE Power Budget: 190W. Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100 ohm STP (maximum 100m), 1000BASE-X MMF, SMF. Physical Security Lock: Yes. Jumbo Frame: 10KB. MAC Address Table: 8K. Max Heat Dissipation: 44.57 BTU/h (no PD connected), 746.48 BTU/h (with 190W PD connected). Transfer Method: Store-And-Forward. Compatible With IEEE 802.3at/af Compliant PDs. Extend Mode (Up to 250m PoE power supply and data transmission). Priority Mode (Ports 1-8). Isolation Mode (Ports 1-16). PoE Auto Recovery (Ports 1-16). MAC Address Auto-Learning And Auto-Aging. IEEE802.3x Flow Control. Packet Forwarding Rate: 5.36 Mpps. Certifications: CE, FCC, RoHS. Operating Temperature: 0-50 Degree C. Storage Temperature: -40-70 Degree C. Operating Humidity: 10-90% RH non-condensing. Storage Humidity: 5-90% RH non-condensing.
Specialty
16x PoE+ 10/100 Mbps RJ45 ports, 2x Gigabit RJ45 ports, and 2x combo Gigabit SFP slots. High PoE power budget with up to 30W for each PoE port and 190W for all PoE ports. Up to 250 m data and power transmission under extend mode specially designed for surveillance system. Priority mode for ports 1-8 to guarantees the quality of sensitive applications like video monitor. Isolation Mode allows one-click client traffic separation for higher security and performance. PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices. Easy to use, with no configuration and installation needed.
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
