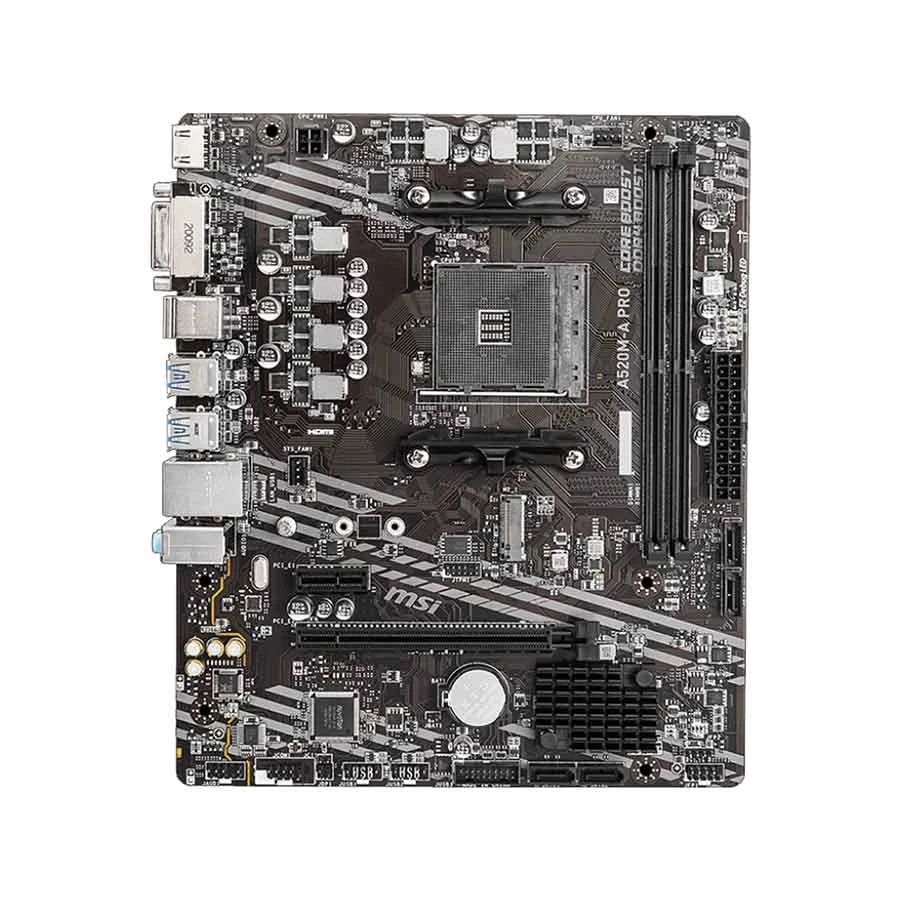

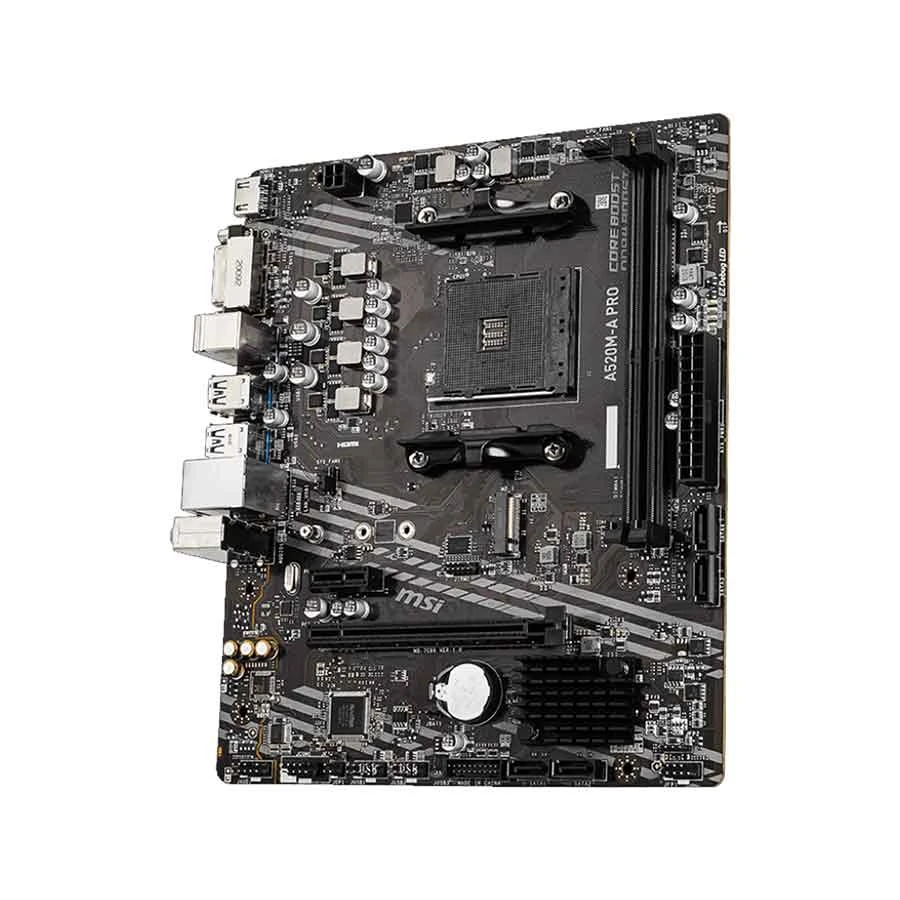

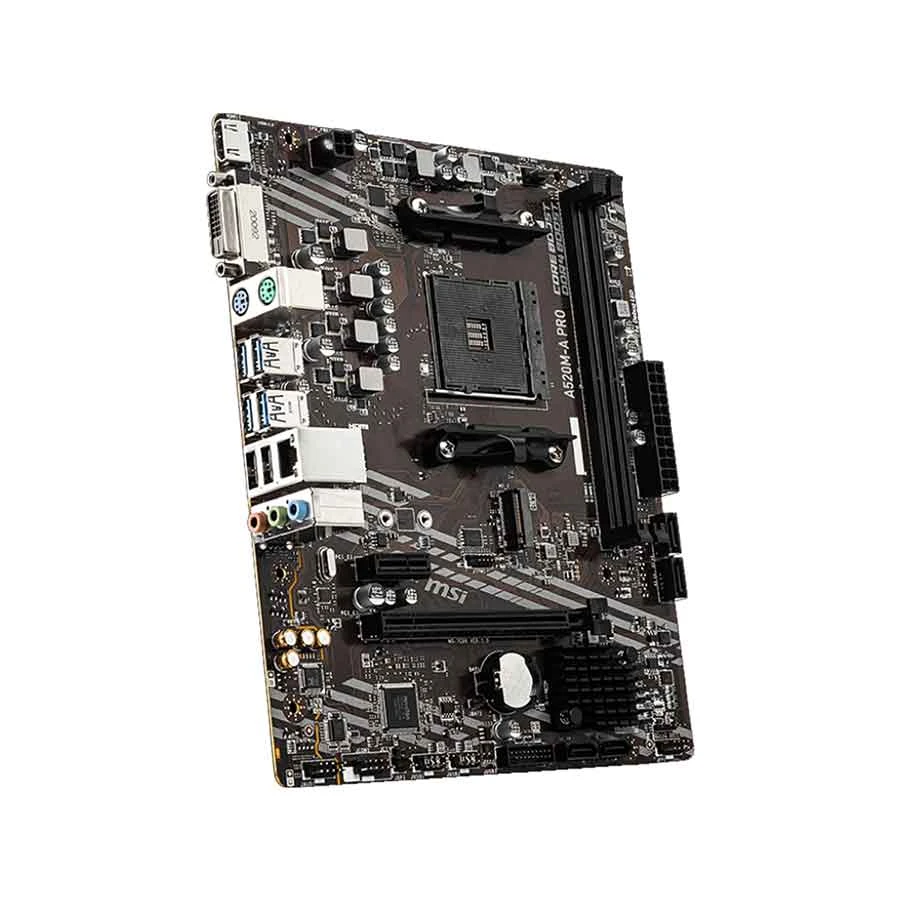

MSI A520M-A PRO DDR4 AMD AM4 Socket Motherboard

Product Id: 02.02.033.510

Brand MSI

Regular Price Tk 9,010 Monthly EMI Tk 751
Special Price Tk 8,300

Quick Overview

  • Chipset - AMD A520
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 5000, 5000 G, 4000 G, 3000 & 3000 G Series Processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI A520M-A PRO

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD A520

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 5000, 5000 G, 4000 G, 3000 & 3000 G Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz non-ECC/ECC un-buffered

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DDR4

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 Slot (Supports 2242/ 2260/ 2280 Storage Devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1x PCIe 3.0 x1 slot, 1x PCIe x16 slot


Audio & Video
Audio Chipset
Realtek ALC892/ALC897

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/100/1000 Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
2 x USB 2.0, 4 x USB 3.2 Gen 1 5Gbps Type-A

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

SATA Port
4

Thunderbolt
No


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0 , 1, 10

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Compatible Products
AMD Ryzen 5000, 5000 G, 4000 G, 3000 & 3000 G Series Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

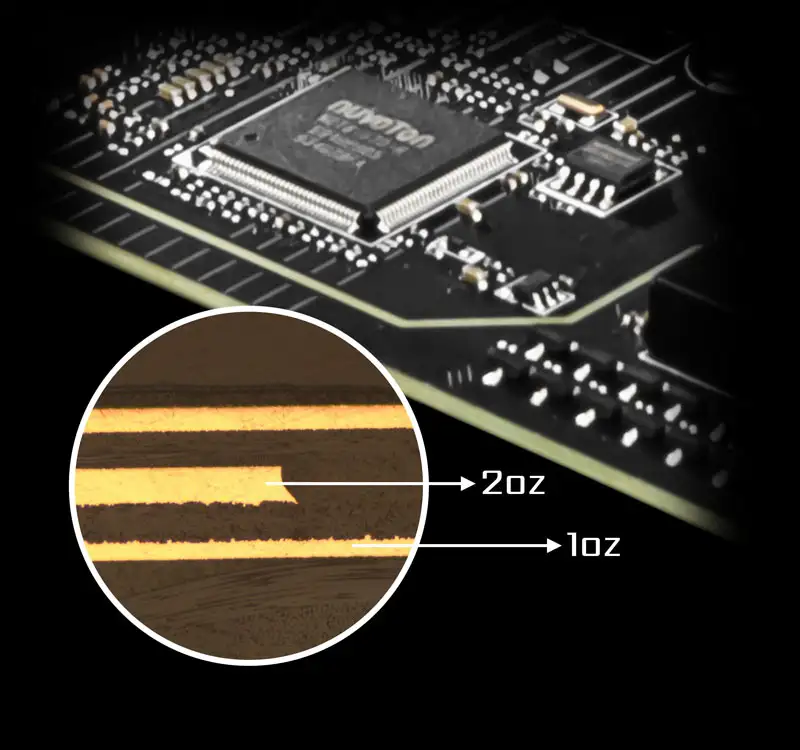

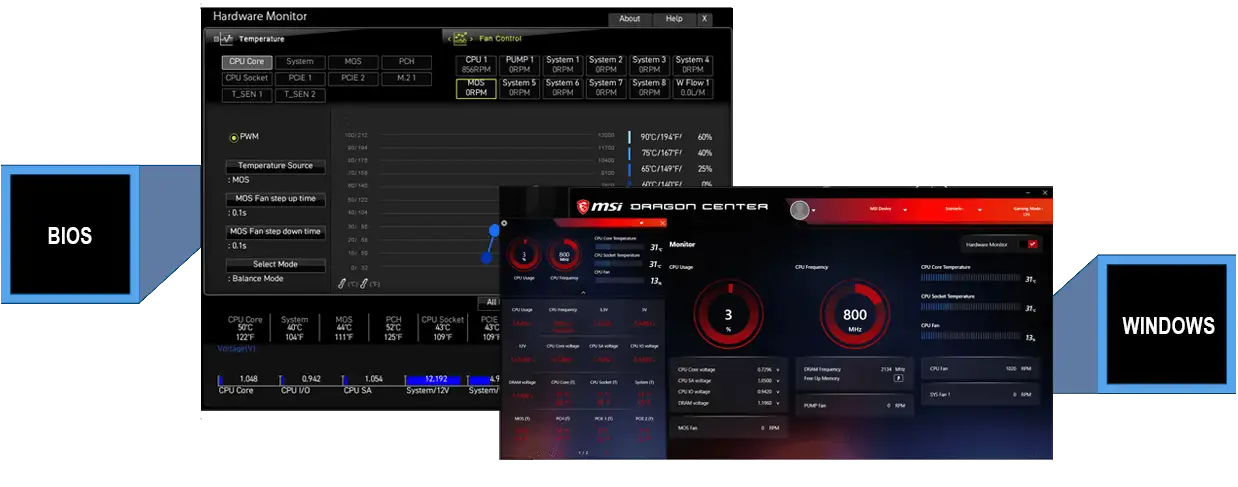

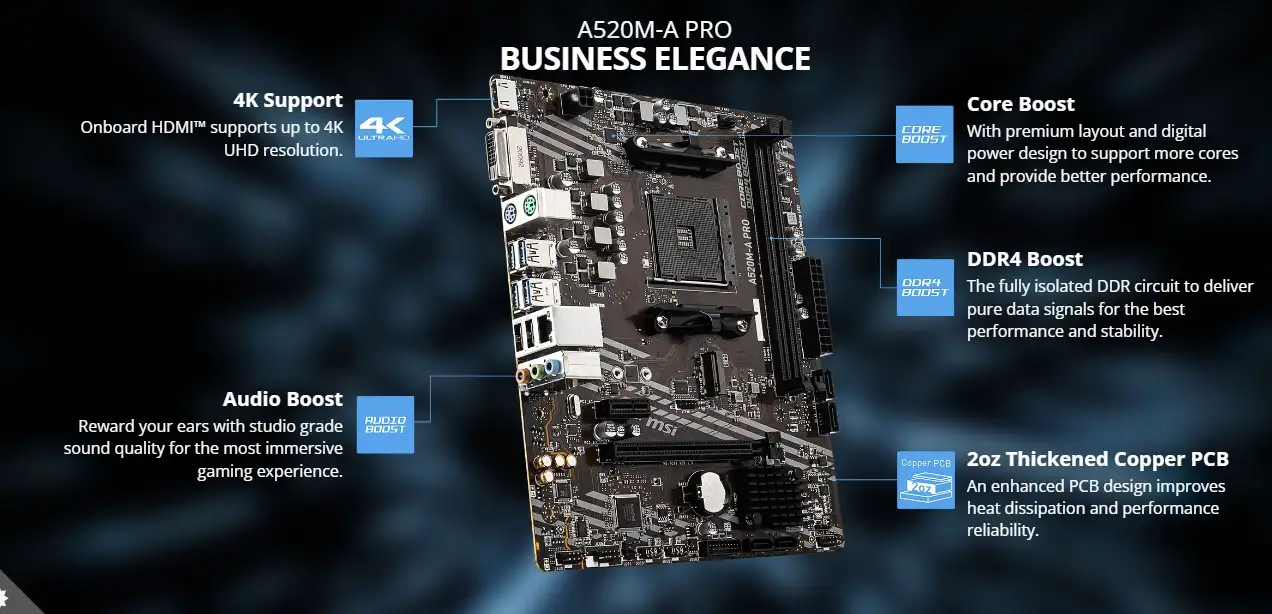

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability. Audio Boost: Reward your ears with studio grade sound quality. Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Others

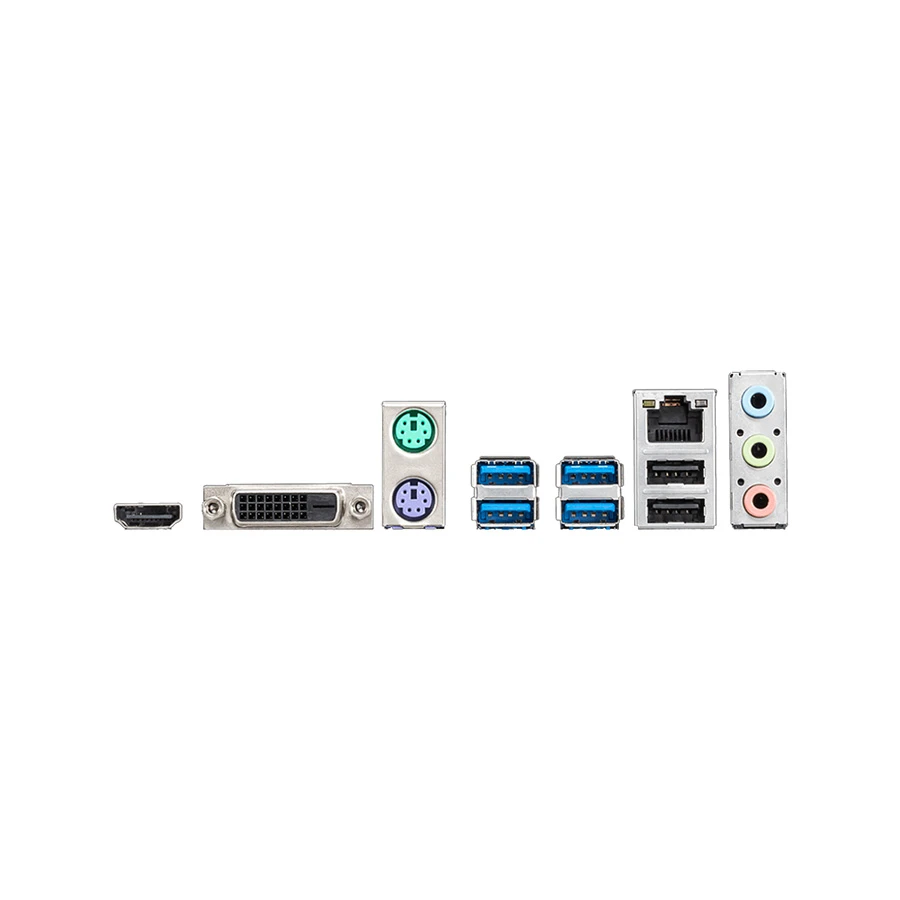

HDMI 2.1 supports max resolution of 4096x2160 60Hz, Support HDCP 1.4 & 2.3, DVI-D supports max resolution of 1920x1200 60Hz. Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices, Supports RAID 0 and RAID 1 for M.2 NVMe storage devices. Internal Connectors: 1x 24-pin ATX main power connector, 1x 4-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 1x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports), 1x 4-pin CPU fan connector, 1x 4-pin system fan connectors, 1x Front panel audio connector 2x System panel connectors, 1x Chassis Intrusion connector, 1xTPM module connector, 1x Clear CMOS jumper. Back panel ports: 1x LAN port, 1x HDMI, 1x DVI-D, 1x Keyboard 1x Mouse 4x USB 3.2 Gen 1 5Gbps Type-A, 2x USB 2.0 Ports, 3x Audio Connectors. Dimension: 23.6 x 20cm. Mounting: 8 Mounting Holes.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
