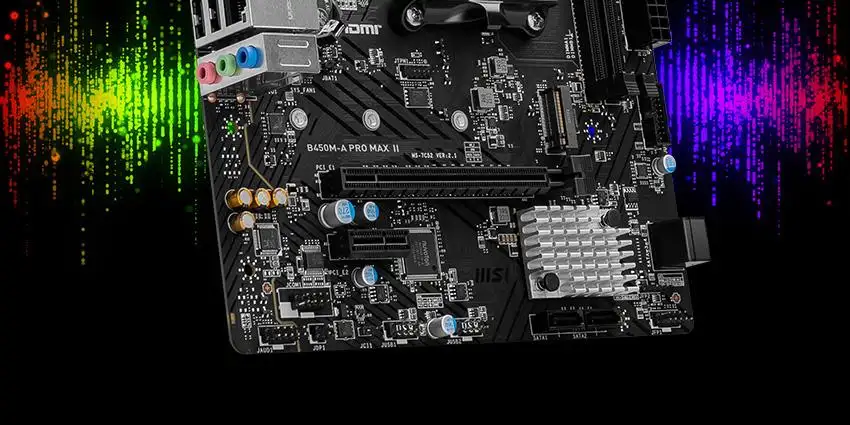

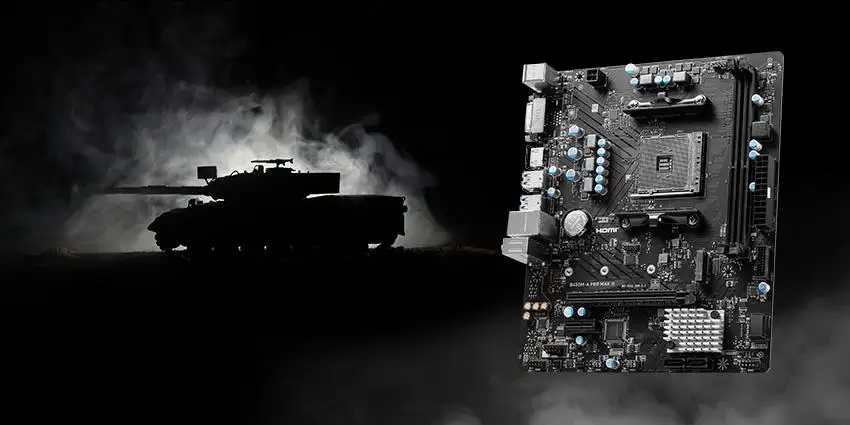

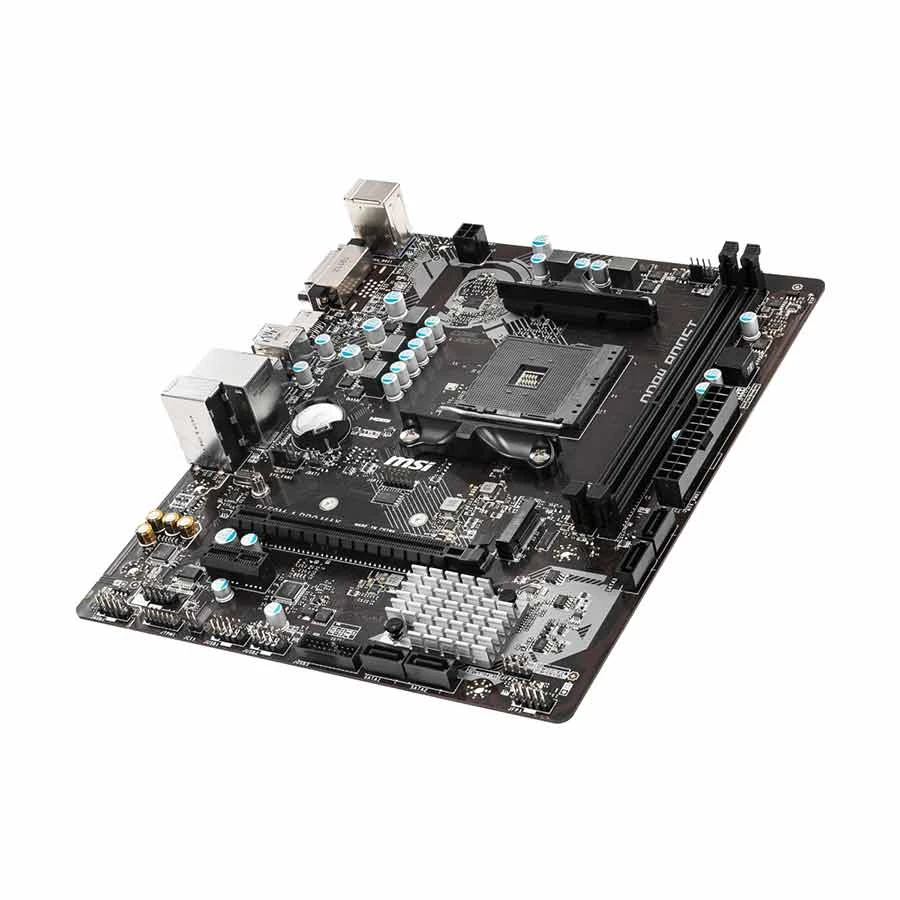

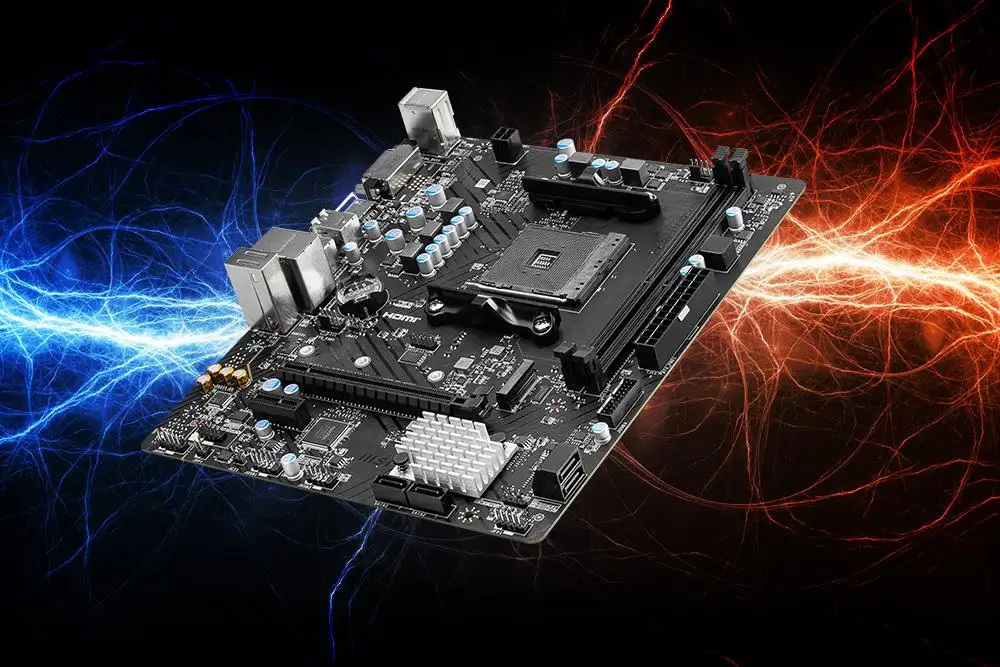

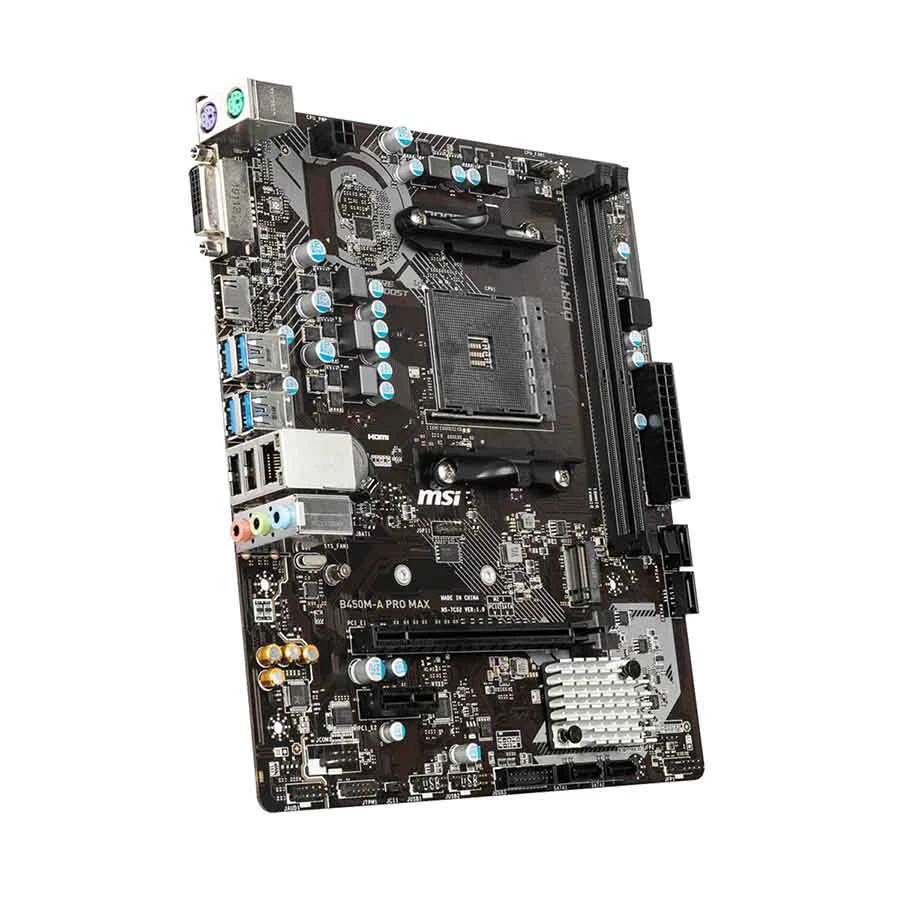

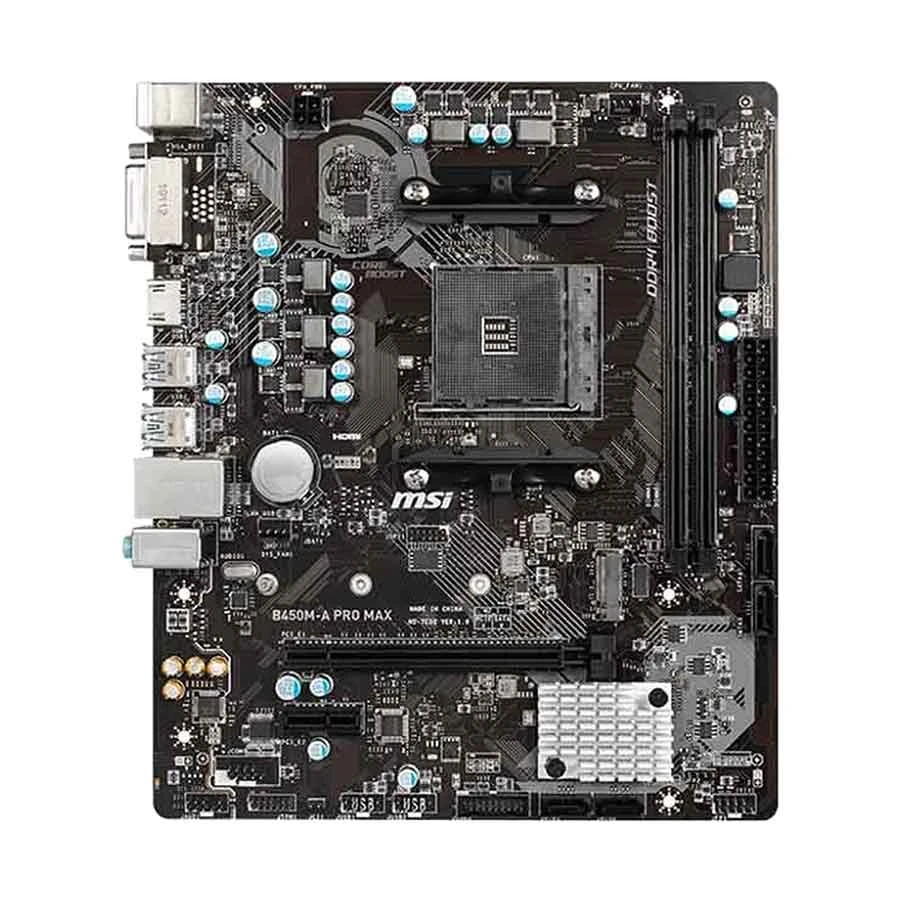

MSI B450M-A Pro Max DDR4 AMD Motherboard

Product Id: 02.02.033.508

Brand MSI

Regular Price Tk 8,460 Monthly EMI Tk 705
Special Price Tk 7,800

Quick Overview

  • Chipset - AMD B450
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & A-series/Athlon X4 Processors
  • Generation - Not Applicable
General
Brand
MSI

Model
MSI B450M-A Pro Max

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B450

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors & Athlon with Radeon Vega Graphics & A-series/Athlon X4 Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
1866/ 2133/ 2400/ 2667Mhz by JEDEC, AMD Ryzen Gen3 (R5/R7/R9) (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133MHz) (by A-XMP OC MODE), AMD Other CPU (2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz) (by A-XMP OC MODE)

Memory Channel
Dual

Memory Slot
2

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 slot (Supports PCIe 3.0 x4 and SATA 6Gb/s / Supports PCIe 3.0 x2 and SATA 6Gb/s / Supports 2242/ 2260/ 2280/ 22110 storage devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 3.0 x16 slot, PCIe 2.0 x1 slot


Audio & Video
Audio Chipset
Realtek ALC892

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8111H Gigabit LAN

LAN Speed (Mbps)
10/100/1000Mbps

WiFi
No

Bluetooth
No

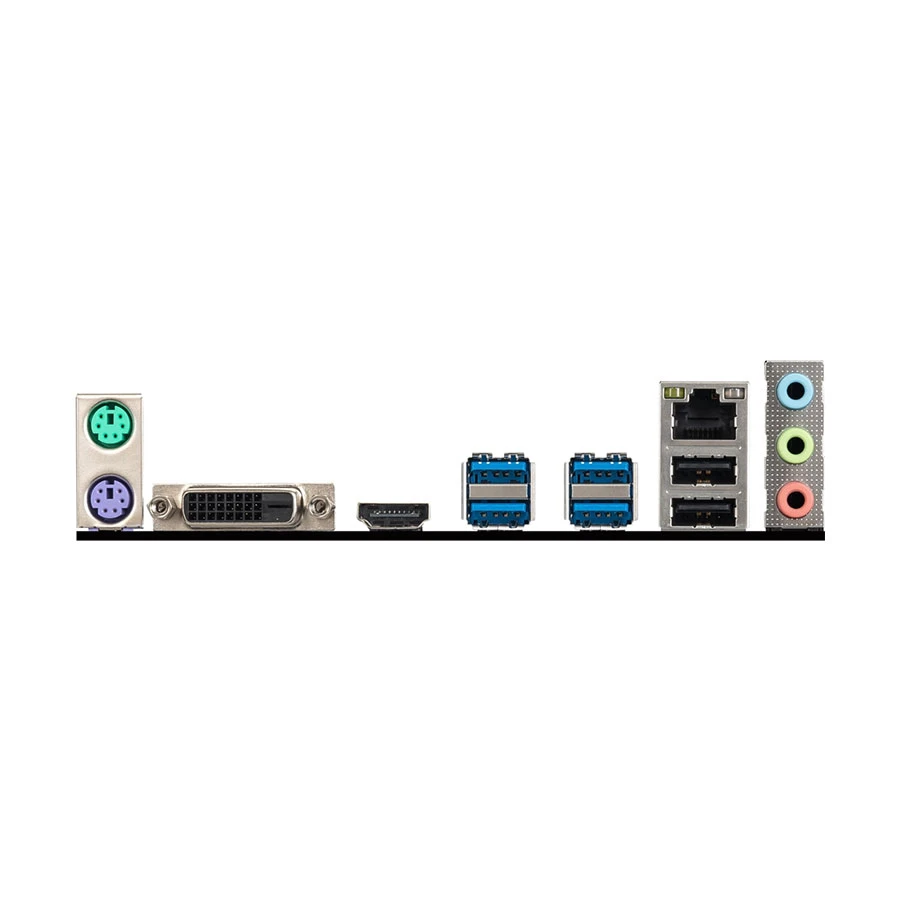

Ports
USB Port
4 x USB 3.2 Gen 1, 2 x USB2.0

VGA Port
No

DVI Port
1

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0,1,10

RGB Support
No

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 7 / 10

Compatible Products
AMD Athlon 3000G, AMD Ryzen 5 5500, AMD Ryzen 5 5600, AMD Ryzen 5 5600G, AMD Ryzen 7 5700X, AMD Ryzen 7 5700G, AMD Ryzen 7 5800X3D, AMD Ryzen 9 5900X & AM4 Socket support AMD Processors.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1, Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs, Audio Boost, X-Boost, Software that auto-detects and allows to boost the performance of any storage or USB device, Core Boost With premium layout and fully digital power design to support more cores and provide better performance

Others
1 x M.2 slot, 1x 4-pin CPU fan connector, 1x 4-pin system fan connector, 1x Front panel audio connector, 2x Front panel connectors, 1x TPM module connector, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Clear CMOS jumper, HD Audio Connectors, 6 mounting holes

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Is there any major difference between MSI B450M PRO-VDH MAX AMD Motherboard and this?
By Emon Hawlader
A:
Dear Sir, Yes! There is a many differences between MSI B450M PRO-VDH MAX AMD Motherboard and MSI B450M-A Pro Max DDR4 AMD Motherboard's, like Memory Slot, Memory Max, USB Port, VGA Port, RGB Support, RGB Connector related, Thanks for your query!
By Ryans Computers Ltd. , 10 Mar 2024 11:12:52 AM
Q:
Does it support AMD Ryzen 5 5600G cpu?
By Emon Hawlader
A:
Dear Sir, Yes! It will support AMD Ryzen 5 5600G processor, Thanks for your query!
By Ryans Computers Ltd. , 10 Mar 2024 10:53:31 AM
Q:
Hi ! shall I use AMD Ryzen 5-5600 processor in this motherboard MSI B450M?
By Mohammed Anwarul Islam
A:
Dear Sir, Yes! It will support AMD Ryzen 5 5600 processor with this motherboard, Thanks for your query!
By Ryans Computers Ltd. , 24 Feb 2024 12:28:29 PM
Q:
āĻāĻ‡ āĻŽāĻžāĻĻāĻžāĻ°āĻŦā§‹āĻ°ā§āĻĄ āĻŸāĻŋ āĻĻāĻŋāĻ¯āĻŧā§‡ āĻ•āĻŋ rgb, argb āĻ•ā§‡āĻ¸āĻŋāĻ‚ āĻ•āĻ¨ā§āĻŸā§āĻ°ā§‹āĻ˛ āĻ•āĻ°āĻž āĻ¯āĻžāĻŦā§‡?
By 1
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, MSI B450M-A Pro Max DDR4 AMD Motherboard āĻŸāĻŋ āĻĻāĻŋā§Ÿā§‡ RGB, ARGB āĻ•ā§āĻ¯āĻžāĻ¸āĻŋāĻ‚ āĻ•āĻ¨ā§āĻŸā§āĻ°ā§‹āĻ˛ āĻ•āĻ°āĻž āĻ¯āĻžāĻŦā§‡ āĻ¨āĻž, āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ!
By Ryans Computers Ltd. , 27 Apr 2024 11:57:55 AM
