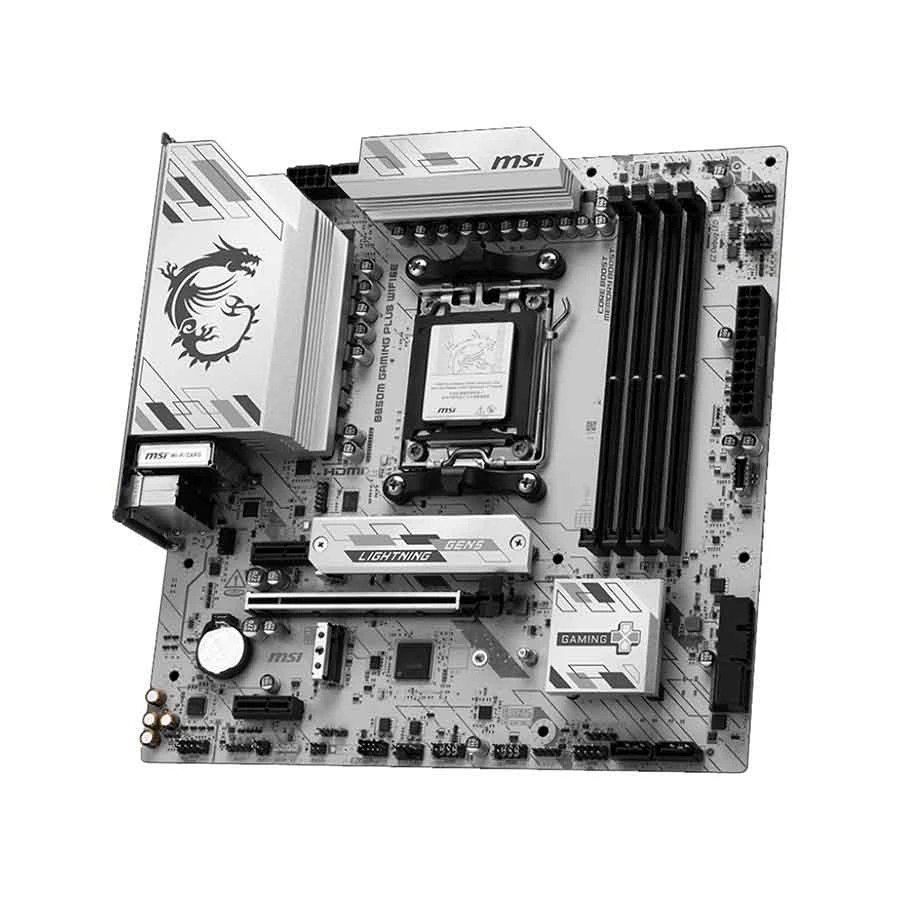

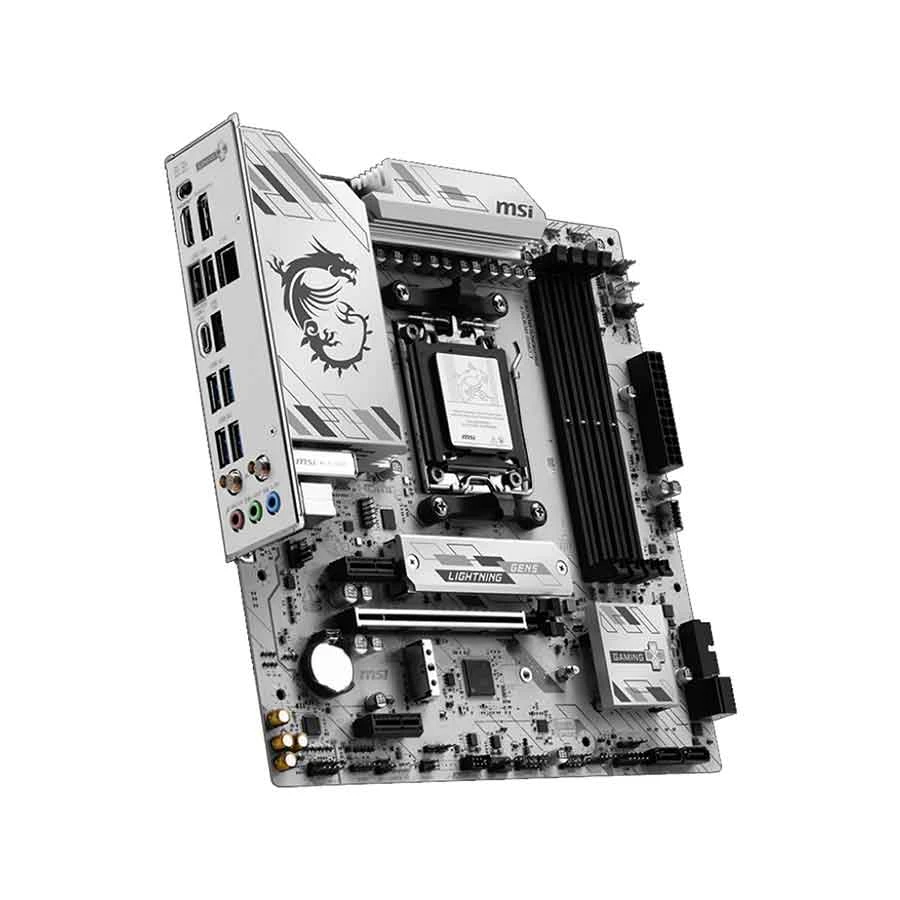

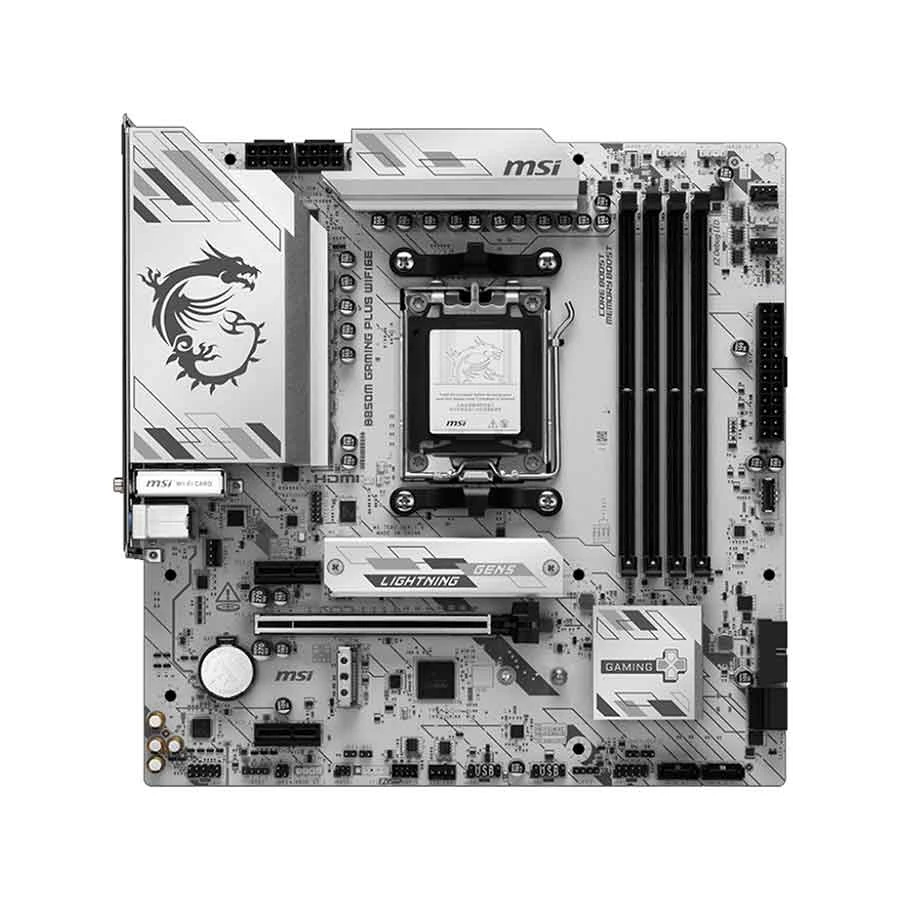

MSI B850M GAMING PLUS (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard #B850M GAMING PLUS WIFI6E
Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 Slot (1 x M.2 type 2280/2260 supports up to PCIe 5.0 x4 ssd, 1 x M.2 type 2280/2260 supports up to PCIe 4.0 x4.
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
1 x PCI-E x16 slot, 2 x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC897
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek 8125D
LAN Speed (Mbps)
10/100/1000/2500 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
4 x USB 5Gbps Type-A, 3 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0 , 1 , 10 (SATA), 0 , 1 (M.2)
RGB Support
ARGB
RGB Connector
3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB)
Approx. Power Consumption
60W
Form Factor
Micro-ATX
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with AM5 socket AMD Ryzen 9000/ 8000/ 7000 Series.
Warranty
Warranty Details
3 year
Additional Info
Feature

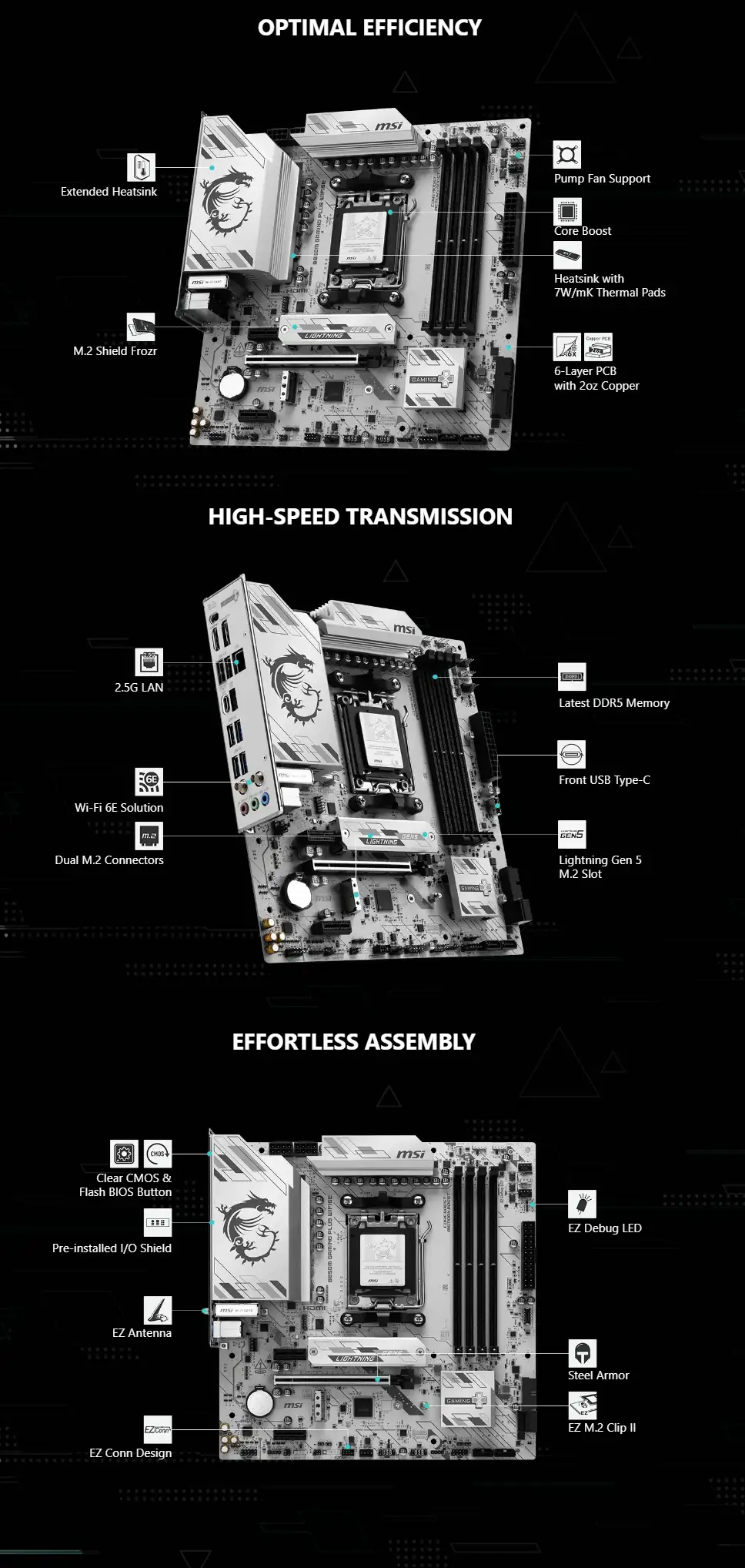

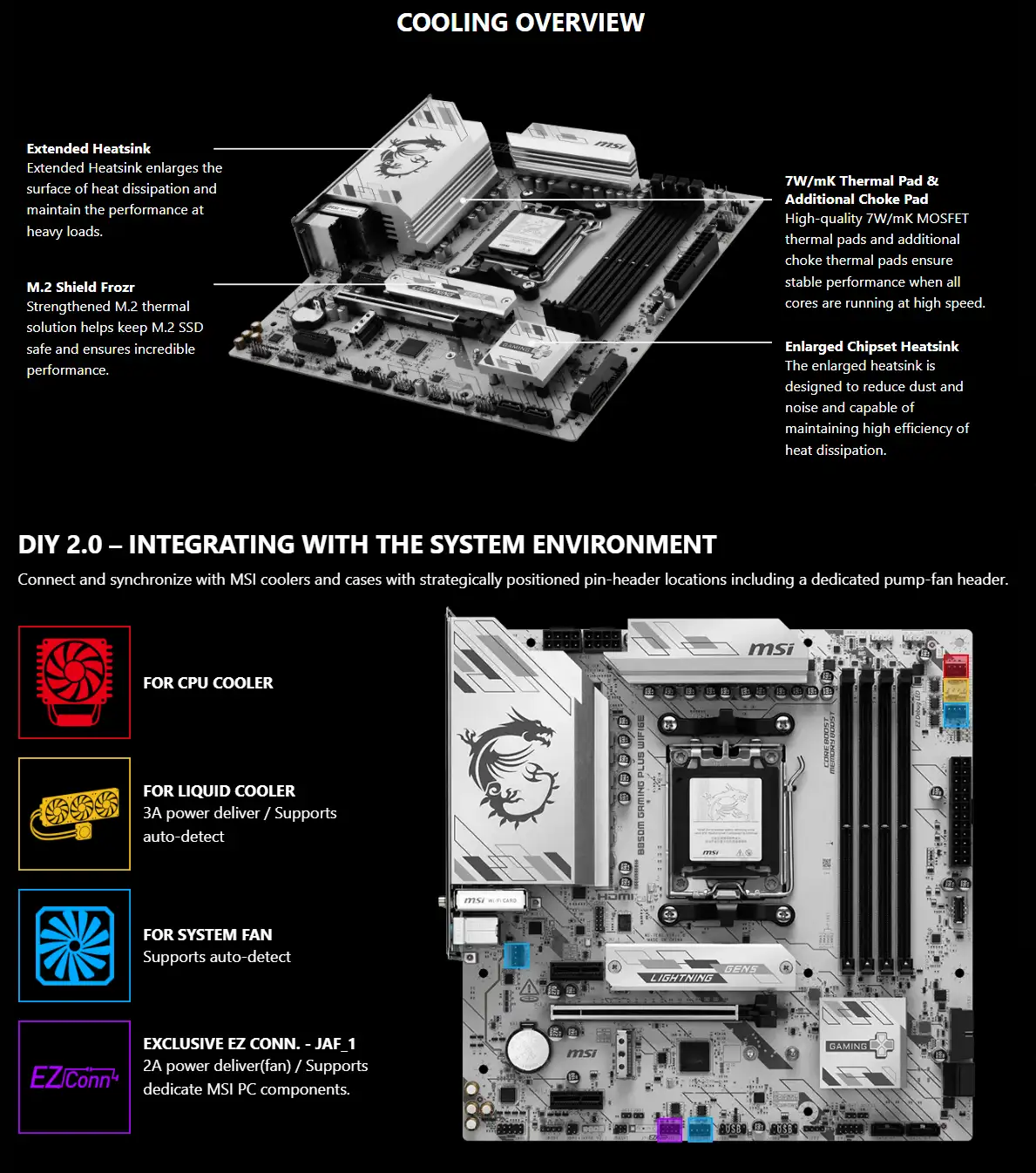

Support HDMI 2.1 maximum resolution of 4K 60Hz, Support DisplayPort 1.4 maximum resolution of 4K 60Hz, Ultra Performance: 10+2+1 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper PCB, Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience, High-speed Connectivity: 2.5G LAN with Wi-Fi 6E Solution - The premium solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission, EZ DIY: EZ M.2 Clip II, EZ-Conn Design and EZ Antenna, Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
Others
Internal IO: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH)).
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
Details
QUESTION & ANSWER
Customer Questions
Q:
Does it overclocking?
Does it support CPU gen 5 architecture?
Asked By MD. FUAD UL ISLAM
A:
Dear Customer, Yes, Overclocking supported, Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors. Expansion Slot: Supports Up to PCIe Gen 4.0. M2 Slot: Supports Up to PCIe Gen 5.0 Thank You.
Answered By Ryans Computers Ltd.
, 13 Apr 2026
Q:
Ai mobo ki bios a Chinese lekha asbe naki English
Asked By Rafin
A:
প্রিয় গ্রাহক , By default ইংলিশ থাকে । অন্য আরো কিছু language ও আছে এগুলো চেঞ্জ করা যায় । ধন্যবাদ
Answered By Ryans Computers Ltd.
, 01 Sep 2025
Q:
R7 7700 and rtx 5060 ti 16gb and t force delta 16gb ddr5 6000mhz cl28 and deepcool pl750d 750watt
Ai components gulo ai mobo sathe use korle heat ba troubleshoot korbe And wifi ba kono connectivity te problem hobe
Ar aita ki official Naki unofficial
Asked By SOWAD
A:
প্রিয় গ্রাহক না এ ধরনের কোন ইস্যু হবে না এবং আমাদের স্টকে থাকা সমস্ত প্রোডাক্ট অরিজিনাল ব্র্যান্ড নিউ ধন্যবাদ
Answered By Ryans Computers Ltd.
, 28 Aug 2025
Q:
Aita ki bhalo? Mane msi b650m ba b650 gaming plus theke long lasting and problem hobe na?
Asked By RAFIN
A:
প্রিয় গ্রাহক জি ভালো হবে আপনার রিকোয়ারমেন্ট অনুযায়ী ভালো পারফরম্যান্স পাবেন বিস্তারিত তথ্যের জন্য হেল্পলাইন নাম্বারে যোগাযোগ করুন ধন্যবাদ
Answered By Ryans Computers Ltd.
, 27 Aug 2025
