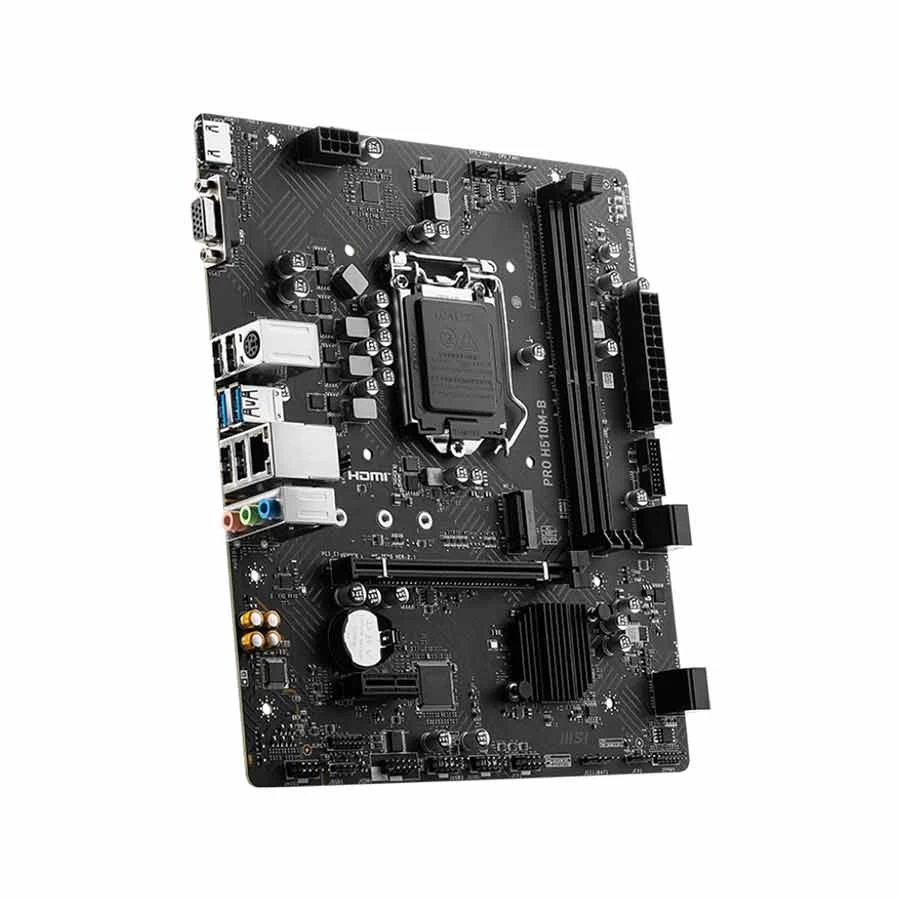

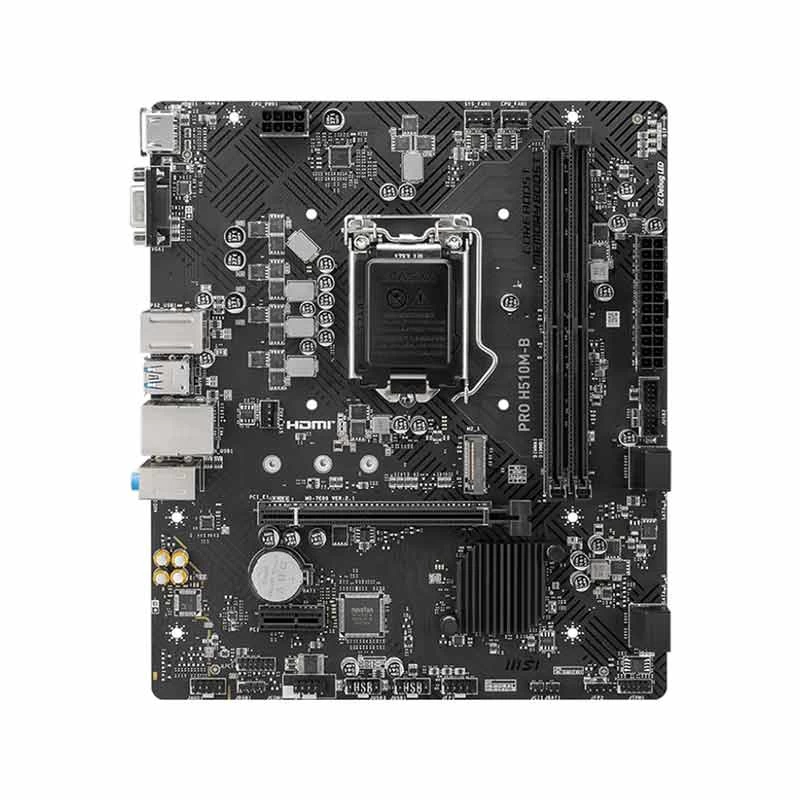

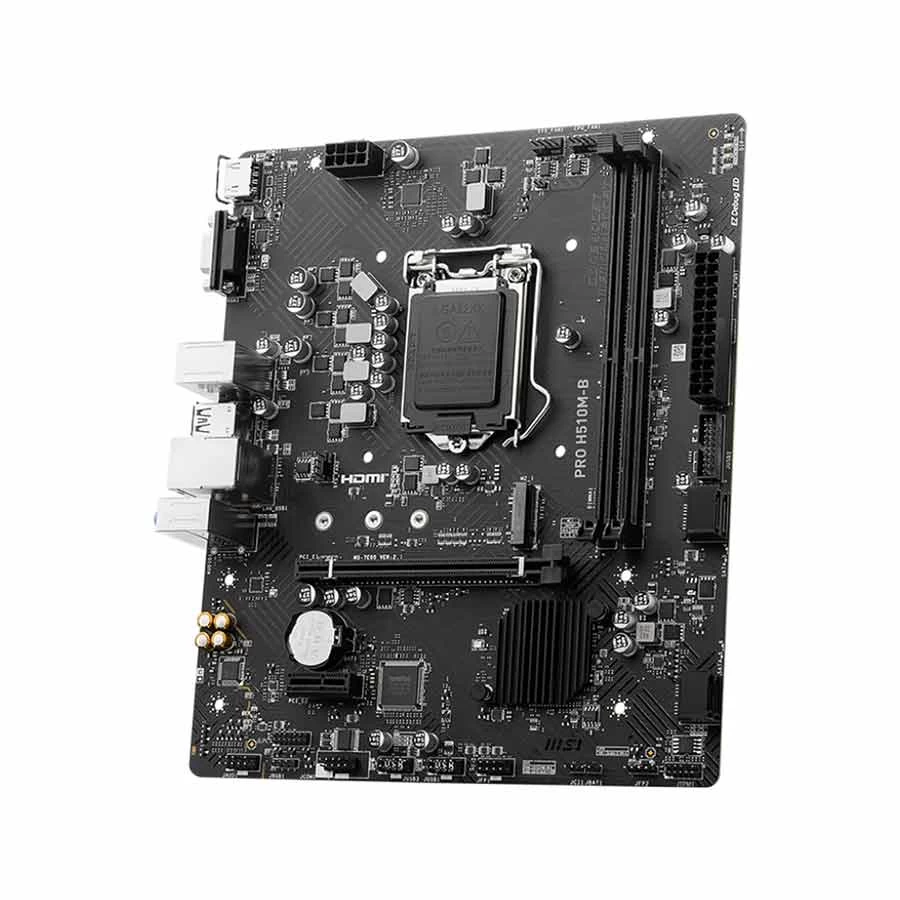

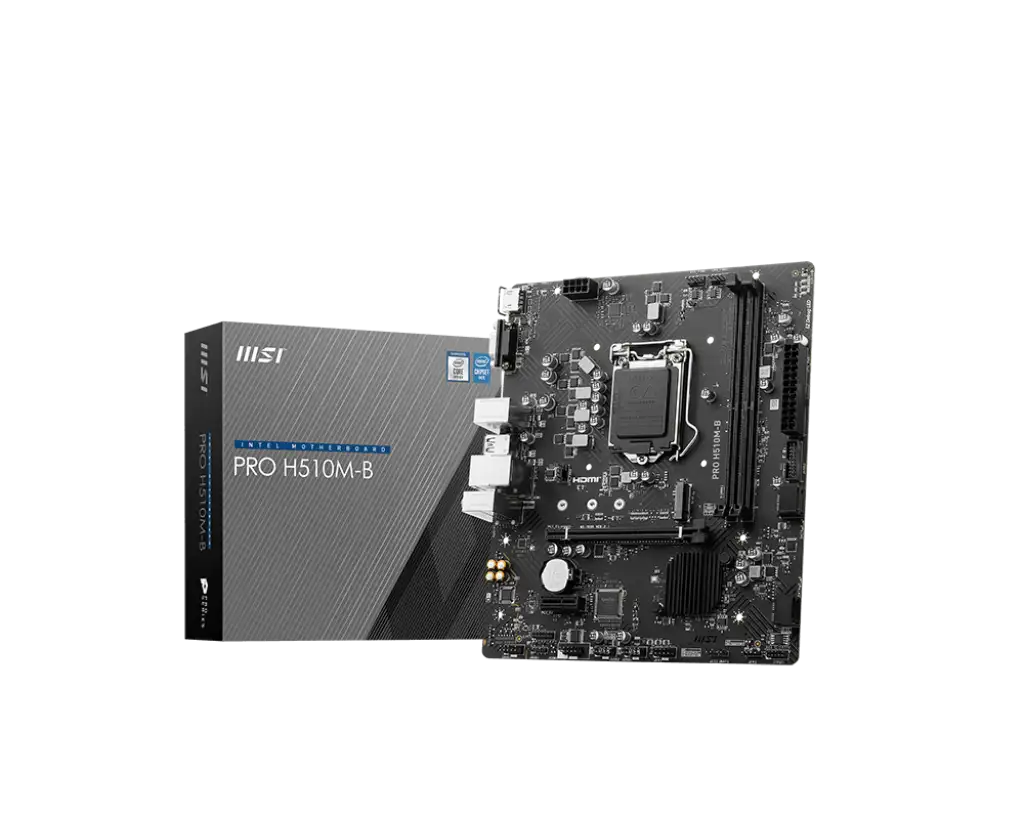

MSI PRO H510M-B DDR4 H470 Chipset Intel Motherboard

Product Id: 02.01.033.388

Brand MSI

Regular Price Tk 9,870 Monthly EMI Tk 823
Special Price Tk 9,200

Quick Overview

  • Chipset - Intel H470
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1200
  • Supported CPU - Supports 10th Gen Intel Core and Pentium Gold/Celeron processors
  • Generation - 10th
General
Brand
MSI

Model
MSI PRO H510M-B

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H470

Sockets Supported
LGA1200

Built-in Processor
No

Supported CPU
Supports 10th Gen Intel Core and Pentium Gold/Celeron processors

Generation
10th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 2933/ 2800/ 2666/ 2400/ 2133MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DDR4

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 Type 2280/2260/2242 supports up to PCIe 3.0 x4 / SATA mode


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCI-E x16 slot, 1 x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek 8111H Gigabit LAN

LAN Speed (Mbps)
10/100/1000 Mbps

WiFi
No

Bluetooth
No


Ports
USB Port
2 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
No

RGB Support
RGB

RGB Connector
1 x RGB LED connector(JRGB)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 10 / 11

Compatible Products
Compatible with LGA1200 Socket 10th Gen Intel Processor.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Only 10th Gen Intel Processor Supported, Core Boost With premium layout and digital power design to support more cores and provide better performance, Advanced technology to deliver pure data signals for the best performance, stability and compatibility, Reward your ears with studio grade sound quality, Protecting VGA cards against bending and EMI for better performance, stability and strength.

Others

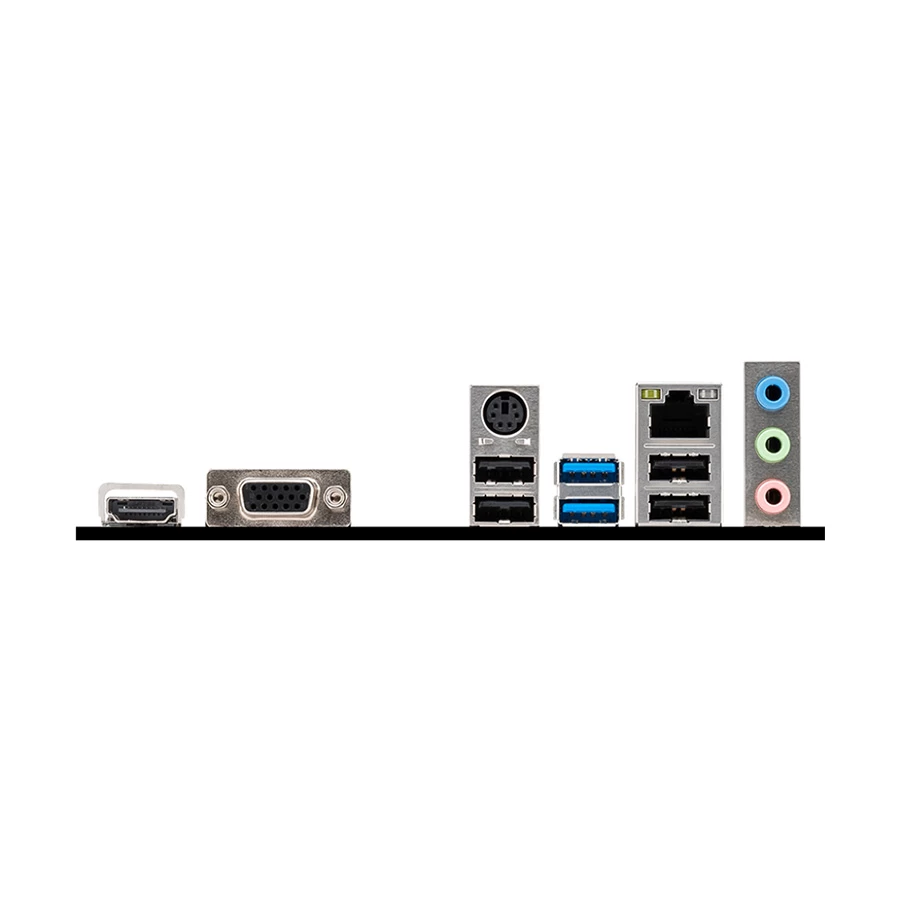

Back Panel Ports: (Keyboard / Mouse, Audio Connectors), Internel Connectors: (1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0))

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
