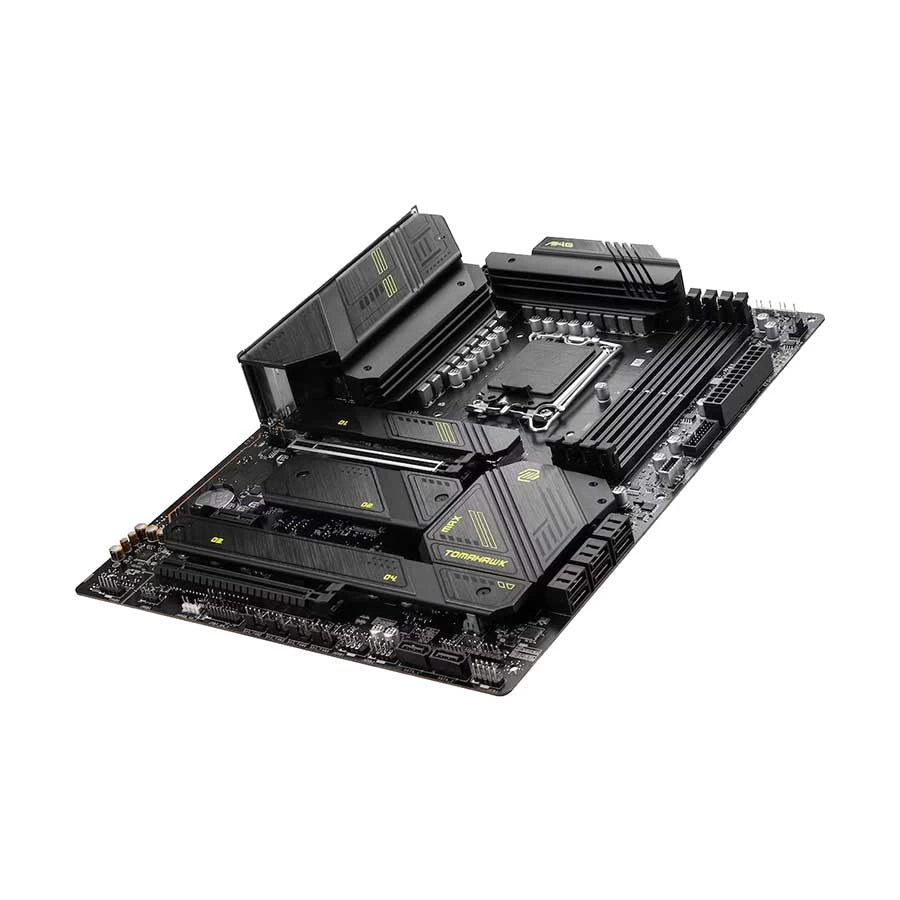

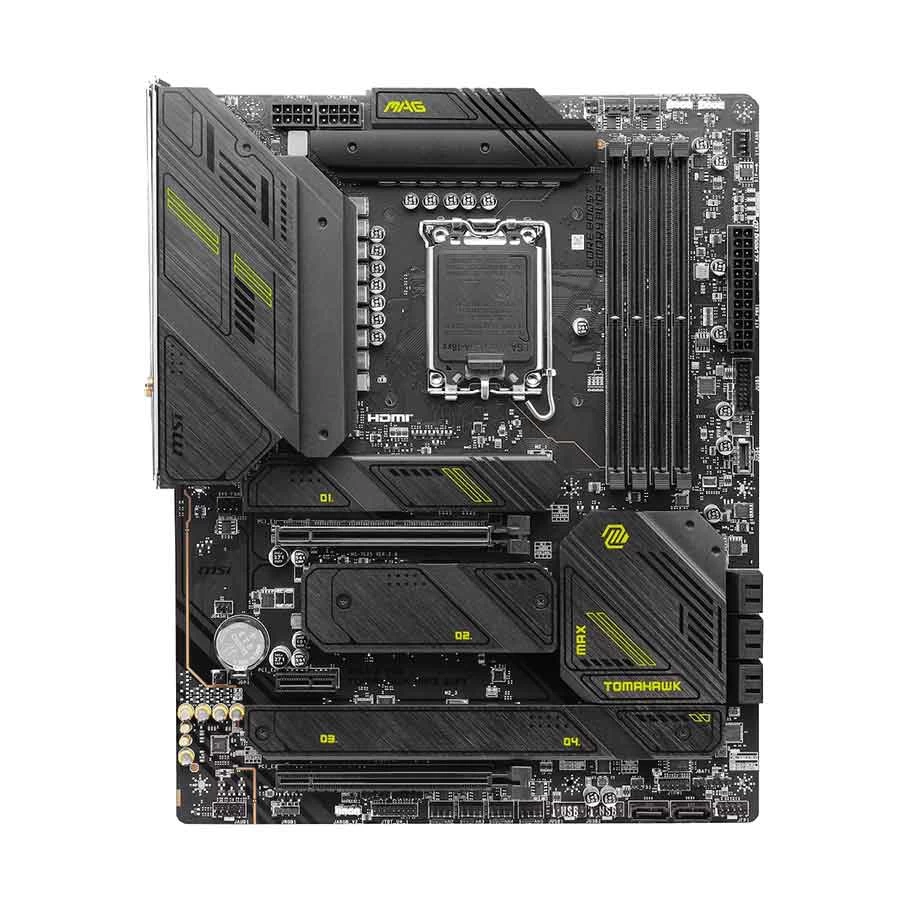

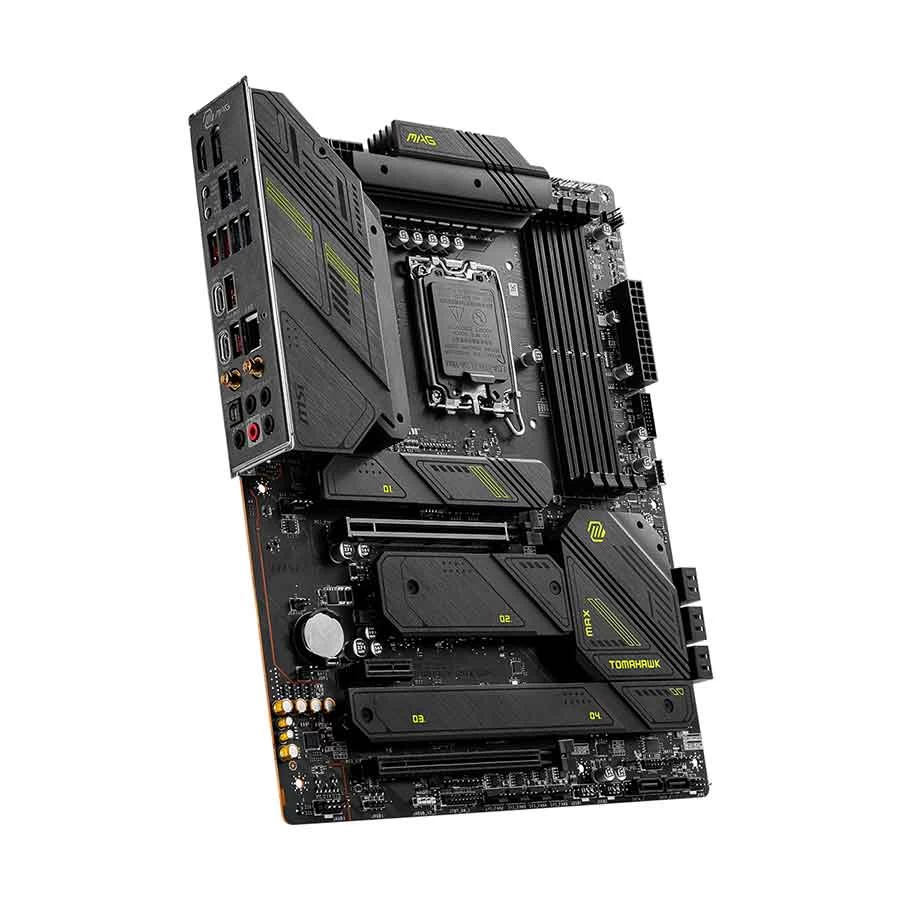

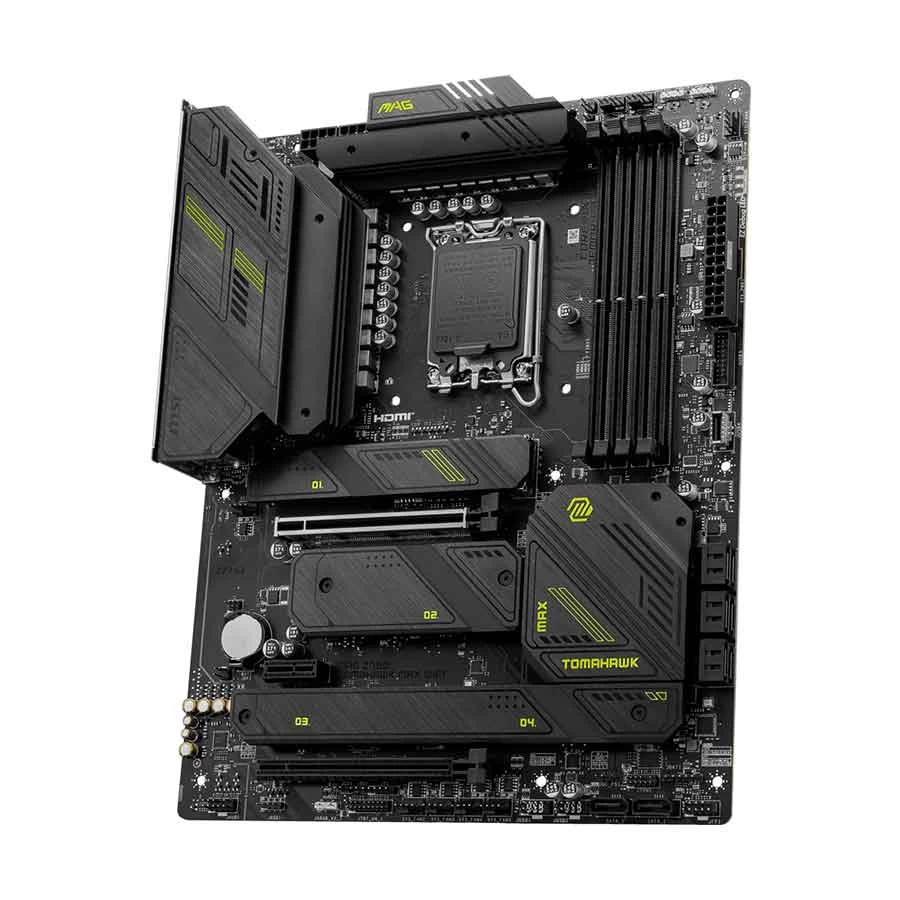

MSI MAG Z790 TOMAHAWK MAX (Wi-Fi 7) DDR5 Intel Gaming Motherboard

Product Id: 02.01.033.398

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI MAG Z790 TOMAHAWK MAX (Wi-Fi 7)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2 (1 x M.2 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices, 1 x M.2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
2 x PCI-E x 16, 1 x PCI-E x 1 (PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset))


Audio & Video
Audio Chipset
Realtek ALC4080 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gbps LAN

LAN Speed (Mbps)
10/ 10/ 1000/ 2500Mbps

WiFi
Yes

WiFi Technology
Wi-Fi 7

Bluetooth
Bluetooth 5.4

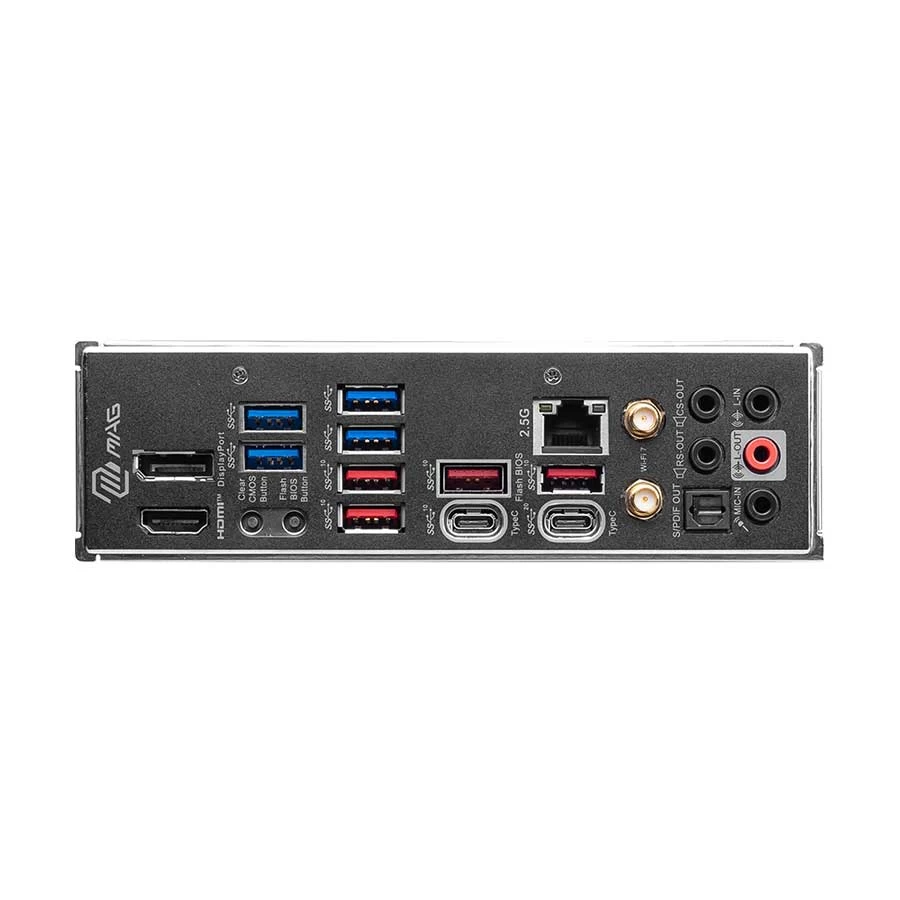

Ports
USB Port
4 x USB 3.2 Gen 1 Type A, 4 x USB 3.2 Gen 2 Type A, 2 x USB 3.2 Gen 2 Type C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
8 x SATA

Thunderbolt
No

TPM Port
Yes


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5 10

RGB Support
RGB

RGB Connector
1 x RGB LED connector(JRGB)

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Core i3, Core i5, Core i7, Core i9, Pentium Gold (12th Gen & 13th Gen)


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E. Screwless M.2 Shield Frozr: The patent-pending design provides the easiest way of M.2 installation. Install or uninstall your M.2 and Shield Frozr without tools and screws. Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience.

Others
Internal I/O: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), Led Feature: 4x EZ Debug LED, Back Panel Ports: Wi-Fi / Bluetooth, Audio Connectors, Clear CMOS, Flash BIOS.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
