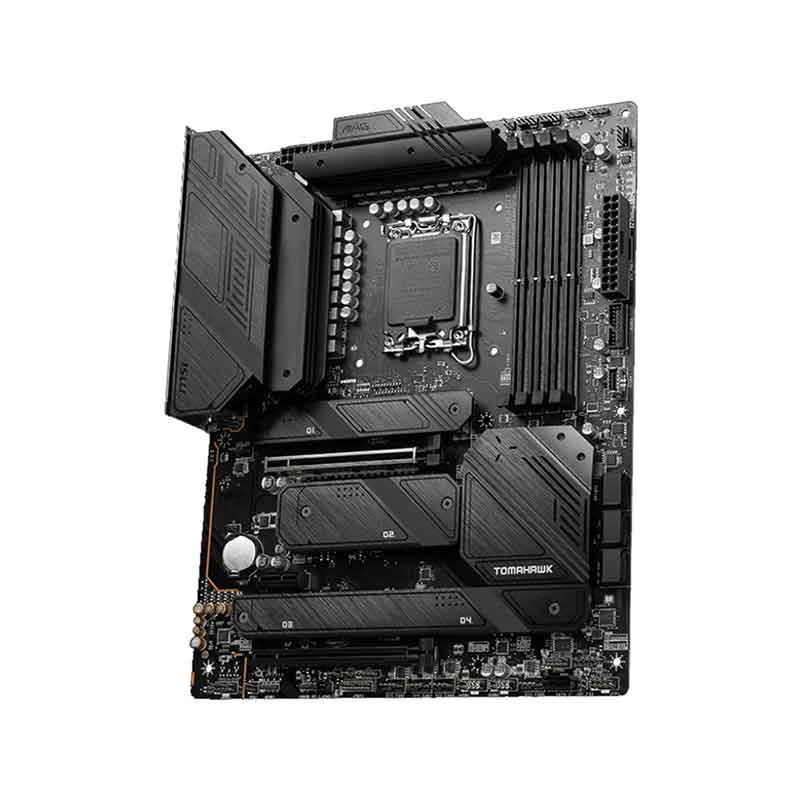

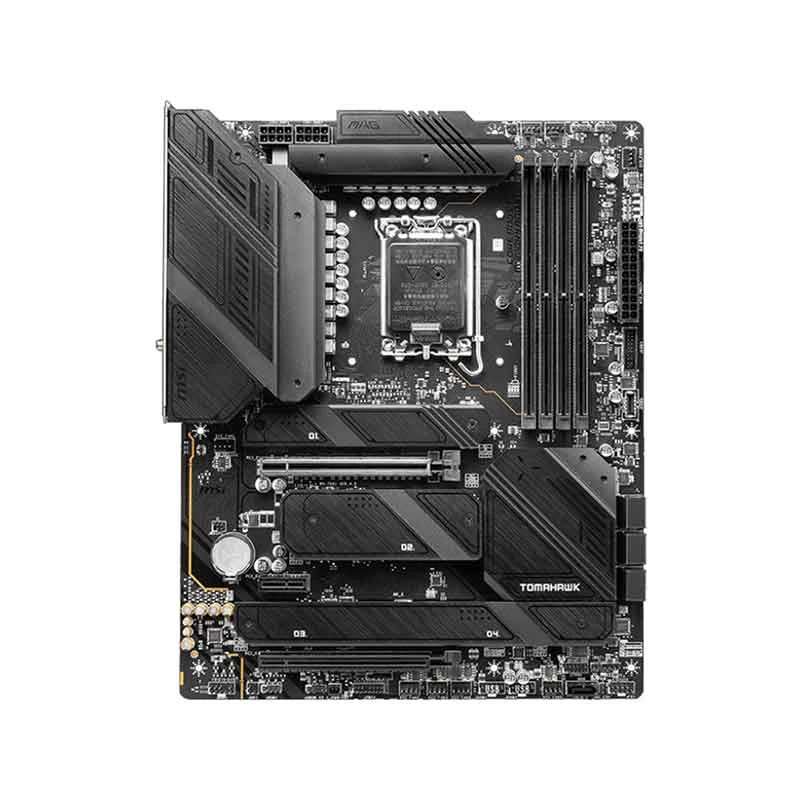

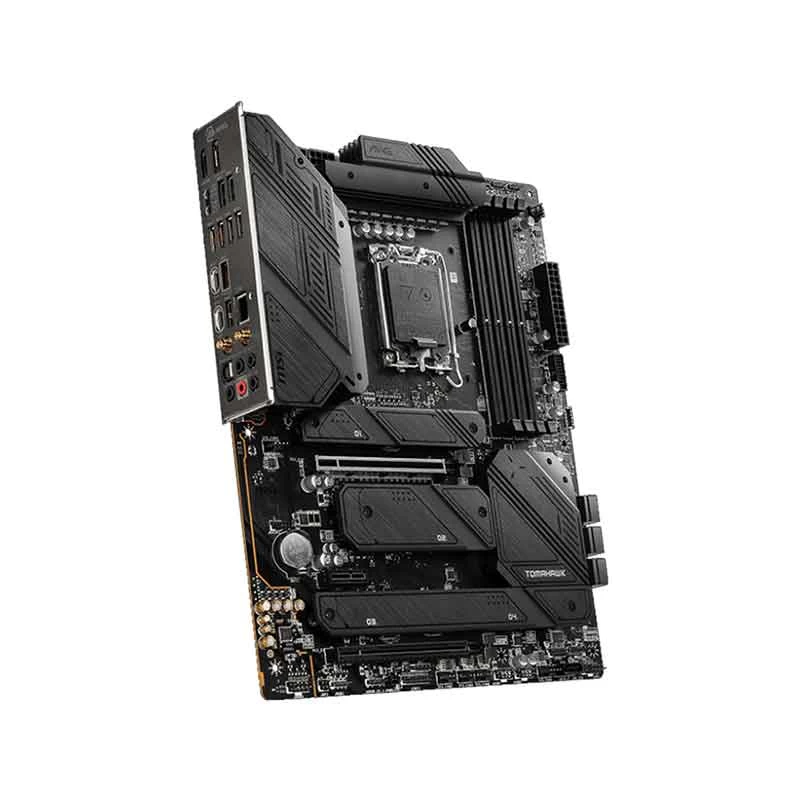

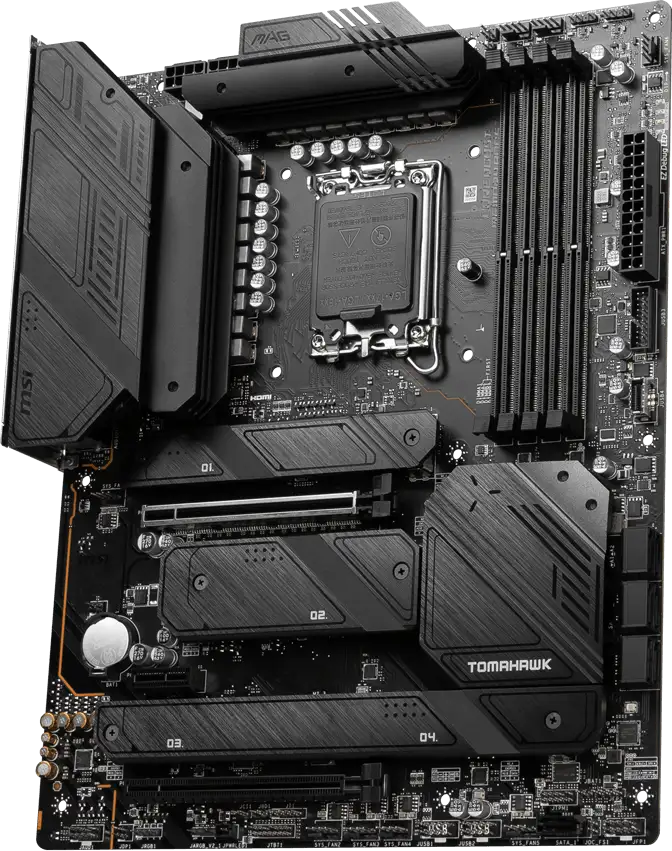

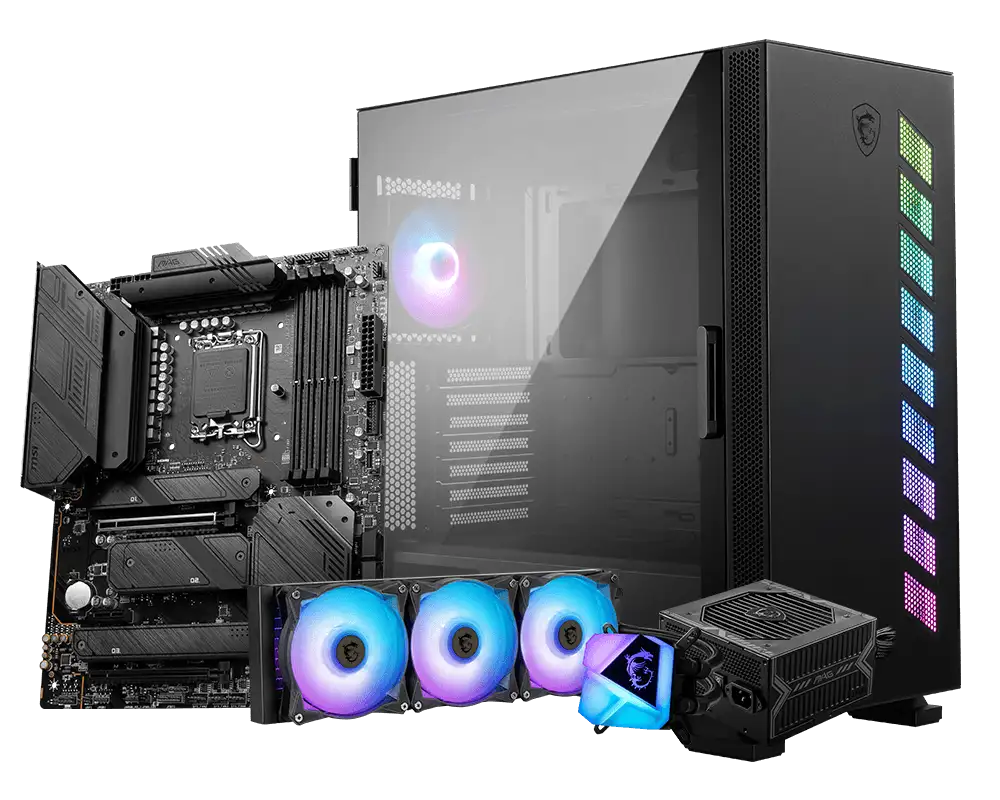

MSI MAG Z790 TOMAHAWK (Wi-Fi 6E) DDR5 Intel LGA1700 Socket Gaming Motherboard (Bundle with PC)

Product Id: 02.01.033.375

Brand MSI

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - Intel Z790
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
  • Memory Slot - 4
  • Memory Max. - 192GB
General
Brand
MSI

Model
MSI MAG Z790 TOMAHAWK (Wi-Fi 6E)

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR5

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
4

M.2/SSD Expansion Slot Details
4 x M.2, ((1 x M.2, 1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices),(1 x M.2, 2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices), (1 x M.2, 3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices), (1 x M.2, 4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
2 x PCI-E x16 slot, 1 x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC4080 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 2.5Gbps LAN

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6E

Bluetooth
Bluetooth 5.3


Ports
USB Port
2 x USB 3.2 Gen 1 5Gbps Type-A, 2 x USB 3.2 Gen 2 10Gbps Type-A, 1 x USB 3.2 Gen 2 10Gbps Type-C, 1 x USB 3.2 Gen 2x2 20Gbps Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
7

Thunderbolt
No

TPM Port
1

COM Port
No


Technical Info
DirectX Support
No

FireWire
No

CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5, 10

RGB Support
RGB

RGB Connector
1x RGB LED connector(JRGB)

Approx. Power Consumption
70W

Form Factor
ATX


Compatibility
Supported Operating System
Windows 10, 11

Compatible Products
12th/13th/14th Gen Intel Core Processors, Celeron Processors, Pentium Gold G7400, Core i3 12100F, Core i3 12100, Core i3 12100, Core i3 13100, Core i5 12400, Core i5 12500


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

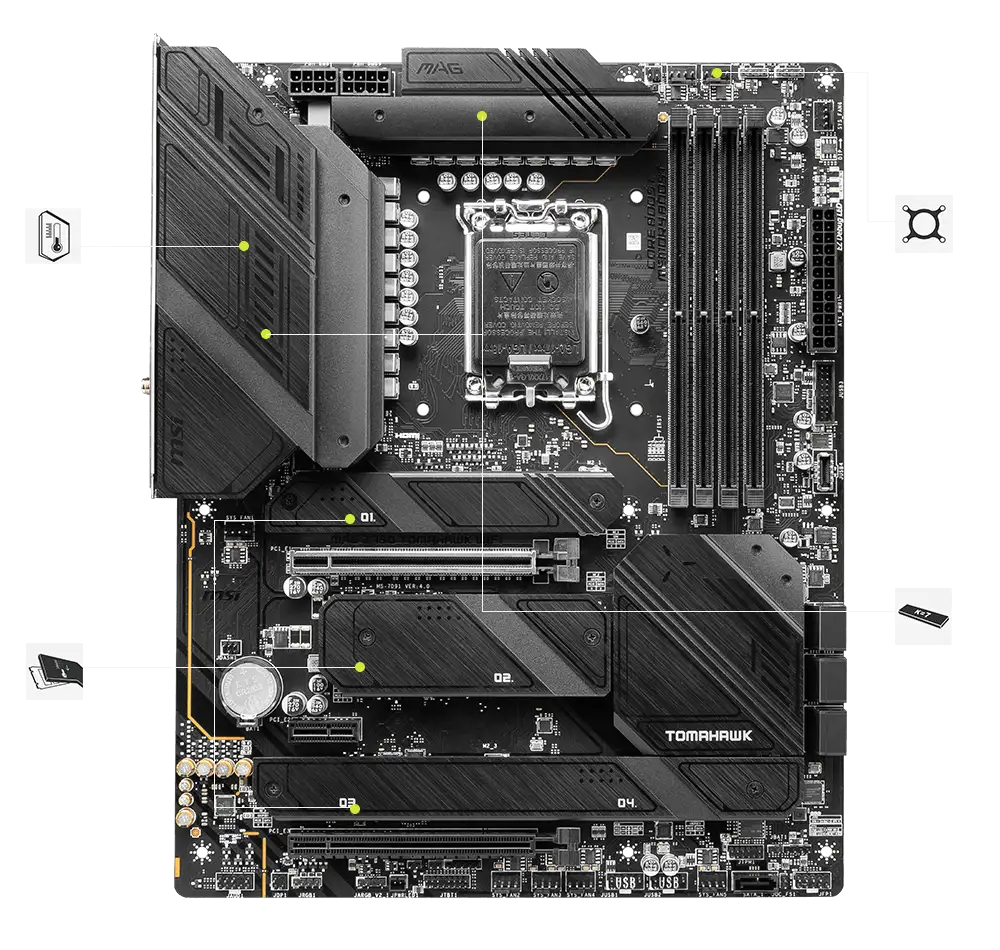

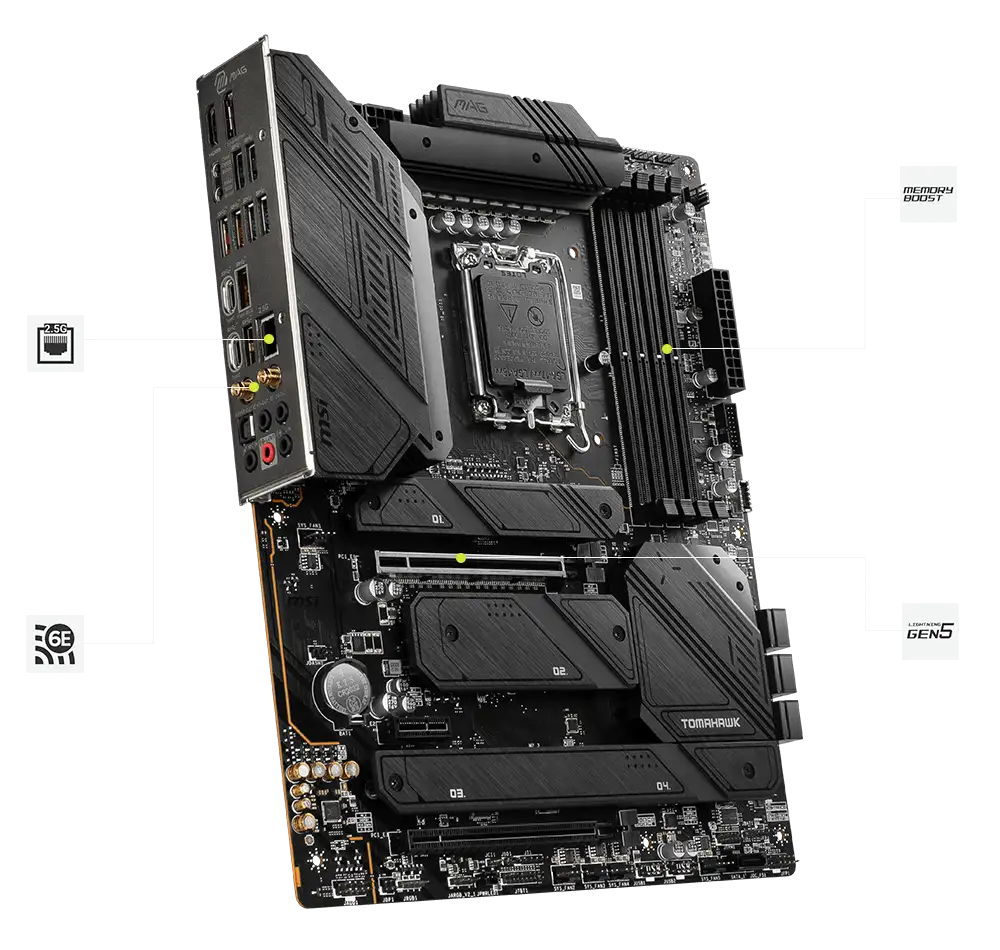

Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.

Others

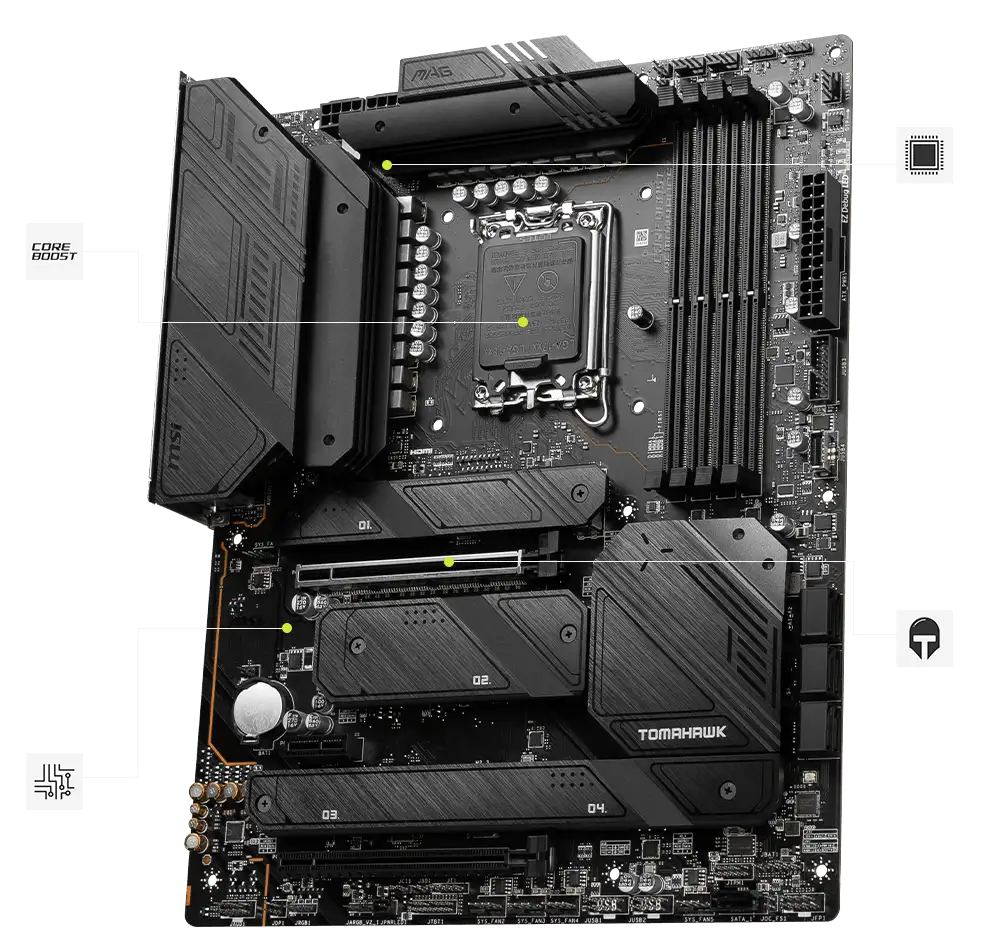

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility. Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience 6 Layer PCB with 2oz Thickened Copper: An Enhanced PCB design provides higher performance and long- lasting system stability without any compromise.

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
