5 x M.2, ((1 x M.2 , (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices), (1 x M.2, (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices), (2 x M.2, (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices),(1 x M.2, (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
PCI Express Slot
2x PCI-E x16 slot, 1x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC4080 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 2.5Gbps LAN
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6E
Bluetooth
Bluetooth 5.3

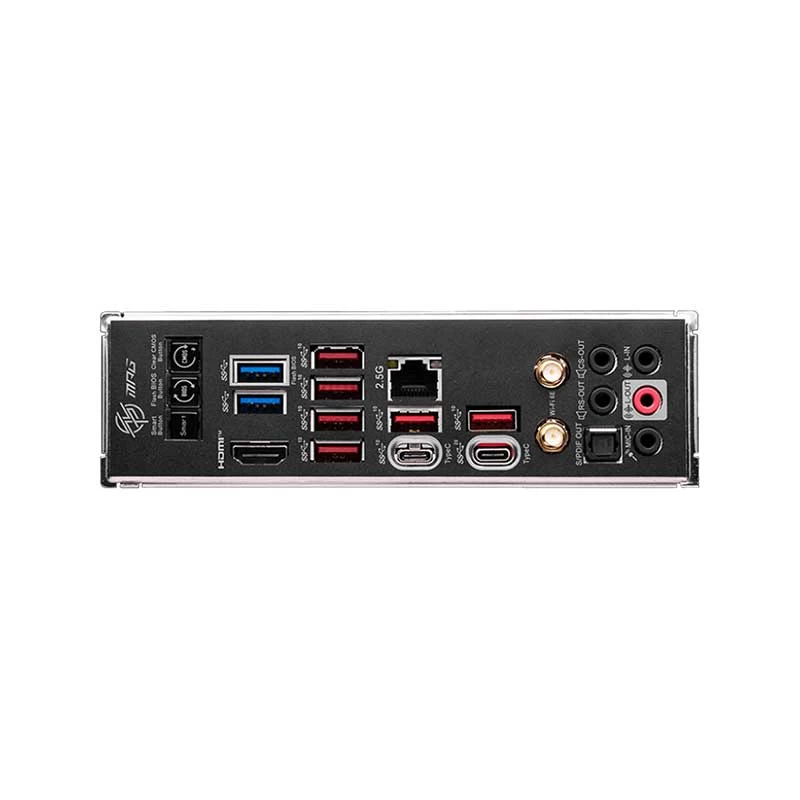

Ports
USB Port
2 x USB 3.2 Gen 2x2 20Gbps (2 Type-C), 4x USB 3.2 Gen 1 5Gbps (4 Type-A), 4 x USB 2.0 Type-A
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
6
Thunderbolt
No
TPM Port
1
COM Port
No
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
RGB
RGB Connector
1 x RGB LED connector(JRGB)
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Window 10, 11
Compatible Products
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Warranty
Warranty
3 year
Additional Info
Feature
Premium Thermal Design: Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads /onboard M.2 Shield Frozr. Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Screwless M.2 Shield Frozr: The patent-pending design provides the easiest way of M.2 installation. Install or uninstall your M.2 and Shield Frozr without tools and screws.
Others
Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience Core Boost: With premium layout and fully digital power design to support more cores and provide better performance. Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Country Of Origin
Taiwan
Made in/ Assemble
China
