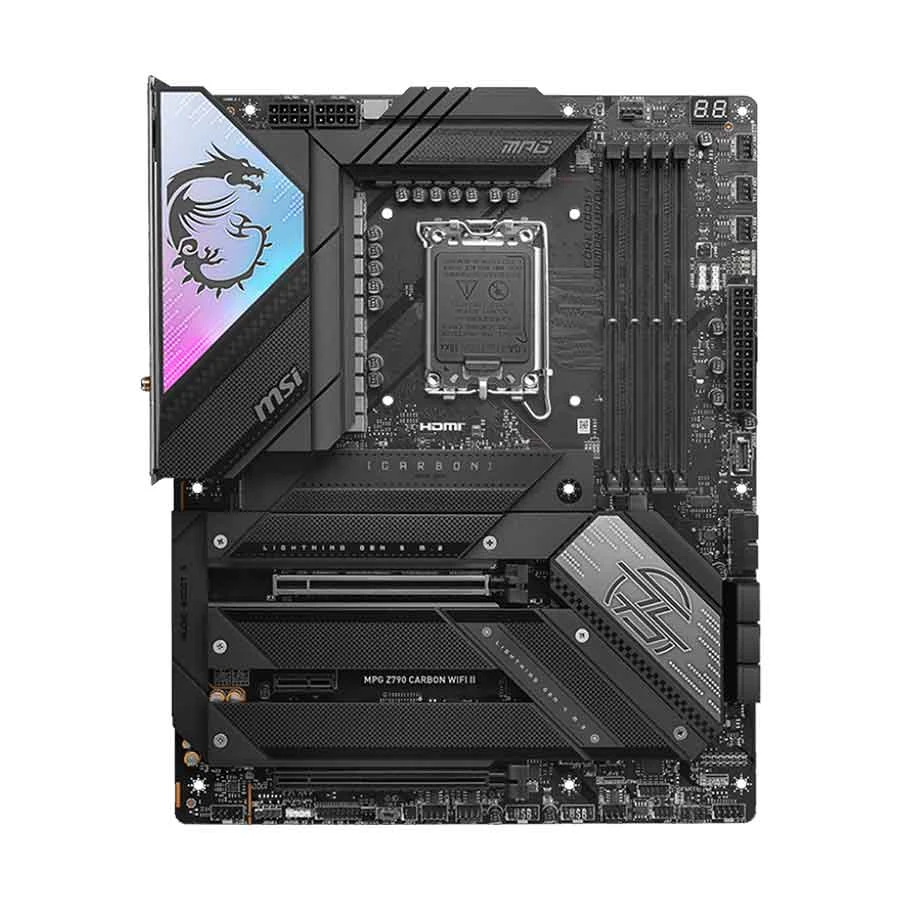

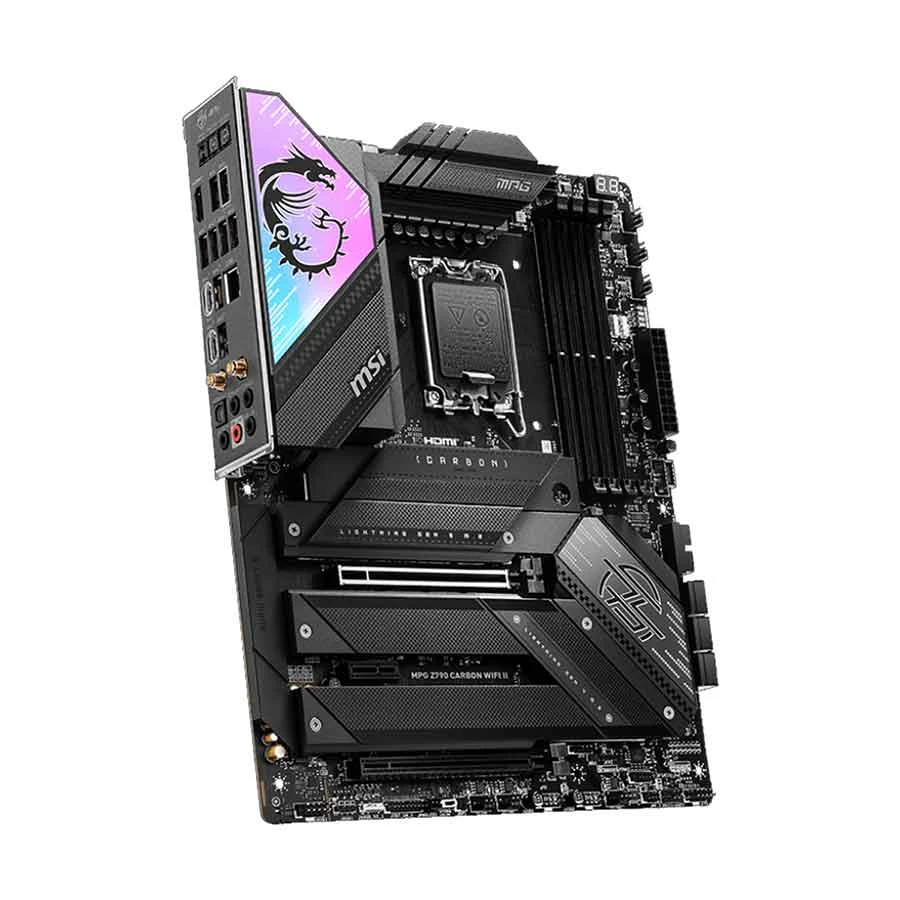

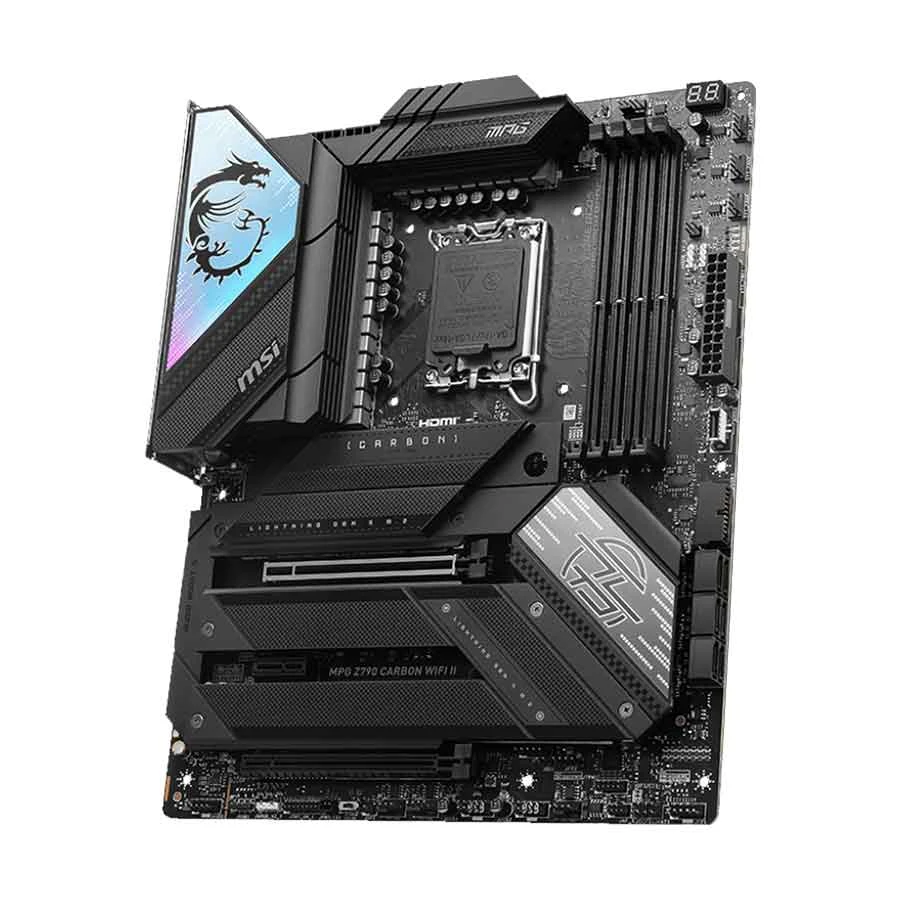

MSI MPG Z790 CARBON (Wi-Fi 7) II DDR5 Intel Gaming Motherboard

Item: MSI MPG Z790 CARBON (Wi-Fi 7) II DDR5 Intel Gaming Motherboard
Rating: 5
Author: Verified Buyer

Product Id: 02.01.033.518

Out Of Stock

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors.
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 256GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI MPG Z790 CARBON (Wi-Fi 7) II

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

256GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated with Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.4

Form Factor

ATX

Supported Operating System

Windows 11 / 10 (64-bit)

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI MPG Z790 CARBON (Wi-Fi 7) II

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors.

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered Memory

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR5 UDIMM

Memory Max.

256GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

5 x M.2 (M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices)

M.2/SSD Slot Gen

Up to Gen 5

Graphics

Integrated

Graphics Chipset

Integrated with Processor

Multi-GPU Support

PCI Express Slot

2 x PCI-E x16 slot, 1 x PCI-E x1 slot

Audio & Video

Audio Chipset

Realtek ALC4080 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Intel 2.5Gbps LAN

LAN Speed (Mbps)

10/ 10/ 1000/ 2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 7, 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth

Bluetooth 5.4

Ports

USB Port

2 x USB 5Gbps Type-A, 6 x USB 10Gbps Type-A, 1 x USB 10Gbps Type-C, 1 x USB 20Gbps Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

6 x SATA

Thunderbolt

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Sync

MSI Mystic Light

RGB Connector

3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x ARGB+FAN Header (JAF_1).

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 11 / 10 (64-bit)

Compatible Products

Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors.

Warranty

3 year

Additional Info

Feature

Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost. Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience. 2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use.

Others

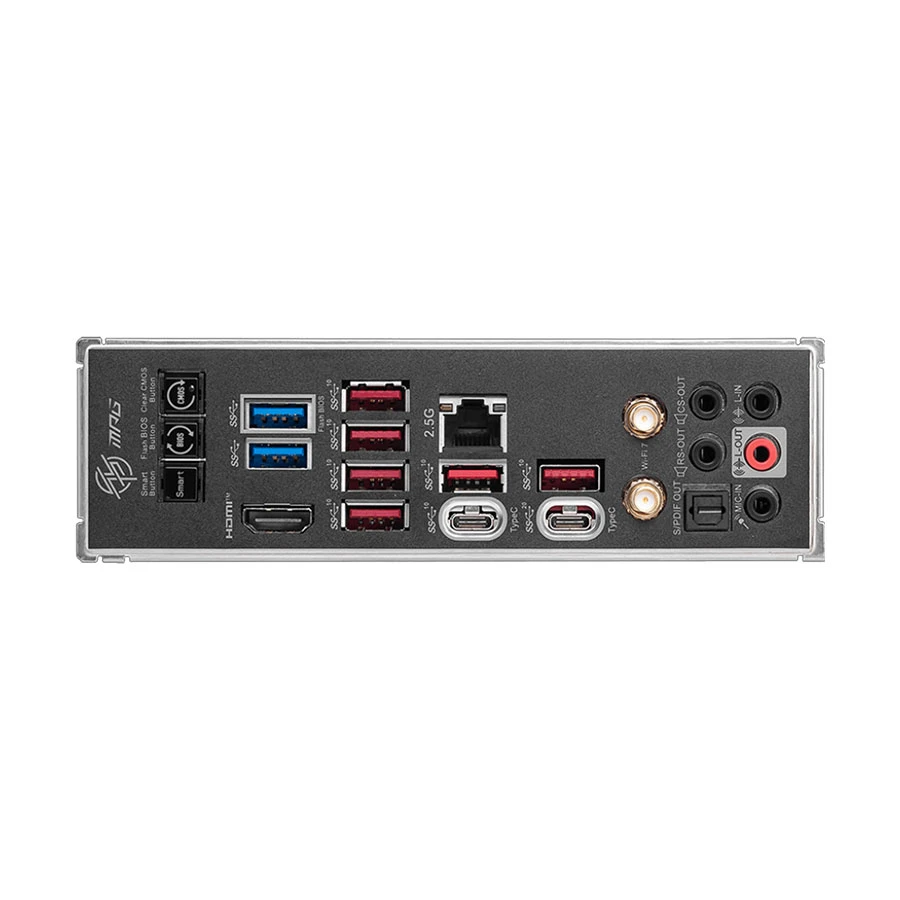

Supports Intel XMP3.0 OC, HDMI 2.1 Max 4K 60Hz, 7.1-Channel USB High Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel. Internal IO: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 5x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3) 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 1x ARGB+FAN Header (JAF_1), LED FEATURE: 4x EZ Debug LED, 1x 2-Digit Debug Code LED, 1x EZ LED Control switch. Back Panel Ports: Flash BIOS / Clear CMOS, USB 5 Gbps (Type-A), USB 10Gbps (Type-A), 2.5G LAN, Wi-Fi / Bluetooth, Audio Connectors, Smart Button, HDMI, USB 10Gbps (Type-C), USB 20Gbps (Type-C), Optical S/PDIF Out. PCB Info: 243.84 x 304.8mm. Box Content: Motherboard, Installation Guide, Cable Sticker, 4 x EZ m.2 Clip Packages, Flyer, Wi-Fi Antenna, USB Drive, 2 x SATA Cable, JARGB Extension Cable, JARGB Extension Cable (1 to 2), ARGB & Fan Extension Y-Cable Cable, Front Panel Cable.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI MPG Z790 CARBON (Wi-Fi 7) II Motherboard In Bangladesh

MSI MPG Z790 CARBON (Wi-Fi 7) II

MPG Z790 CARBON WIFI II employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring Wi-Fi 7 solution, optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, making this motherboard one of the best Z790 ATX motherboards for Intel next Gen and 13th Gen Core processors.

Support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
Supports DDR5 Memory, up to 7800+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: Direct 19+1+1 phases power, Core Boost, Memory Boost
2.5G LAN and Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connectionUsually Ships: Same Day.
