MSI PRO B550M-P GEN3 DDR4 AMD Motherboard #3Y

Item: MSI PRO B550M-P GEN3 DDR4 AMD Motherboard #3Y
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 02.02.033.532

Out Of Stock

See similar model

Quick Overview

Form Factor - Micro-ATX
Chipset - AMD B550
Sockets Supported - AM4
Supported CPU - AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
Generation - Not Applicable
Memory Slot - 4
Memory Max. - 128GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI PRO B550M-P GEN3

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Generation

Not Applicable

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

128GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Form Factor

Micro-ATX

Supported Operating System

Windows 10/11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI PRO B550M-P GEN3

Body Color

Black

CPU

Chipset Brand

AMD

Chipset

AMD B550

Sockets Supported

AM4

Built-in Processor

Supported CPU

AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors

Generation

Not Applicable

Memory Support

Memory Type

DDR4

Memory MHz

1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

Memory Channel

Dual

Memory Slot

Memory Max.

128GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 slot (Key M, Supports PCIe 3.0 x4, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices)

M.2/SSD Slot Gen

Up to Gen 3

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1x PCIe 3.0 x16 slot (From CPU), 2x PCIe 3.0 x1 slots (From AMD B550 chipset)

Audio & Video

Audio Chipset

Realtek ALC897 Codec

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8111H Gigabit LAN

LAN Speed (Mbps)

10/ 100/ 1000Mbps

WiFi

WiFi Technology

Ports

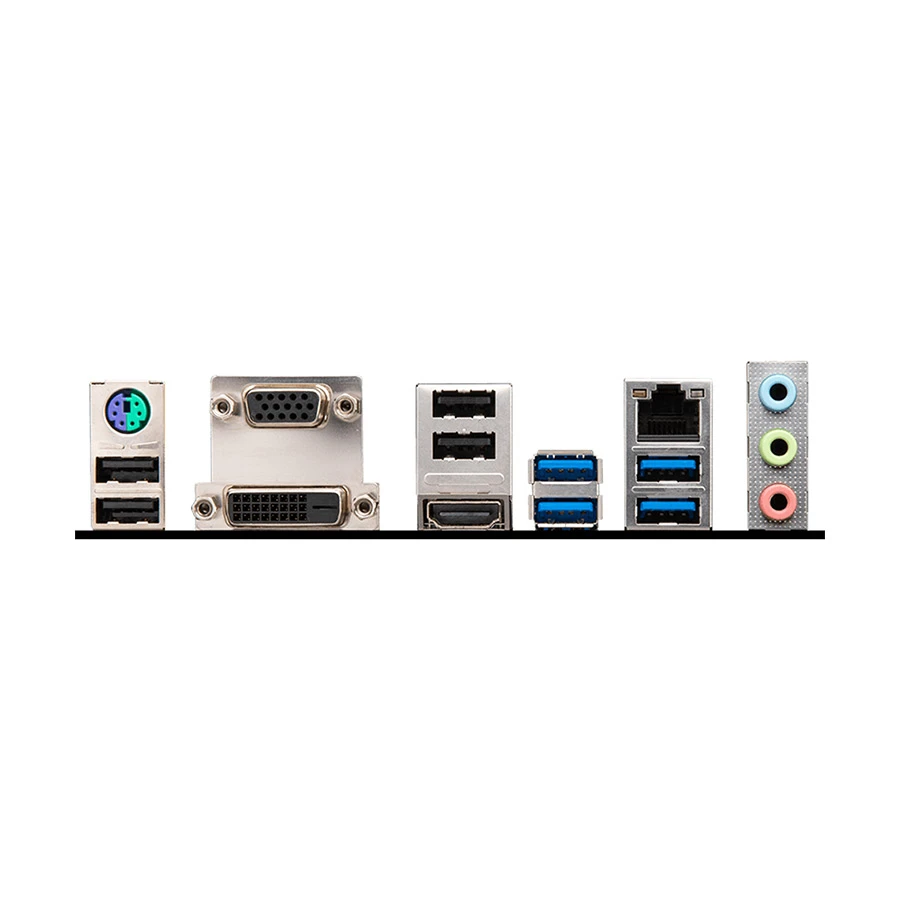

USB Port

4 x USB 3.2 Gen 1 Type-A, 4 x USB 2.0 Type-A

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

FireWire

CrossFire Support

Sli Support

Raid Support

0,1,10

RGB Support

RGB

RGB Connector

1x 4-pin RGB LED connector

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Type

1 x 256 Mb flash

BIOS Model

UEFI AMI BIOS

BIOS Version

ACPI 6.1, SMBIOS 2.8

Compatibility

Supported Operating System

Windows 10/11

Compatible Products

Supports AMD Ryzen 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G & Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors.

Warranty

3 year

Additional Info

Feature

Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. MSI Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Others

Power Connectors: 1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector. FAN CONNECTORS: 1x 4-pin CPU fan connector, 2x 4-pin system fan connectors. SYSTEM CONNECTORS: 2x System panel connectors, 1x Chassis Intrusion connector, 1x Serial port connector, 1x Parallel port connector. JUMPERS: 1x Clear CMOS jumper. LED FEATURES: 4x EZ Debug LED. BACK PANEL CONNECTOR: 1 x Keyboard / Mouse, 1 x LAN port, 3 x Audio connector. I/O CONTROLLER: NUVOTON NCT6795D-M Controller Chip

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI PRO B550M-P GEN3 Motherboard In Bangladesh

MSI PRO B550M-P GEN3 DDR4 AMD Motherboard

The MSI PRO B550M-P GEN3 DDR4 AMD Motherboard is a versatile and reliable choice for building powerful PCs. It supports the latest DDR4 memory and provides excellent connectivity options. This motherboard delivers a stable and efficient performance, perfect for both gaming and professional use.

Features and Benefits of MSI PRO B550M-P GEN3 DDR4 AMD Motherboard

AMD B550 Chipset: MSI PRO B550M is optimized for AMD Ryzen 5000 and 3000 series processors, ensuring top-notch performance. Provides enhanced stability and compatibility for high-end applications.
DDR4 Memory Support: Supports DDR4 memory up to 128GB, allowing faster data transfer and multitasking. Ideal for gaming, video editing, and other intensive tasks.
PCIe Gen3 Support: The MSI PRO B550M ensures high-speed connectivity for graphics cards and other peripherals. Enhances gaming visuals and professional workloads.
Multiple Connectivity Options: Features multiple USB ports, HDMI, and DisplayPort for versatile connectivity. Simplifies connecting to peripherals, displays, and other devices.
Enhanced Cooling Design: Comes with premium thermal solutions to maintain optimal temperatures. Ensures stable performance during extended workloads or gaming sessions.

Buying Guide for MSI PRO B550M-P GEN3 DDR4 AMD Motherboard

Compatibility: Verify that your AMD Ryzen processor is supported by the B550 chipset. Ideal for both current and future processor upgrades.
Memory Needs: Assess your multitasking requirements and opt for compatible DDR4 memory to maximize performance.
Graphics and Peripherals: Look for PCIe Gen3 support if you plan to use advanced graphics cards. Check the available connectivity options for compatibility with your setup.
Cooling and Stability: Choose this motherboard for its robust cooling design, especially if you perform resource-intensive tasks or gaming.
