2 x M.2 (1 x M.2 (From CPU) Type 2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 (From Chipset) Type 2280/2260/2242 supports PCIe 4.0 x4)
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
5 x PCI-E x16 slot (PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset))
Audio & Video
Audio Chipset
Realtek ALC897 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Realtek RTL8125BG 2.5G LAN
LAN Speed (Mbps)
10/100/1000/2500 Mb/s
WiFi
No
Bluetooth
No
Ports

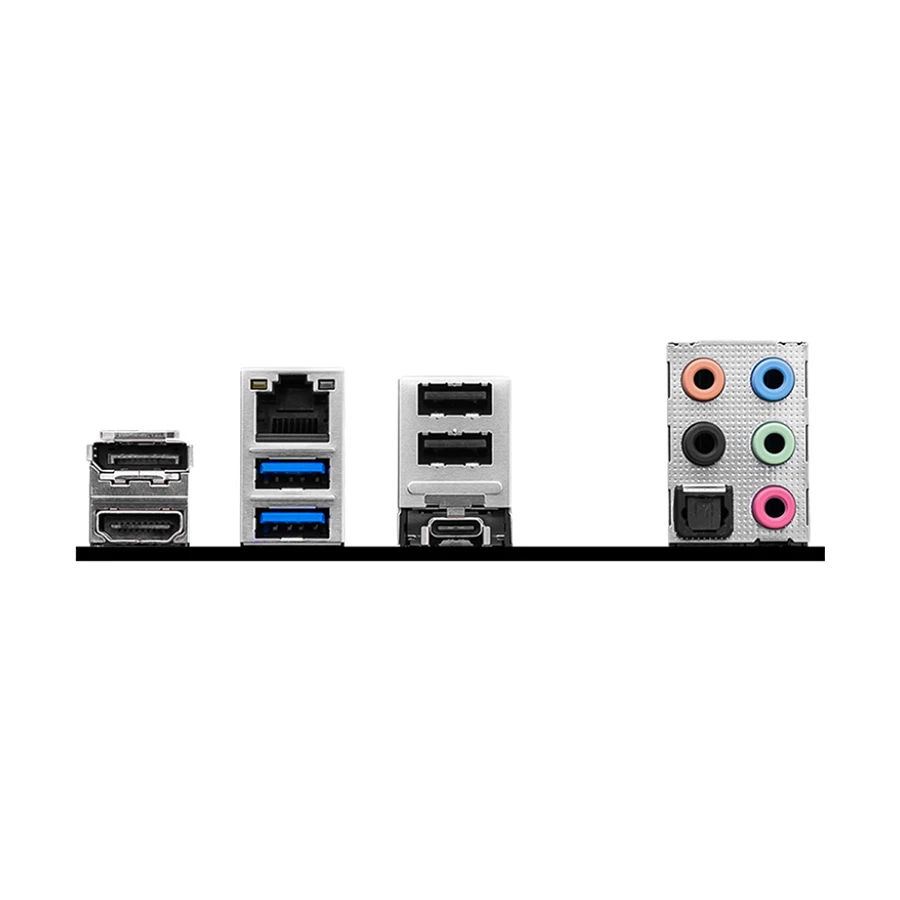

USB Port
2 x USB 5Gbps Type-A, 2 x USB 2.0 Type-A, 1 x USB 10Gbps Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
DirectX Support
No
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5 10
RGB Support
ARGB
RGB Connector
2 x Addressable V2 RGB LED connector (JARGB_V2), 2 x RGB LED connector(JRGB)
Approx. Power Consumption
70W
Form Factor
ATX
Compatibility
Supported Operating System
Windows 10, 11
Compatible Products
12th/ 13th/ 14th Gen Intel Core i9/ i7/ i5/ i3 and Pentium/ Celeron processors in the LGA1700
Warranty
Warranty Details
3 year
Additional Info
Feature
HDMI 2.1, maximum resolution of 4K 60Hz, DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz, Supports S/PDIF output.
Others
Connector: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3)4x EZ Debug LED).
Country Of Origin
Taiwan
Made in/ Assemble
China
