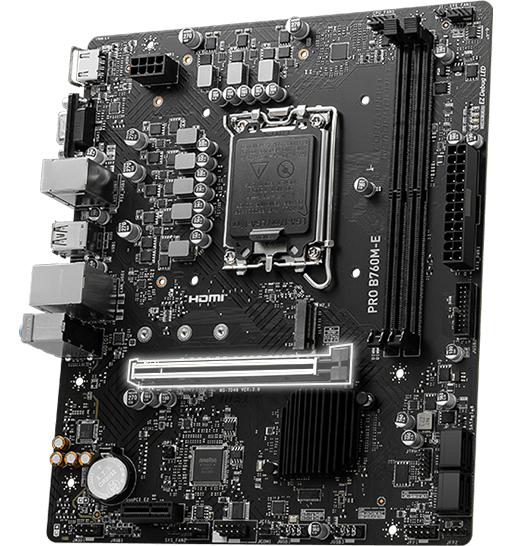

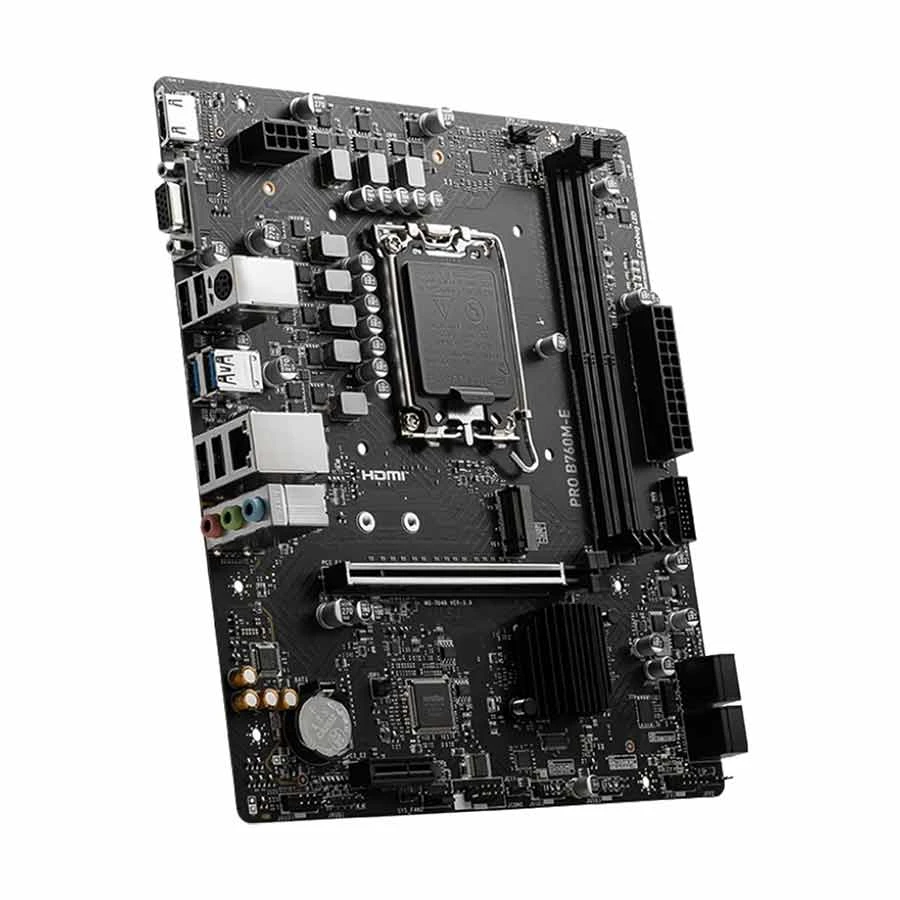

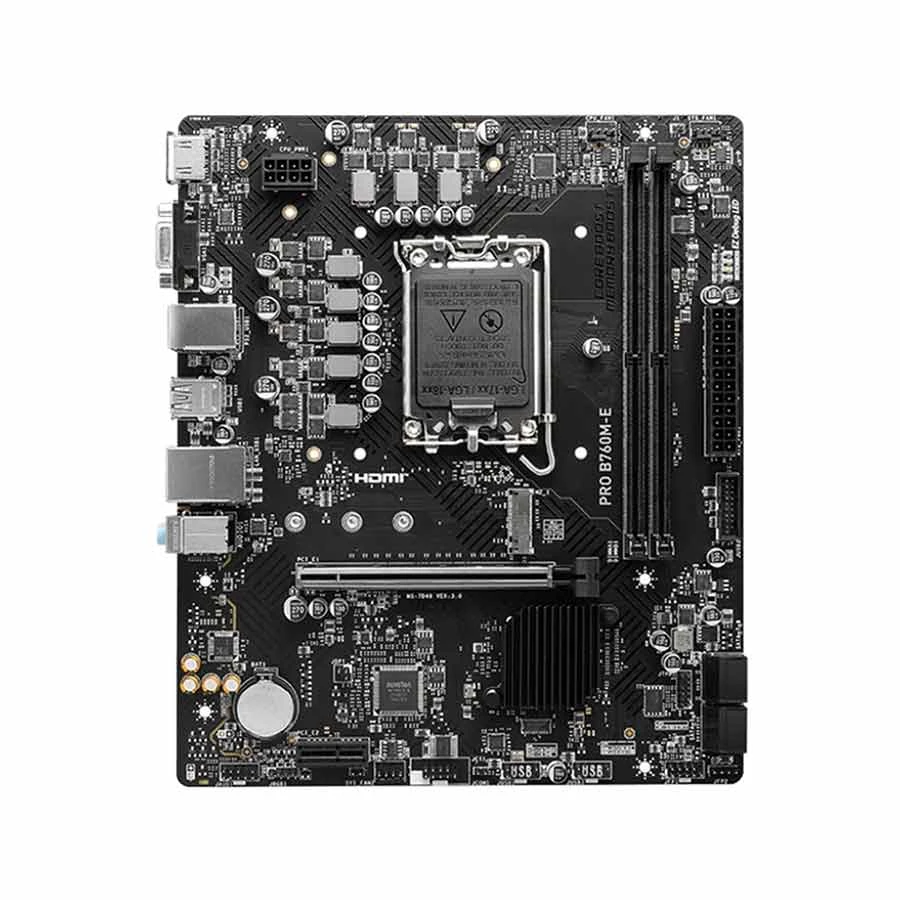

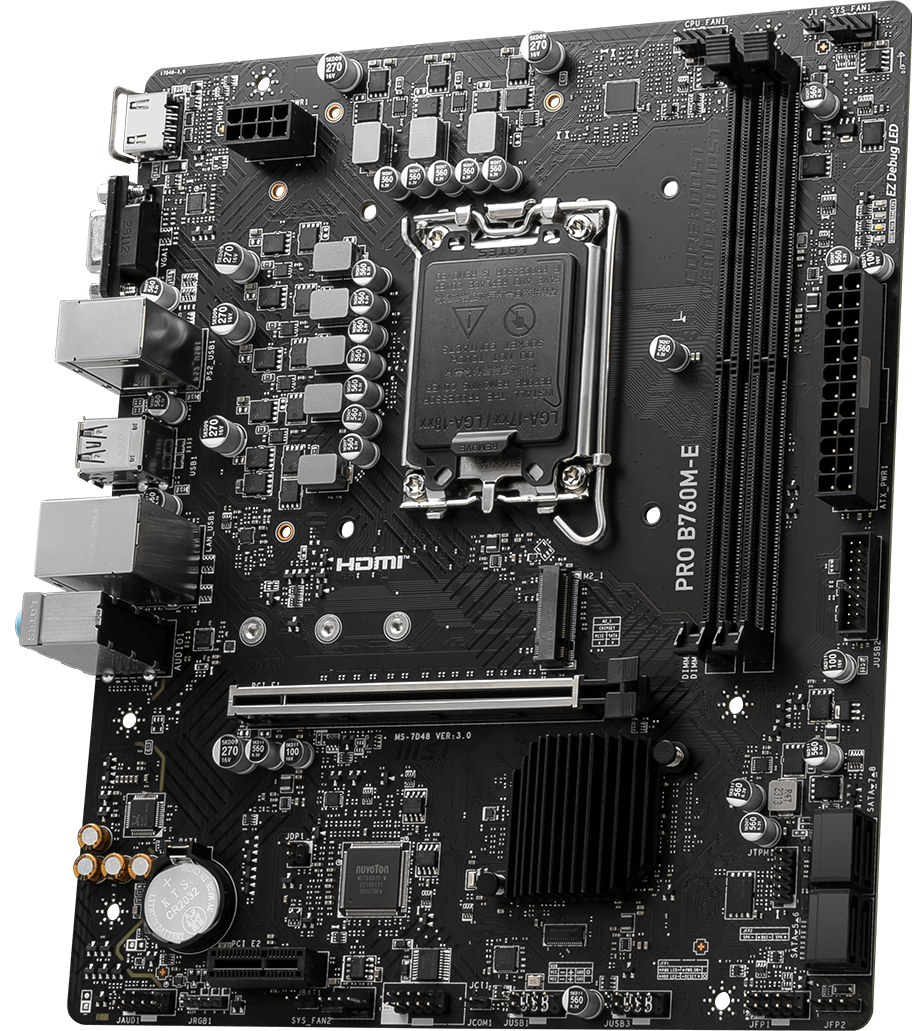

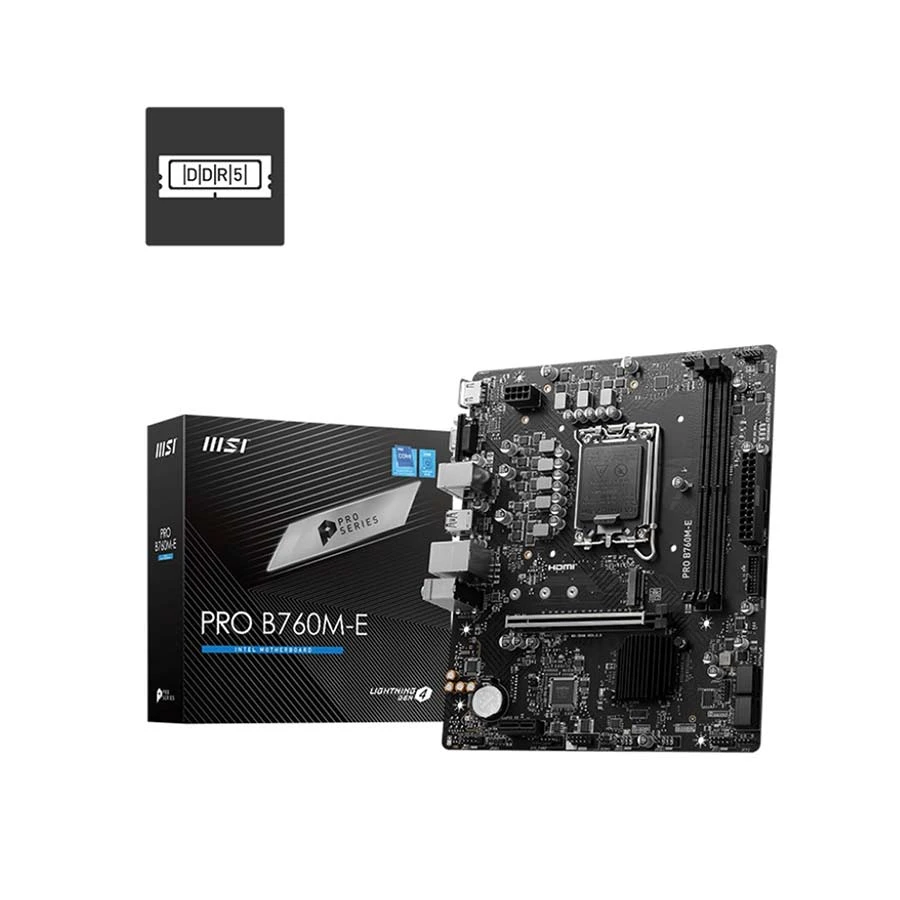

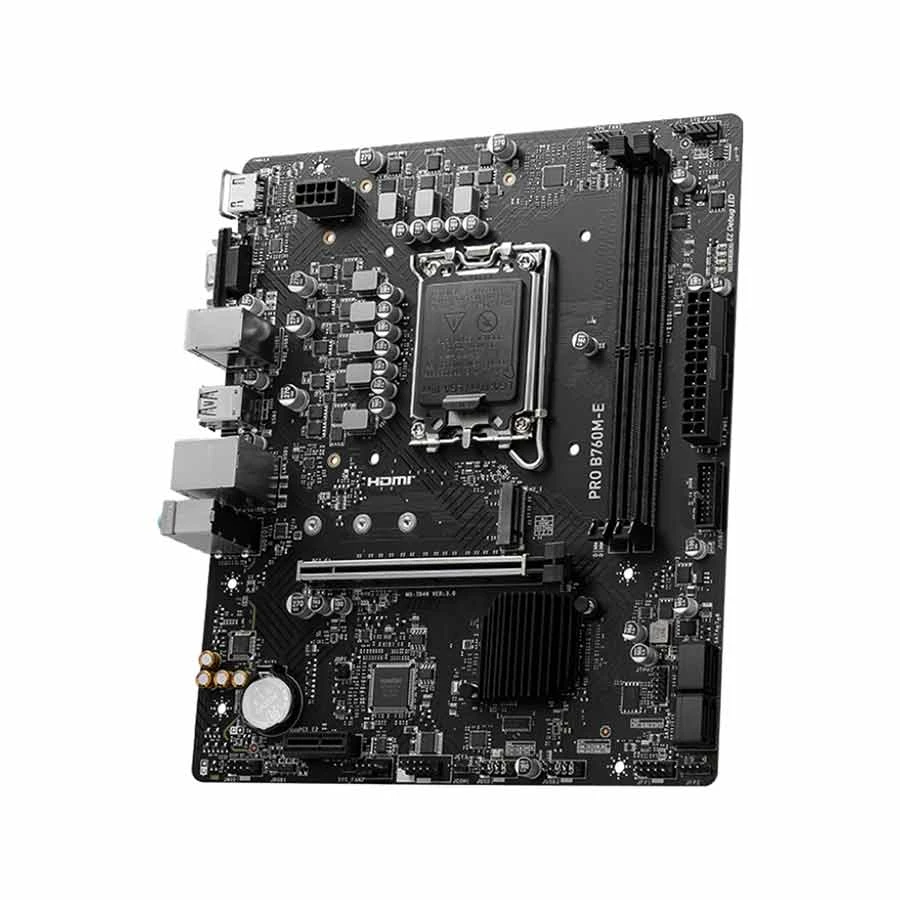

MSI PRO B760M-E DDR5 Intel Motherboard

Product Id: 02.01.033.507

Brand MSI

Regular Price Tk 14,430 Monthly EMI Tk 1,203
Special Price Tk 13,300

Quick Overview

  • Chipset - Intel B760
  • Memory Max. - 96GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI PRO B760M-E

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel B760

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR5

Memory MHz
6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

Memory Channel
Dual

Memory Slot
2

Memory Max.
96GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2 (supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices)


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCI-E x16 slot, 1 x PCI-E x1 slot


Audio & Video
Audio Chipset
Realtek ALC897 codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H Gigabit LAN

LAN Speed (Mbps)
10/100/1000Mb/s

WiFi
No

WiFi Technology
No

Bluetooth
No


Ports
USB Port
4 x USB 2.0, 2 x USB 3.2 Gen 1 Type A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0, 1, 5 and RAID 10 for SATA storage devices

RGB Support
RGB

RGB Sync
Mystic Light

RGB Connector
1 x RGB LED connector(JRGB)

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, 10

Compatible Products
Intel Core i9/ i7/ i5/ i3, Pentium, Celeron processors. LGA1700 socket.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
FAST AND FUTURE-READY STORAGE, MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies. EXTEND YOUR RGB EXPERIENCE WITH EASE, Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC), Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2, AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Others
Internal IO: 1x Power Connector(ATX_PWR), 1x Power Connector(CPU_PWR), 1x CPU Fan, 2x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Com Port (JCOM), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 3.2 Gen1 Type A ports, LED FEATURE: 4x EZ Debug LED

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
