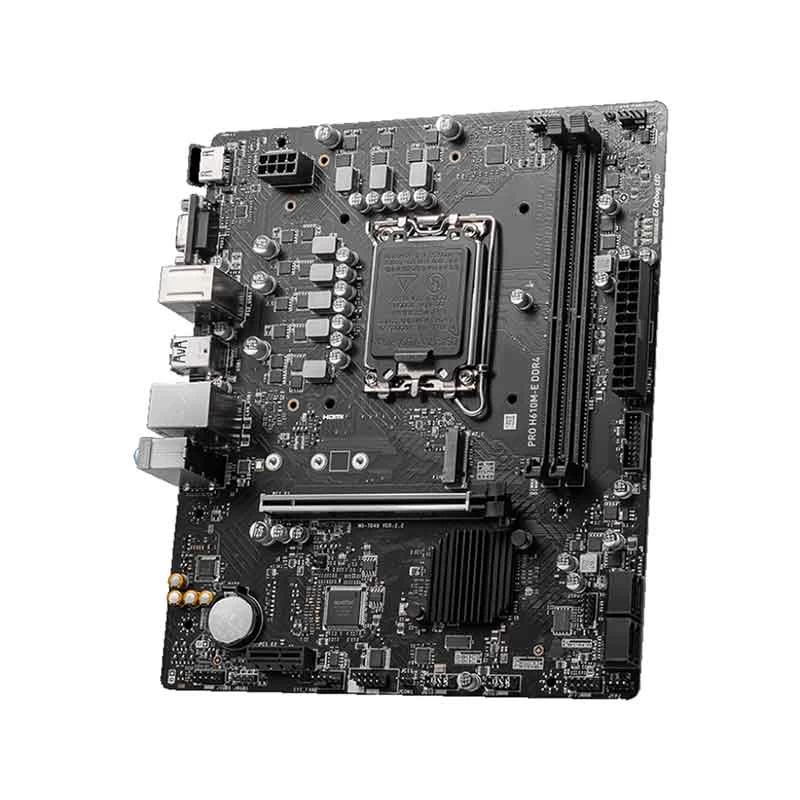

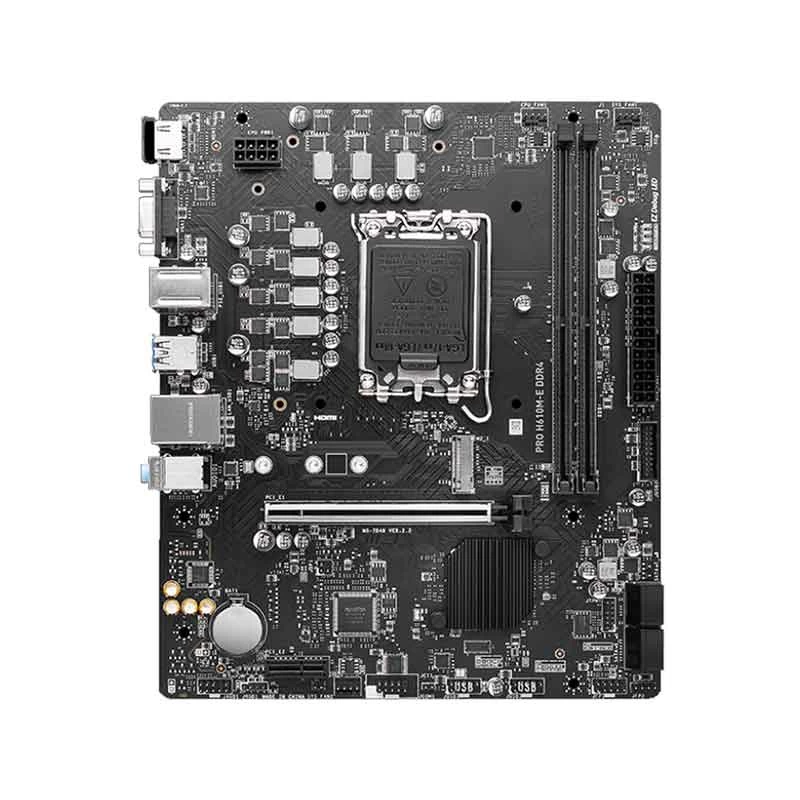

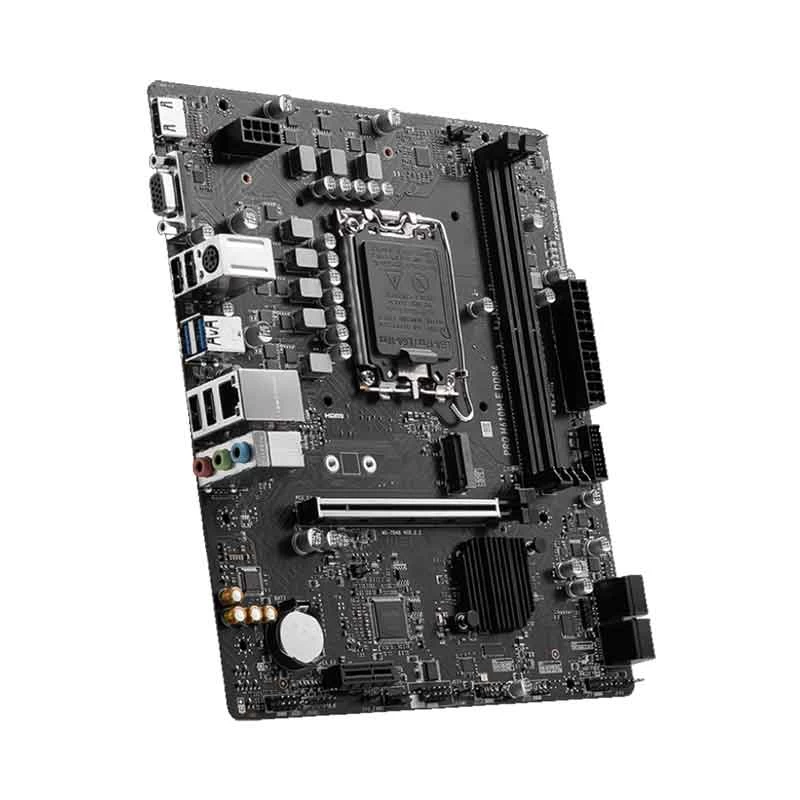

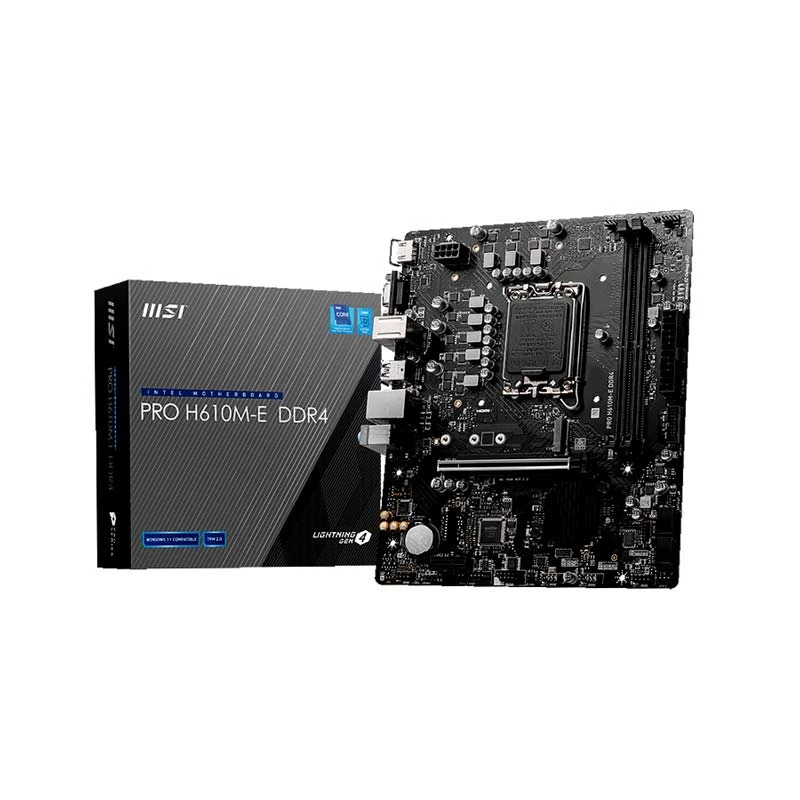

MSI PRO H610M-E DDR4 Intel Motherboard

Product Id: 02.01.033.366

Brand MSI

Regular Price Tk 11,500 Monthly EMI Tk 958
Special Price Tk 10,700

Quick Overview

  • Chipset - Intel H610
  • Memory Max. - 64GB
  • Memory Slot - 2
  • Sockets Supported - LGA1700
  • Supported CPU - 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
  • Generation - 12th/13th/14th
General
Brand
MSI

Model
MSI PRO H610M-E

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel H610

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation
12th/13th/14th


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz non-ECC, un-buffered

Memory Channel
Dual

Memory Slot
2

Memory Slot (Additional Info)
2 x DDR4

Memory Max.
64GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
1

M.2/SSD Expansion Slot Details
1 x M.2, type 2242/ 2260/ 2280


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
No

PCI Express Slot
1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1


Audio & Video
Audio Chipset
Realtek ALC897 Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10 / 100 / 1000Mbps

WiFi
No

WiFi Technology
No

Bluetooth
No


Ports
USB Port
8 x USB 2.0, 4 x USB 3.2 Gen 2 Type-A

VGA Port
1

DVI Port
No

HDMI Port
1

DisplayPort (DP)
No

IDE Port
No

SATA Port
4 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
FireWire
No

CrossFire Support
No

Sli Support
No

RGB Support
RGB

RGB Connector
1x 4-pin

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Compatibility
Supported Operating System
Windows 11, 10.

Compatible Products
12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors, Core i3 12100F, Core i3 12100, Core i3 12100 , Core i5 12400, Core i5 12600K, Core i7 12700 , Core i7 12700K, Core i9 12900, Core i9 12900K, Core i9 12900KS, Core i5 13400F, Core i5 13400, Core i5 13600K, Core i7 13700, Core i7 13700K, Core i9 13900F, Core i9 13900KF, Core i9 13900K.


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Others
DIMENSIONS : 236.2 x 200.66mm

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
