3 x PCI-E x 16, 1 x PCI-E x 1 (1 x PCI Gen PCIe 5.0 supports up to x16 (From CPU), 2 x PCI Gen PCIe 3.0 supports up to x1 (From Chipset), 1 x PCI Gen PCIe 4.0 supports up to x4 (From Chipset))
M.2/SSD Slot Gen
Up to Gen 4
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
3 x PCI-E x 16, 1 x PCI-E x 1 (1 x PCI Gen PCIe 5.0 supports up to x16 (From CPU), 2 x PCI Gen PCIe 3.0 supports up to x1 (From Chipset), 1 x PCI Gen PCIe 4.0 supports up to x4 (From Chipset))
Audio & Video
Audio Chipset
Realtek ALC4080 Codec
Audio Channel
7.1
Network & Connectivity
LAN Chipset
Intel 2.5Gbps
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 6E
Bluetooth
Bluetooth 5.3
Ports
USB Port
2 x USB 2.0, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2 Type-C

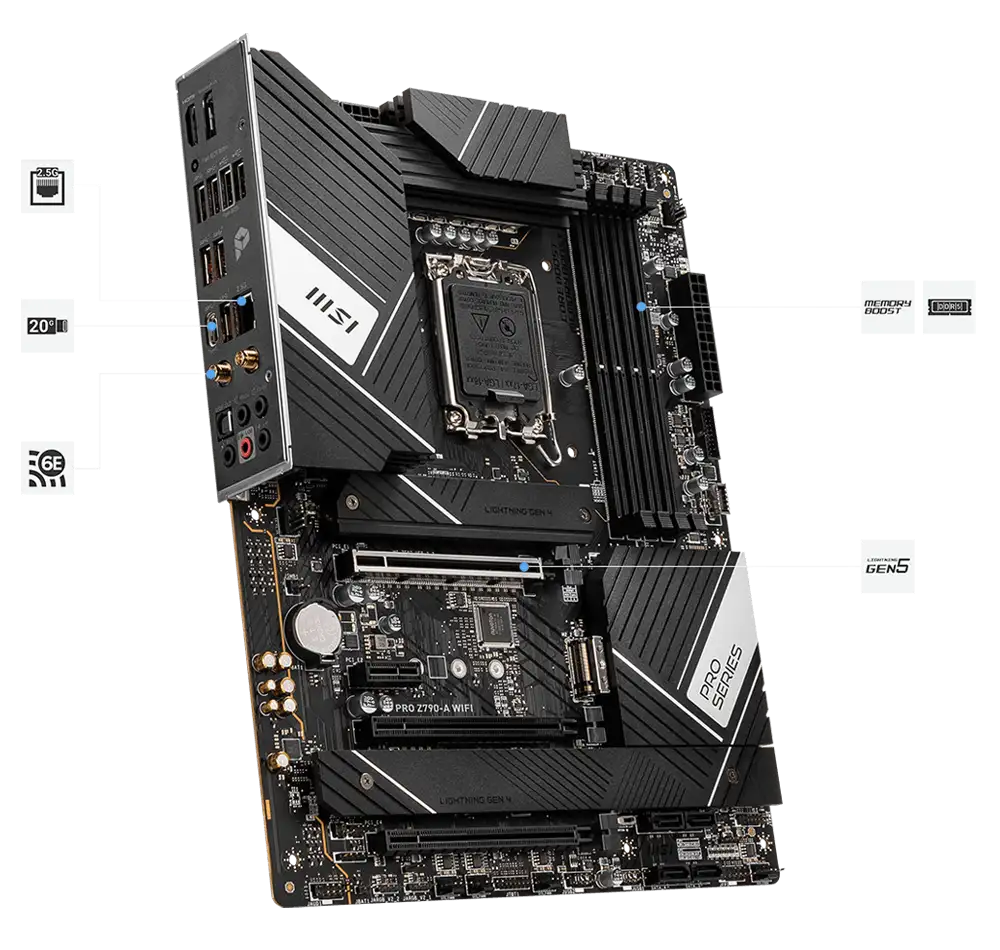

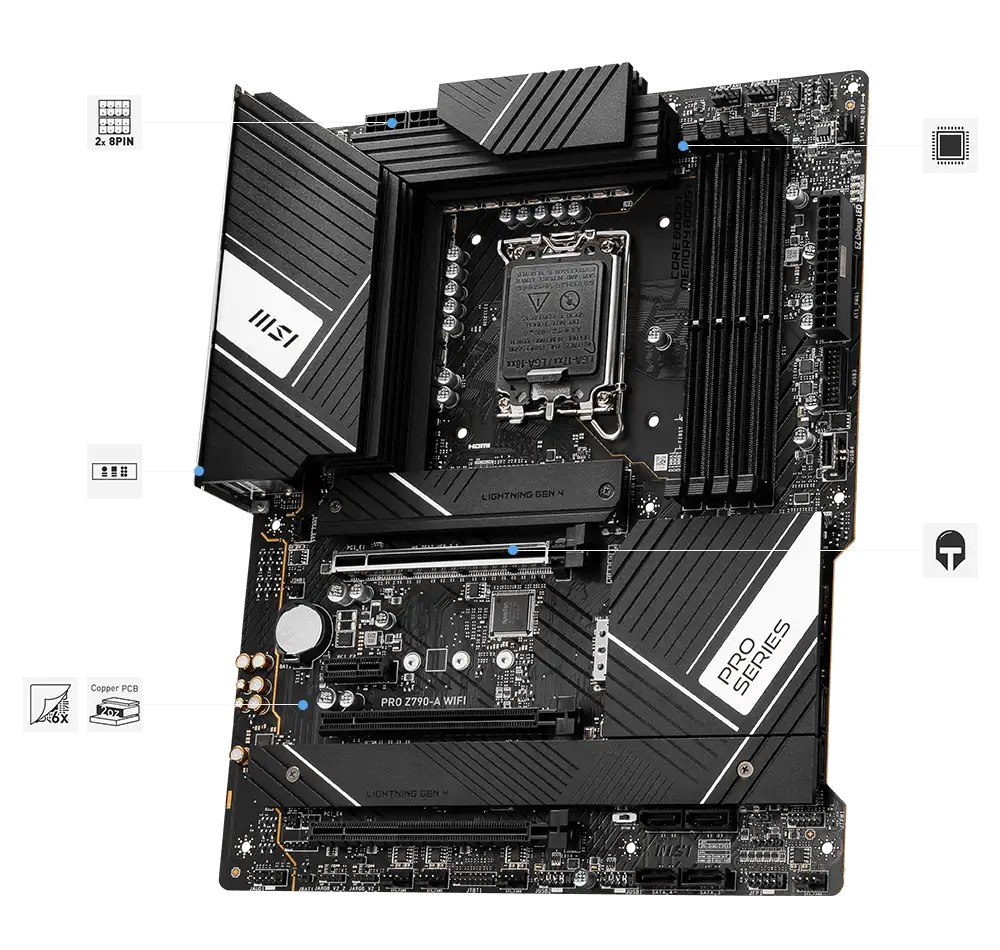

Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed. Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology. Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. M.2 Shield FROZR: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
Others
Internal I/O: 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x CPU Fan, 1x Pump Fan, 6x System Fan, 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TBT connector (JTBT, supports RTD3), 1x Tuning Controller connector(JDASH), Back Panel Ports: Audio Connectors, S/PDIF-OUT.
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
