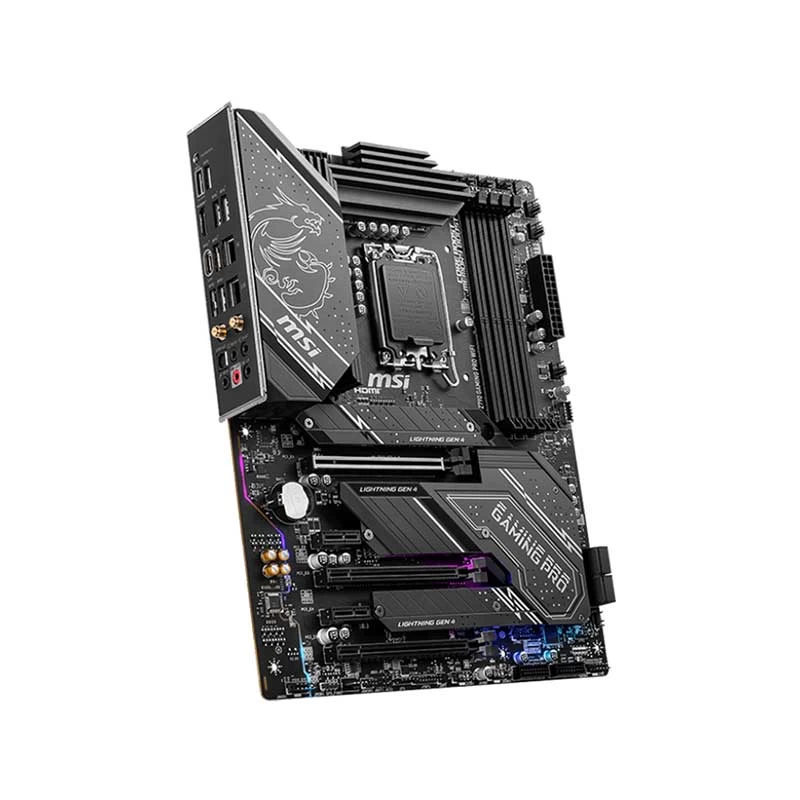

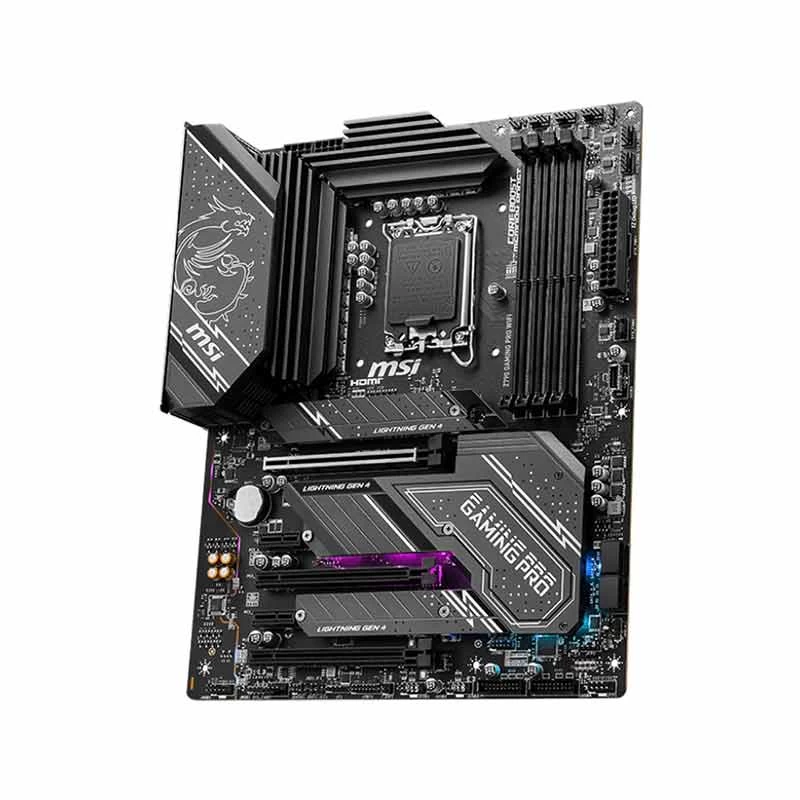

MSI Z790 GAMING PRO (Wi-Fi 6E) DDR5 Intel Gaming Motherboard

Item: MSI Z790 GAMING PRO (Wi-Fi 6E) DDR5 Intel Gaming Motherboard
Rating: 5
Author: Verified Buyer

9 reviews

Product Id: 02.01.033.386

Out Of Stock

See similar model

Quick Overview

Form Factor - ATX
Chipset - Intel Z790
Sockets Supported - LGA1700
Supported CPU - Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors
Generation - 12th/13th/14th
Memory Slot - 4
Memory Max. - 192GB
Back-Connect Design - No
Body Color - Black

Payment Method Shipping & Charge Order Procedure

Brand

MSI

Model

MSI Z790 GAMING PRO (Wi-Fi 6E)

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR5

Memory Slot

Memory Max.

192GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Yes

Bluetooth

Bluetooth 5.3

Form Factor

ATX

Supported Operating System

Windows 10 / 11

Body Color

Black

Warranty

3 year

General

Brand

MSI

Model

MSI Z790 GAMING PRO (Wi-Fi 6E)

Body Color

Black

CPU

Chipset Brand

Intel

Chipset

Intel Z790

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

Supports 12th/13th/14th Gen Intel Core Processors, Pentium Gold and Celeron Processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR5

Memory MHz

7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz non-ECC, un-buffered memory

Memory Channel

Dual

Memory Slot

Memory Slot (Additional Info)

4 x DDR5

Memory Max.

192GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

3 x M.2 Slots ( 1 x M.2 type 22110/2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260/2242 supports up to PCIe 4.0 x4, 1 x M.2 type 2280/2260/2242 supports up to PCIe 4.0 x4 / SATA mode)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

3 x PCI-E x16 slot, 2 x PCI-E x1 slot

Audio & Video

Audio Chipset

Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output

Audio Channel

7.1

Network & Connectivity

LAN Chipset

Realtek RTL8125BG 2.5Gbps LAN, Realtek RTL8111H 1Gbps LAN

LAN Speed (Mbps)

10/100/1000/2500Mbps

WiFi

Yes

WiFi Technology

Wi-Fi 6E

Bluetooth

Bluetooth 5.3

Ports

USB Port

4 x USB 3.2 Gen 1 Type-A, 2 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 2x2 Type-C

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

IDE Port

SATA Port

4 x SATA

Thunderbolt

TPM Port

COM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

Yes

FireWire

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

ARGB

RGB Connector

2 x Addressable V2 RGB LED connector (JARGB V2), 1 x RGB LED connector(JRGB)

Approx. Power Consumption

70W

Form Factor

ATX

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

Compatible with LGA1700 Socket 12th, 13th & 14th Gen Intel Processor.

Warranty

3 year

Additional Info

Others

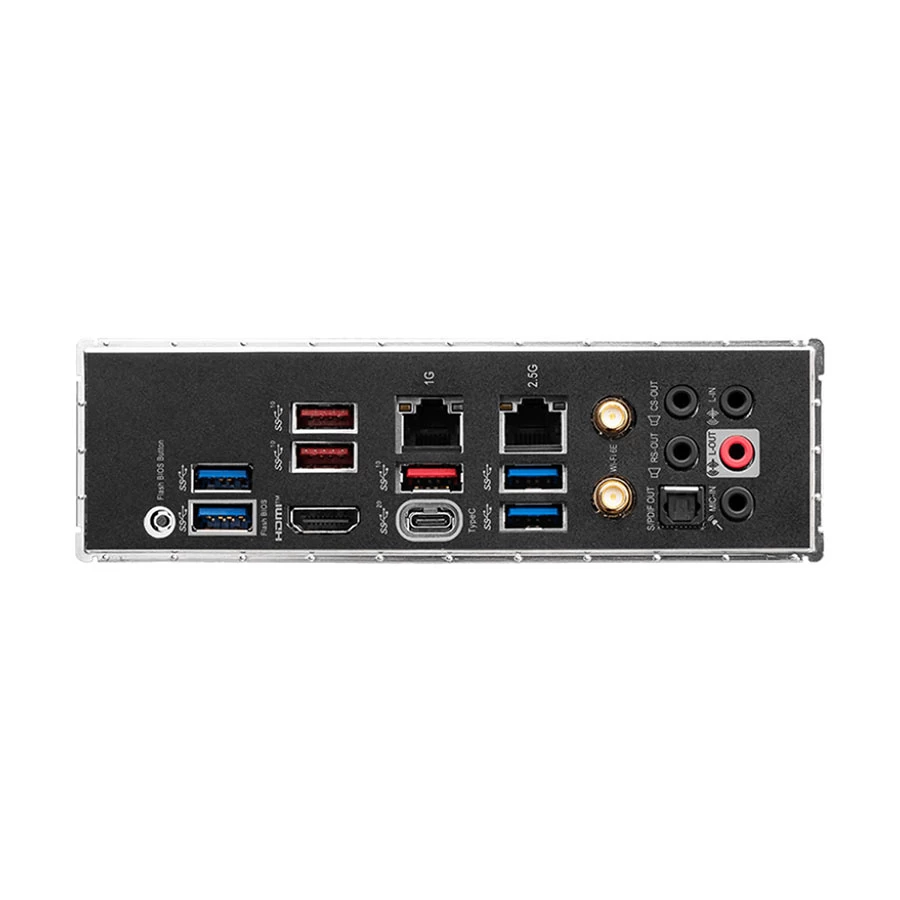

Back Panel Connectors: (1G LAN, 2.5G LAN Port, 2.5G LAN Port, Wi-Fi / Bluetooth Antenna, HD Audio Connectors, Flash BIOS Button, Optical S/PDIF OUT), Internal Connectors: (1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0))

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of MSI Z790 GAMING PRO (Wi-Fi 6E) Motherboard In Bangladesh

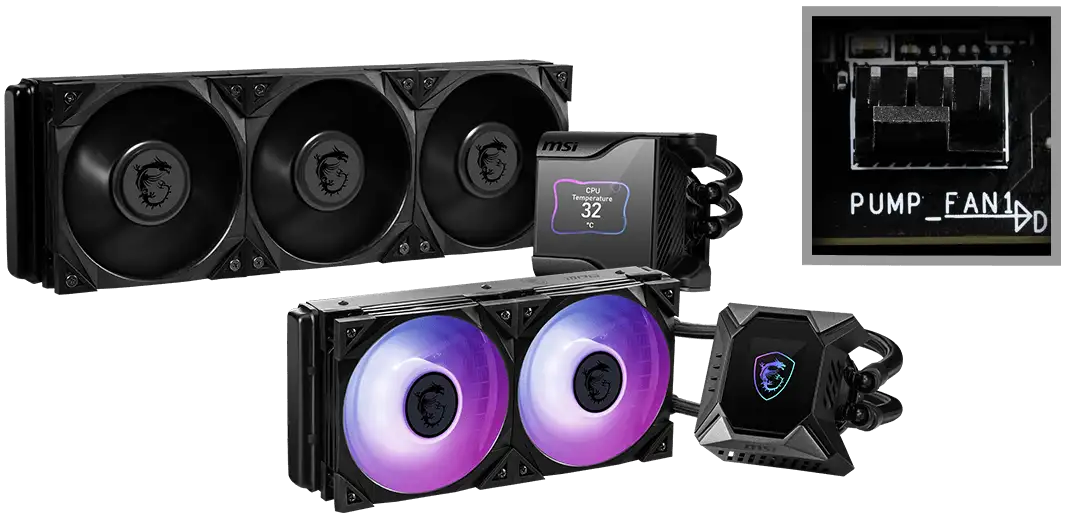

OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

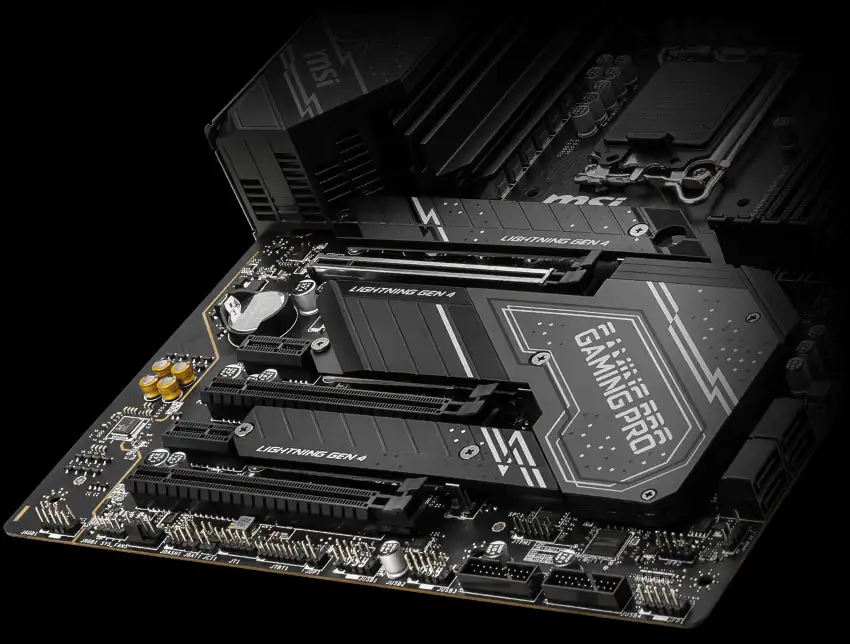

FAST AND FUTURE-READY STORAGE
Z790 GAMING WIFI motherboard supports all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

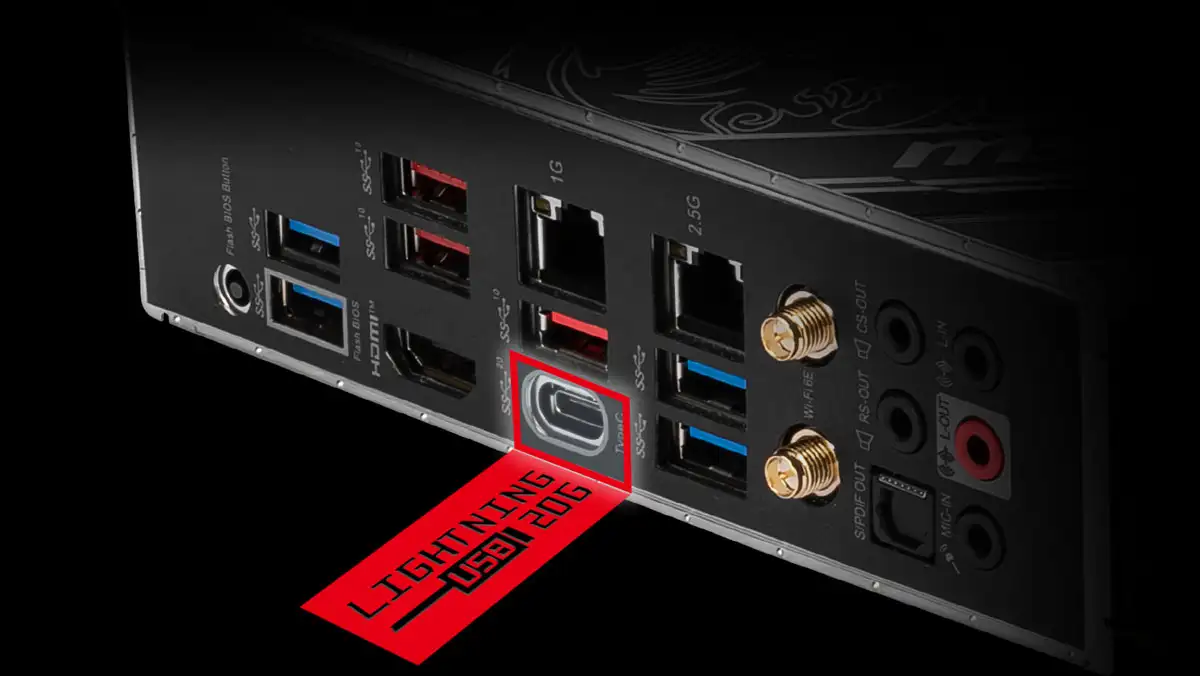

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G

Using USB 3.2 devices has never been faster! Z790 GAMING PRO WIFI motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.

What is the price of MSI Z790 GAMING PRO (Wi-Fi 6E) Motherboard In Bangladesh?

The price of MSI Z790 GAMING PRO (Wi-Fi 6E) Motherboard not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy MSI Z790 GAMING PRO (Wi-Fi 6E) Motherboard from our website or visit our showrooms nearby.
