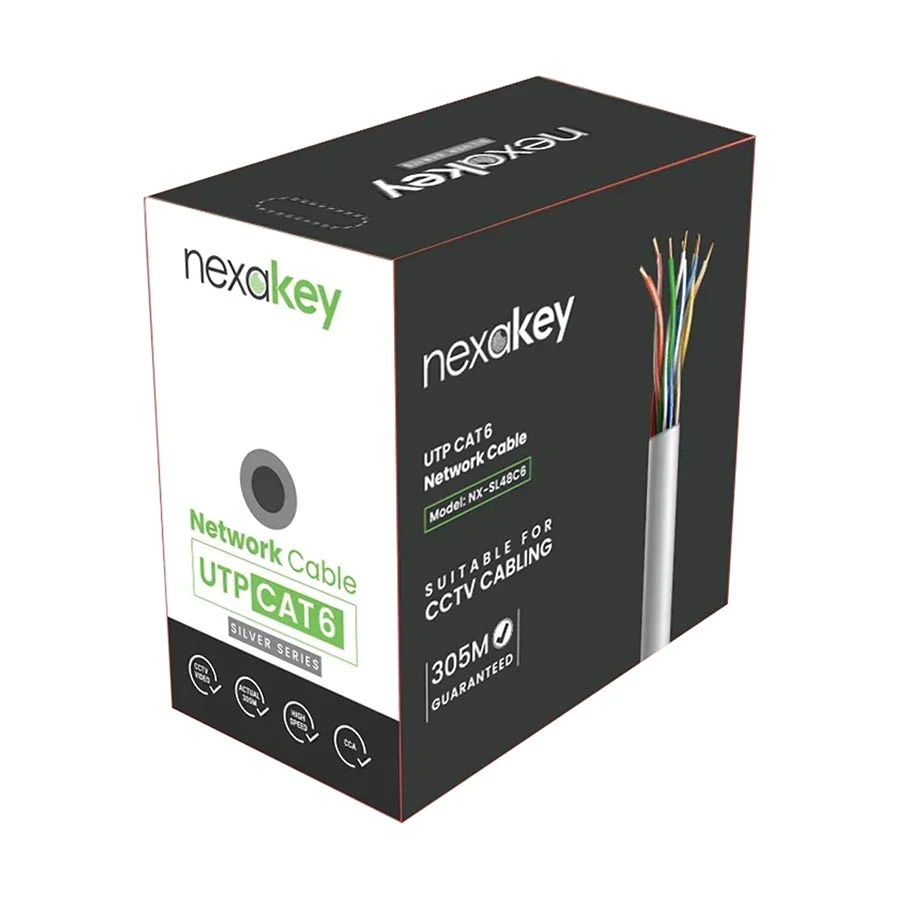

NexaKey NX-SL48C6 Cat-6 UTP, 305 Meter, Gray Network Cable #NX-SL48C6

Item: NexaKey NX-SL48C6 Cat-6 UTP, 305 Meter, Gray Network Cable #NX-SL48C6
Rating: 5
Author: Verified Buyer

13 reviews

Product Id: 29.06.1003.01

Out Of Stock

Quick Overview

Type - Network Cable
Length - 305 Meter
Conductor Material - Copper Clad Aluminum (CCA)
Jacket Material - PVC
Cable Shielding - UTP (Unshielded Twisted Pair)
Color - Gray

Payment Method Shipping & Charge Order Procedure

General

Brand

NexaKey

Model

NexaKey NX-SL48C6

Type

Network Cable

Part No

NX-SL48C6

Technical Info

Length

305 Meter

Connector Type

Product Type

Round Cable

Main Features

Network Speed

Unmentioned

Channel Bandwidth

250MHz

Conductor Material

Copper Clad Aluminum (CCA)

Jacket Material

PVC

Cable Shielding

UTP (Unshielded Twisted Pair)

AWG

24AWG

Physical Description

Weight (gm)

8.9kg

Color

Gray

Warranty

Warranty Details

No warranty

Additional Info

Others

Fire resistance Standard CMR, Conductor Diameter 0.48 -/+ 0.01 mm (24AWG), Insulation Material HDPE, Diameter 0.98 -/+ 0.05 mm, Sheath Thickness 0.55 -/+ 0.1 mm, Diameter: 6.0 -/+ 0.3 mm, Material: PVC, Separator, Before aging: Tensile strength >= 13.5 Mpa Elongation >= 150%, Aging period: 100 Degree C x 24h x 10d, After aging: Tensile strength >= 12.5Mpa Elongataon >= 125%, Cold bend: -20 Degree C 4h, no visible cracks, 1.0-250.0 MHz impedance 100 -/+15ohm, 1.0-250.0 MHz delay skew <=45 ns/100 m, DC resistance <=20.5 ohm/100 m, DC conductor resistance unbalance: <=5.0%, Ambient temperature: -20 Degree C to 70 Degree C, Operating voltage 57 V.

Feature

High-Speed Cat6 Performance up to 250MHz bandwidth. 24 AWG Copper-Clad Aluminum Lightweight CCA wires. Riser-Rated PVC Jacket (CMR) Durable PVC outer sheath. Four insulated twisted pairs with HDPE insulation.

Details

Features of NexaKey NX-SL48C6 Network Cable In Bangladesh

Brand - NexaKey, Model - NexaKey NX-SL48C6, Type - Network Cable, Length - 305 Meter, Connector Type - No, Product Type - Round Cable, Network Speed - Unmentioned, Channel Bandwidth - 250MHz, Conductor Material - Copper Clad Aluminum (CCA), Jacket Material - PVC, Cable Shielding - UTP (Unshielded Twisted Pair), AWG - 24AWG, Weight - 8.9kg, Color - Gray, Others - Fire resistance Standard CMR, Conductor Diameter 0.48 -/+ 0.01 mm (24AWG), Insulation Material HDPE, Diameter 0.98 -/+ 0.05 mm, Sheath Thickness 0.55 -/+ 0.1 mm, Diameter: 6.0 -/+ 0.3 mm, Material: PVC, Separator, Before aging: Tensile strength >= 13.5 Mpa Elongation >= 150%, Aging period: 100 Degree C x 24h x 10d, After aging: Tensile strength >= 12.5Mpa Elongataon >= 125%, Cold bend: -20 Degree C 4h, no visible cracks, 1.0-250.0 MHz impedance 100 -/+15ohm, 1.0-250.0 MHz delay skew <=45 ns/100 m, DC resistance <=20.5 ohm/100 m, DC conductor resistance unbalance: <=5.0%, Ambient temperature: -20 Degree C to 70 Degree C, Operating voltage 57 V., Feature - High-Speed Cat6 Performance up to 250MHz bandwidth. 24 AWG Copper-Clad Aluminum Lightweight CCA wires. Riser-Rated PVC Jacket (CMR) Durable PVC outer sheath. Four insulated twisted pairs with HDPE insulation., Part No - NX-SL48C6, Warranty - No Warranty

What is the price of NexaKey NX-SL48C6 Network Cable In Bangladesh?

The price of NexaKey NX-SL48C6 Network Cable not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy NexaKey NX-SL48C6 Network Cable from our website or visit our showrooms nearby.
