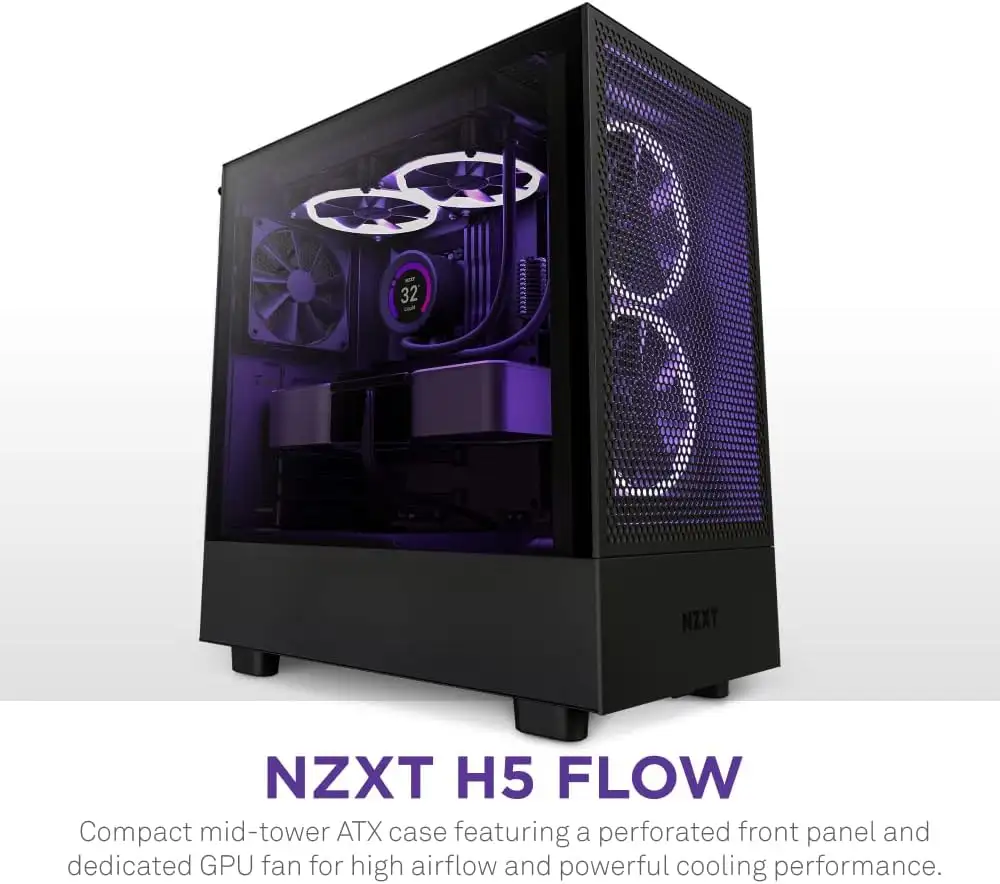

NZXT H5 Flow (2022) Mid Tower (Tempered Glass Side Window) Black ATX Gaming Desktop Case #CC-H51FB-01

Item: NZXT H5 Flow (2022) Mid Tower (Tempered Glass Side Window) Black ATX Gaming Desktop Case #CC-H51FB-01
Rating: 5
Author: Verified Buyer

10 reviews

Product Id: 07.02.681.76

Out Of Stock

See similar model

Quick Overview

Case Type - Mid Tower
Optical Drive Bay - No
Cooling Fan (Built-In) - 2
Lighting Fan - No
Power Supply (Built-In) - No
Back-Connect Supported - No
Color - Black

Color variations

Black
Tk 0

Payment Method Shipping & Charge Order Procedure

Brand

NZXT

Model

NZXT H5 Flow (2022)

Series

Gaming

Case Type

Mid Tower

Supported Motherboard Type (Max.)

Up to ATX

Front/Top USB port

1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

Front/Top Audio Port

1 x Audio HD

Expansion Slots

Optical Drive Bay

Cooling Fan (Built-In)

Additional Fan Slot

Power Supply (Built-In)

Power Supply Type

ATX

Power Supply Mounted

Bottom

Back-Connect Supported

Transparent Side Window

Yes

Number of Buttons

Color

Black

Dimensions

464 x 446 x 227mm

Weight (Kg)

7.01 kg

Warranty

No warranty

General

Brand

NZXT

Model

NZXT H5 Flow (2022)

Series

Gaming

Case Type

Mid Tower

Part No

CC-H51FB-01

Technical Info

Supported Motherboard Type

Mini-ITX, Micro-ATX, ATX

Supported LED Strip

Unmentioned

Fan / Light Controller

Unmentioned

Back-Connect Supported

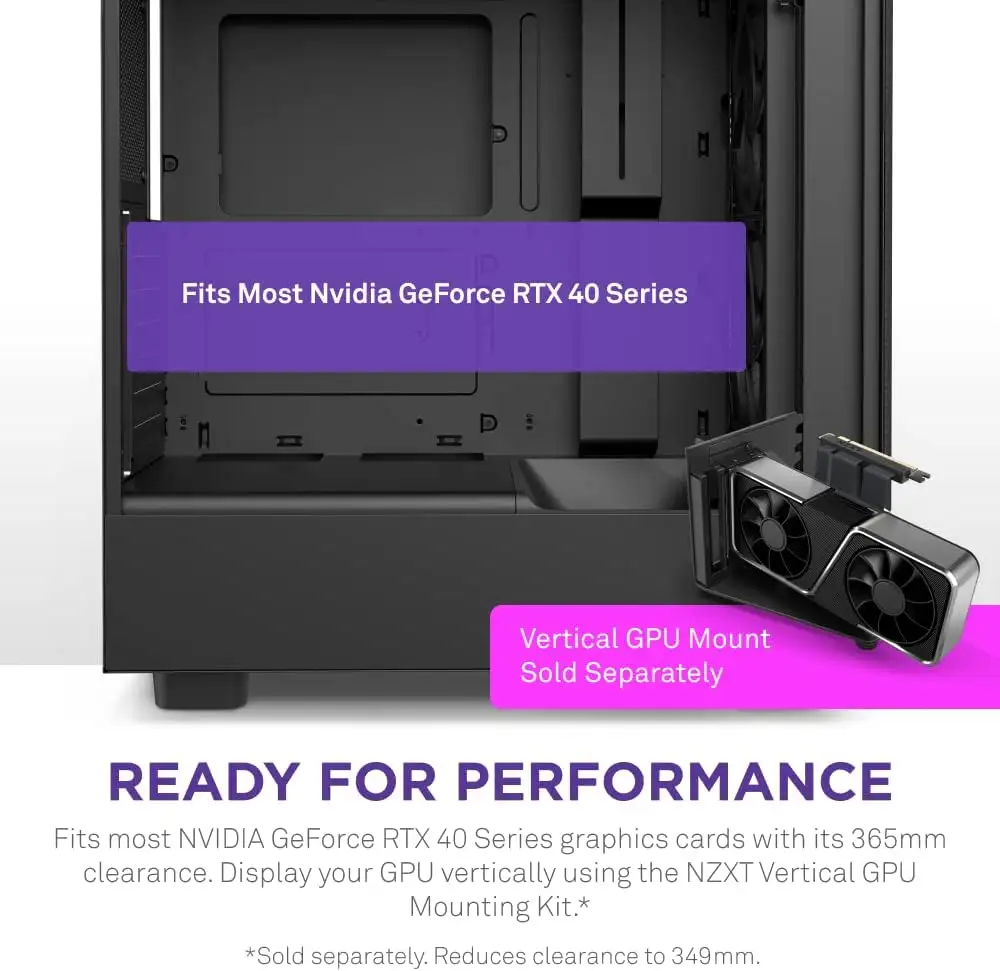

Graphics-Card Length

365mm

Supported CPU Cooler

Air Cooler or Liquid Cooler

CPU Cooler Height

165mm

Cable Management Depth

23mm

Ports & Slots

Front/Top USB port

1 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C

Front/Top Audio Port

1 x Audio HD

3.5 Inch Drive Bay

2.5 Inch Drive Bay

Expansion Slots

Optical Drive Bay

Fan & Radiator Details

Cooling Fan (Built-In)

Additional Fan Slot

Pre-Installed Fan Size

1 x F Series Quiet 120mm (Rear), 1 x F Series Quiet 120mm (Bottom)

Supported Fan Size

2 x 120mm/ 2 x 140mm (Front), 2 x 120mm (Top)

Lighting Fan

Radiator Support Front/Top/Rear

Front: Up to 280mm, Top: Up to 240mm, Rear: Up to 120mm

Radiator Support Max.

Up to 280mm

Power

Power Supply (Built-In)

Power Supply Type

ATX

Power Supply Mounted

Bottom

Approx. Power Consumption

10W

Physical Description

Transparent Side Window

Yes

Case Windowed

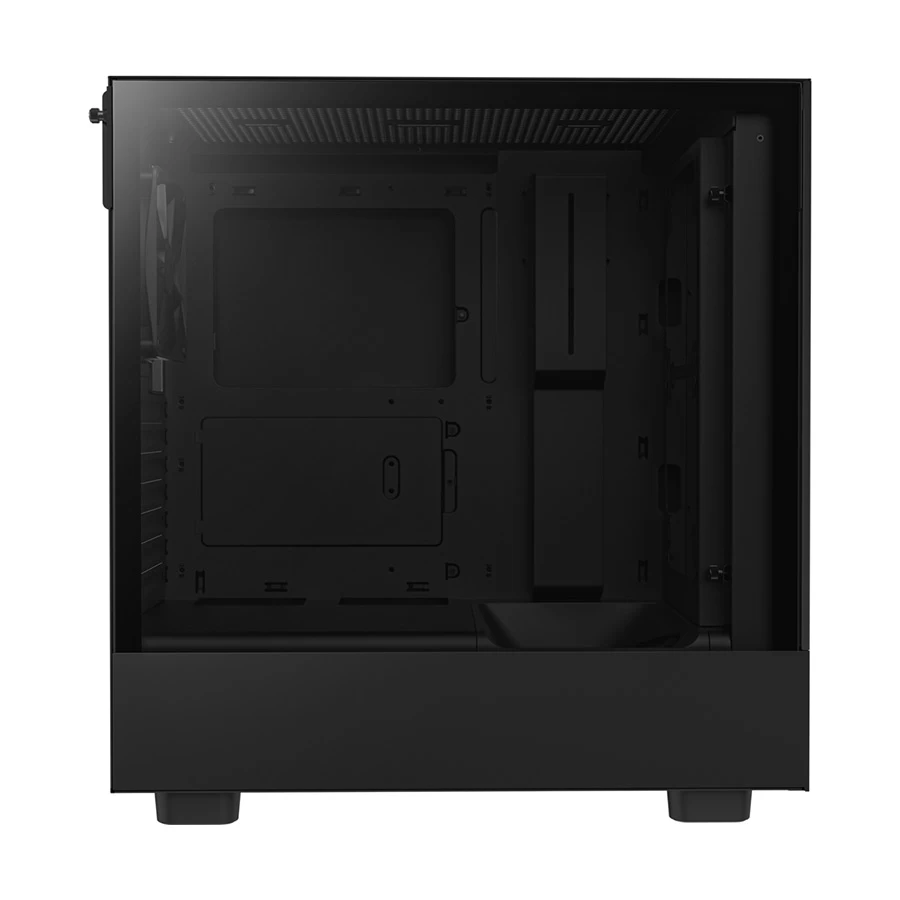

Tempered Glass Side Window

Buttons

1 x Power Button

Number of Buttons

Material

SGCC Steel

Color

Black

Dimensions

464 x 446 x 227mm

Weight (Kg)

7.01 kg

Handle

Warranty

No warranty

Additional Info

Others

Fan: Model: F120Q (Case Version), Speed: 1200 +-240RPM, Airflow: 62.18 CFM, Static: 1.05 mm - H2O, Noise: 25.1 dBA, Fan Connector: 3-pin. Dark Tinted Tempered Glass (Black only).

Specialty

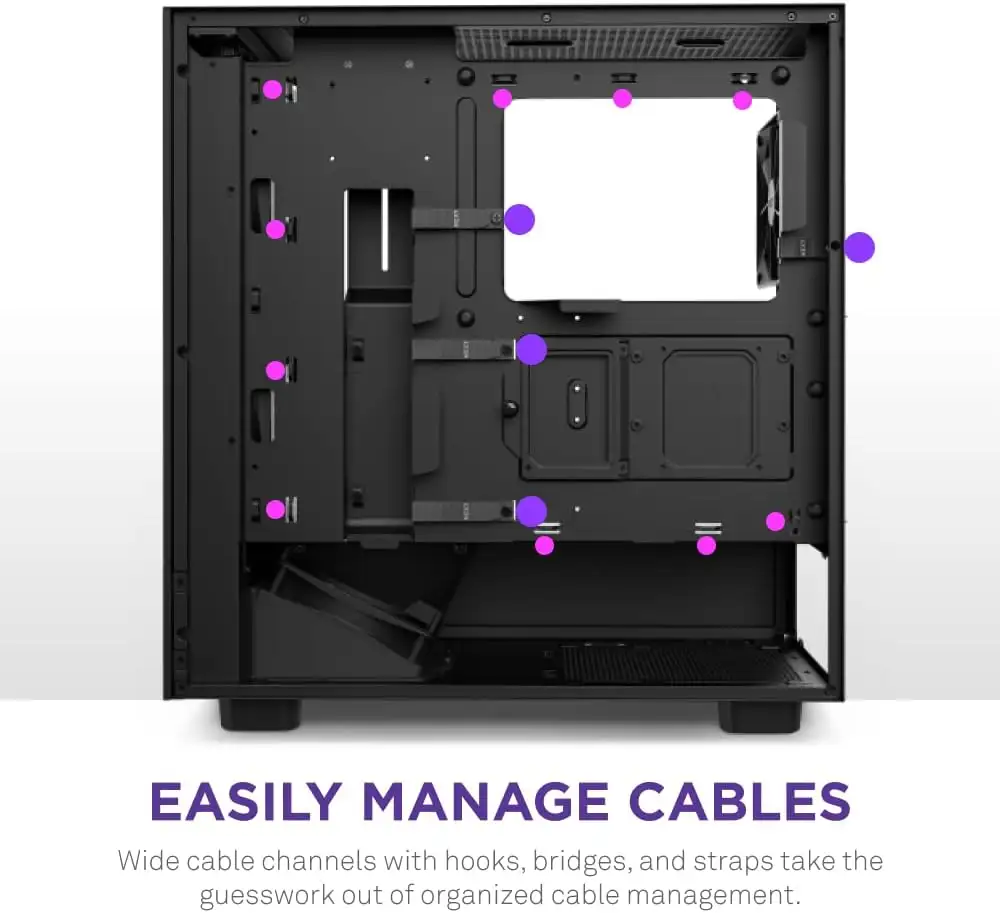

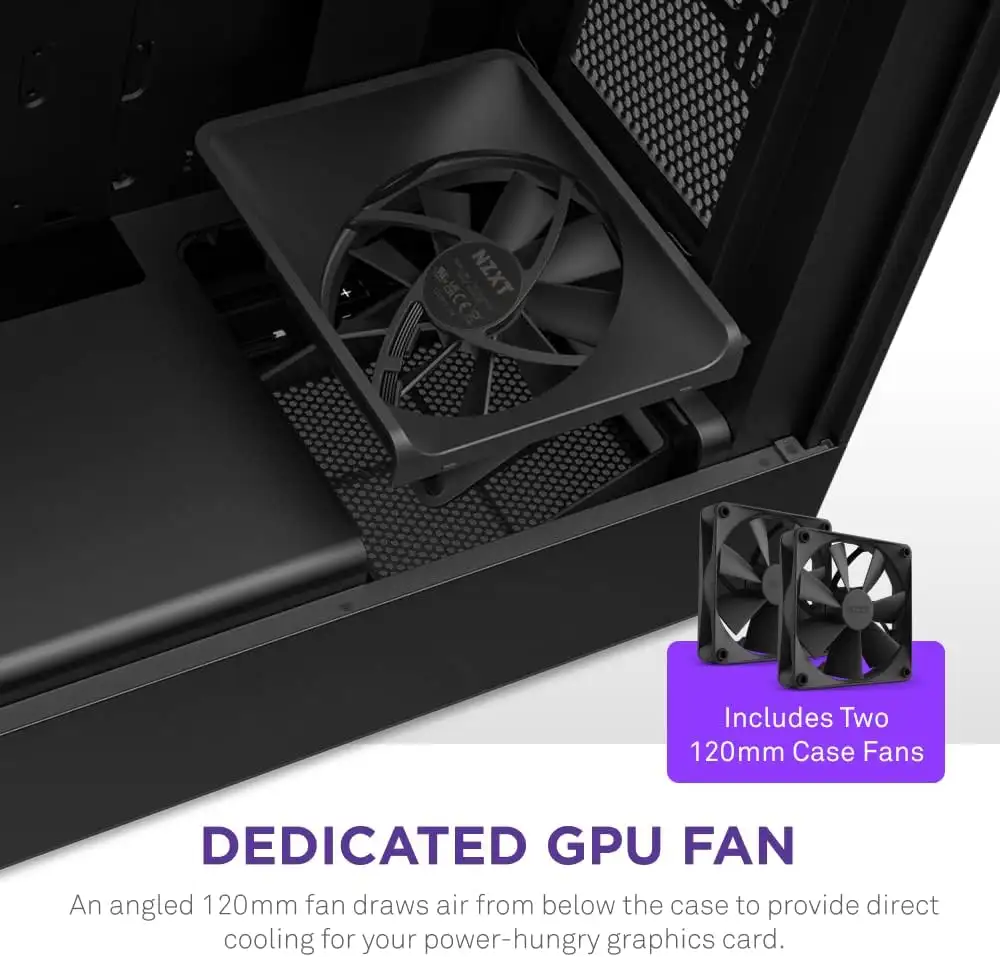

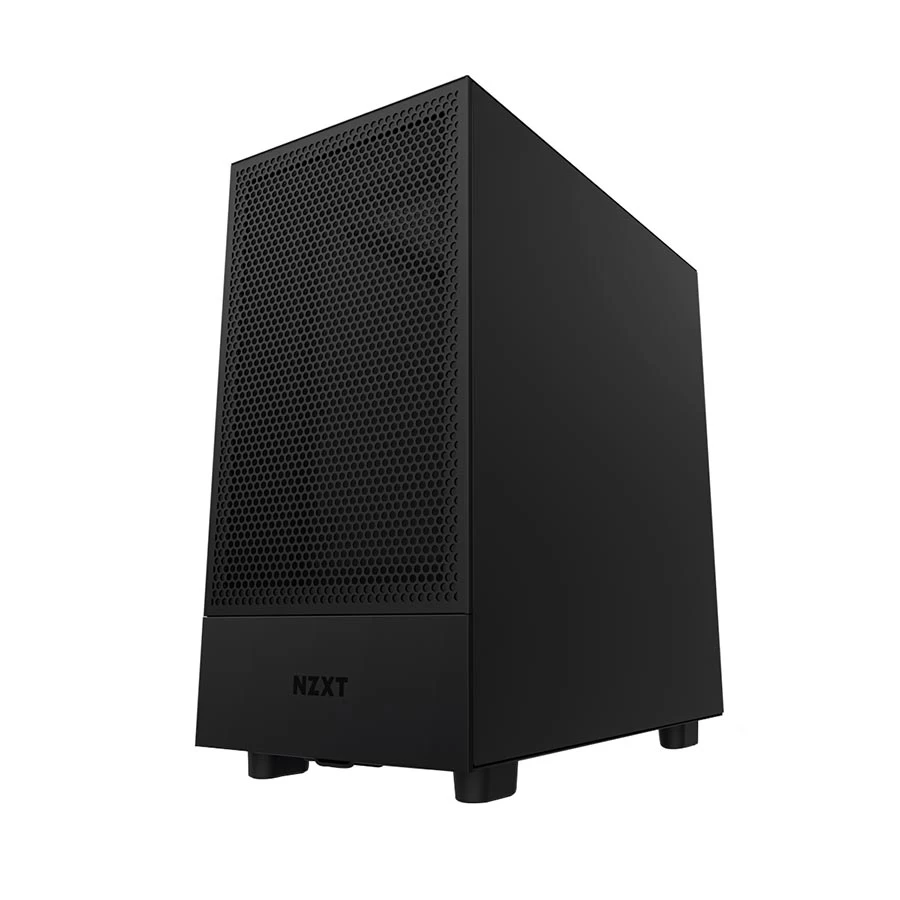

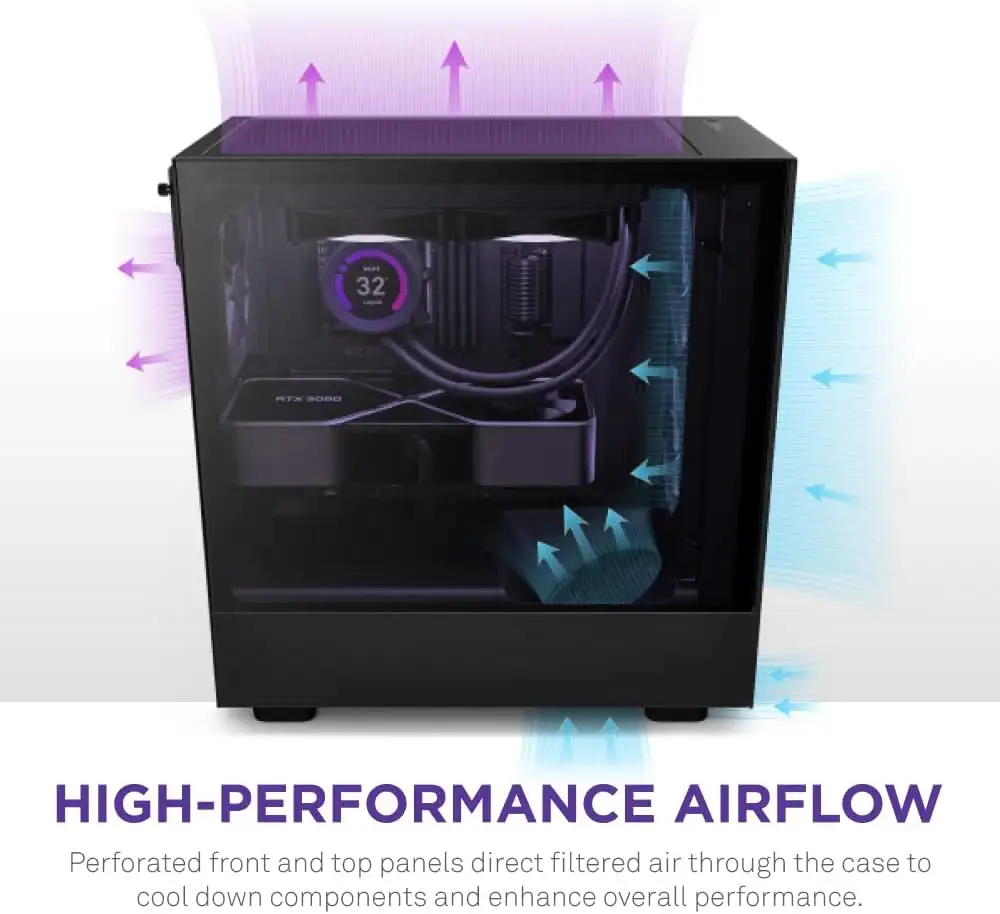

The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds. Dedicated fan on bottom inside panel is angled to cool GPU. Perforated front panel provides optimal ventilation. Intuitive cable management system with wide channels, hooks, & straps. Tool less access to front and side panels.

Country Of Origin

USA

Made in/ Assemble

China

Details

Features of NZXT H5 Flow (2022) Casing In Bangladesh

What is the price of NZXT H5 Flow (2022) Casing In Bangladesh?

The price of NZXT H5 Flow (2022) Casing not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy NZXT H5 Flow (2022) Casing from our website or visit our showrooms nearby.
Looking to purchase office, corporate, or institutional equipment? Ryans Computers is here to help. We provide customized solutions tailored to your needs, backed by fast delivery and dependable after-sales service. Our expert Ryans Care team is always ready to support you with troubleshooting, technical assistance, and configuration services—so you can focus on what matters most.

Video

Introducing the all-new NZXT H5 Series cases!

QUESTION & ANSWER

Customer Questions

Does this case come with 2 120mm fans preinstalled or do we have to install them. Also are the fans rgb?

Asked By Afraz

Dear Sir, Cooling Fan (Built-In) - 2, and Pre-Installed Fan Size 1 x F Series Quiet 120mm (Rear), 1 x F Series Quiet 120mm (Bottom), Thanks for your query!

Answered By Ryans Computers Ltd. , 23 Dec 2023
