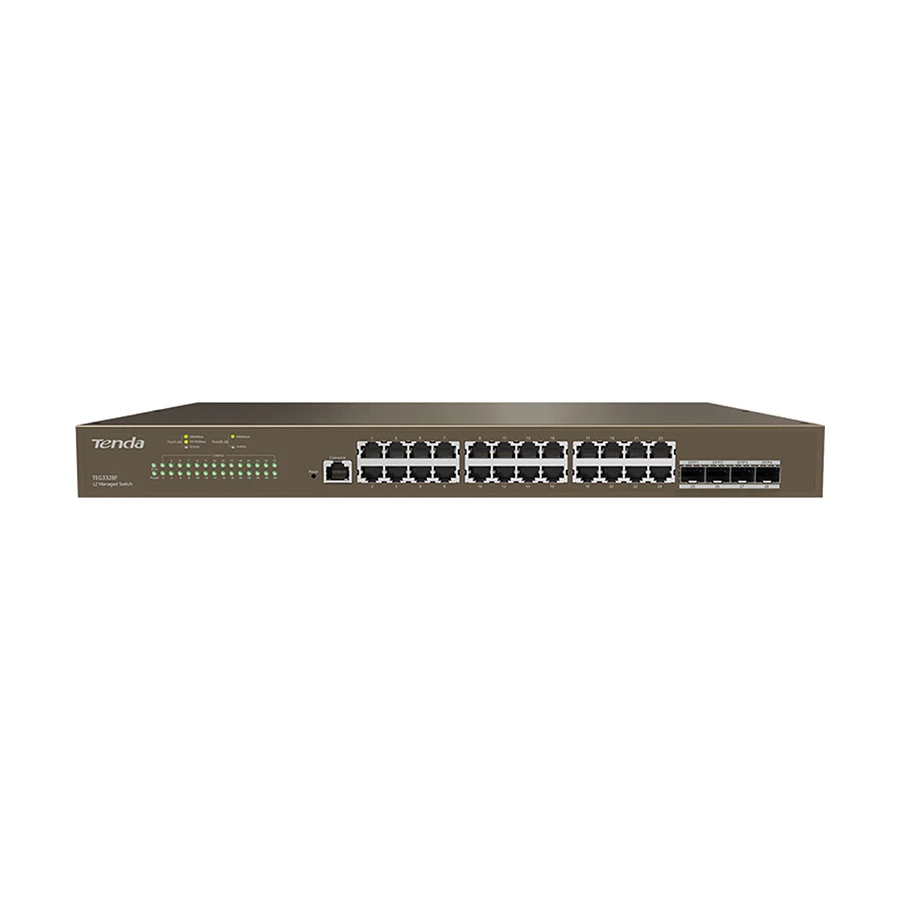

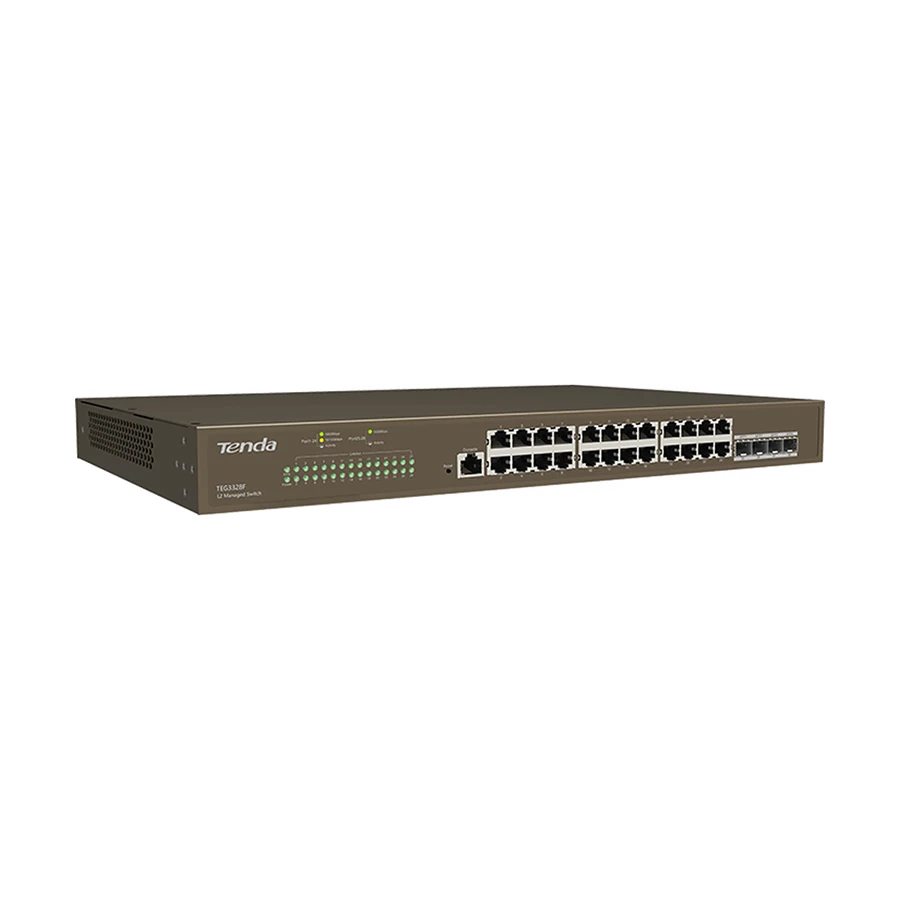

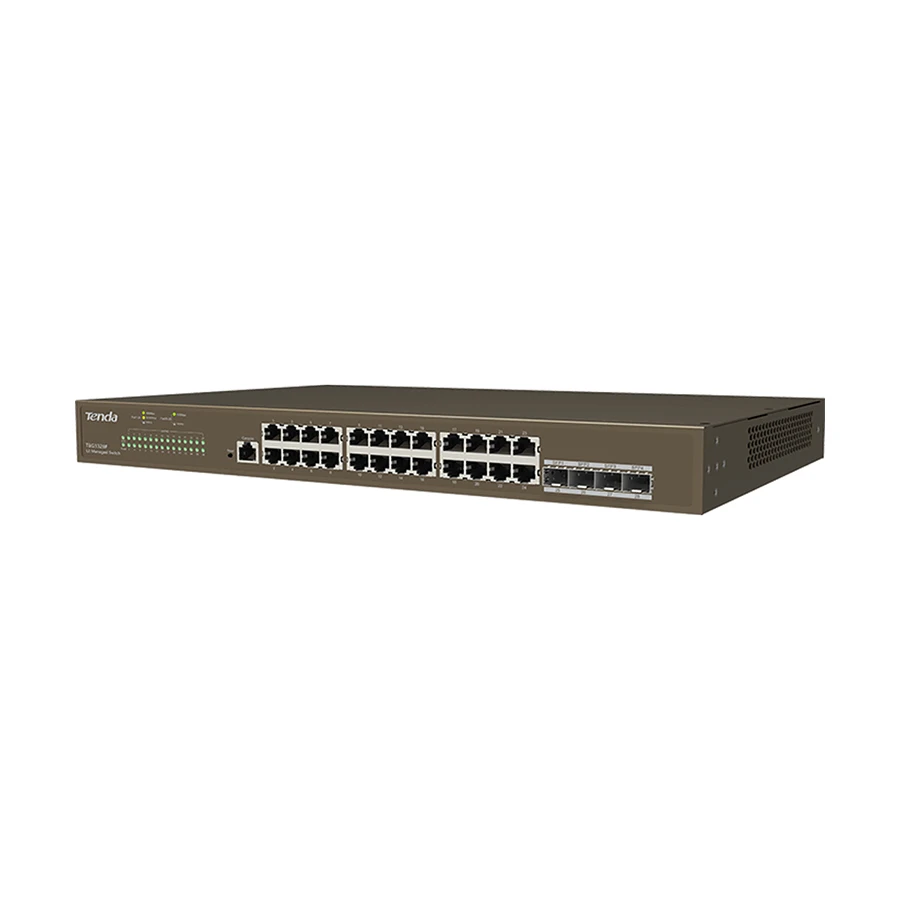

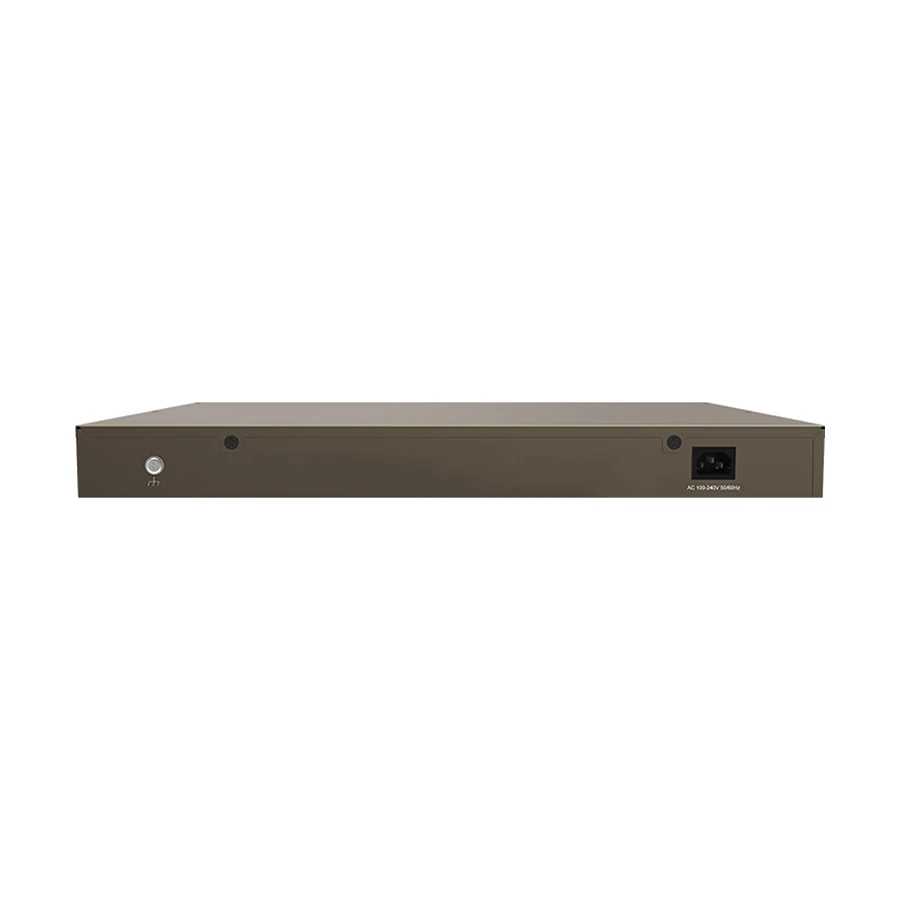

Tenda TEG3328F 28-Port Managed Switch

Product Id: 29.05.744.52

Brand Tenda

Coming Soon

Quick Overview

  • Type - Network Switch
  • Number of Total Port - 28 Port
  • PoE - No
  • Manageability - Managed
  • Network Standards - IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s
  • Data Transfer Rate - 10/100/1000 Mbps
  • Form Factor - Desktop/Rackmount/Wall Mounting
General
Brand
Tenda

Model
Tenda TEG3328F

Type
Network Switch


Ports & Slots
Number of Total Port
28 Port

Gigabit Port
28

SFP Port
4

PoE Port
No

PoE+ Port
No


Technical Info
PoE
No

Manageability
Managed

Interface(s)
24 x 10/100/1000 Base-T Ethernet, 4 x 1000 Base-X SFP

Network Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Data Transfer Rate
10/100/1000 Mbps

Transmission Method
Store-and-forward

Switching Capacity
56Gbps


Physical Description
Indicators
One Link/Act LED indicator for each port, One Power LED indicator for each device, One SYS LED indicator for each device

Body Color
Gray

Form Factor

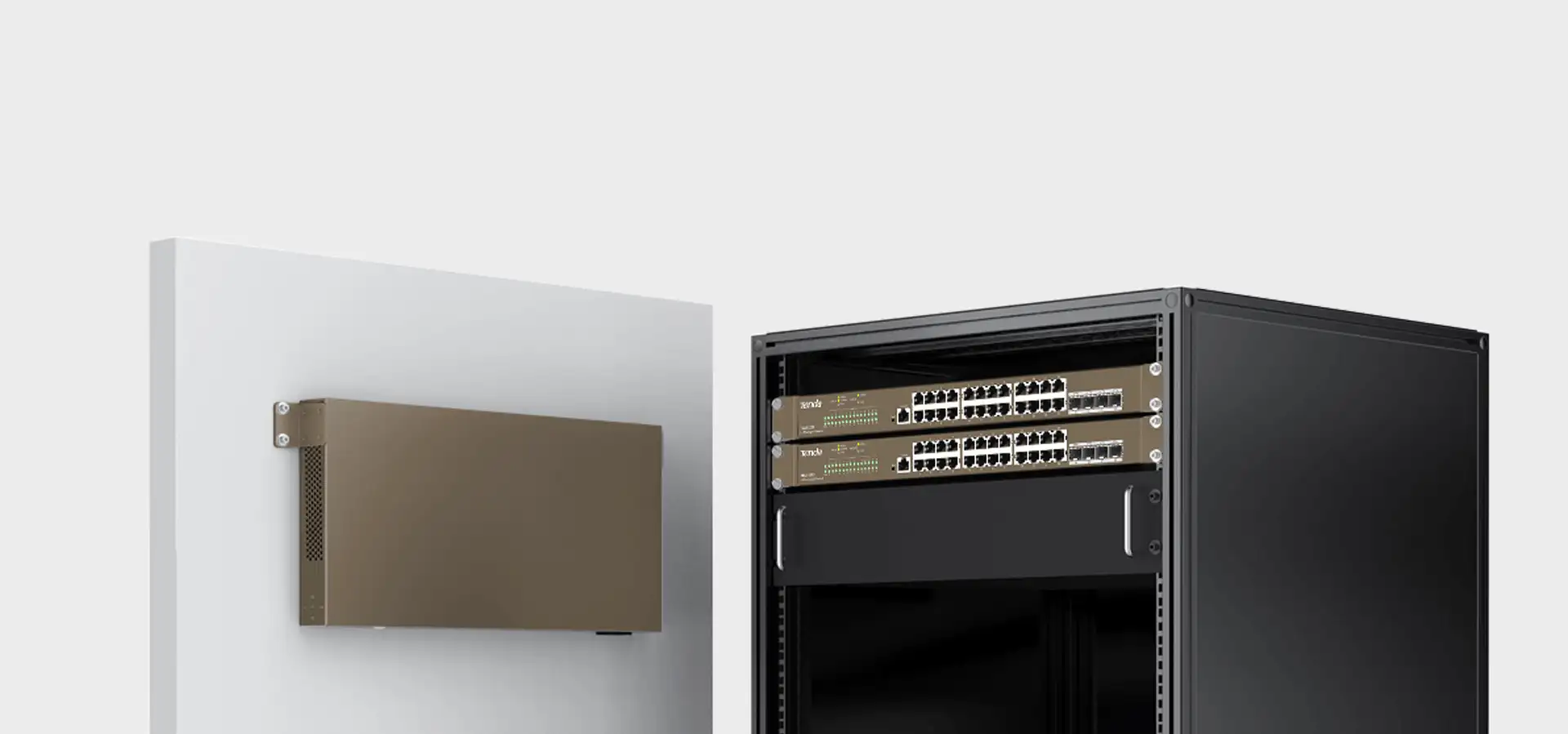

Desktop/Rackmount/Wall Mounting

Dimension
440 x 179.6 x 44mm


Power
Power Supply
100 - 240V AC 50/60Hz

Approx. Power Consumption
<24W (Full load), <10W (Empty load)


Warranty
Warranty Details
1 Year (Without Adapter)


Additional Info
Others

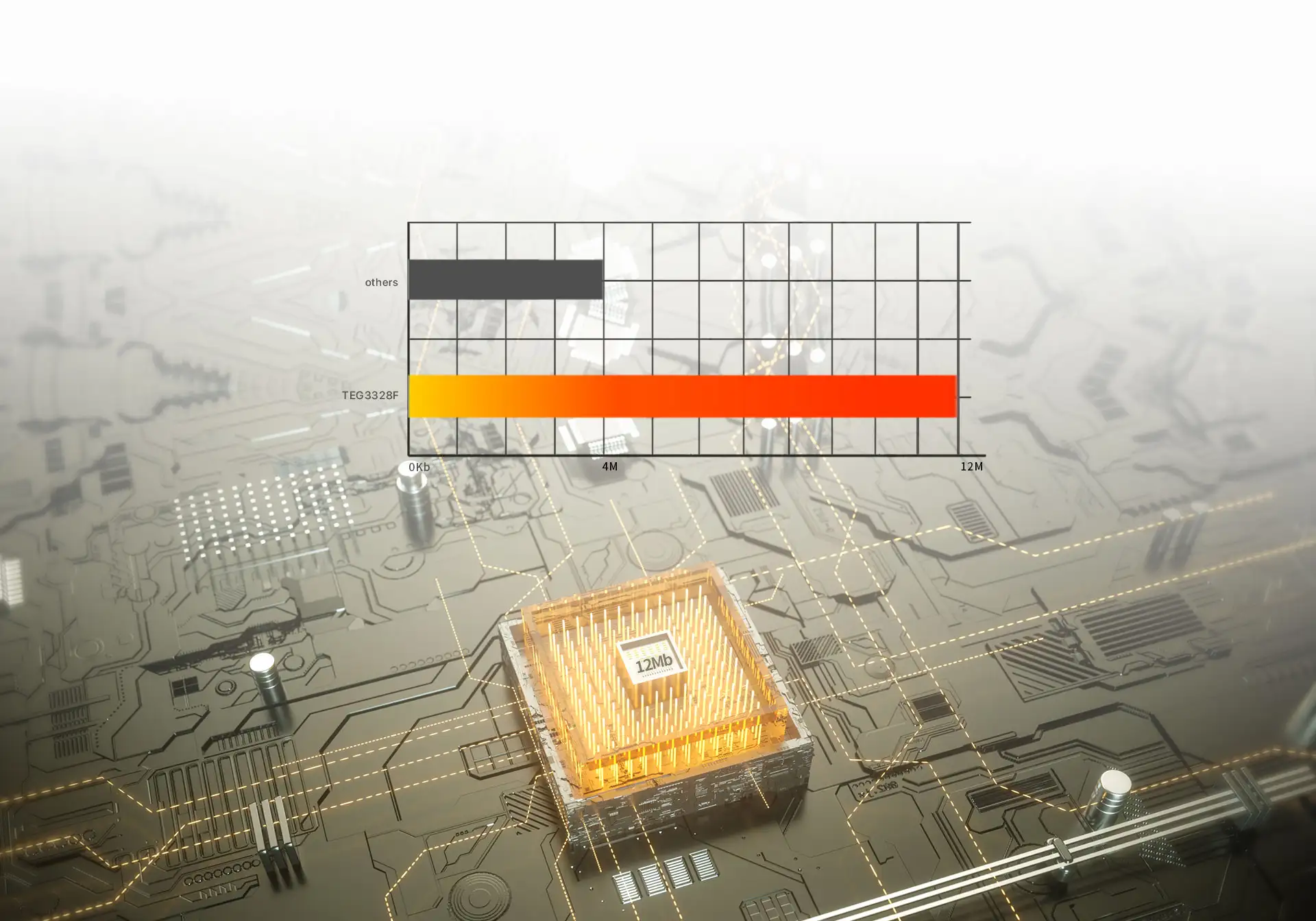

1 x Console port, Transmission media: Recommended: CAT5/5e UTP or better, Level of protection: Lightning protection for ports: 6kV, Lightning protection for power: 6kV, ESD: Air discharge: +/-10kV Contact discharge: +/-8kV, Packet forwarding rate: 41.70Mpps, Buffer: 12Mb, MAC address table: 16K, Jumbo frame: 10K, Operating temperature: 0 Degree C - 45 Degree C, Storage temperature: -40 Degree C - 70 Degree C, Operating humidity: (10% - 90%) RH, non-condensing, Storage humidity: (5% - 90%) RH, non-condensing, Certification: CCC, FCC, CE, RoHS, DHCP Snooping, Supports Option 82 policy configuration, Static aggregation, LACP dynamic aggregation, Spanning tree: IEEE 802.1d STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol), Supports edge ports, Supports BPDU statistics, Supports BPDU Guard, BPDU Filter, Supports Root Guard, Loop Guard, Supports Loopback-detection, Multicast: IGMP Snooping V1/V2/V3, Supports fast leave configuration on ports, Port Mirroring: Supports N: 1 port mirroring, Quality of Service: SP (Strict Priority), SWRR (Simple Weighted Round Robin), WRR (Weighted Round Robin), Supports 802.1p port trust mode, Supports DSCP port trust mode, Supports a maximum of 8-queue service quality mapping, Supports MAC ACL and IP ACL, Supports FTP/TFTP/HTTP upgrade, Supports configuration import and export.

Specialty

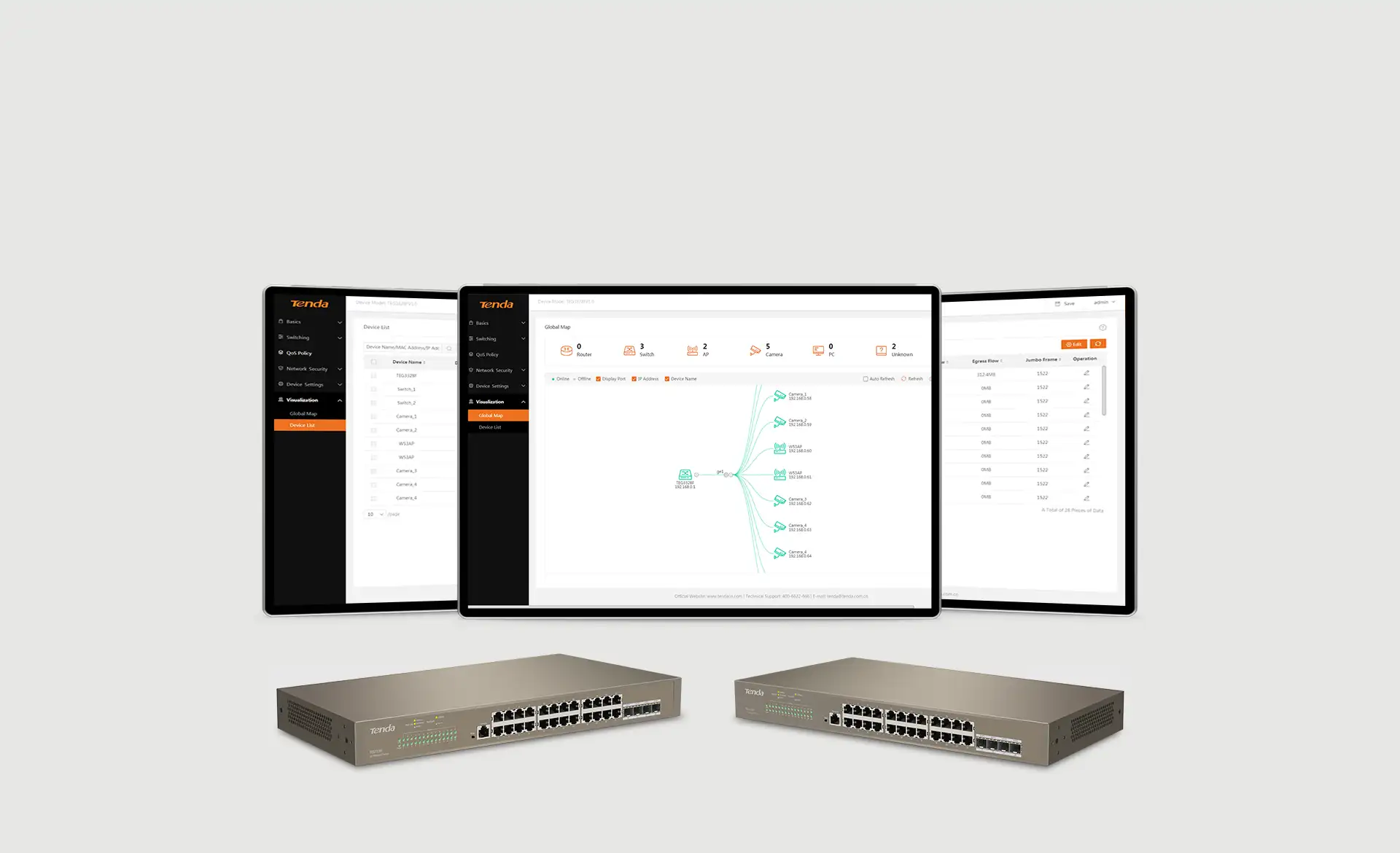

L2 Managed Switch, Energy Efficient, Supports ARP receiving limit, Supports discarding unknown MAC addresses, Supports DoS attack defense, Supports 802.1x security authentication, Supports RADIUS authentication, Supports 4K VLAN table, Supports IEEE 802.1Q VLAN, Supports three port link types: Access, Trunk and Hybrid, Supports Telnet configuration and Console port configuration, Supports SNMP V1/V2/V3, Supports web management and maintenance, Supports Ping/Tracert/cable test.

Country Of Origin
China

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
