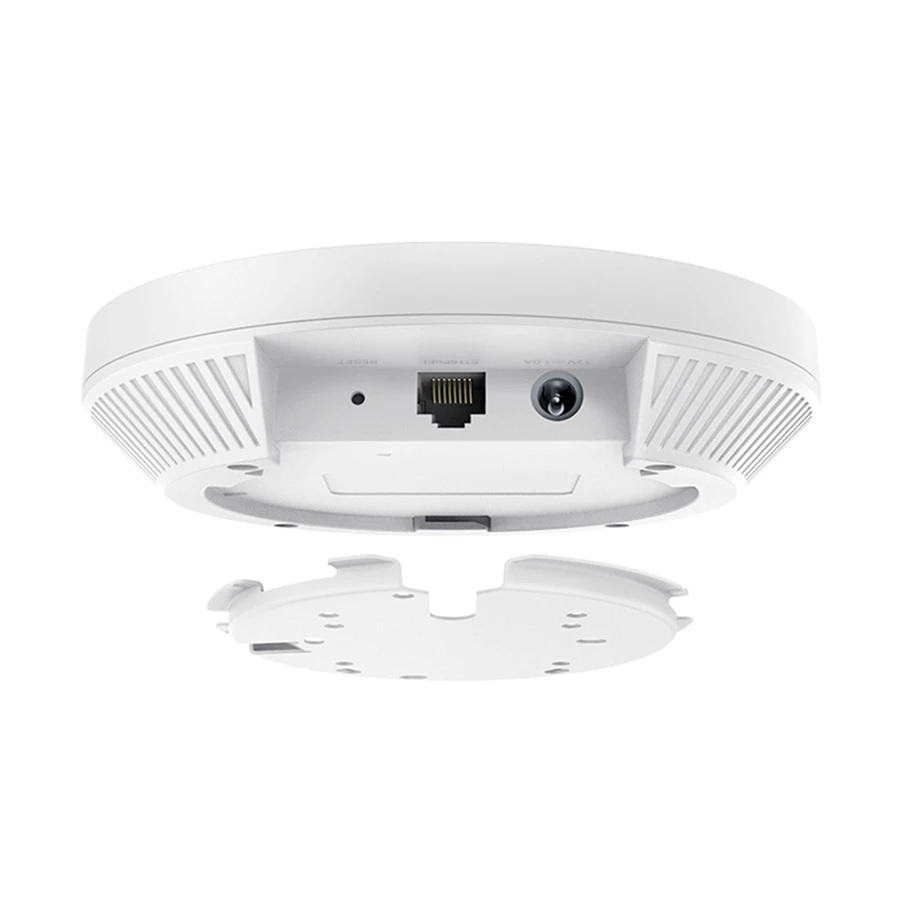

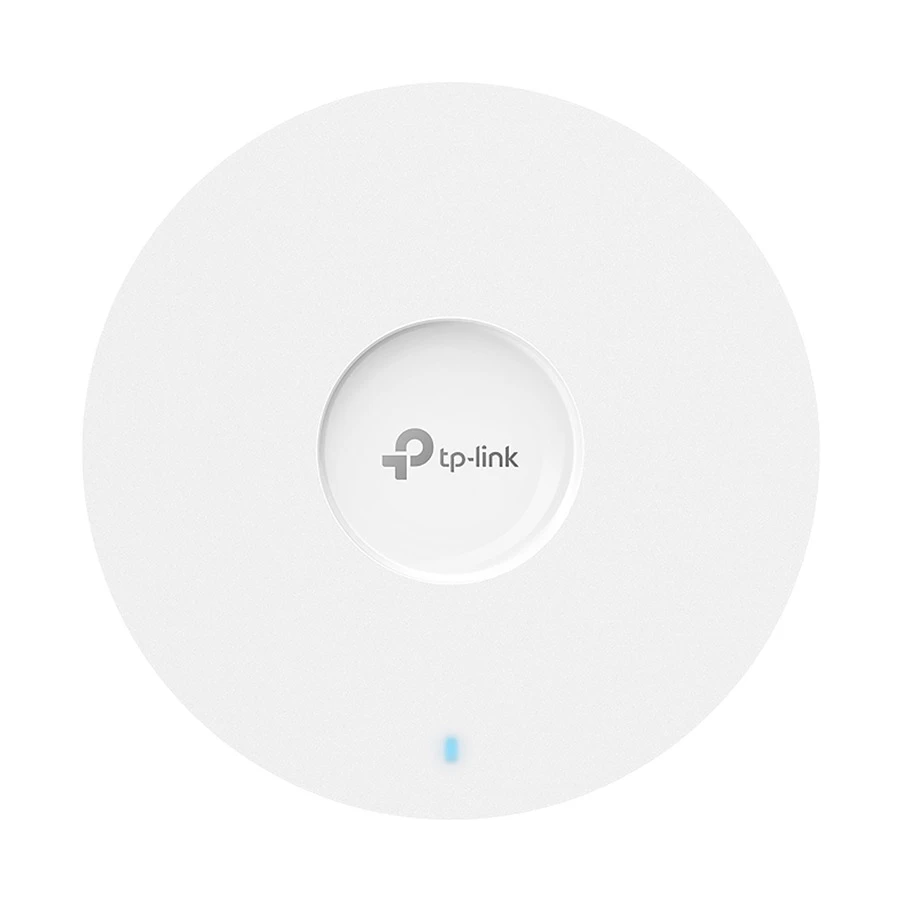

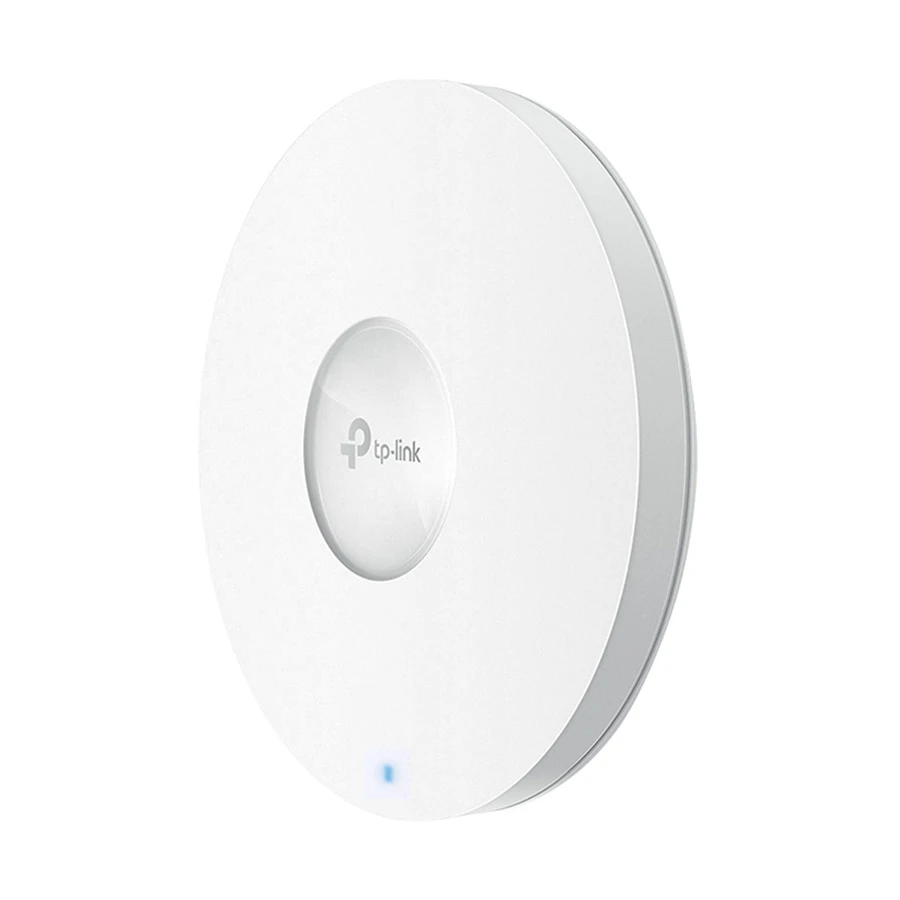

TP-Link Omada EAP653 UR V1.0 AX3000 Wireless Wi-Fi 6 Ceiling Mount Access Point

Item: TP-Link Omada EAP653 UR V1.0 AX3000 Wireless Wi-Fi 6 Ceiling Mount Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.091.235

Coming Soon

Quick Overview

Network Standards - IEEE 802.11ax/ac/n/g/b/a
Data Transfer Rates - 3000 Mbps
Band - Dual
Interface(s) - 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Antenna (Type & Qty) - 4 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

TP-Link

Model

TP-Link Omada EAP653 UR V1.0

Network Standards

IEEE 802.11ax/ac/n/g/b/a

Data Transfer Rates

3000 Mbps

Band

Dual

Interface(s)

1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Number of WAN Port

Number of LAN Port

Bluetooth

Yes

Antenna (Type & Qty)

4 x Internal

MU-MIMO Support

Yes

Power Method

12V DC, 802.3at PoE

Max. Power Consumption

13.07W (EU), 13.98W (US)

Operating Mode

Mounting

Yes

Color

White

Dimensions

160 x 160 x 33.6mm

Warranty

2 Year (Without Adapter)

General

Brand

TP-Link

Model

TP-Link Omada EAP653 UR V1.0

Hardware

Network Standards

IEEE 802.11ax/ac/n/g/b/a

Data Transfer Rates

3000 Mbps

LAN Network Standard

10/100/1000

Processor

250+

Interface

Interface(s)

1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Number of WAN Port

Number of LAN Port

Wireless

Security Protocols

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Yes

Antenna (Type & Qty)

4 x Internal

Antenna Gain

2 x 4 dBi, 2 x 5 dBi

Antenna Placement

Internal

MU-MIMO Support

Yes

Transmission Power

CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP), FCC: <25 dBm (2.4 GHz) <25 dBm (5 GHz)

Management

SSID Numbers

Up to 16 SSIDs

Operating Mode

Web-Based Management

HTTP/HTTPS

Multi-Site Management

Yes

Management MAC Access Control

Yes

Remote Management

Yes

Performance

IP Rating

OFDM/OFDMA

OFDMA

Email Alerts

Yes

Technical Info

Version

V1.0

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Security

Wireless Security

Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.

Electrical

Power Method

12V DC, 802.3at PoE

DC Input Power

12V

Power Adapter Input

Max. Power Consumption

13.07W (EU), 13.98W (US)

Passive PoE Power Supply

48V Passive PoE

Environmental

Operating Temperature

0 to 40 degree C

Operating Humidity

10 - 90% RH non-condensing

Storing/Storage Temperature

-40 to 70 degree C

Storing/Storage Humidity

5 - 90% RH non-condensing

Physical Description

Button

Reset

LED Indicators

Yes

Mounting

Yes

Mount Options

Ceiling /Wall

Dimensions

160 x 160 x 33.6mm

Color

White

Warranty

2 Year (Without Adapter)

Additional Info

Others

Frequency: 2.4 GHz and 5 GHz, Signal Rate: 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps, Wireless Functions: ( 1024-QAM, 4 x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client), Omada App: Yes, Centralized Management: (Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller, Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller, SNMP: v1, v2c, v3 System Logging Local/Remote, Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Specialty

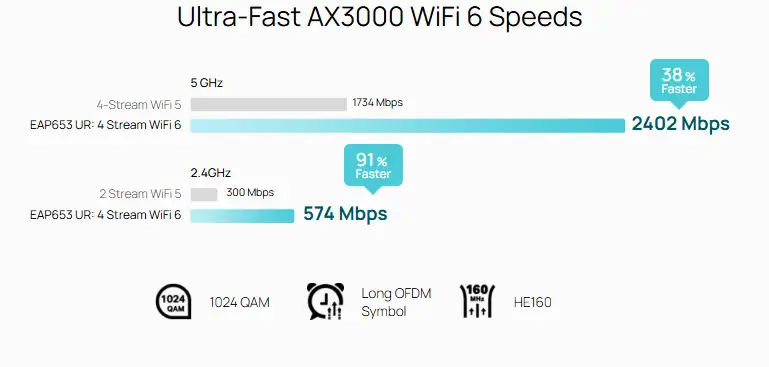

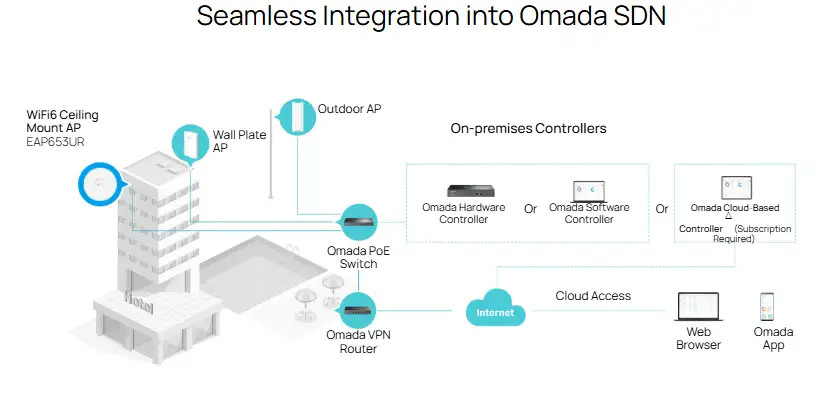

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds, High-Efficiency WiFi 6 More connected devices can enjoy faster speeds Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app, 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160, Seamless Roaming Video streams and voice calls are unaffected as users move between locations, Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment, PoE+ Powered: Supports both 802.3at PoE and DC.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link Omada EAP653 UR V1.0 Access Point In Bangladesh

What is the price of TP-Link Omada EAP653 UR V1.0 Access Point In Bangladesh?

The price of TP-Link Omada EAP653 UR V1.0 Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TP-Link Omada EAP653 UR V1.0 Access Point from our website or visit our showrooms nearby.
