N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch. Product data used in this website is based solely on its manufacturer provided information, authenticity and accuracy are their responsibility only.

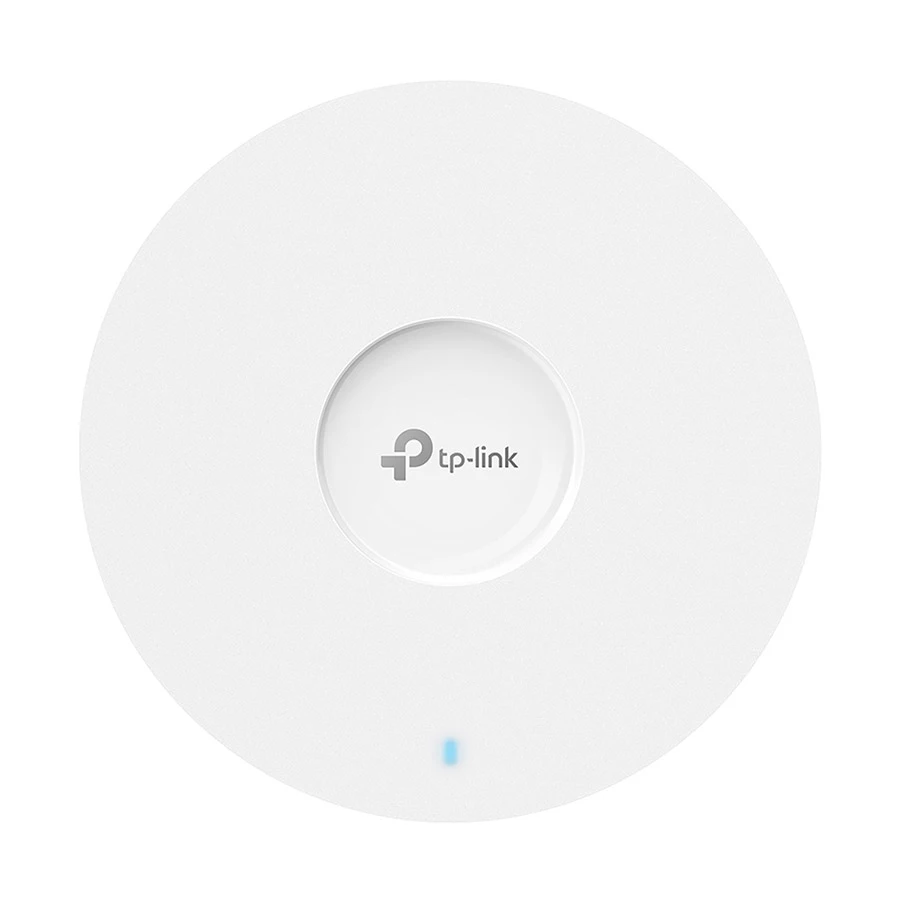

TP-Link Omada EAP673 V1.0 AX5400 Wireless Wi-Fi 6 Ceiling Mount Access Point

Item: TP-Link Omada EAP673 V1.0 AX5400 Wireless Wi-Fi 6 Ceiling Mount Access Point
Rating: 5
Author: Verified Buyer

Product Id: 29.02.091.236

Coming Soon

Quick Overview

Network Standards - IEEE 802.11ax/ac/n/g/b/a
Data Transfer Rates - 5400 Mbps
Band - Dual
Interface(s) - 1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Antenna (Type & Qty) - 6 x Internal
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

TP-Link

Model

TP-Link Omada EAP673 V1.0

Network Standards

IEEE 802.11ax/ac/n/g/b/a

Data Transfer Rates

5400 Mbps

Band

Dual

Interface(s)

1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Number of WAN Port

Number of LAN Port

Bluetooth

Yes

Antenna (Type & Qty)

6 x Internal

MU-MIMO Support

Yes

Power Method

12V / 2A DC, 802.3at PoE

Max. Power Consumption

20.8W (EU), 22.3W (US)

Outdoor Use

Mounting

Yes

Color

White

Dimensions

220 x 220 x 32.5mm

Warranty

2 Year (Without Adapter)

General

Brand

TP-Link

Model

TP-Link Omada EAP673 V1.0

Hardware

Network Standards

IEEE 802.11ax/ac/n/g/b/a

Data Transfer Rates

5400 Mbps

LAN Network Standard

10/100/1000/2500

Processor

250+

Interface

Interface(s)

1 x 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Number of WAN Port

Number of LAN Port

Wireless

Security Protocols

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Band

Dual

Frequency

2.4GHz - 5GHz

Bluetooth

Yes

Antenna (Type & Qty)

6 x Internal

Antenna Gain

2 x 4 dBi, 4 x 5 dBi

Antenna Placement

Internal

MU-MIMO Support

Yes

Transmission Power

CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, , band1 & band2, EIRP) <30 dBm(5 GHz, , band3, EIRP), FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz).

Wireless Modes

1024-QAM, 4 x Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming, Omada Mesh, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client.

Management

SSID Numbers

Up to 16 SSIDs

Web-Based Management

HTTP/HTTPS

Multi-Site Management

Yes

Management MAC Access Control

Yes

Remote Management

Yes

Performance

IP Rating

OFDM/OFDMA

OFDMA

Email Alerts

Yes

Technical Info

Outdoor Use

Version

V1.0

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Security

Wireless Security

Captive Portal Authentication, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise.

Electrical

Power Method

12V / 2A DC, 802.3at PoE

DC Input Power

12V / 2A

Max. Power Consumption

20.8W (EU), 22.3W (US)

Environmental

Operating Temperature

0 to 40 degree C

Operating Humidity

10 - 90% RH non-condensing

Storing/Storage Temperature

-40 to 70 degree C

Storing/Storage Humidity

5 - 90% RH non-condensing

Physical Description

Button

Reset

LED Indicators

Yes

Mounting

Yes

Mount Options

Ceiling /Wall

Dimensions

220 x 220 x 32.5mm

Color

White

Packet Contents

EAP673, Ceiling/Wall Mounting Kits, Installation Guide.

Warranty

2 Year (Without Adapter)

Additional Info

Others

Coverage: 1500 sq. ft., Frequency: 2.4GHz and 5GHz, Signal Rate: 5 GHz: Up to 4804 Mbps, 2.4 GHz: Up to 574 Mbps, Omada App: Yes, Centralized Management: (Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller), Cloud Access: Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller, LED ON/OFF Control: Yes, Management MAC Access Control: Yes, SNMP: v1, v2c, v3, System Logging Local/Remote Syslog: Local/Remote Syslog, Zero-Touch Provisioning: Yes. Require the use of Omada Cloud-Based Controller, Certification: CE, FCC, RoHS.

Specialty

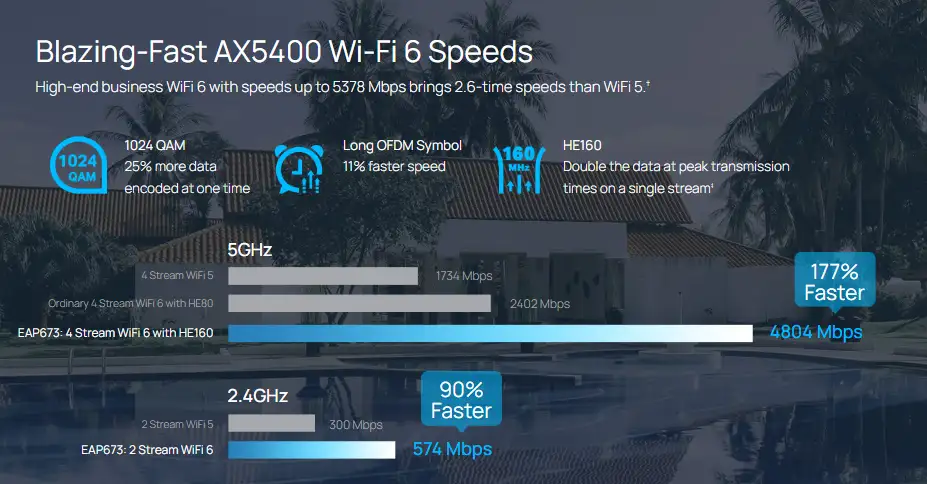

Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz), Integrated into Omada SDN, supporting centralized cloud Management, ZTP and more, 160 MHz Channel double the data at peak transmission times on a single stream, Advanced features: Supports seamless roaming,Omada Mesh, and more Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link Omada EAP673 V1.0 Access Point In Bangladesh

What is the price of TP-Link Omada EAP673 V1.0 Access Point In Bangladesh?

The price of TP-Link Omada EAP673 V1.0 Access Point not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TP-Link Omada EAP673 V1.0 Access Point from our website or visit our showrooms nearby.
