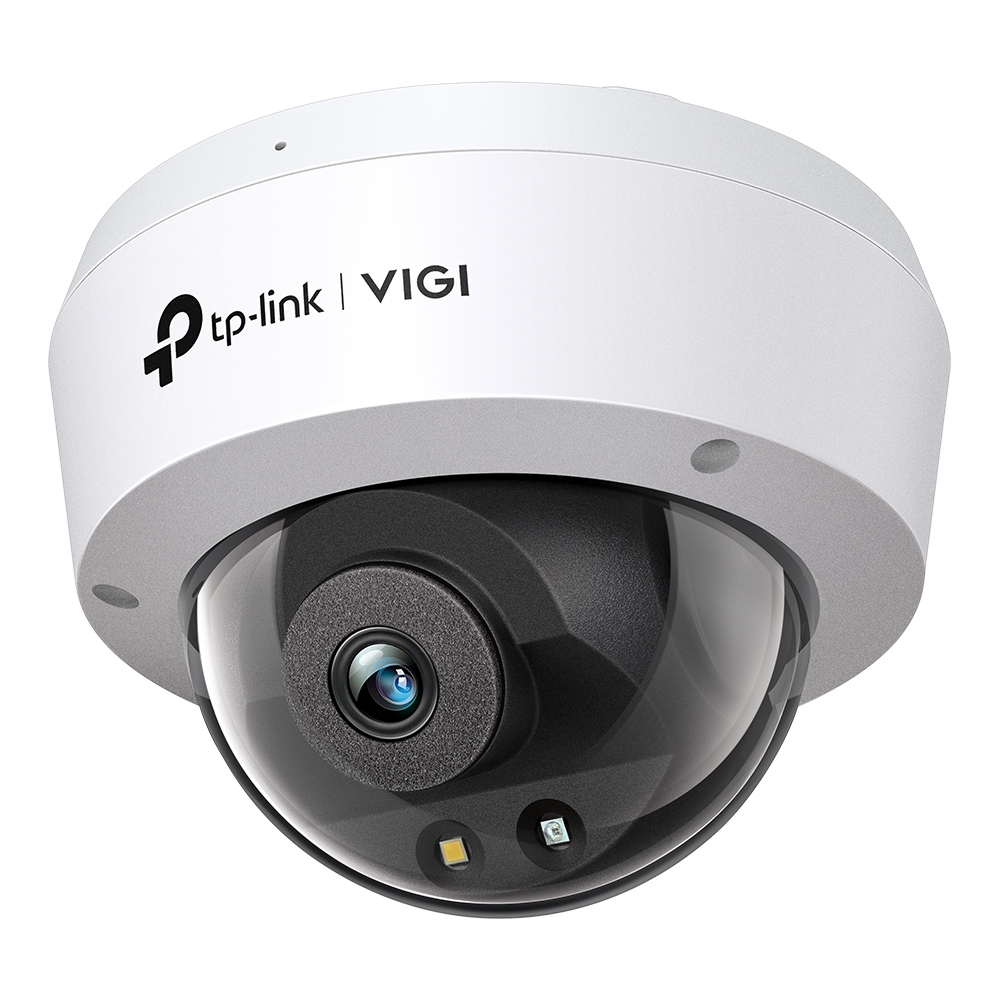

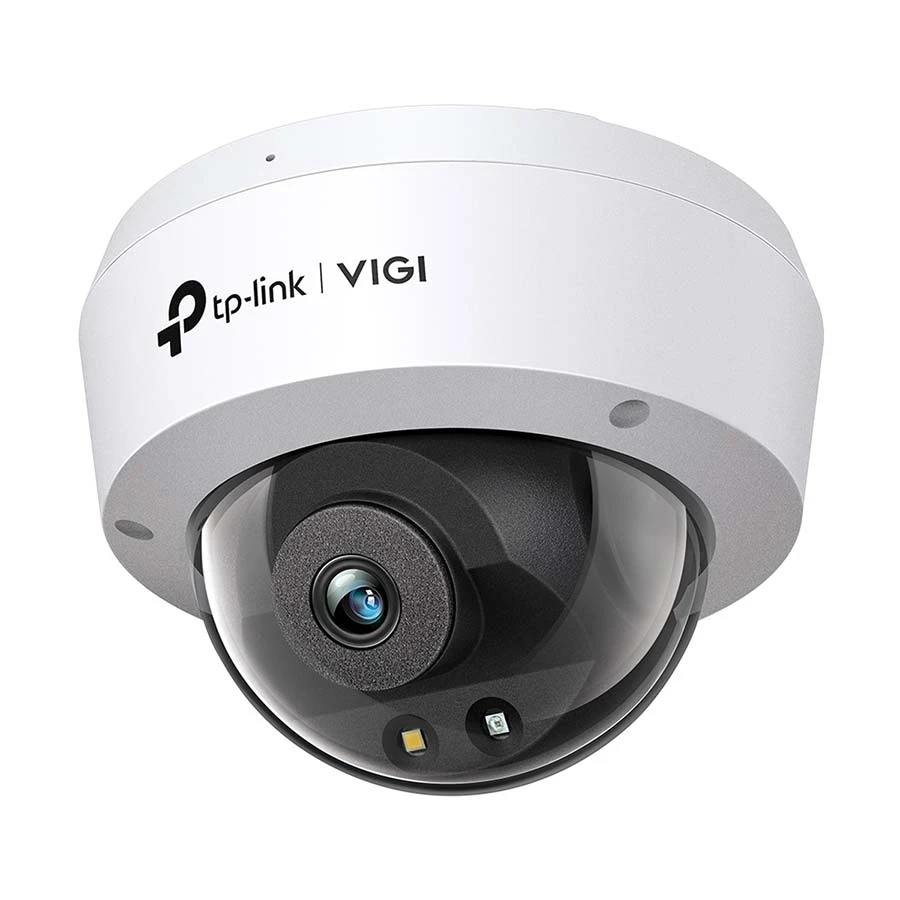

TP-Link VIGI C230 (4mm) (3.0MP) Full-Color Dome IP Camera

Item: TP-Link VIGI C230 (4mm) (3.0MP) Full-Color Dome IP Camera
Rating: 5
Author: Verified Buyer

8 reviews

Product Id: 127.03.091.48

Out Of Stock

See similar model

Quick Overview

Usage - Indoor & Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 3.0
Night Vision Mode - Color
Working Distance - 70 Meter
Color - Black & White

Payment Method Shipping & Charge Order Procedure

Brand

TP-Link

Model

TP-Link VIGI C230

Usage

Indoor & Outdoor

Type

IP Camera

Number of Camera

Mega Pixels (MP)

3.0

Max. Camera Resolution

2304 x 1296

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

4mm

Night Vision

Yes

Night Vision Mode

Color

Mic & Speaker

Only Mic

Sim Supported

Wi-Fi

Card Slot

Human Detection

Yes

Viewing Angle.

106.9 Degree (D)

Working Distance

70 Meter

Power

DC/PoE

Approx. Power Consumption

4.7W

Body Material

Plastic

Color

Black & White

Dimensions

115 x 86 x 115mm

Weight (gm)

280 gm (Net)

Warranty

2 Year (Without Adapter)

General

Brand

TP-Link

Model

TP-Link VIGI C230

Usage

Indoor & Outdoor

Type

IP Camera

Camera

Number of Camera

Camera Type

Pan & Tilt

Mega Pixels (MP)

3.0

Max. Camera Resolution

2304 x 1296

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/2.8 Inch Progressive Scan CMOS

Resolution

2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Shutter Speed

1/3 to 1/10000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Night Vision

Yes

Night Vision Mode

Color

S/N Ratio

>= 52 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

4mm

Lens Mount

M12

Lens Adjustment Range

Pan: 0 to 360 Degree C, Tilt: 0 to 85 Degree C, Rotate: 0 to 360 Degree C

Focal Length

4mm

PTZ

Viewing Angle.

106.9 Degree (D)


General Function

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Frame Rate

1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D DNR

Wide Dynamic Range (WDR)

DWDR

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 x RJ45 10/100M Self-Adaptive Ethernet Port

Wi-Fi

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Password Protection

Yes

Motion Detection

Yes

Human Detection

Yes

Dust Protection

Yes

Water Protection

IP67

Weather Proof

Yes

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Technical Info

Scanning System

Progressive

Video Type

H.265+/ H.265 / H.264+ / H.264

Wavelength

850nm

Mic & Speaker

Only Mic

Output Notification

Message Push

Working Distance

70 Meter

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Physical Description

Form-Factor

Dome

Card Slot

Storage Type

FTP

Indicator LED

IR LED, White LED.

Body Material

Plastic

Color

Black & White

Dimensions

115 x 86 x 115mm

Weight (gm)

280 gm (Net)

Power

DC/PoE

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

12V DC -+ 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)

Approx. Power Consumption

4.7W

Operating Temperature

-30 to 60 Degree C

Storing/Storage Temperature

-40 to 60 Degree C

Operating Humidity

95% or Less (Non-Condensing)

Storing/Storage Humidity

95% or Less (Non-Condensing)

Warranty

2 Year (Without Adapter)

Additional Info

Others

Day/Night Switch: Unified/ Scheduled/ Auto, Aperture: F1.6, Minimum Illumination: Color: 0.005 Lux; 0 Lux with IR/White Light. Client: VIGI App, VIGI Security Manager, VIGI NVR, Web. Package Contents: VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories. Vandal Resistant: IK10, Protection: IP67, IK10. Certifications: CE/BSMI/VCCI/ONVIF. Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection. Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login). Alarm Linkage: White Light Flashing, Message Push. Video Streaming: Main Stream, Sub-Stream. Image Enhancement: BLC/3D DNR/HLC/SmartIR. Video Bit Rate: 64 Kbps to 4 Mbps. Day/Night Switch: Day/Night/Auto/Schedule. Privacy Mask: Up to 4 Masks. DORI Distance: Detect: 70 m, Observe: 29 m, Recognize: 14 m, Identify: 7 m.

Specialty

3MP Super-High Definition, 24h Full-Color, Human & Vehicle Classification, Smart Detection, Built-In Microphone, IK10 Vandal-Proof & IP67 Waterproof, H.265+, Smart Video Enhancement, PoE/12V DC, Flexible Management.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link VIGI C230 IP Camera In Bangladesh

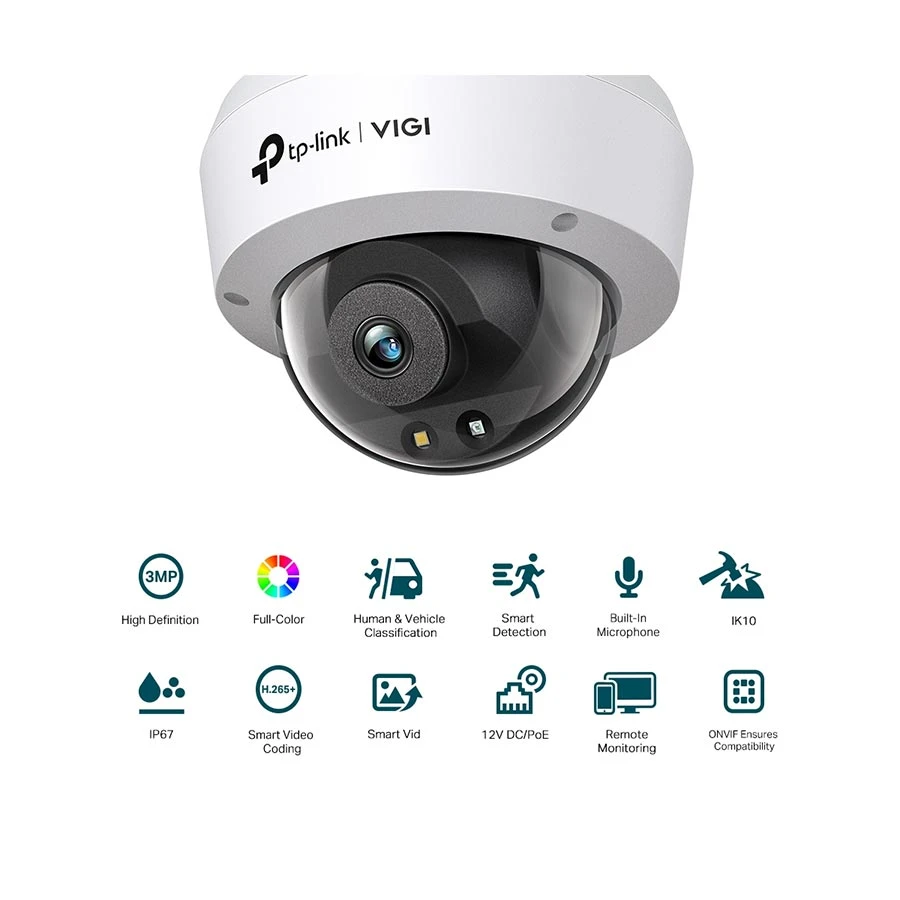

VIGI 3MP Full-Color Dome Network Camera

3MP Super-High Definition: The camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
Built-In Microphone: Features a built-in microphone to record anything going on within a 15-ft radius of the camera.
IK10 Vandal-Proof & IP67 Waterproof: With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.

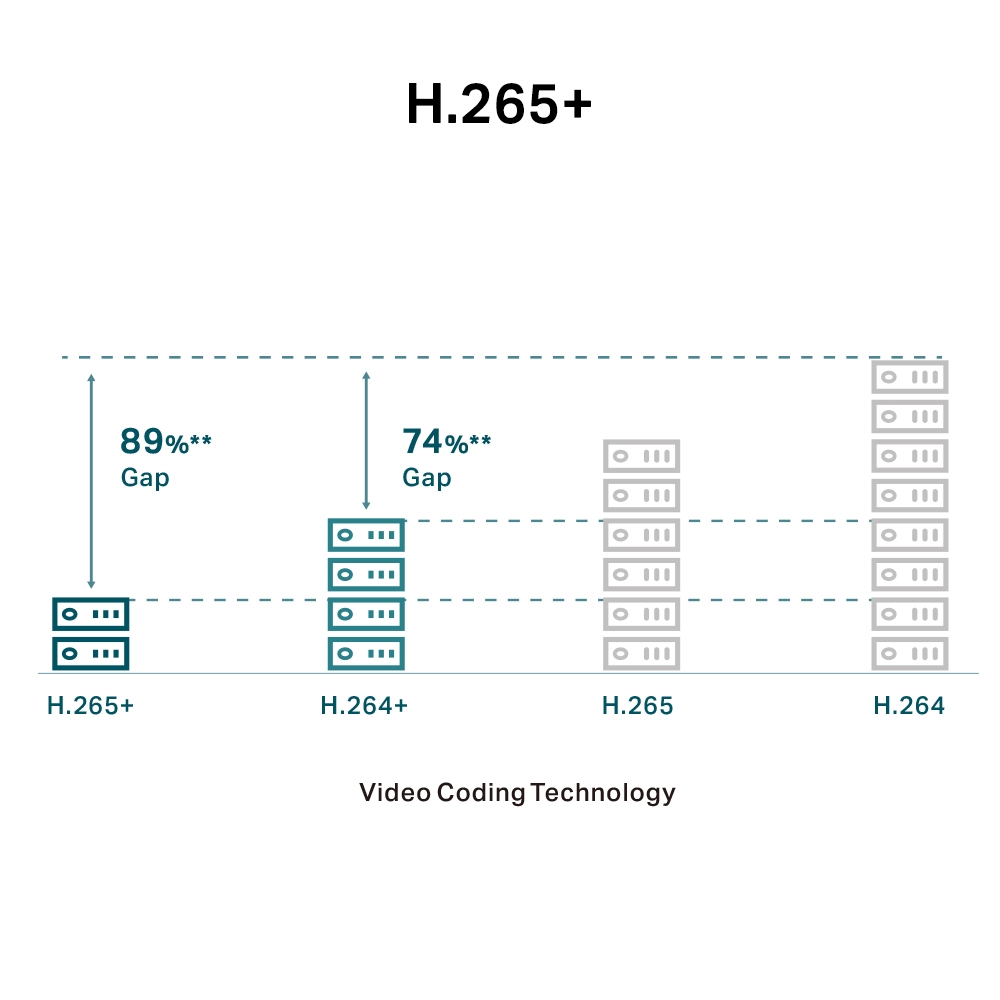

H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
Flexible Management: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

What is the price of TP-Link VIGI C230 IP Camera In Bangladesh?

The price of TP-Link VIGI C230 IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TP-Link VIGI C230 IP Camera from our website or visit our showrooms nearby.
