TP-Link VIGI C230I Mini (2.8mm) (3.0MP) IR Dome IP Camera

Item: TP-Link VIGI C230I Mini (2.8mm) (3.0MP) IR Dome IP Camera
Rating: 5
Author: Verified Buyer

9 reviews

Product Id: 127.03.091.51

Out Of Stock

See similar model

Quick Overview

Usage - Indoor & Outdoor
Form-Factor - Dome
Mega Pixels (MP) - 3.0
Night Vision Mode - Black and White
Working Distance - 49 Meter
Color - White

Payment Method Shipping & Charge Order Procedure

Brand

TP-Link

Model

TP-Link VIGI C230I Mini

Usage

Indoor & Outdoor

Type

IR Dome IP Camera

Number of Camera

Mega Pixels (MP)

3.0

Max. Camera Resolution

2304 x 1296

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Night Vision

Yes

Night Vision Mode

Black and White

Mic & Speaker

Both Mic and Speaker

Sim Supported

Wi-Fi

Human Detection

Yes

Viewing Angle.

106.9 Degree (H), 56.9 Degree (V), 127.9 Degree (D)

Working Distance

49 Meter

Power

DC/PoE

Approx. Power Consumption

12V DC: Max 7.5W, PoE: Class 0

Body Material

Plastic

Color

White

Dimensions

114 x 58 x 114mm

Weight (gm)

0.23 kg

Warranty

2 Year (Without Adapter)

General

Brand

TP-Link

Model

TP-Link VIGI C230I Mini

Usage

Indoor & Outdoor

Type

IR Dome IP Camera

Camera

Number of Camera

Camera Type

Fixed

Mega Pixels (MP)

3.0

Max. Camera Resolution

2304 x 1296

Secondary Camera Type

Not Applicable

Secondary Camera Mega Pixel (MP)

Not Applicable

Secondary Camera Max Resolution

Not Applicable

Sensor Type.

1/2.8 Inch Progressive Scan CMOS

Resolution

Main Stream: 2304x1296, 2048x1280, 1920x1080, 1280x720, Sub-Stream: 704x576, 640x480, 352x288, 320x240

Shutter Speed

1/3 to 1/10000s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Night Vision

Yes

Night Vision Mode

Black and White

S/N Ratio

>=52 dB

Lens

Number of Lens

Single Lens (Primary)

Lens

2.8mm

Lens Mount

M12

Focal Length

2.8mm

PTZ

Viewing Angle.

106.9 Degree (H), 56.9 Degree (V), 127.9 Degree (D)


General Function

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Dual-Stream

Yes

Frame Rate

1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Noise Reduction

Yes

Digital Noise Reduction (DNR)

3D DNR

Wide Dynamic Range (WDR)

DWDR

Network & Connectivity

Sim Supported

Sim Network Type

Not Applicable

Interface(s)

1 x RJ45 10/100M Self-Adaptive Ethernet Port

Wi-Fi

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Password Protection

Yes

Motion Detection

Yes

Human Detection

Yes

Simultaneous Live View

3 Main Streams & 3 Sub-Streams

Technical Info

Scanning System

Progressive

Video Type

Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264

Wavelength

850nm

Mic & Speaker

Both Mic and Speaker

Audio Communication

Two-way Audio

Working Distance

49 Meter

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

Physical Description

Form-Factor

Dome

Storage Type

MicroSD

Storage Supported

Up to 256GB

Indicator LED

IR LED

Button

Reset Button

Body Material

Plastic

Color

White

Dimensions

114 x 58 x 114mm

Weight (gm)

0.23 kg

Relevant Accessories (Not Included)

1 x VIGI Network Camera, 1 x Quick Start Guide, 1 x Mounting Accessories, 1 x Mounting Template

Power

DC/PoE

Battery Capacity

Not Applicable

Battery Backup

Battery Backup Time

Not Applicable

Power Supply

12V DC - 5%, 5.5mm Coaxial Power Plug, PoE (802.3af/at, class 0)

Approx. Power Consumption

12V DC: Max 7.5W, PoE: Class 0

Operating Temperature

-30 Degree C - 60 Degree C

Storing/Storage Temperature

-40 Degree C - 60 Degree C

Operating Humidity

95% or Less (Non-Condensing)

Storing/Storage Humidity

95% or Less (Non-Condensing)

Warranty

2 Year (Without Adapter)

Additional Info

Others

Day/Night Switch: Unified/ Scheduled/ Auto, IR Working Distance: 30m, Aperture: F1.6, Minimum Illumination: Color: 0.1 Lux; 0 Lux with IR, Vandal Resistant: IK08, Certifications: CE/VCCI/BSMI/KC/ONVIF, Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90 Degree/270 Degree), Image Enhancement: BLC/3D DNR/HLC/SmartIR.

Specialty

API: ONVIF, Client: VIGI App, VIGI Security Manager, VIGI NVR, Web, Web Browser: Open Network Video Interface (Profile S), Cloud, Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Basic Event: Motion Detection, Video Tampering Detection, Exception ( Illegal Login). 3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP more than enough pixels to pick up some of the more discrete details. Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications. Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you`ve set, obstructs the camera, or removes/abandons objects.

Country Of Origin

China

Made in/ Assemble

China

Details

Features of TP-Link VIGI C230I Mini IP Camera In Bangladesh

3MP IR Mini Dome Network Camera

3MP Super-High Definition: The VIGI C230I Mini camera comes with 3MP—more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

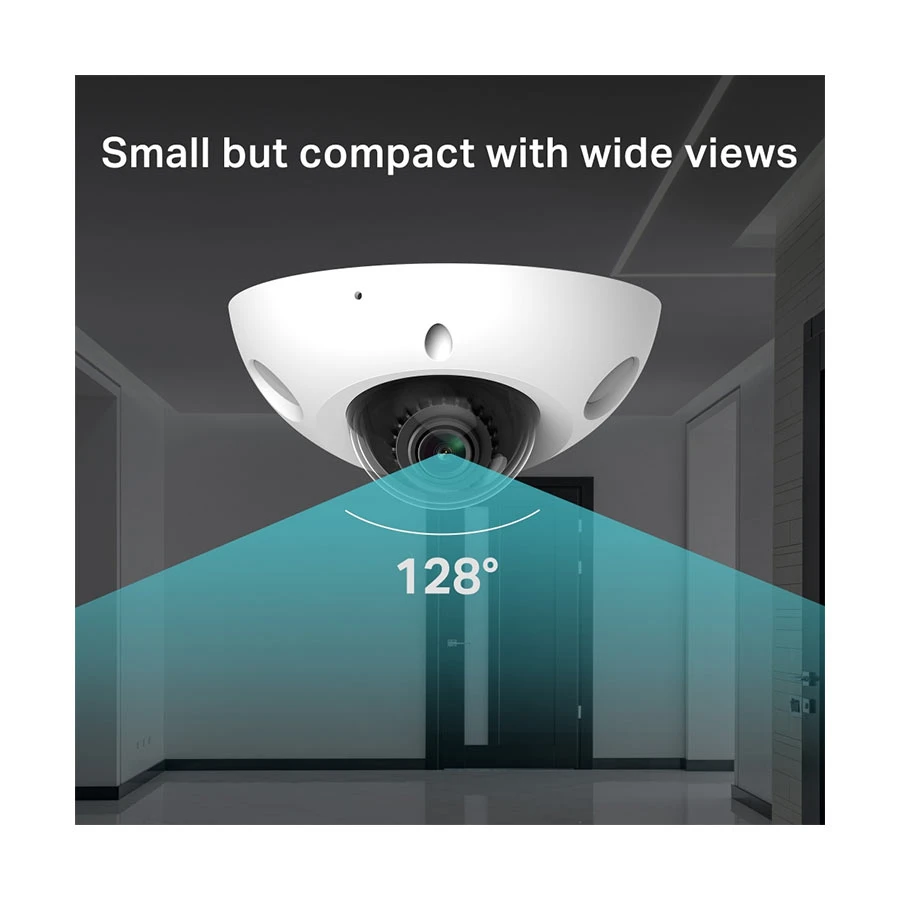

Small but compact with wide views: With a small, compact form factor and a 2.8 mm ultra-wide angle lens, the VIGI C230I Mini camera is ideal for corridors, elevators, small warehouses, and convenience stores, where space is limited and a wide view is required.

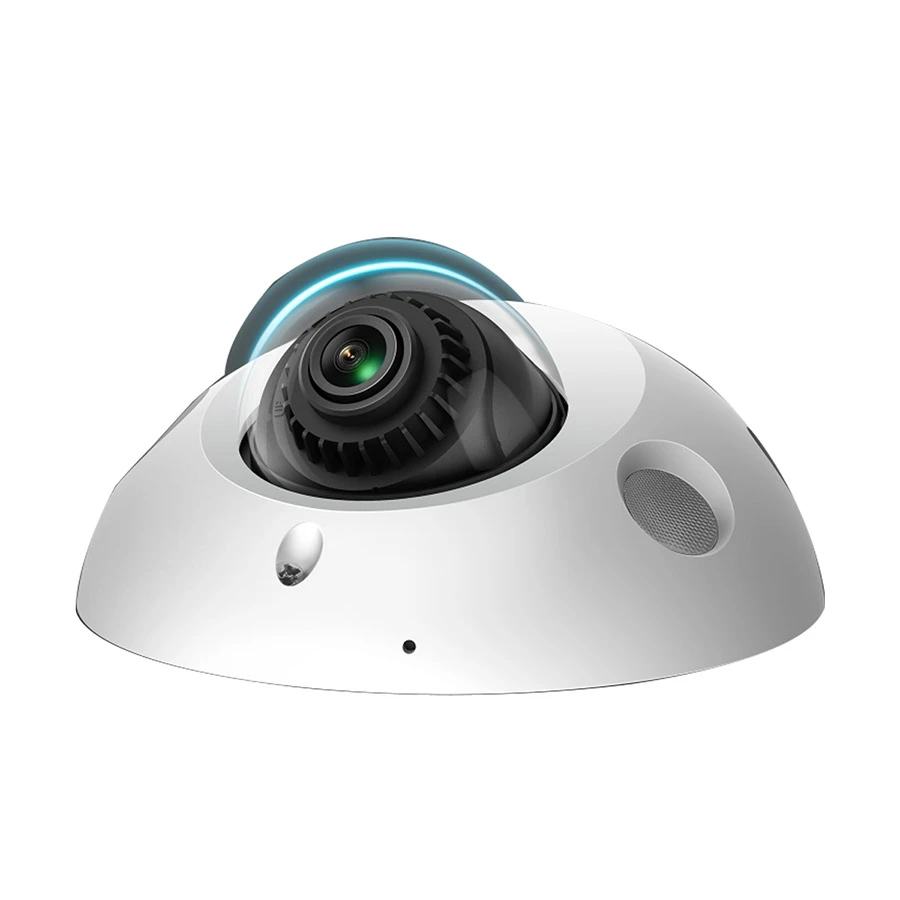

IK08 Vandal-Proof: Equipped with a vandal-proof dome encasing, the VIGI dome camera withstands damage and provides more reliable security protection in important scenarios, such as ATMs, corridors, and checkout counters.
H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Smart Video Enhancement: VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Corridor Mode: Allows you to change the image aspect ratio from 16:9 to 9:16, and helps to monitor long and narrow areas.

What is the price of TP-Link VIGI C230I Mini IP Camera In Bangladesh?

The price of TP-Link VIGI C230I Mini IP Camera not mentioned for stock unavailability.The price may vary due to your customization and product availability. You can buy TP-Link VIGI C230I Mini IP Camera from our website or visit our showrooms nearby.
