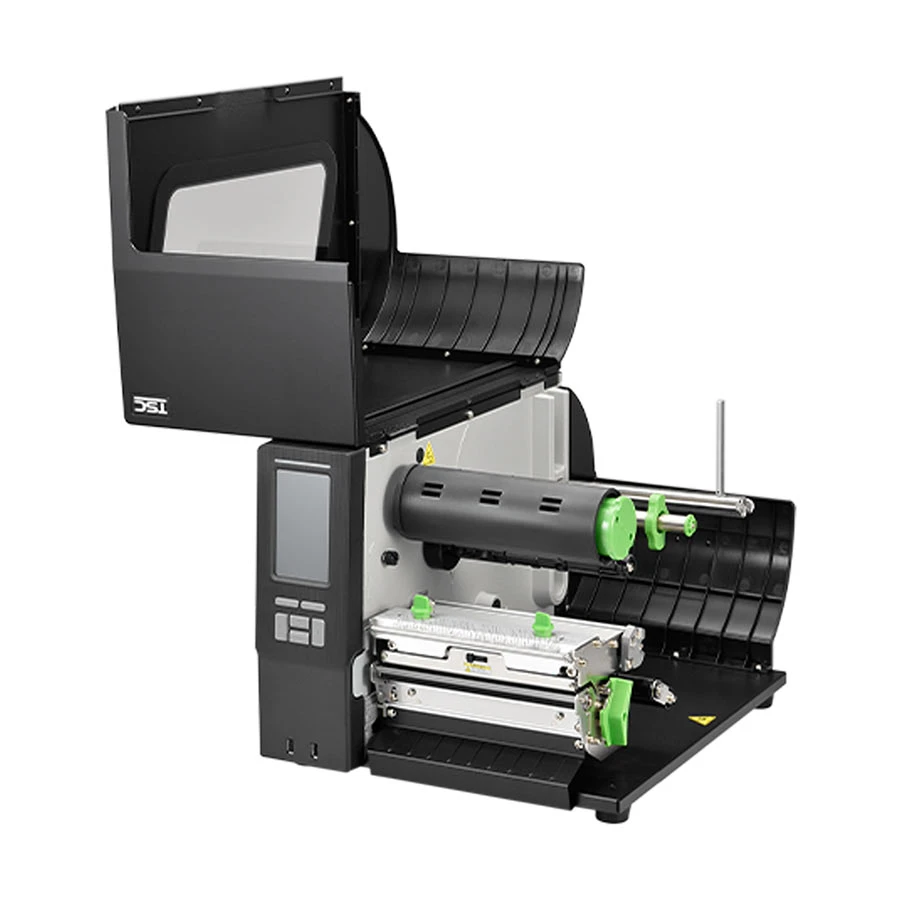

TSC MH361T (300 DPI) Industrial Barcode Label Printer (6.8 inch/172.7mm, USB, Serial, LAN, Parallel)

Item: TSC MH361T (300 DPI) Industrial Barcode Label Printer (6.8 inch/172.7mm, USB, Serial, LAN, Parallel)
Rating: 5
Author: Verified Buyer

Product Id: 153.03.560.13

Out Of Stock

See similar model

Quick Overview

Type - Barcode Label Printer
Cutter - Unmentioned
Max. Print Speed - 254 mm/sec
Print Length - 6604mm
Paper/Media Types - Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound)
Tape Size - 172.7 mm
Maximum Tape Width - 172.7 mm
Interface (Built-in) - USB, LAN, Serial, Parallel
Housing color - Black

Payment Method Shipping & Charge Order Procedure

Brand

Tsc

Model

TSC MH361T

Type

Barcode Label Printer

Housing color

Black

Printing Method

Thermal Transfer & Direct Thermal

Cutter

Unmentioned

Max. Print Speed

254 mm/sec

Paper/Media Types

Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound)

Tape Size

172.7 mm

Maximum Tape Width

172.7 mm

Screen Type

4.3 Inch LCD Color Resistive touch screen

Screen Resolution

480 x 272

Memory

256MB

Storage

512MB

Interface (Built-in)

USB, LAN, Serial, Parallel

Housing Dimensions

357 x 313 x 514mm

Weight (Kg)

17.8 kg

Color Ribbon Supported

Yes

Warranty

1 Year Service (No Warranty for Print Head)

General

Brand

Tsc

Model

TSC MH361T

Type

Barcode Label Printer

Technical Info

Operation Modes

PC Connected

Cutter

Unmentioned

Resolution

300 dpi

Screen Type

4.3 Inch LCD Color Resistive touch screen

Screen Resolution

480 x 272

Print Performance

Printing Method

Thermal Transfer & Direct Thermal

Max. Print Speed

254 mm/sec

Print Length

6604mm

Max. Print Width

168mm

Direct Printing

Unmentioned

Paper Information

Paper/Media Types

Continuous, die-cut, black mark (Bottom side black mark only), fan-fold, notch (outside wound)

Paper Thickness

0.06 - 0.268mm

Paper Sensor

Gap transmissive sensor (Position adjustable), Black mark reflective sensor (Bottom black mark sensor, Position adjustable), Head open sensor, Ribbon encoder sensor, Ribbon end sensor

Tape Size

172.7 mm

Maximum Tape Width

172.7 mm

Max. Label Length

6604 mm

Storage & Interface

Memory

256MB

Memory Type

SDRAM

Storage

512MB

Storage Type

Flash memory

Interface (Built-in)

USB, LAN, Serial, Parallel

Main Features

Font Styles

8 alpha-numeric bitmap fonts, Monotype Image true type font engine with CG Triumvirate Bold Condensed scalable font

Rotate Printing

Yes

Bar-codes Types

1D barcode: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post, 2D barcode: PDF-417, Maxicode, DataMatrix, QR code, Aztec.

Software

Windows labeling software

Built-in Plug & Label Software

Windows labeling software

Compatibility

Printer Language

TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)

Compliance

Comply with RoHS, WEEE

Power

Power Source/ Power Consumption

Input: AC 100-240V, 4-2A, 50-60Hz, Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W

Operating Temperature

0 to 45 Degree C

Storing/Storage Temperature

-40 to 60 degree C

Physical Description

Housing color

Black

Housing Dimensions

357 x 313 x 514mm

Weight (Kg)

17.8 kg

Color Ribbon Supported

Yes

Warranty

1 Year Service (No Warranty for Print Head)

Additional Info

Specialty

microSD Flash memory card reader for Flash memory expansion, up to 32GB, USB 2.0 (High speed mode), Internal Ethernet, 10/100 Mbps, USB host x2 (Front side), for scanner or PC keyboard.

Others

Label roll capacity: 208.3mm, Ribbon width: 50.8 - 178mm, Processor: 32-bit RISC CPU, LCD display/ Operation buttons: Multi-language selectable, 6 operation buttons, 1 LED (with 2 LEDs Green & Red), 1 LED (with 2 LEDs Green & Red), Real time clock: Standard, Font & barcode rotation: 0, 90, 180, 270 degree, Media core diameter: 3.81mm/76.2mm, Safety regulation: FCC Class A, CE Class A, RCM Class A, UL, cUL, TUV, CCC, KC, BIS, BSMI, EAC, Argentina S mark, Mexico CoC, ENERGY STAR, Accessories: (Windows labeling software CD disk, Quick start guide, USB port cable, Power cord).
