80 x 22 x 2.25mm (Single side), 80 x 22 x 3.5mm (Double side)
Warranty
3 year
General
Brand
Apacer
Model

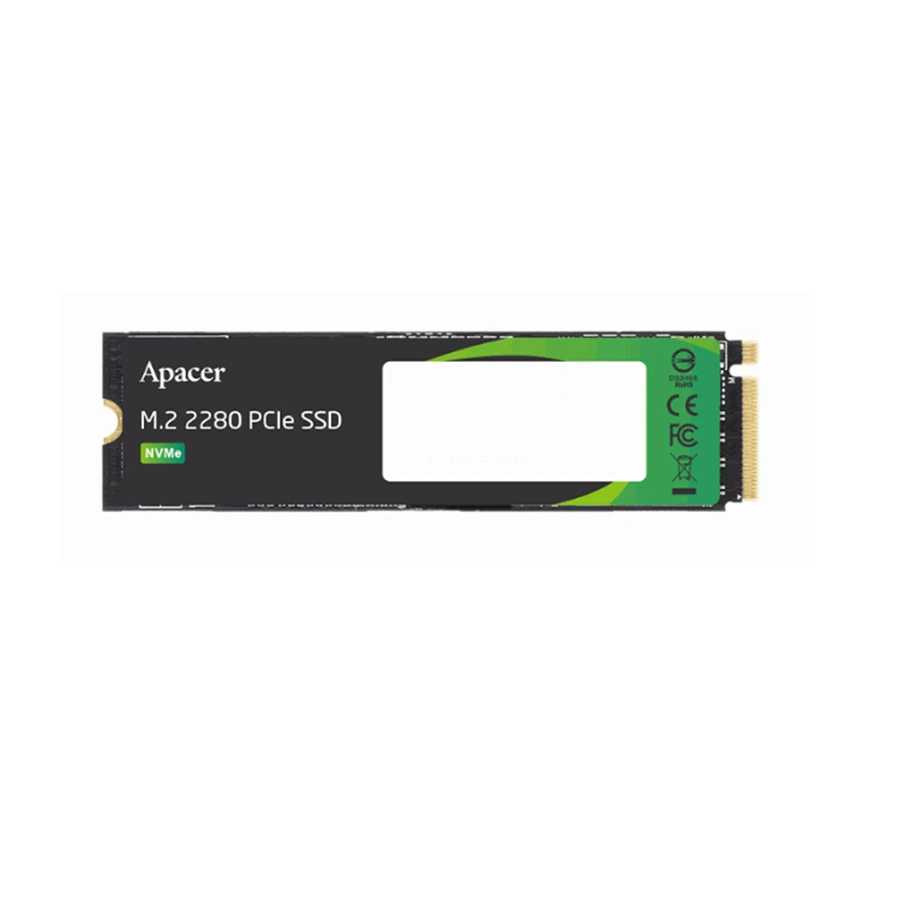

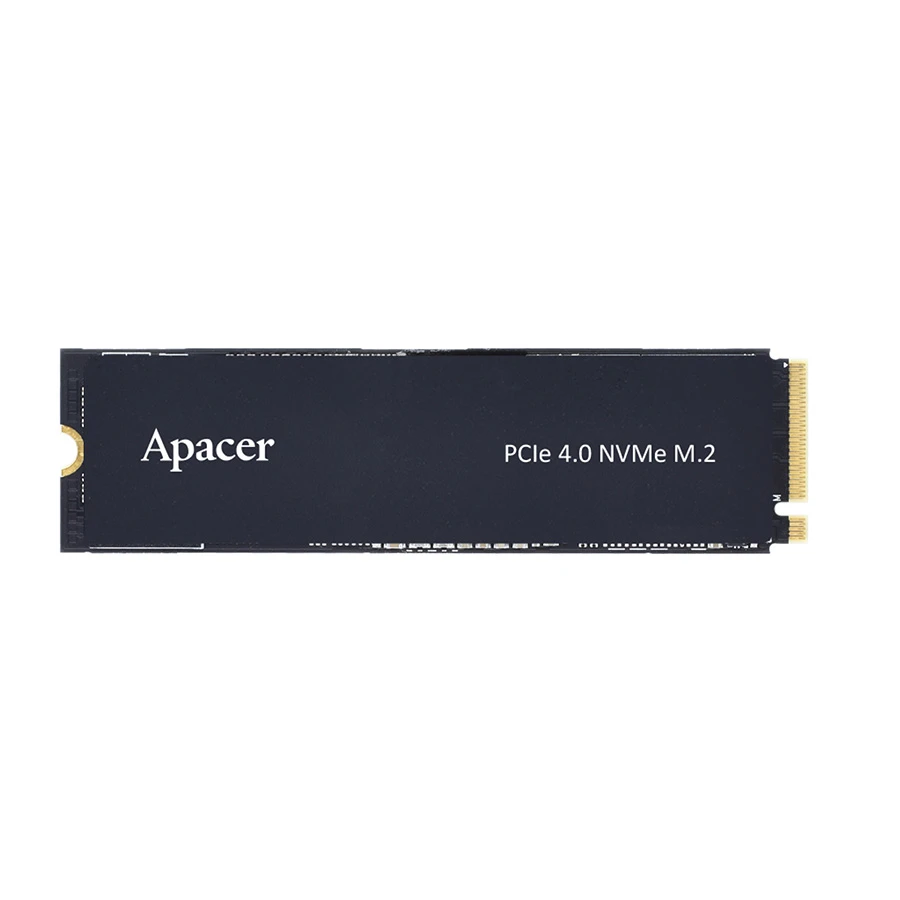

Apacer AS2280Q4X
Type
Internal SSD
Part No
AP512GAS2280Q4X-1
Storage & Interface
Storage
512GB
Interface Mode
NVMe
Interface(s)
PCIe Gen4 x4
PCIe/NVMe Generation
Gen4
Flash Type
3D NAND
Dynamic Random-Access Memory (DRAM)
DRAM Less
Performance
Read Speed (Max.)
5000MB/s
Write Speed (Max.)
4400MB/s
Random Read IOPS
Up to 750K
Main Features
Shock Resistance
1500G/0.5msec
Shockproof
Yes
MTBF
1500000 Hours
Physical Description
Form Factor (Inch)
M.2 2280
Color
Black
Dimensions
80 x 22 x 2.25mm (Single side), 80 x 22 x 3.5mm (Double side)
Warranty
Warranty
3 year
Additional Info
Others
Standard Operating Temperature: 0 Degree C - 70 Degree C, Storage Temperature: -40 Degree C - 85 degree C, Accessory: Heat Spreader, Certificate: CE, UKCA, FCC, VCCI, BSMI, RoHS
Specialty

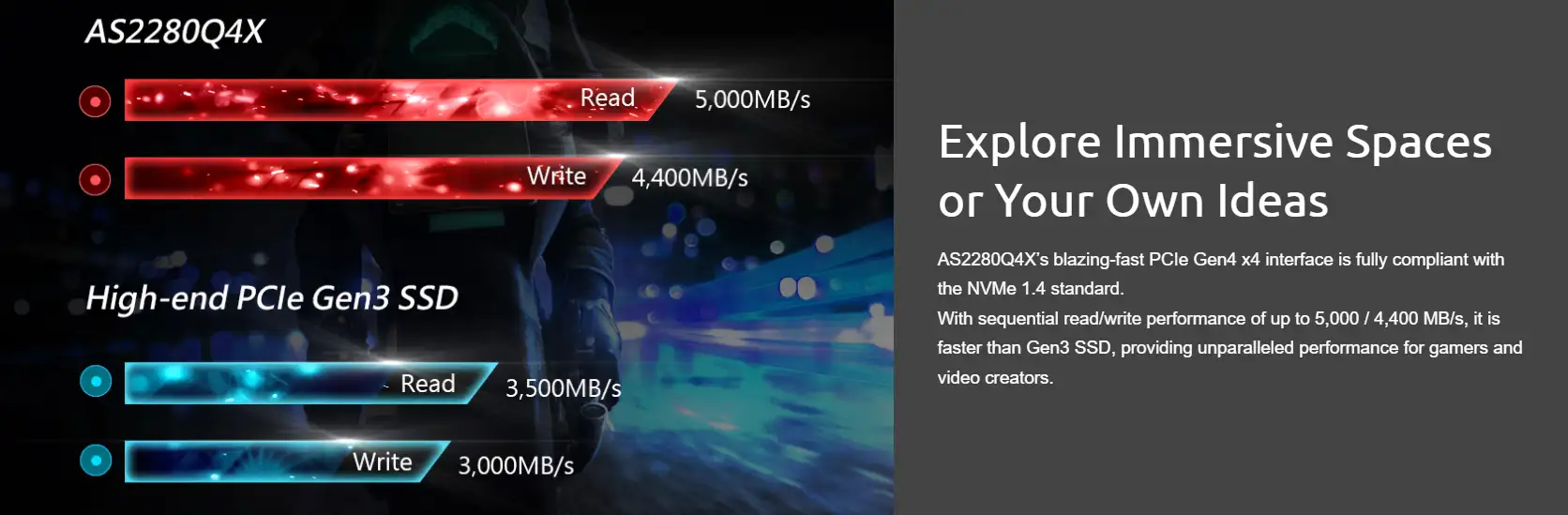

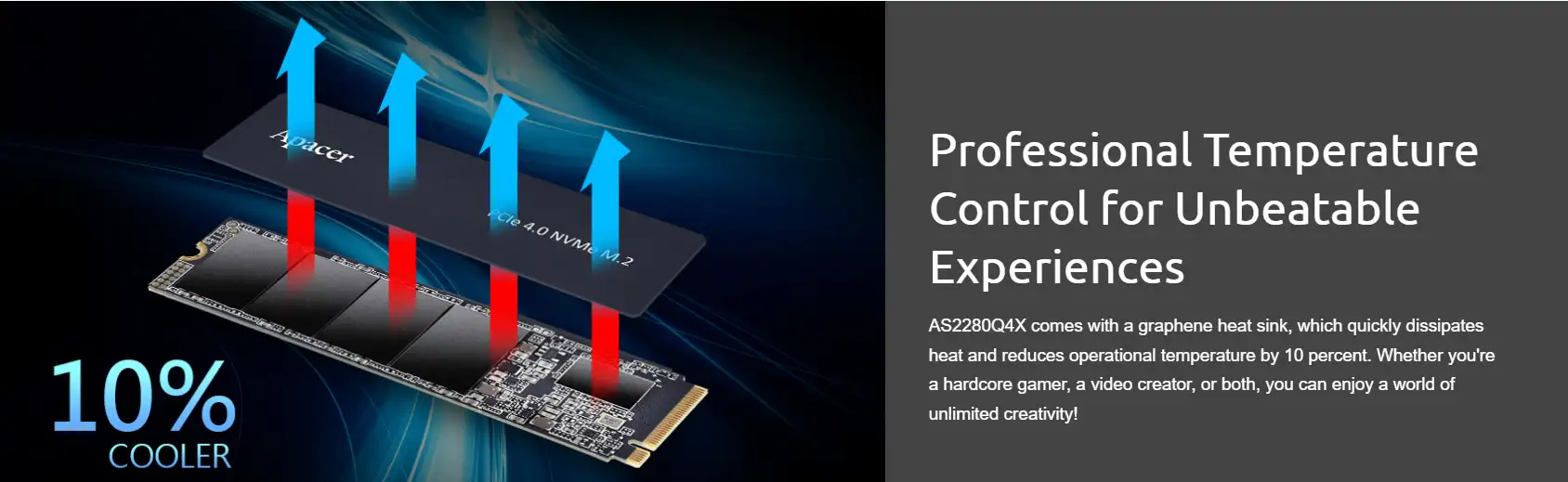

PCIe Gen4 x4 interface is fully compliant with the NVMe1.4 standard, With sequential read/write performance of up to 5000/4400 MB/s, With a graphene Heat Spreader, which can quickly dissipate generated heat, Built with 3D NAND Flash, offers capacity options of up to 4TB and performs higher efficiency and reliability. Data Protection Mechanism Delivers Consistent Performance
Country Of Origin
Taiwan
Made in/ Assemble
Taiwan
N.B. Specification may differ
with actual product. In that case, Ryans will execute full refund within 5 days.
