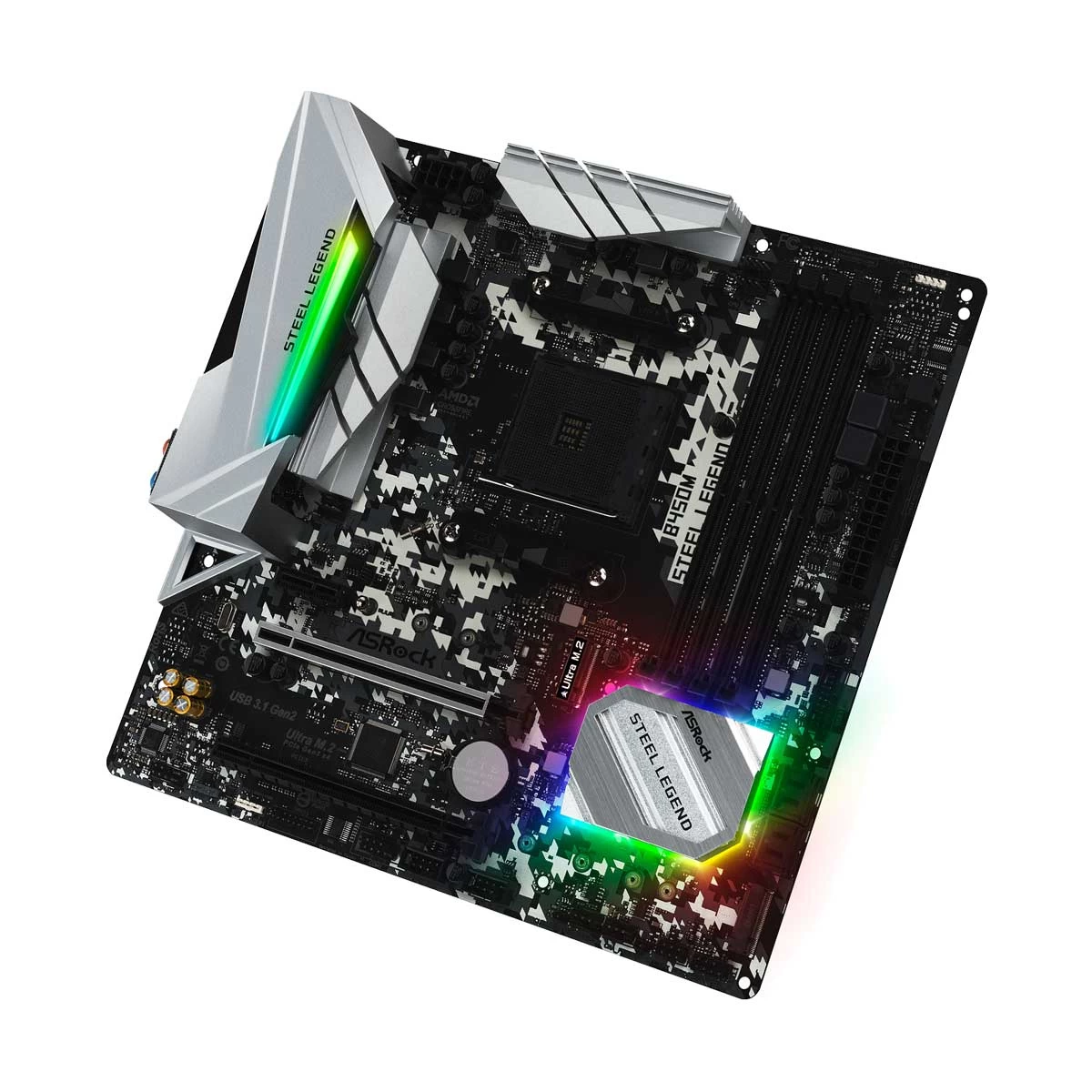

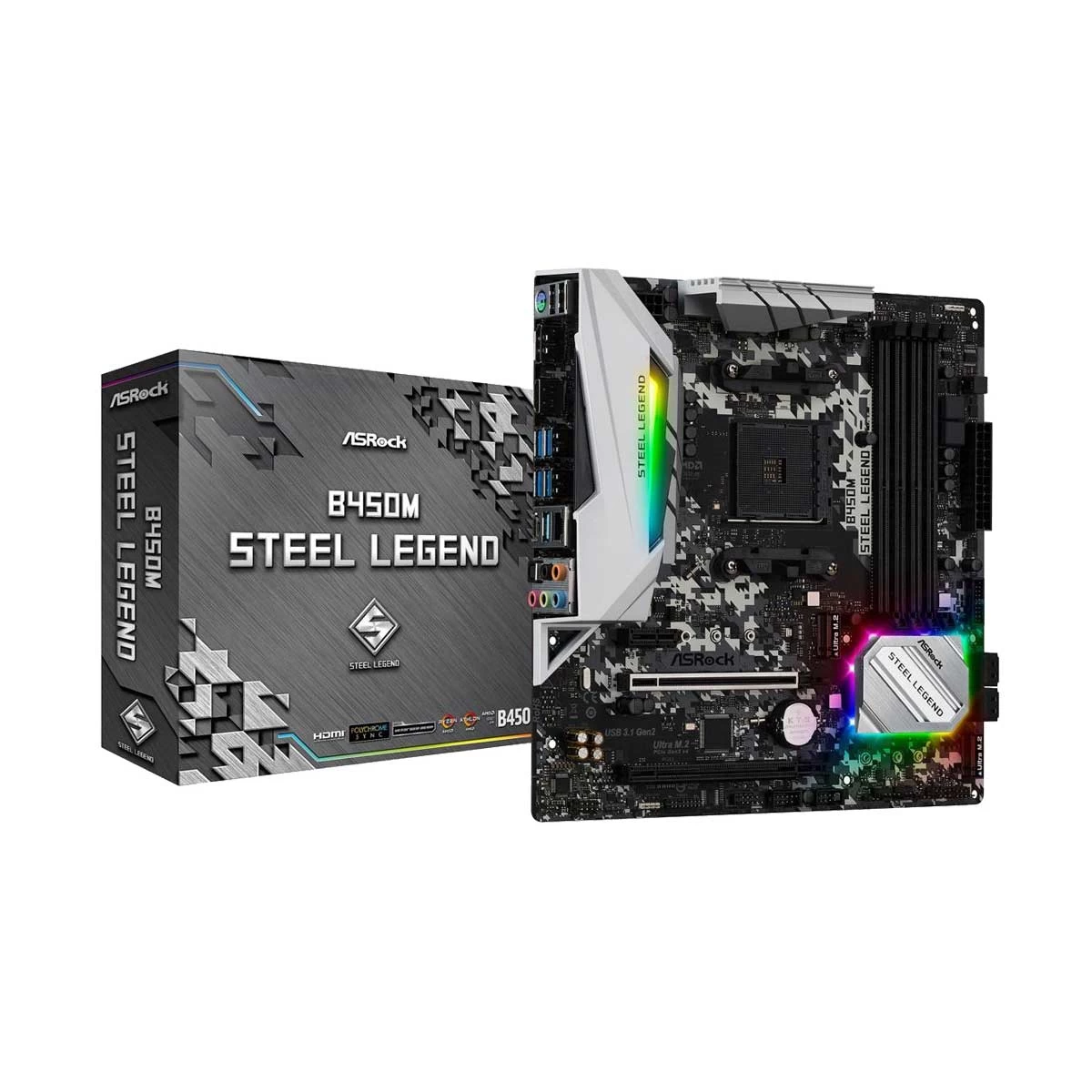

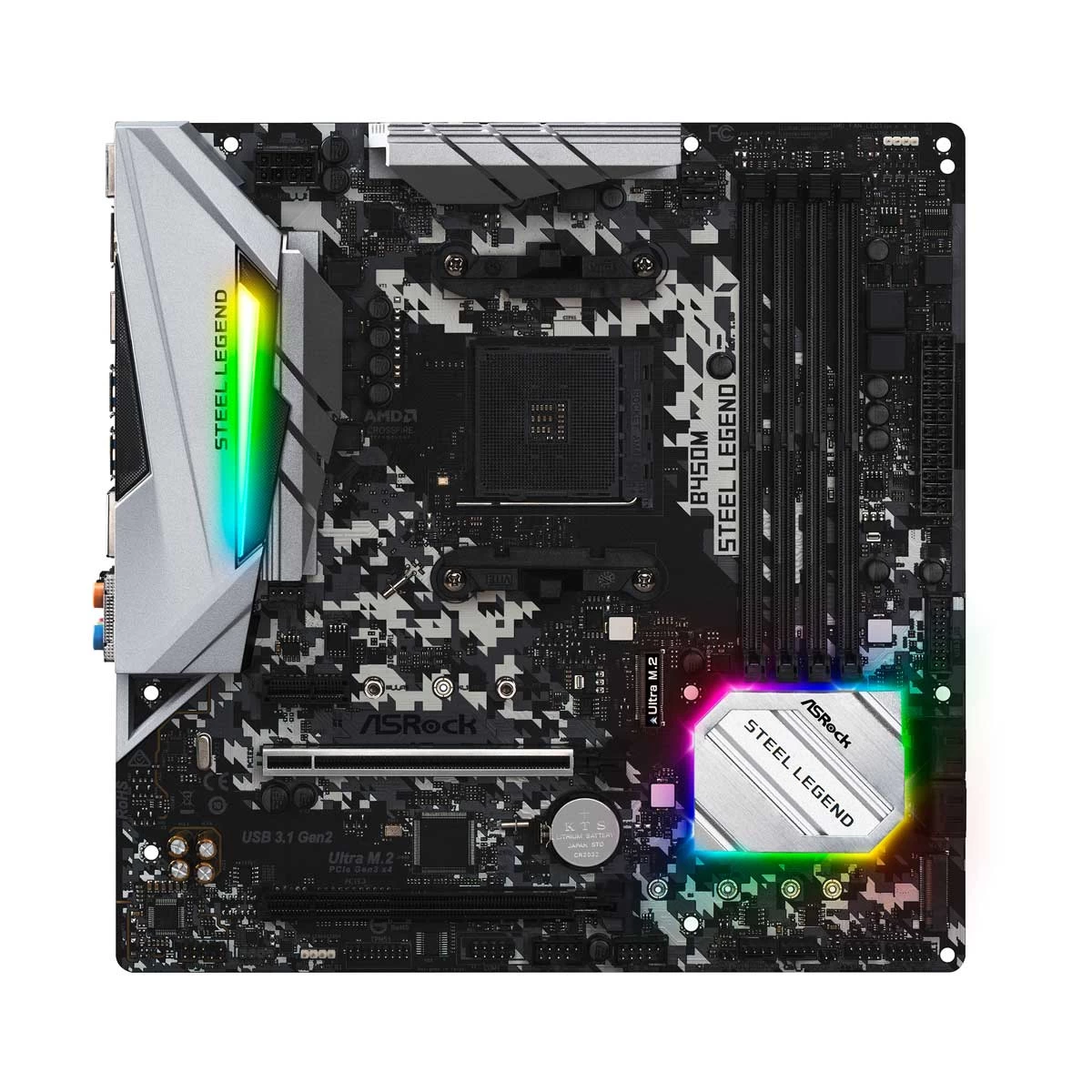

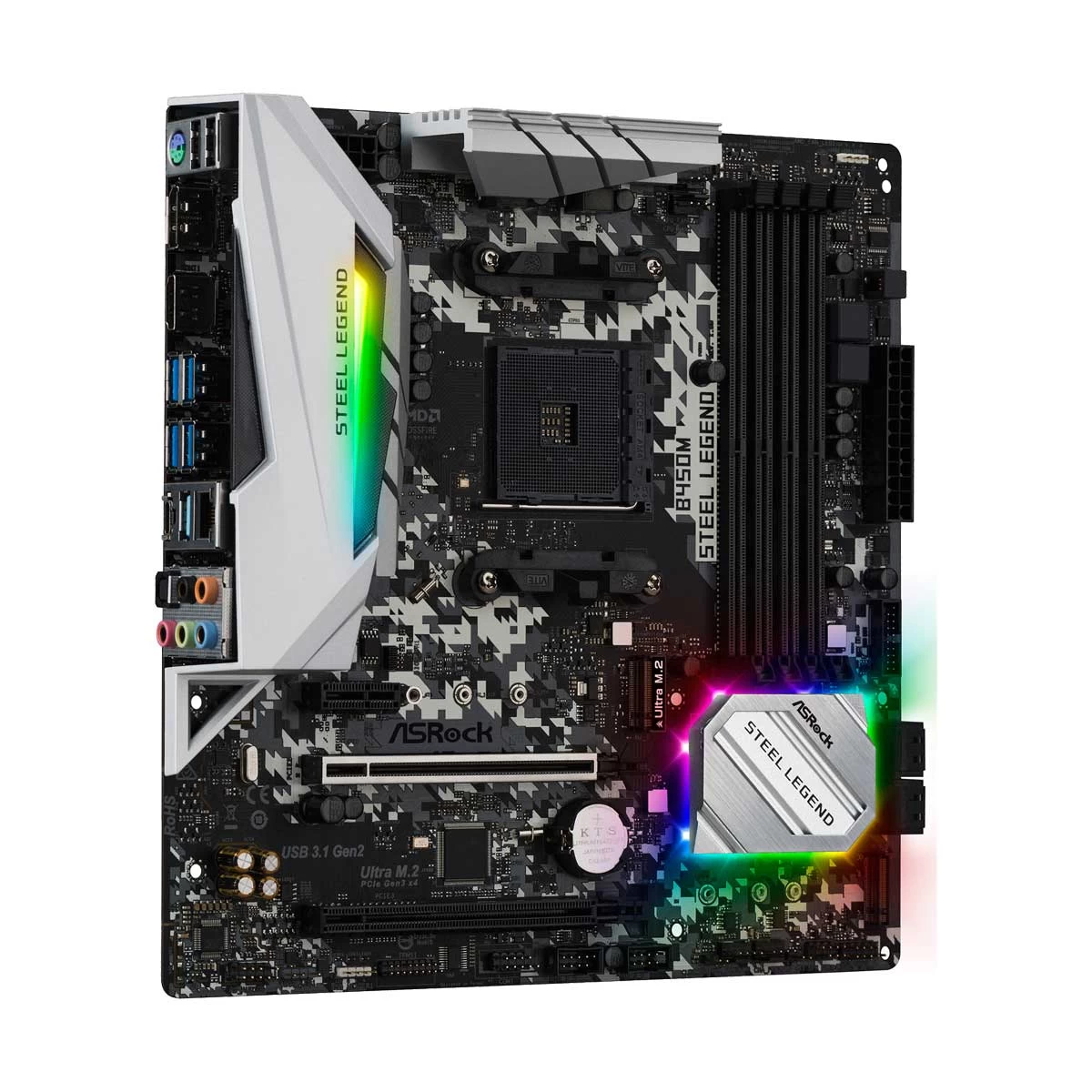

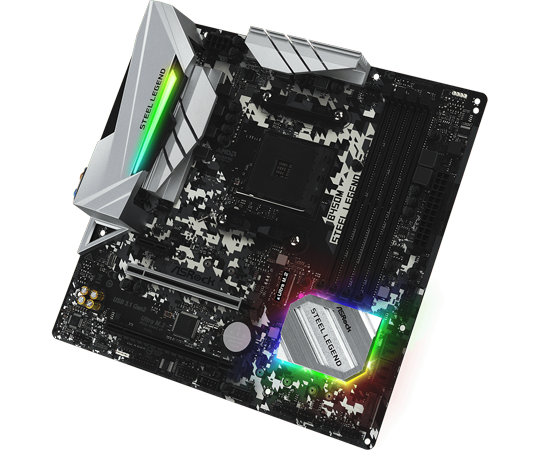

ASRock B450M Steel Legend DDR4 AMD Motherboard

Product Id: 02.02.504.67

Brand Asrock

Regular Price Tk 14,700 Monthly EMI Tk 1,225
Special Price Tk 13,550

Quick Overview

  • Chipset - AMD B450
  • Memory Max. - 128GB
  • Memory Slot - 4
  • Sockets Supported - AM4
  • Supported CPU - Ryzen 2000, 3000 and 5000 Series Processors
  • Generation - Not Applicable
General
Brand
ASRock

Model
ASRock B450M Steel Legend

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD B450

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
Ryzen 2000, 3000 and 5000 Series Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
3200/ 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Matisse), 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Summit Ridge & Raven Ridg), 3533+(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs: Pinnacle Ridge) , 2933/ 2667/ 2400/ 2133MHz (AMD Ryzen series CPUs:Picasso) ECC & non-ECC, un-buffered memory

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

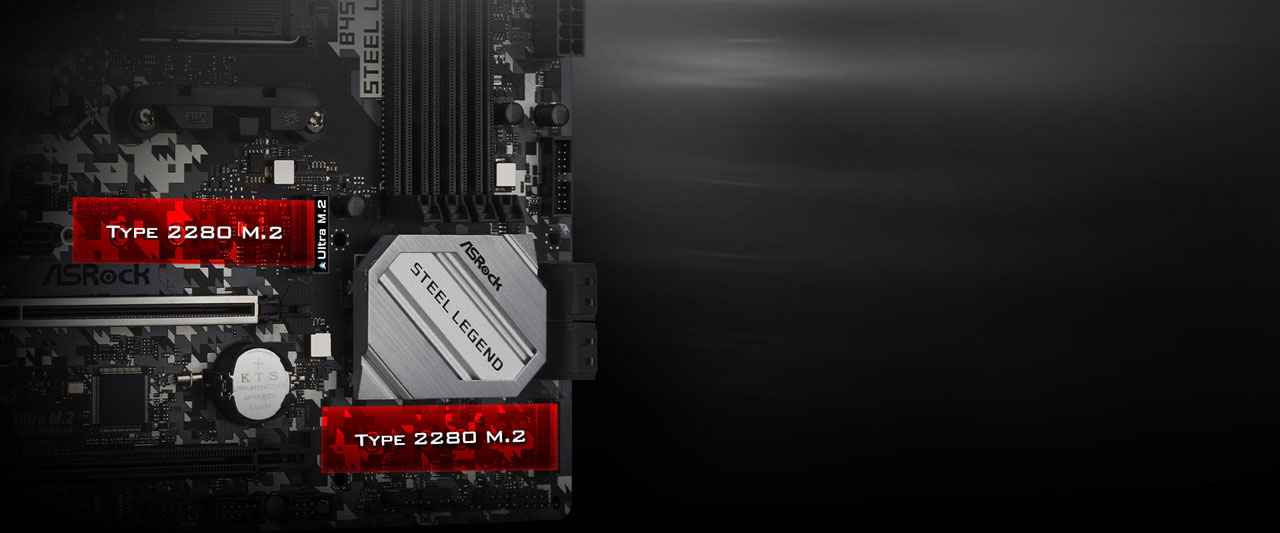

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x Ultra M.2, type 2242/2260/2280 M.2 PCI Express Gen3 x4), (1 x M.2, type 2230/2242/2260/2280 M.2 SATA3))


Graphics
Graphics
Integrated

Graphics Chipset
AMD Vega Graphics support

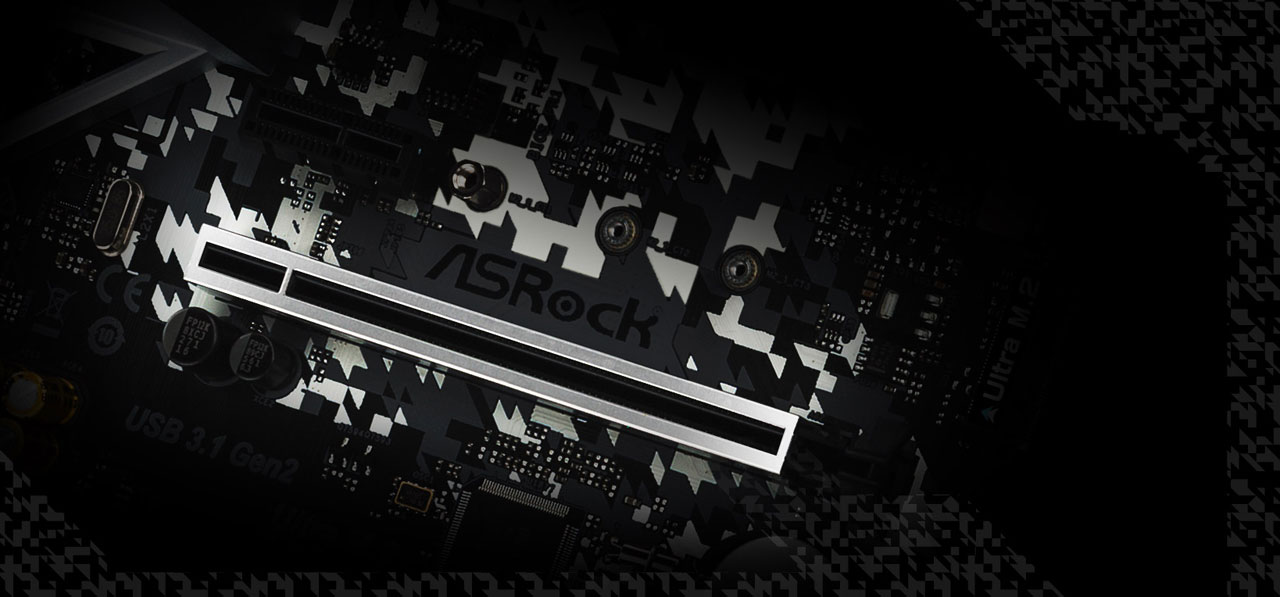

PCI Express Slot
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)


Audio & Video
Audio Chipset
Realtek ALC892/897 Audio Codec

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Realtek RTL8111H

LAN Speed (Mbps)
10/100/1000 Mb/s

WiFi
No

WiFi Technology
Not Applicable

Bluetooth
No

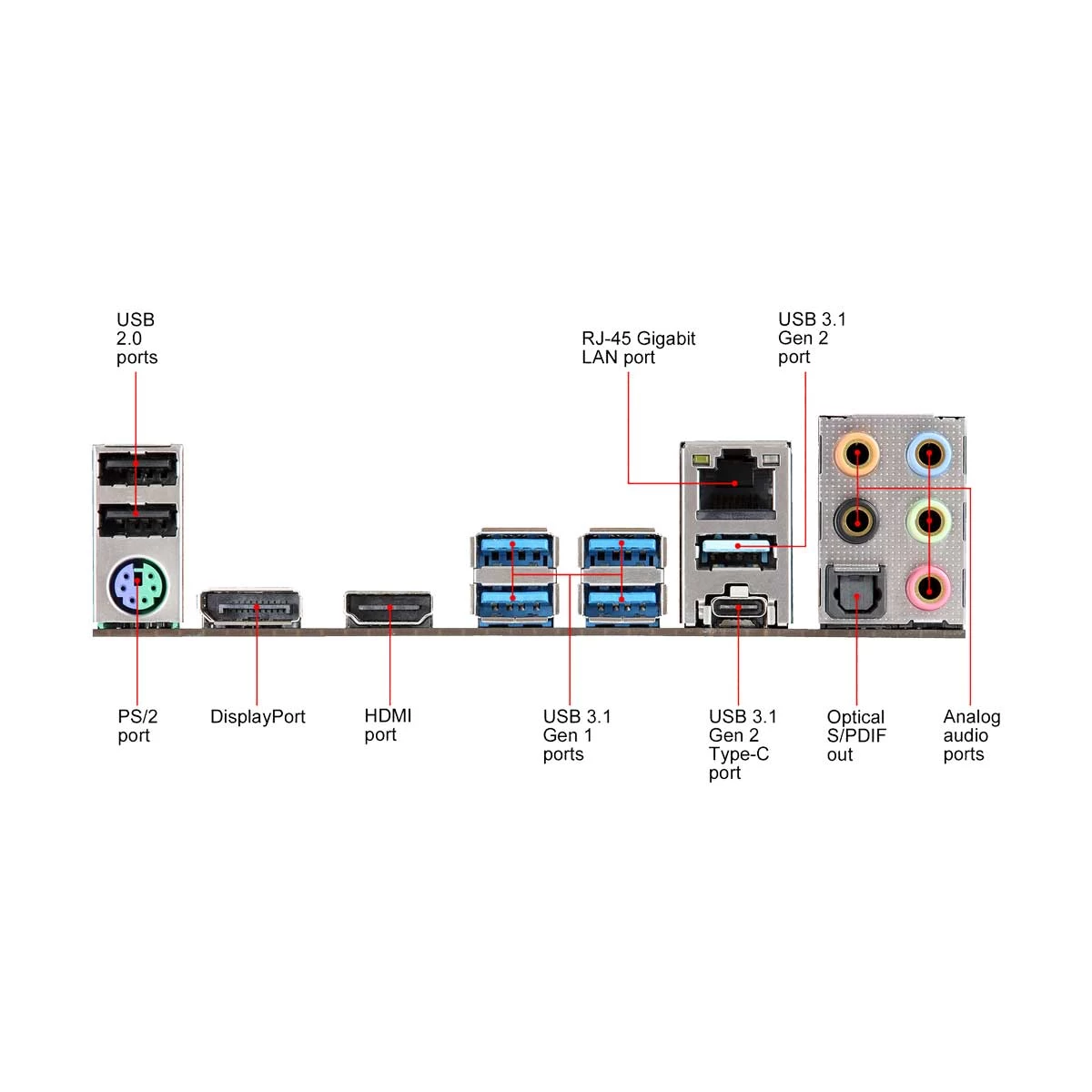

Ports
USB Port

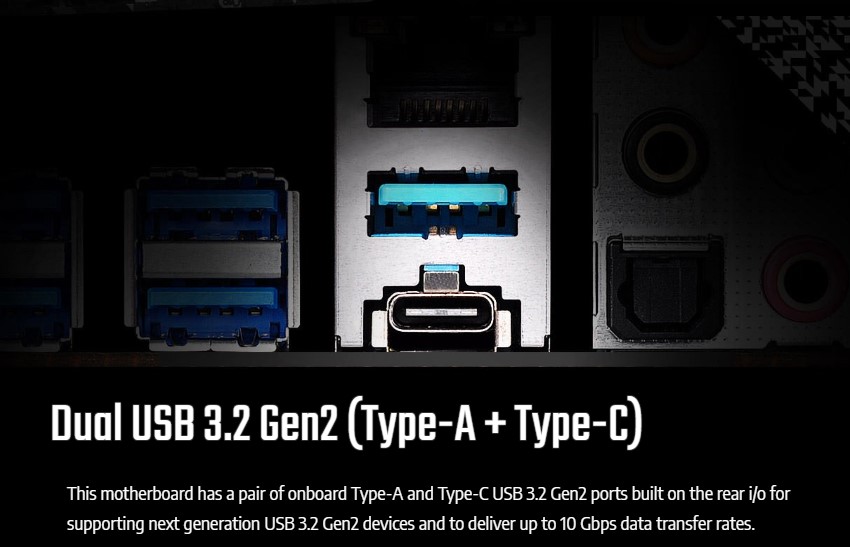

4 x USB 2.0, 5 x USB 3.1 Gen 1, 1 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

IDE Port
No

SATA Port
4

Thunderbolt
No

TPM Port
1

COM Port
1


Technical Info
DirectX Support
12

FireWire
No

CrossFire Support
Yes

Sli Support
No

Raid Support
0, 1, 10

RGB Support
RGB

RGB Sync
Polychrome SYNC

RGB Connector
1 x RGB LED Header

Approx. Power Consumption
60W

Form Factor
Micro-ATX


Bios Information
BIOS Type
128Mb AMI UEFI Legal BIOS

BIOS Model
AMI UEFI Legal BIOS

BIOS Version
ACPI 5.1, SMBIOS 2.3


Compatibility
Supported Operating System
Windows 10

Compatible Products
Sockets Supported AM4: AMD Ryzen 2000/ 3000 / 5000 Series Processors


Warranty
Warranty
3 Year

Warranty Details
3 year


Additional Info
Feature

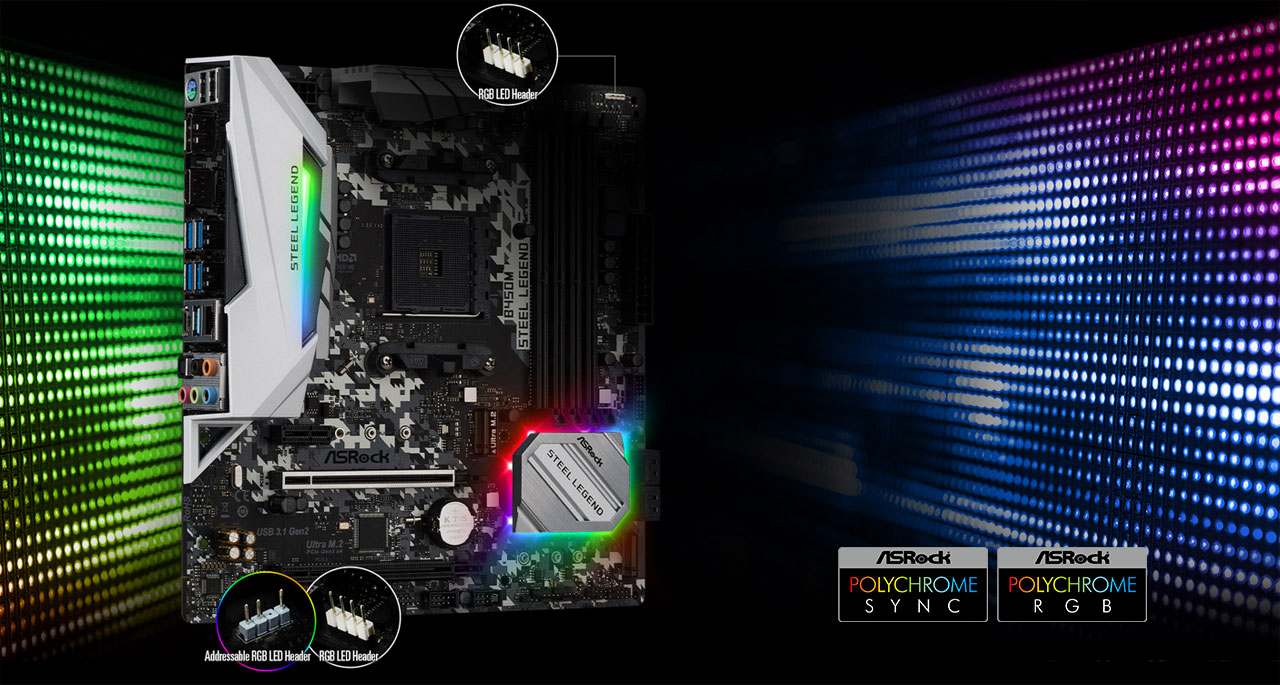

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way. ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Others
1 x Chassis Intrusion Header, 1 x Power LED and Speaker Header, 1 x Addressable LED Header, 1 x AMD Fan LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin), 3 x Chassis/Water Pump Fan Connectors (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector, 1 x PS/2 Mouse/Keyboard Port, 1 x RJ-45 LAN Port, AMD Quad CrossFireX, Certifications: FCC, CE, ErP/EuP

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.

Details

QUESTION & ANSWER

Customer Questions
Q:
Credit Card er maddome nite caile ki neya jabe basay bose.
By Farabi
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, EMI āĻ āĻĒā§āĻ°ā§‹āĻĄāĻžāĻ•ā§āĻŸ āĻ¨āĻŋāĻ¤ā§‡ āĻšāĻ˛ā§‡ āĻŦā§āĻ°āĻžāĻžā§āĻšā§‡ āĻ†āĻ¸āĻ¤ā§‡ āĻšāĻŦā§‡, āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ!
By Ryans Computers Ltd. , 16 Sep 2023 04:53:45 PM
Q:
will it support windows 11 and will ryan computers download windows 11 for me
By customer
A:
Dear Sir, Yes! It will support Windows 11, Thanks for your query!
By Ryans Computers Ltd. , 09 Sep 2023 05:47:40 PM
Q:
I want to build brand new pc with this motherboard and 5600x so will ryan computer update the bios for it
By customer
Q:
Will it support the ARGB fans in https://www.ryanscomputers.com/montech-air-100-argb-mid-tower-black-micro-atx-gaming-desktop-casing ?
By Areeb Arsh
A:
Dear Sir, This motherboard supports - RGB Support - Yes, RGB Sync - Polychrome SYNC, RGB Connector - 1 x RGB LED Header, Thanks for your query!
By Ryans Computers Ltd. , 28 Oct 2023 04:57:22 PM
Q:
does this motherboard support Ryzen 5600 out of the box or does it need bios update?
By Areeb Arsh
A:
Dear Sir, Yes! This one will be support Ryzen 5600 model and If a BIOS update is required, it will be detected during the install, Thanks for your query!
By Ryans Computers Ltd. , 28 Oct 2023 04:29:53 PM
Q:
AMD Ryzen 7 5700G Er sathe kotota somonjosso hote pare
By Mostaque ahammad
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, āĻŽāĻžāĻĻāĻžāĻ°āĻŦā§‹āĻ°ā§āĻĄ āĻŸāĻŋāĻ° āĻ¸āĻžāĻĨā§‡ ā§Ģā§Ļā§Ļā§Ļ āĻ¸āĻŋāĻ°āĻŋāĻœ āĻ¸āĻžāĻŽāĻžā§āĻœāĻ¸ā§āĻ¯ āĻšāĻŦā§‡, āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ!
By Ryans Computers Ltd. , 13 May 2023 04:18:41 PM
Q:
Asrock B450 atx ei motherboard ta ki ache...
By Masum
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, ASRock B450M Steel Legend DDR4 AMD Motherboard āĻŸāĻŋ āĻāĻ­ā§‡āĻ‡āĻ˛ā§āĻ¯āĻžāĻŦāĻ˛ āĻ°ā§Ÿā§‡āĻ›ā§‡ āĻāĻ–āĻ¨ āĻĒāĻ°ā§āĻ¯āĻ¨ā§āĻ¤, āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ!
By Ryans Computers Ltd. , 30 Mar 2024 11:02:07 AM
Q:
Stock ana jabe ki
By Kazi Tahsin ul haque
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, āĻŽāĻžāĻ°ā§āĻ•ā§‡āĻŸā§‡āĻ° āĻ¸āĻŦāĻ°āĻžāĻšā§‡āĻ° āĻ“āĻĒāĻ° āĻ¸ā§āĻŸāĻ• āĻ¨āĻŋāĻ°āĻ­āĻ° āĻ•āĻ°ā§‡āĨ¤ āĻ¤āĻžāĻ‡ āĻ­āĻŦāĻŋāĻˇā§āĻ¯āĻ¤ā§‡ āĻ¸ā§āĻŸāĻ• āĻ†āĻ¸ā§āĻ¤ā§‡ āĻĒāĻžāĻ°ā§‡ āĨ¤ āĻ†āĻŽāĻžāĻĻā§‡āĻ° āĻ“ā§Ÿā§‡āĻŦāĻ¸āĻžāĻ‡āĻŸā§‡ āĻšā§‹āĻ– āĻ°āĻžāĻ–ā§āĻ¨ āĨ¤ āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ āĨ¤
By Ryans Computers Ltd. , 13 Jun 2022 07:21:11 PM
Q:
intel i5 12400 er sate asrock er aii motherboard ta kamon hobe
By Sami
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, āĻāĻ‡ āĻĒā§āĻ°ā§‹āĻĄāĻžāĻ•ā§āĻŸ āĻŸāĻŋ āĻŦāĻ°ā§āĻ¤āĻŽāĻžāĻ¨ā§‡ āĻ¸ā§āĻŸāĻ• āĻ āĻ¨ā§‡āĻ‡, āĻ¯āĻ–āĻ¨ āĻ‡ āĻ¸ā§āĻŸāĻ• āĻ āĻ†āĻ¸āĻŦā§‡ āĻĒāĻŖā§āĻ¯ā§‡āĻ° āĻŦāĻŋāĻŦāĻ°āĻŖ, āĻ¸ā§āĻŸāĻ• āĻāĻŦāĻ‚ āĻĒā§āĻ°āĻžāĻ‡āĻ¸ āĻ†āĻĒāĻĄā§‡āĻŸ āĻ•āĻ°ā§‡ āĻĻā§‡āĻ“ā§ŸāĻž āĻšāĻŦā§‡, āĻ…āĻ¨ā§āĻ—ā§āĻ°āĻš āĻ•āĻ°ā§‡ āĻ†āĻŽāĻžāĻĻā§‡āĻ°  āĻ…āĻĢāĻŋāĻ¸āĻŋā§ŸāĻžāĻ˛ āĻ“ā§Ÿā§‡āĻŦāĻ¸āĻžāĻ‡āĻŸ āĻ āĻšā§‹āĻ– āĻ°āĻžāĻ–ā§āĻ¨, āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ !
By Ryans Computers Ltd. , 10 Jan 2024 10:39:28 AM
Q:
Product available kobe hobe? Important Product guloi apnader kase paoa jai na.
By Shamrat
A:
āĻĒā§āĻ°āĻŋā§Ÿ āĻ—ā§āĻ°āĻžāĻšāĻ•, āĻĻā§āĻƒāĻ–āĻŋāĻ¤ ! āĻāĻ‡ āĻŽā§āĻšā§‚āĻ°ā§āĻ¤ā§‡ āĻ¸ā§āĻ¨āĻŋāĻ°ā§āĻĻāĻŋāĻˇā§āĻŸ / āĻ¸āĻŽā§āĻ­āĻžāĻŦā§āĻ¯ āĻ¸āĻŽā§Ÿ āĻ‰āĻ˛ā§āĻ˛ā§‡āĻ– āĻ•āĻ°āĻž āĻ¸āĻŽā§āĻ­āĻŦ āĻšāĻšā§āĻ›ā§‡ āĻ¨āĻž āĨ¤ āĻ¸ā§āĻŸāĻ•ā§‡ āĻ†āĻ¸āĻž āĻŽāĻžāĻ¤ā§āĻ° āĻ“ā§Ÿā§‡āĻŦāĻ¸āĻžāĻ‡āĻŸā§‡ āĻ†āĻĒāĻĄā§‡āĻŸ āĻ•āĻ°ā§‡ āĻĻā§‡ā§ŸāĻž āĻšāĻŦā§‡ āĨ¤ āĻ†āĻŽāĻžāĻĻā§‡āĻ° āĻ¸āĻžāĻĨā§‡āĻ‡ āĻĨāĻžāĻ•ā§āĻ¨ āĨ¤ āĻ§āĻ¨ā§āĻ¯āĻŦāĻžāĻĻ āĨ¤
By Ryans Computers Ltd. , 22 Feb 2023 03:49:21 PM
