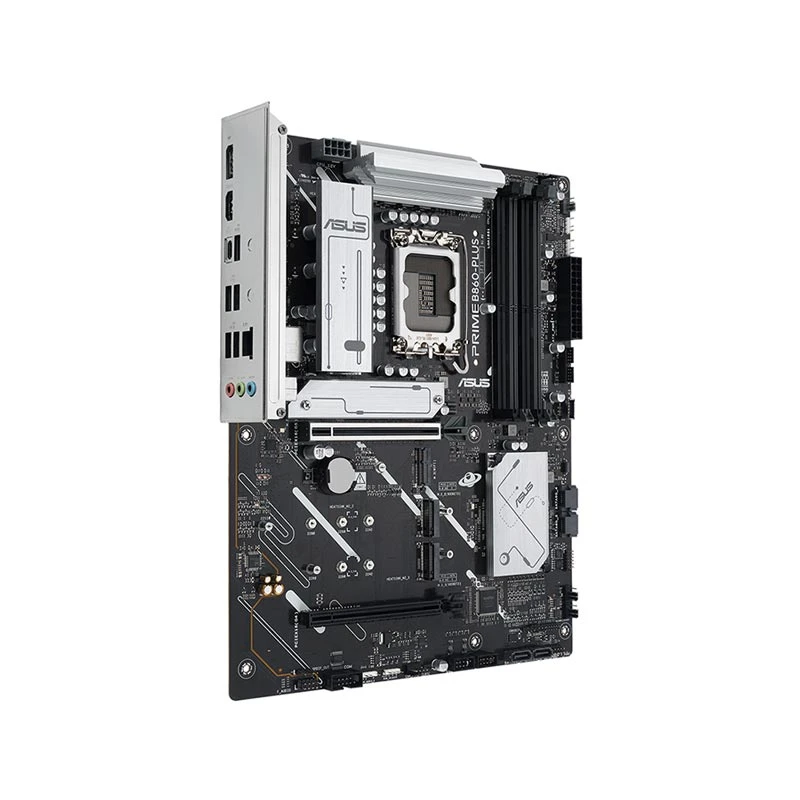

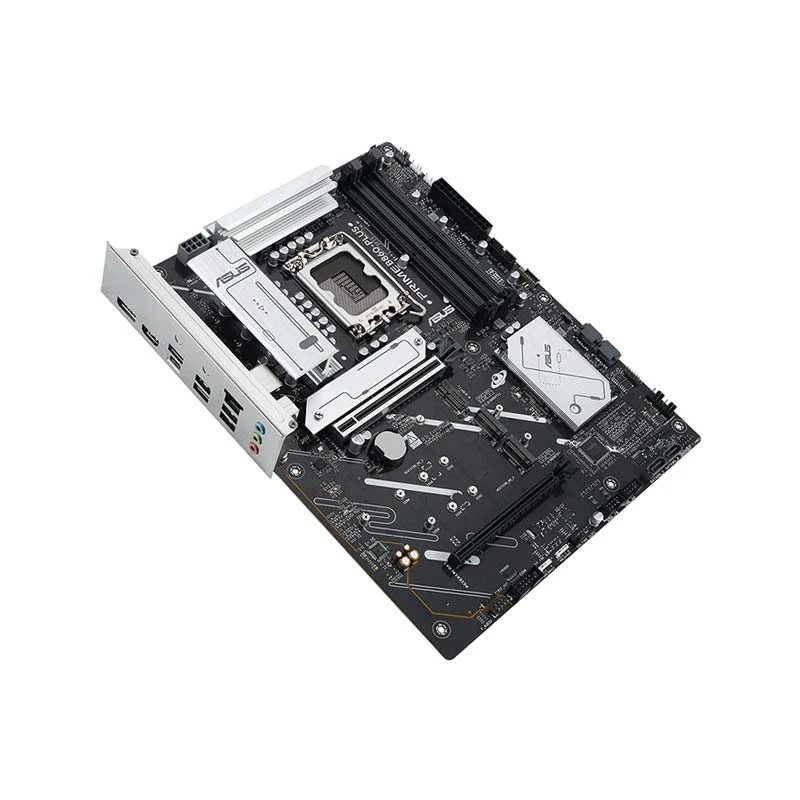

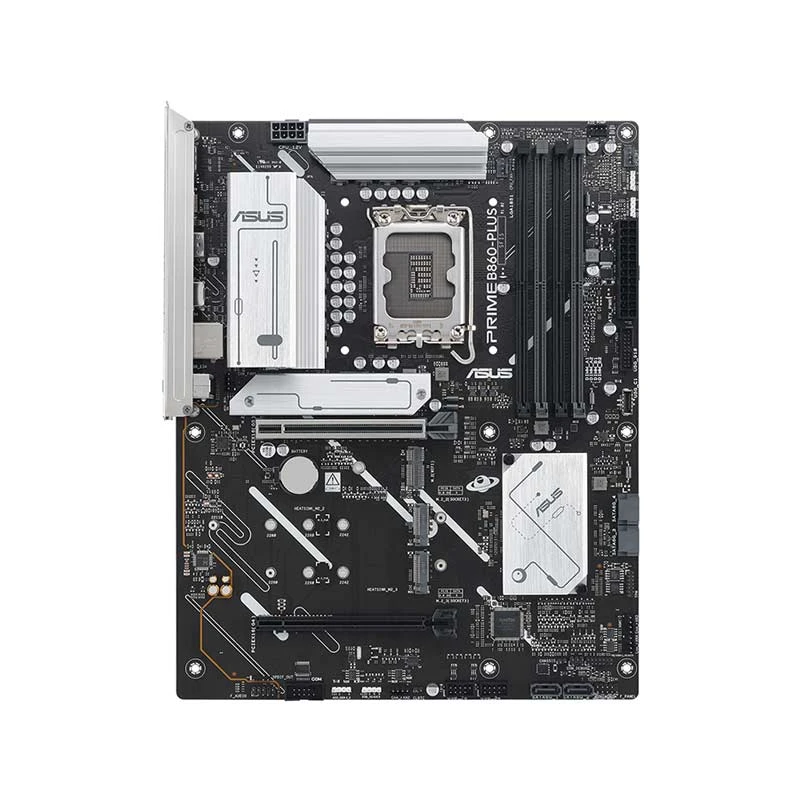

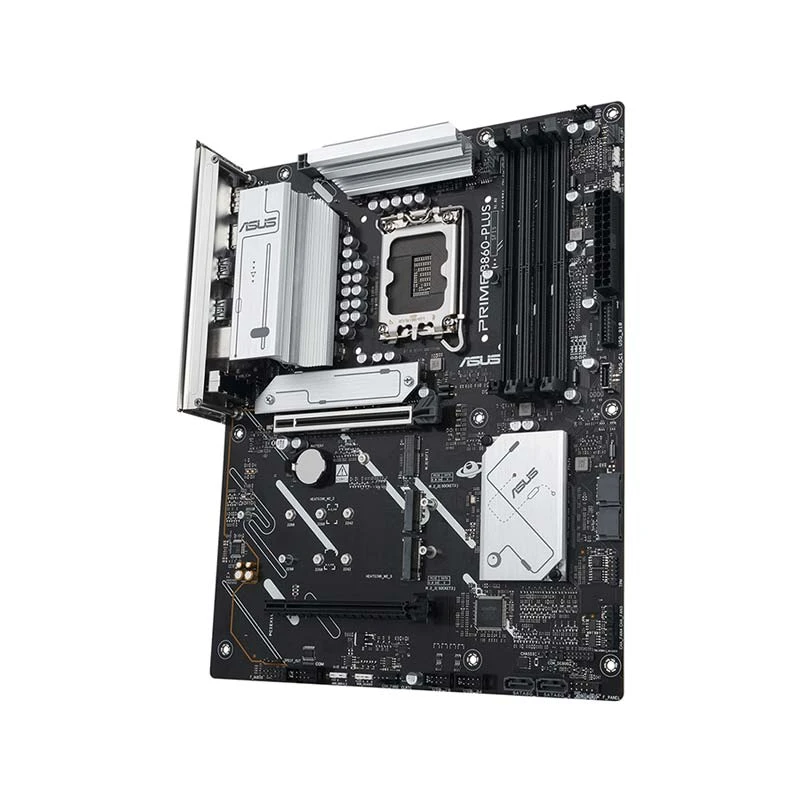

Asus PRIME B860-PLUS-CSM DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
3 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With processor
Multi-GPU Support
No
PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode)
Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 2.5Gb Ethernet ASUS LANGuard
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
No
Ports
USB Port
2 x USB 2.0 Type-A, 1 x USB 5Gbps Type-A, 2 x USB 10Gbps Type-A, 1 x USB 20Gbps Type-C
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
No
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
Aura RGB
RGB Connector
3 x Addressable Gen 2 headers, 1 x Aura RGB header
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
2 x 128 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11, 10
Compatible Products
Compatible with LGA1851 Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 Year Replacement
Additional Info
Feature

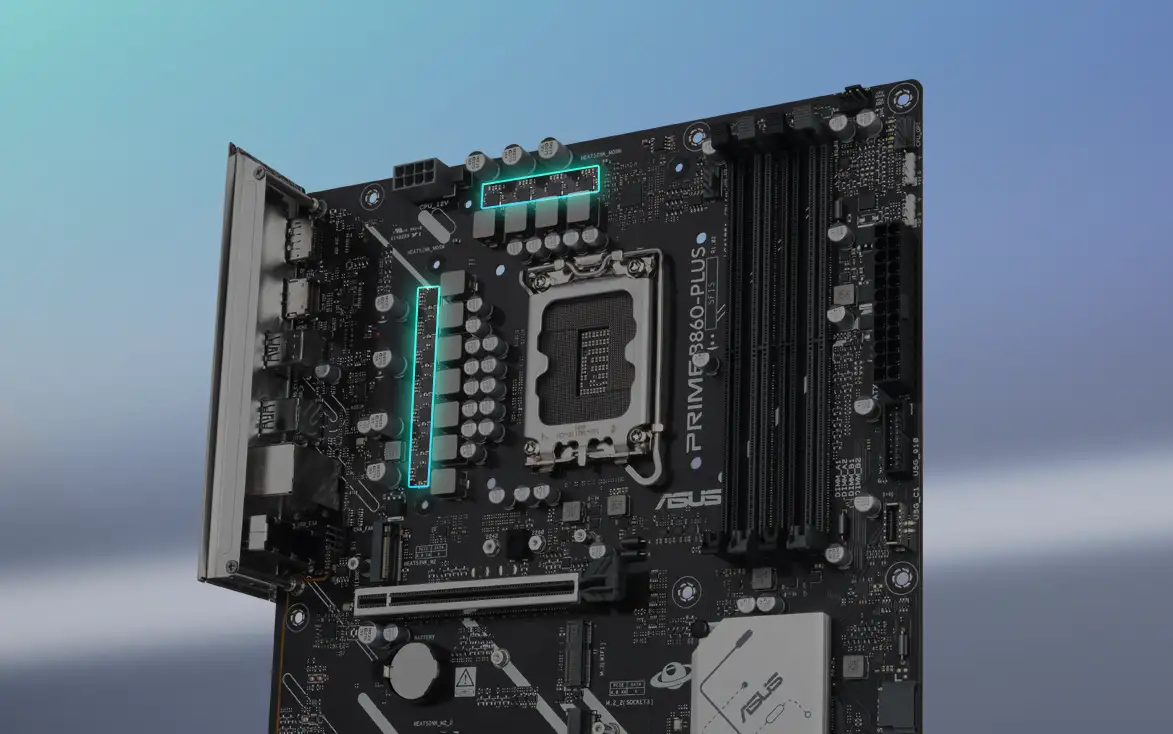

Audio: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers, DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot, Stainless-steel back I/O, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, Flexible M.2 heatsink, VRM heatsink design, ProCool, Pre-mounted I/O shield, Aura RGB header, Addressable Gen 2 headers, Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Power Saving.
Others

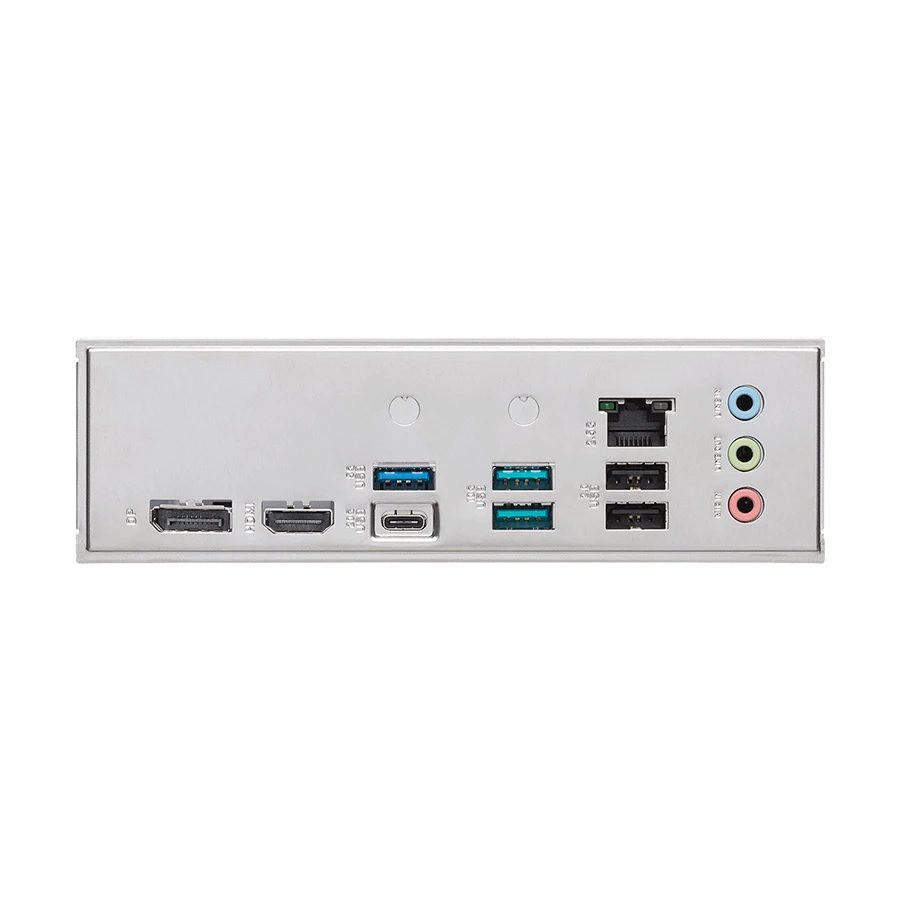

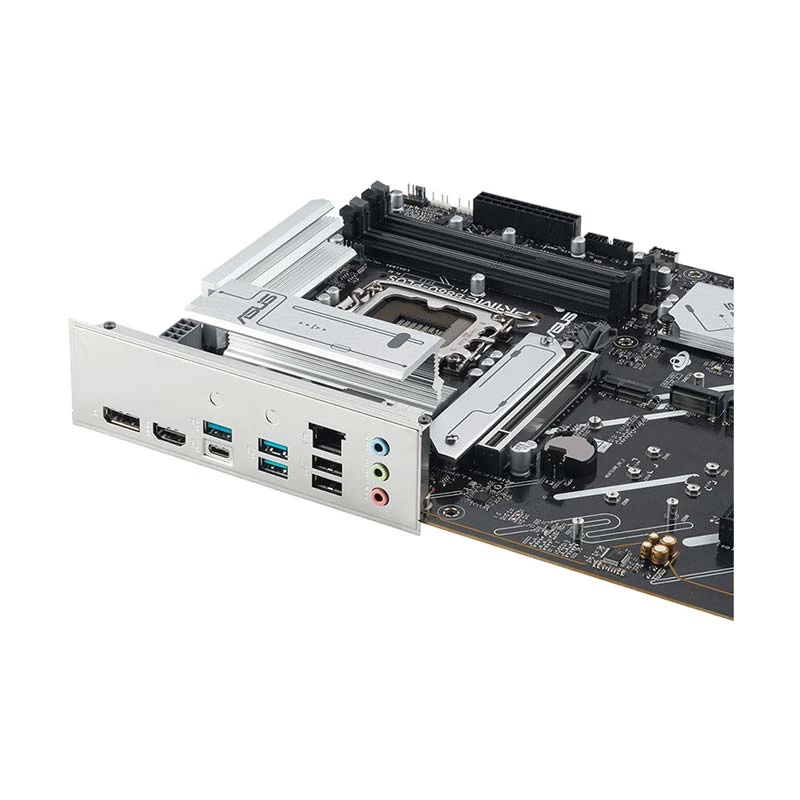

Back Panel I/O Ports: 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, Power related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, Miscellaneous: 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1pin), 1 x 10-1 pin Front System Panel header.
Country Of Origin
Taiwan
Made in/ Assemble
China
