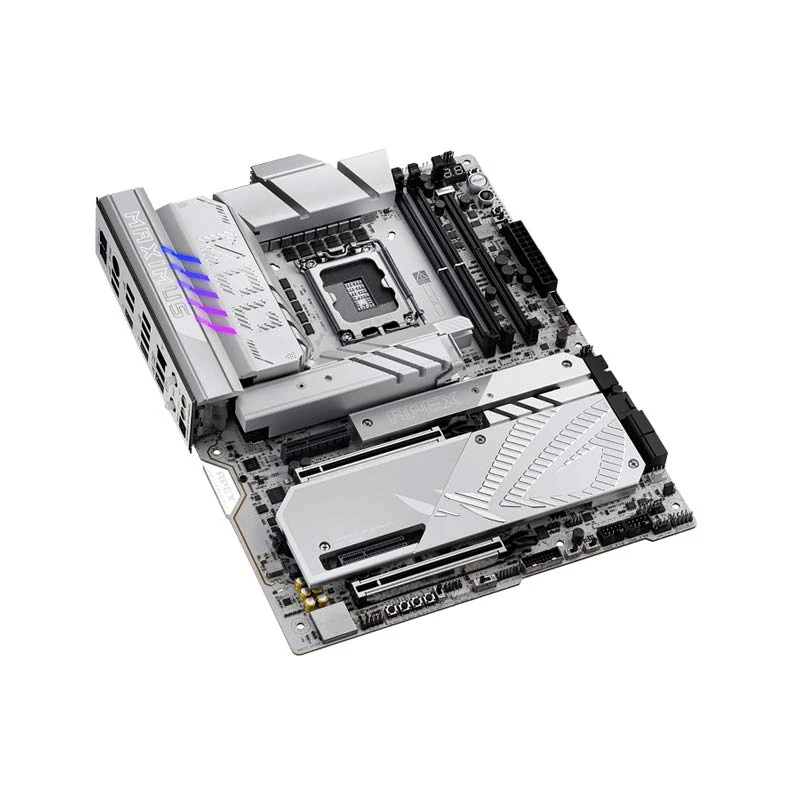

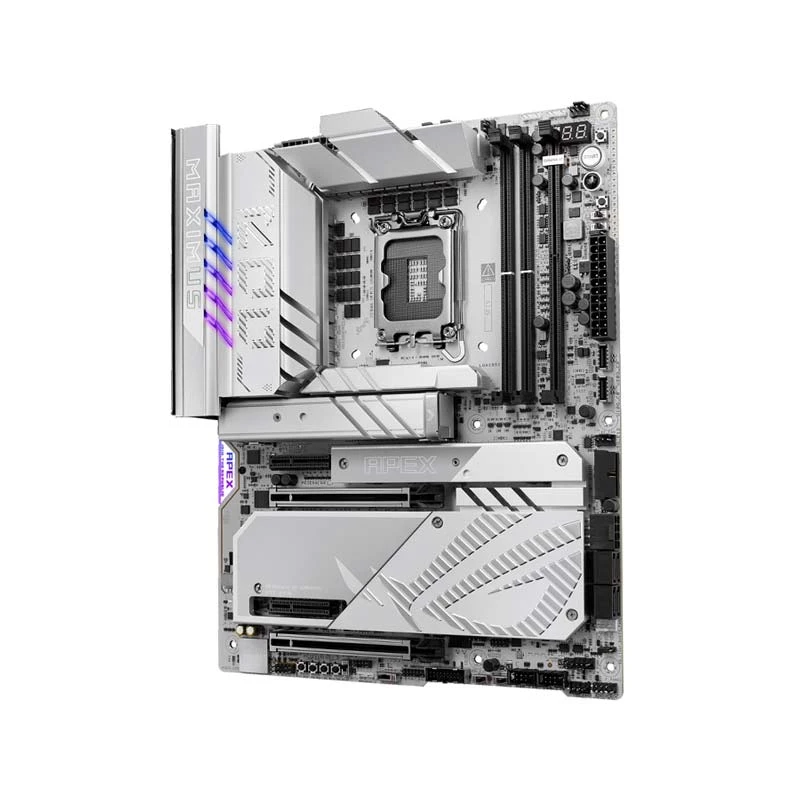

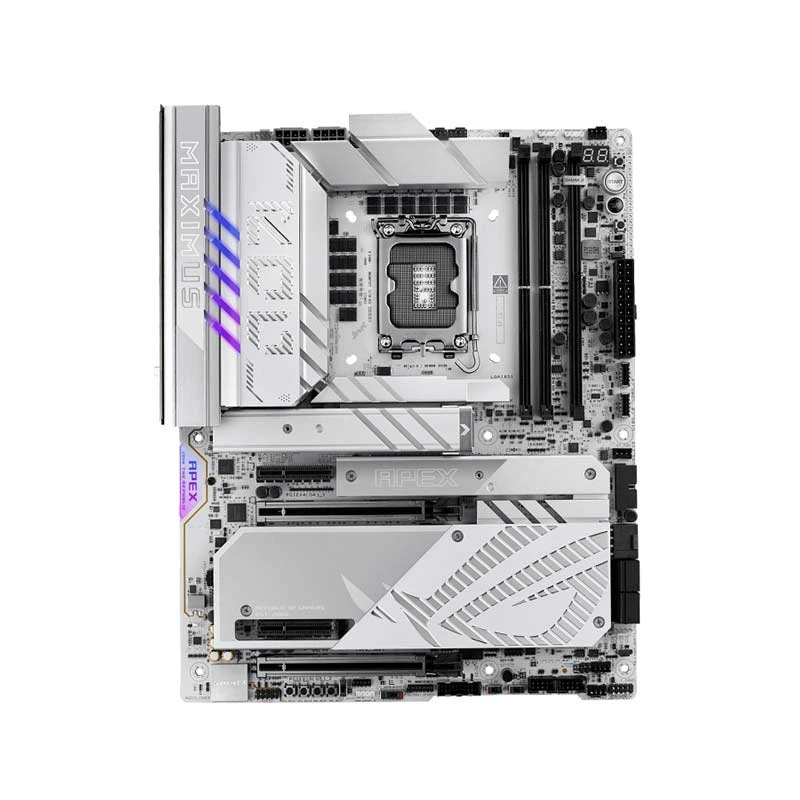

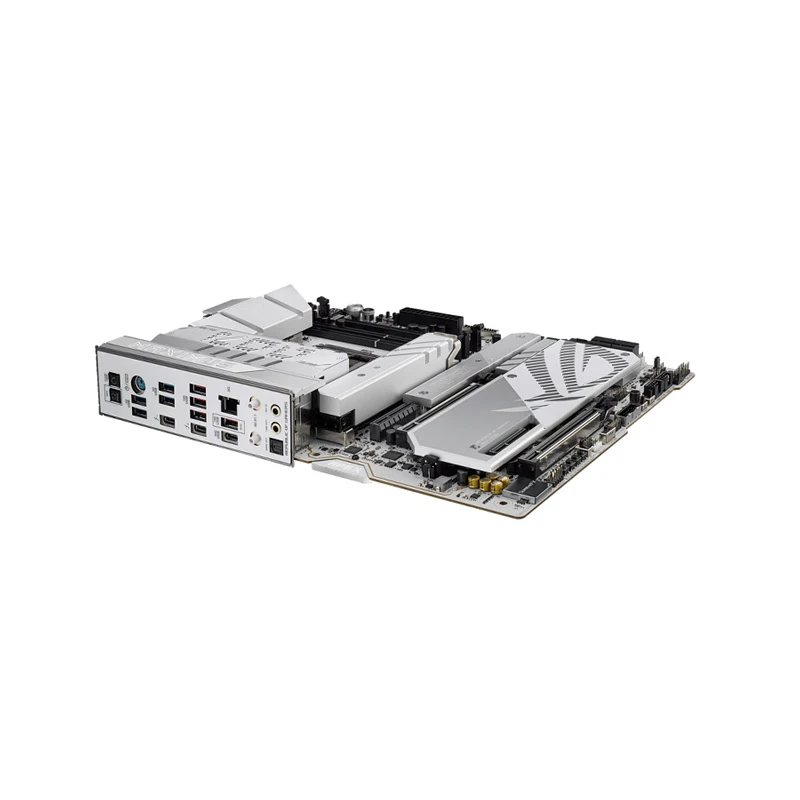

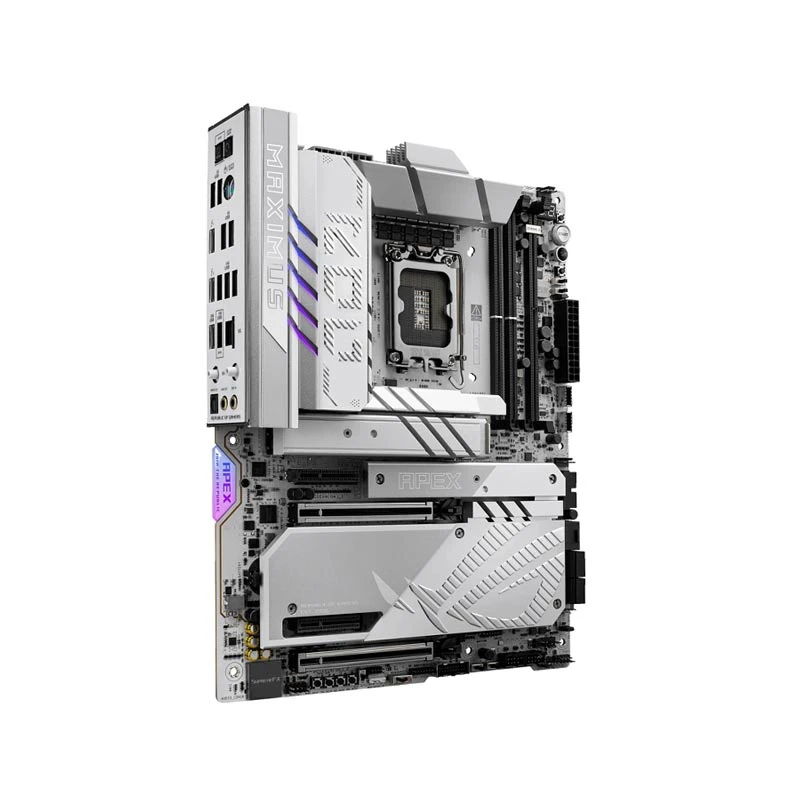

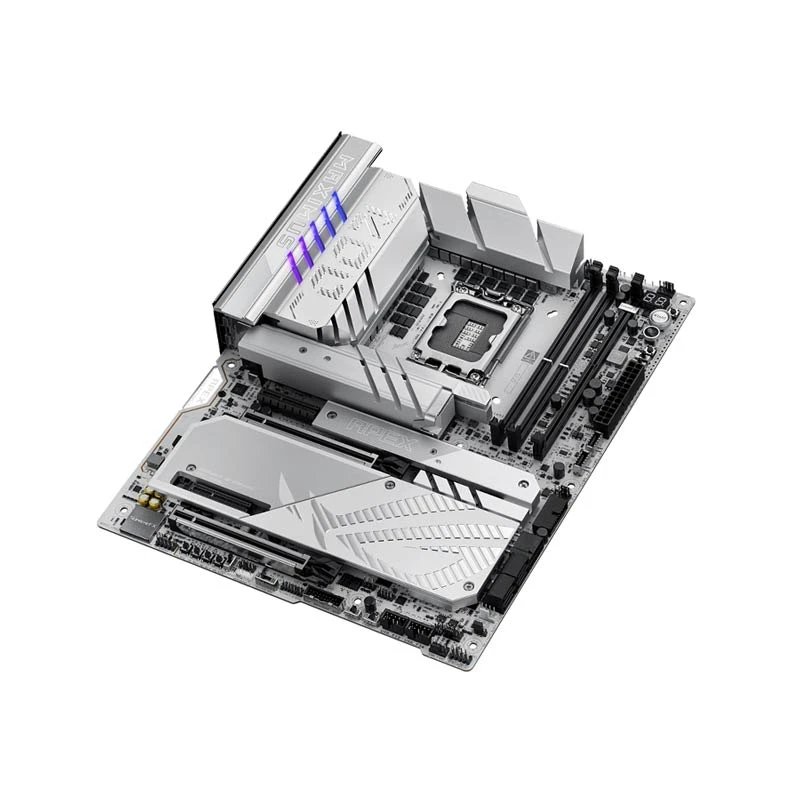

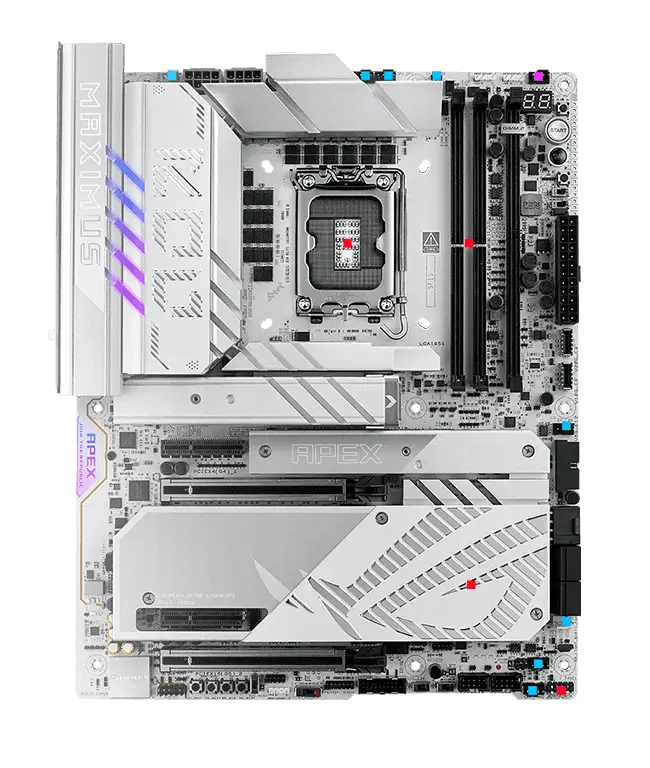

Asus ROG MAXIMUS Z890 APEX (Wi-Fi 7) DDR5 (Intel Core Ultra LGA1851 Socket) Gaming Motherboard
Up to 9600+ MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Memory Channel
Dual
Memory Slot
2
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
6
M.2/SSD Expansion Slot Details
6 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes), DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode))
M.2/SSD Slot Gen
Up to Gen 5
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes), 2 x PCIe 4.0 x4 slots
Audio & Video
Audio Chipset
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Realtek 5Gb Ethernet ASUS LANGuard
LAN Speed (Mbps)
10/100/1000/2500/5000 Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be)
Bluetooth
Bluetooth 5.4
Ports
USB Port
4 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 20Gbps Type-C, 2 x Thunderbolt 4
VGA Port
No
DVI Port
No
HDMI Port
No
DisplayPort (DP)
No
SATA Port
4 x SATA
Thunderbolt
2
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0/1/5/10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen 2 headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
2 x 256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11 (22H2 & later)
Compatible Products
Compatible with LGA1851 Core Ultra Processors
Warranty
Warranty
3 Year Replacement
Additional Info
Feature
Audio Features: SupremeFX Shielding Technology. Savitech SV3H712 AMP. Gold-plated audio jacks. Rear optical S/PDIF out port. Premium audio capacitors. Audio cover. Extreme OC Kit: FlexKey button, LN2 Mode, ProbeIt, ReTry button, Safe boot button, Start button, Slow Mode, Extreme Engine Digi+: SMD Capacitor, MicroFine Alloy Choke, ASUS Q-Design: M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Code, Q-Dashboard, Q-Connector, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution: M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY: BIOS FlashBack button, Clear CMOS button, CPU Socket lever protector, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM, Aura Sync: Addressable Gen 2 headers, Dual BIOS: Front Panel USB 20Gbps with Quick Charge 4+ Support, Support: up to 60W fast charging and USB Wattage Watcher, Output: 5/9/15/20V max. 3A, PPS:3.3 21V max. 3A, Compatible with PD3.0 and PPS, Software Features: ROG Exclusive Software, ROG CPU-Z, Dolby Atmos, Internet Security (1-year full version), ASUS Exclusive Software: Armoury Crate, AIDA64 Extreme (1 year full version), Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), GameFirst, Power Saving, HWiNFO, ASUS AI Advisor, ASUS Driver Hub, ASUS GlideX, Turbo Vcore, Adobe Creative Cloud (Free Trial), Thunderbolt Share, USB Wattage Watcher, WinRAR (40 Days Free Trial), UEFI BIOS, AI Overclocking Guide, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost Manageability: WOL by PME.
Others

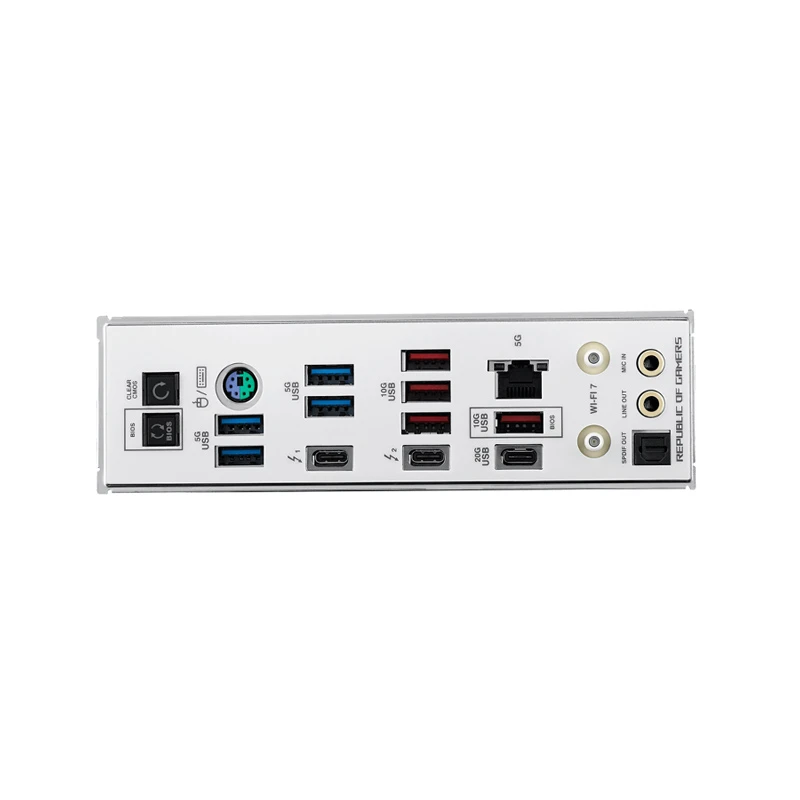

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, DIMM Fit, Supports Intel Extreme Memory Profile (XMP) memory module, Supports DIMM Flex, ASUS Enhanced Memory Profile III (AEMP III), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Back Panel: 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet port, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack button, 1 x Clear CMOS button, 1 x PS/2 keyboard/mouse combo port. Internal I/O Connectors: Fan and Cooling related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 2 x 4-pin Chassis Fan headers, 2 x 4-pin Full Speed Fan headers, 1 x W_PUMP+ header, 1 x Extra Flow Fan header, Power related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V Power connector, 1 x 8-pin PCIe Power connector, Miscellaneous: 1 x 80 Light Bar jumper, 3 x Addressable Gen 2 headers, 1 x Alteration PCIe mode switch, 4 x BCLK button, 1 x BIOS Switch button, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x LN2 Mode jumper, 1 x Pause switch, 18 x ProbeIt Measurement Points, 1 x ReTry button, 2 x RSVD switches, 1 x RSVD header, 1 x Safe Boot button, 1 x Slow Mode switch, 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt (USB4) header.
Country Of Origin
Taiwan
Made in/ Assemble
China
