5 x M.2 (1 x M.2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, 1 x M.2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices, 1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices, 1 x M.2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices)
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCI-E x16 slot, 1 x PCI-E x1 slot
Audio & Video
Audio Chipset
Realtek ALC1220P Codec, 7.1-Channel High Definition Audio
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Intel Killer E5000B 5G LAN
LAN Speed (Mbps)
1000/ 2500/ 5000Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7
Bluetooth
Bluetooth 5.4
Ports

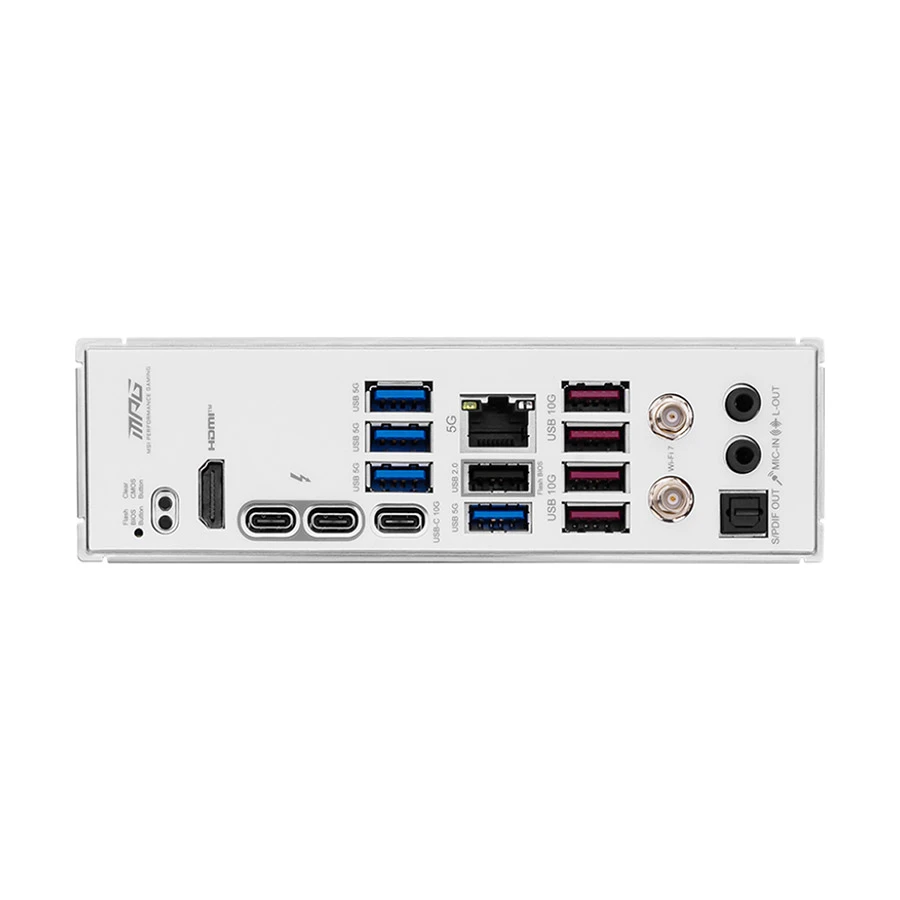

USB Port
4 x USB 5Gbps Type-A, 4 x USB 10Gbps Type-A, 2 x Thunderbolt 4, 1 x USB 10Gbps Type-C, 1 x USB 2.0
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
SATA Port
4
Thunderbolt
2
TPM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
FireWire
No
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Connector
3 x Addressable V2 RGB LED connector (JARGB V2), 1 x RGB LED connector(JRGB)
Premium Thermal Design, EZ PCIe Release, EZ M.2 Shield Frozr II, Lightning Gen 5, Latest DDR5 Memory, Quintuple M.2 Connectors, Dual Thunderbolt 4 ports, 5G Network Solution, Wi-Fi 7, Audio Boost 4
Others
Internal IO Port: 1x Thunderbolt 5 card connector (JTBT5, support RTD3), 1x Power Connector (ATX PWR), 2x Power Connector (CPU PWR), 1x Power Connector (PCIE PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF 2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Thermal Sensor connectors (T SEN), 3x Addressable V2 RGB LED connector (JARGB V2), 1x RGB LED connector (JRGB), 1x TPM pin header (Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports, LED FEATURE: 4x EZ Debug LED, 1x EZ Digit Debug LED
Country Of Origin
Taiwan
Made in/ Assemble
China
