N.B. Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

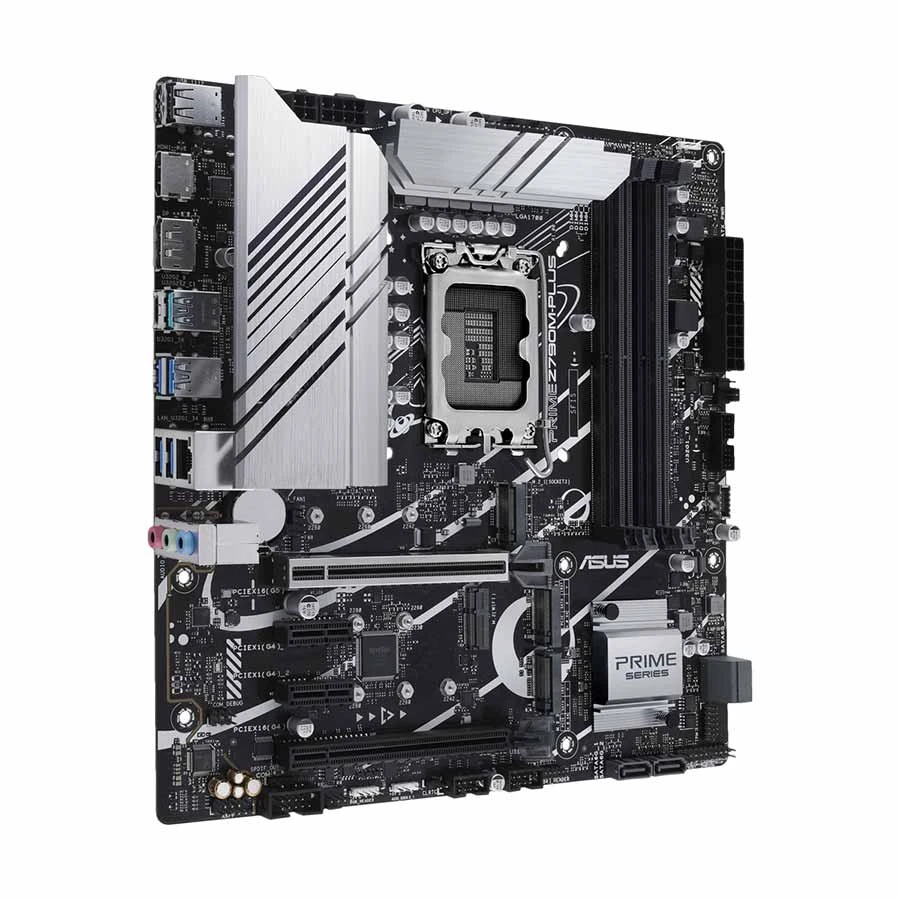

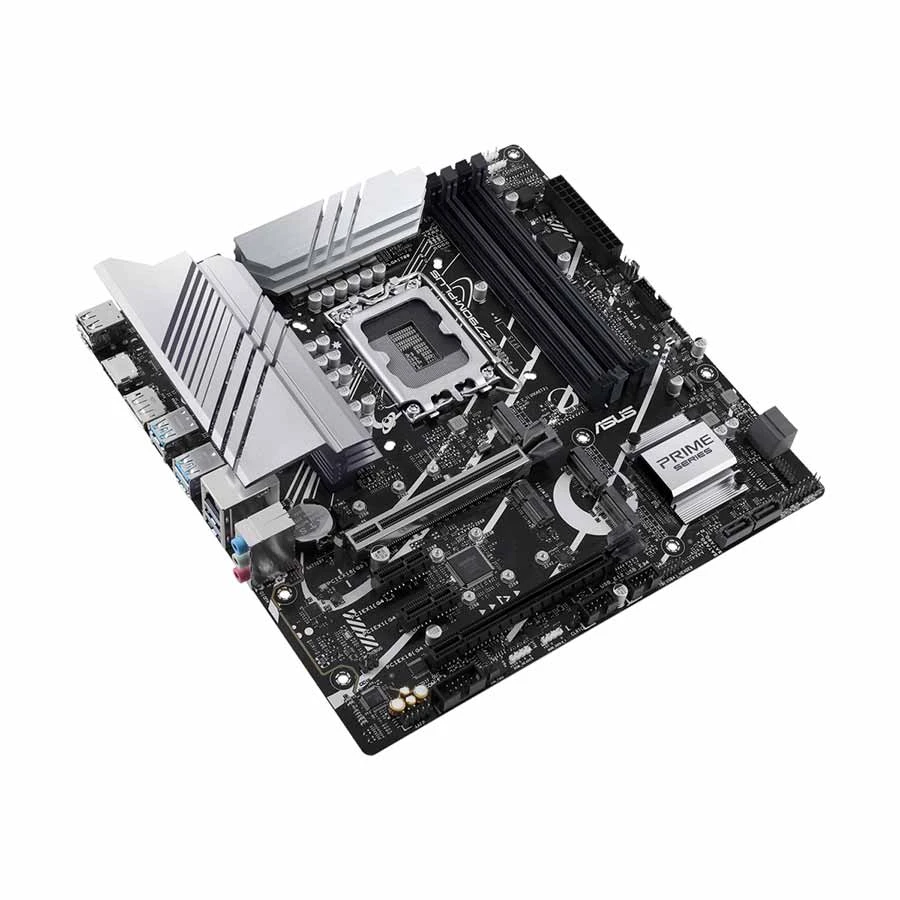

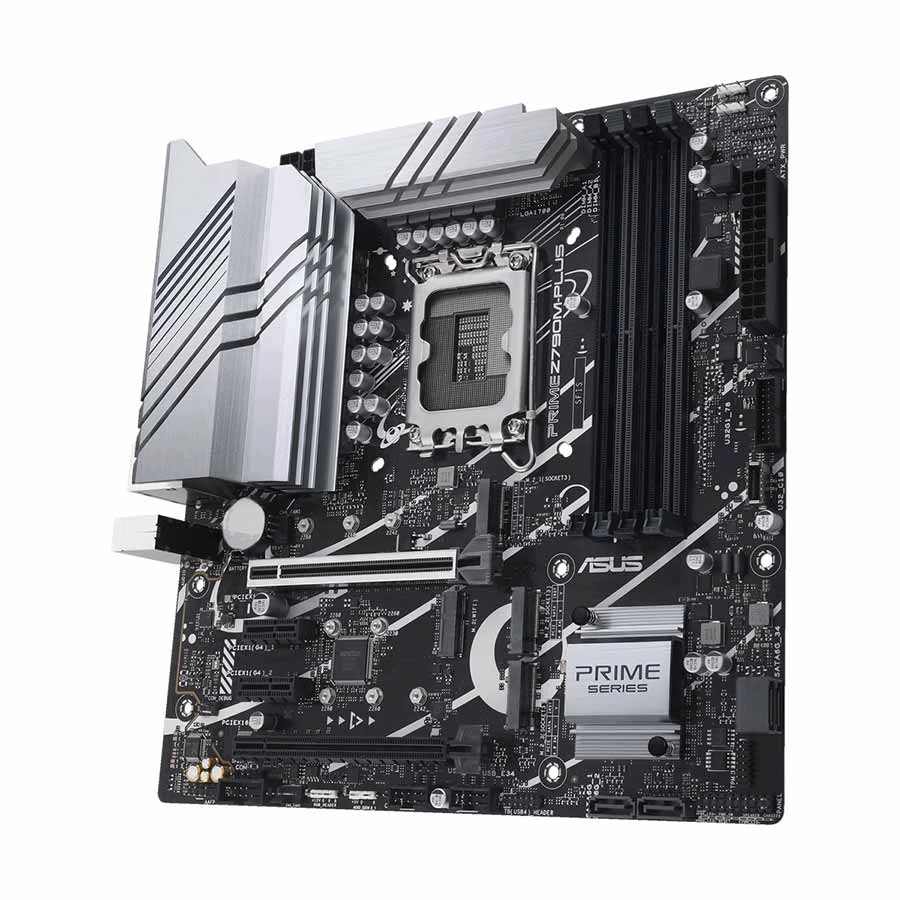

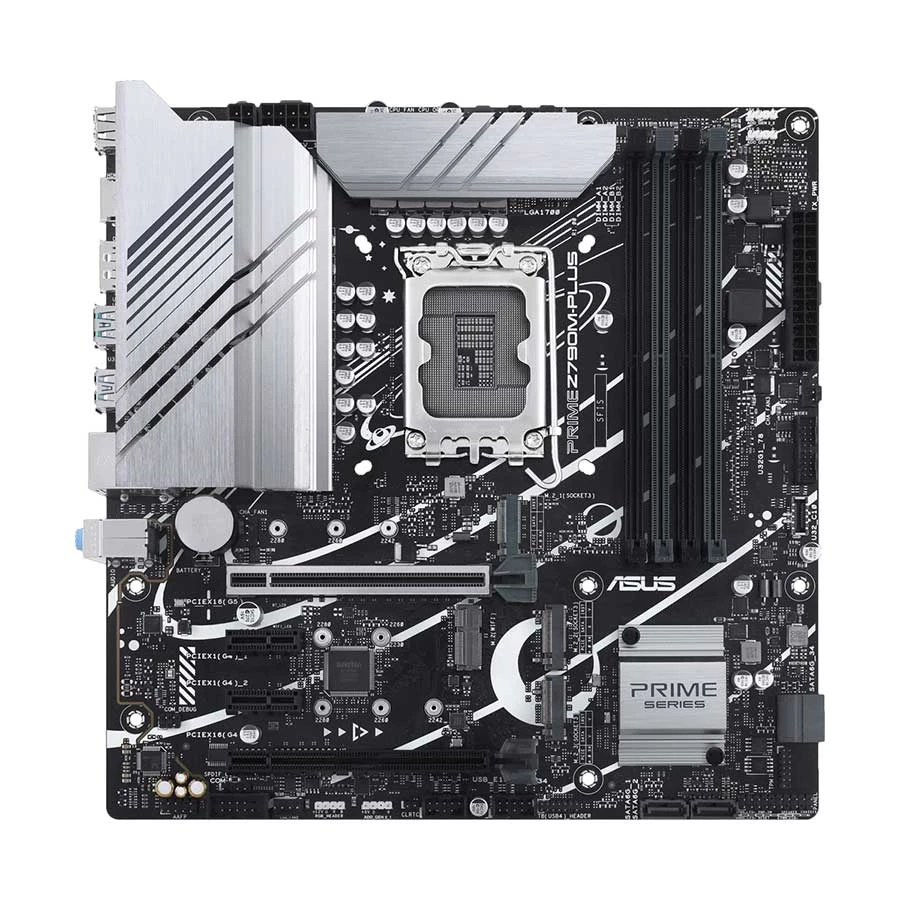

Asus PRIME Z790M-PLUS-CSM DDR5 Intel Motherboard

Product Id: 02.01.006.492

Brand Asus

Regular Price Tk 34,500 Monthly EMI Tk 2,875
Special Price Tk 32,000

Quick Overview

  • Chipset - Intel Z790
  • Memory Max. - 192GB
  • Memory Slot - 4
  • Sockets Supported - LGA1700
  • Supported CPU - 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
  • Generation - 12th/13th
General
Brand
Asus

Model
Asus PRIME Z790M-PLUS-CSM

Body Color
Black


CPU
Chipset Brand
Intel

Chipset
Intel Z790

Sockets Supported
LGA1700

Built-in Processor
No

Supported CPU
13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors

Generation
12th/13th


Memory Support
Memory Type
DDR5

Memory MHz
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

Memory Channel
Dual

Memory Slot
4

Memory Max.
192GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
3

M.2/SSD Expansion Slot Details
3 x M.2 (1 x M.2 type 2242/2260/2280 (supports PCIe 4.0 x4 mode)), (1 x M.2 2260/2280 (supports PCIe 4.0 x4 mode)),(1 x M.2 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

PCI Express Slot
1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot (supports x4 mode), 2 x PCIe 4.0 x1 slots


Audio & Video
Audio Chipset
Realtek 7.1 Surround Sound High Definition Audio CODEC

Audio Channel
7.1


Network & Connectivity
LAN Chipset
Intel 1Gb Ethernet

LAN Speed (Mbps)
0/100/1000 Mbps

WiFi
No

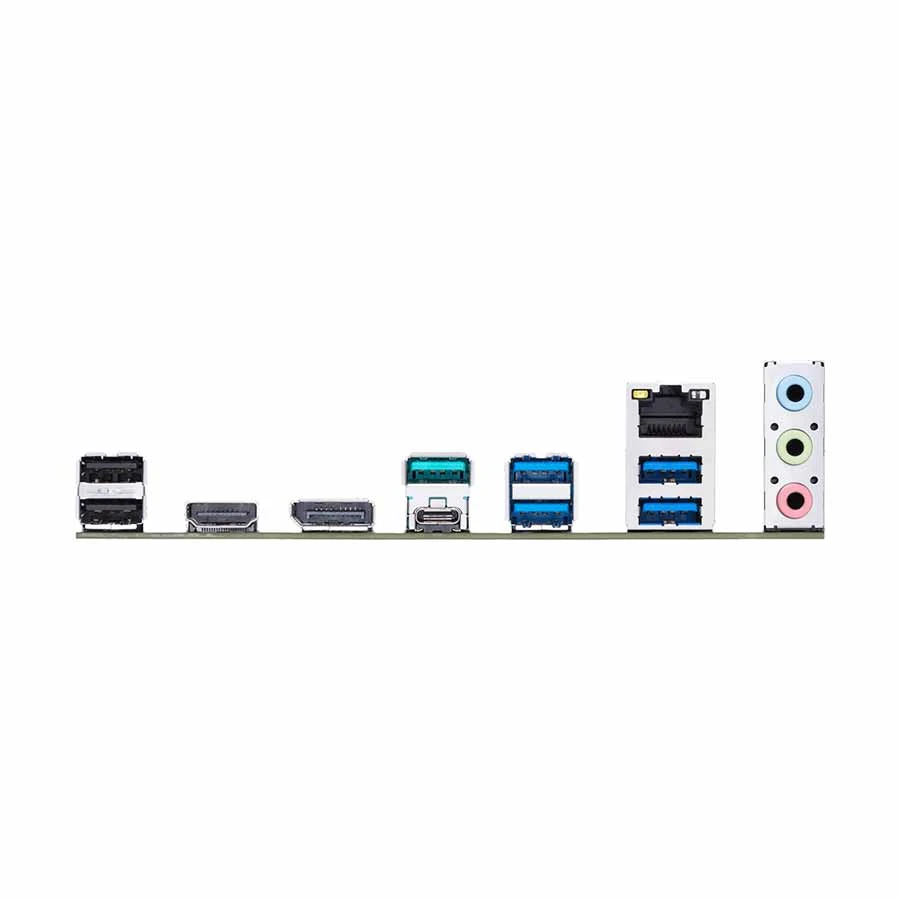

Ports
USB Port
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C), 1 x USB 3.2 Gen 2 port (1 x Type-A), 4 x USB 3.2 Gen 1 ports (4 x Type-A), 2 x USB 2.0 ports (2 x Type-A)

VGA Port
No

DVI Port
No

HDMI Port
1

DisplayPort (DP)
1

SATA Port
4

Thunderbolt
1

TPM Port
1

COM Port
1


Technical Info
CrossFire Support
No

Sli Support
No

Raid Support
0/ 1/ 5/ 10

RGB Support
RGB

RGB Sync
Aura Sync

Approx. Power Consumption
60W

Form Factor
Mirco-ATX


Bios Information
BIOS Type
192 (128+64) Mb Flash ROM

BIOS Model
UEFI AMI BIOS


Compatibility
Supported Operating System
Window 10, 11

Compatible Products
Intel Core i7 12700K, Intel Core i9 12900K, Intel Core i5 12400, Intel Core i3 12100, Intel Core i5 13600K, Intel Core i7 13700KF, Intel Core i5 12400, Intel Core i5 12400F, Intel Core i3 12100, Intel Core i3 13100F, Intel Core i7 12700, Intel Core i5 13500, Intel Core i5 13400, Intel Core i5 13400F, Intel Core i7 13700K, Intel Core i7 12700K, Intel Core i5 13600K, Intel Core i9 12900K, Intel Core i3 13100


Warranty
Warranty
3 Year

Warranty Details
3 Year Replacement


Additional Info
Feature
Manageability, WOL by PME, PXE, ASUS Corporate Stable Model, ASUS Control Center Express, Comprehensive controls, Robust Power Design, All-Around Energy Efficiency

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
