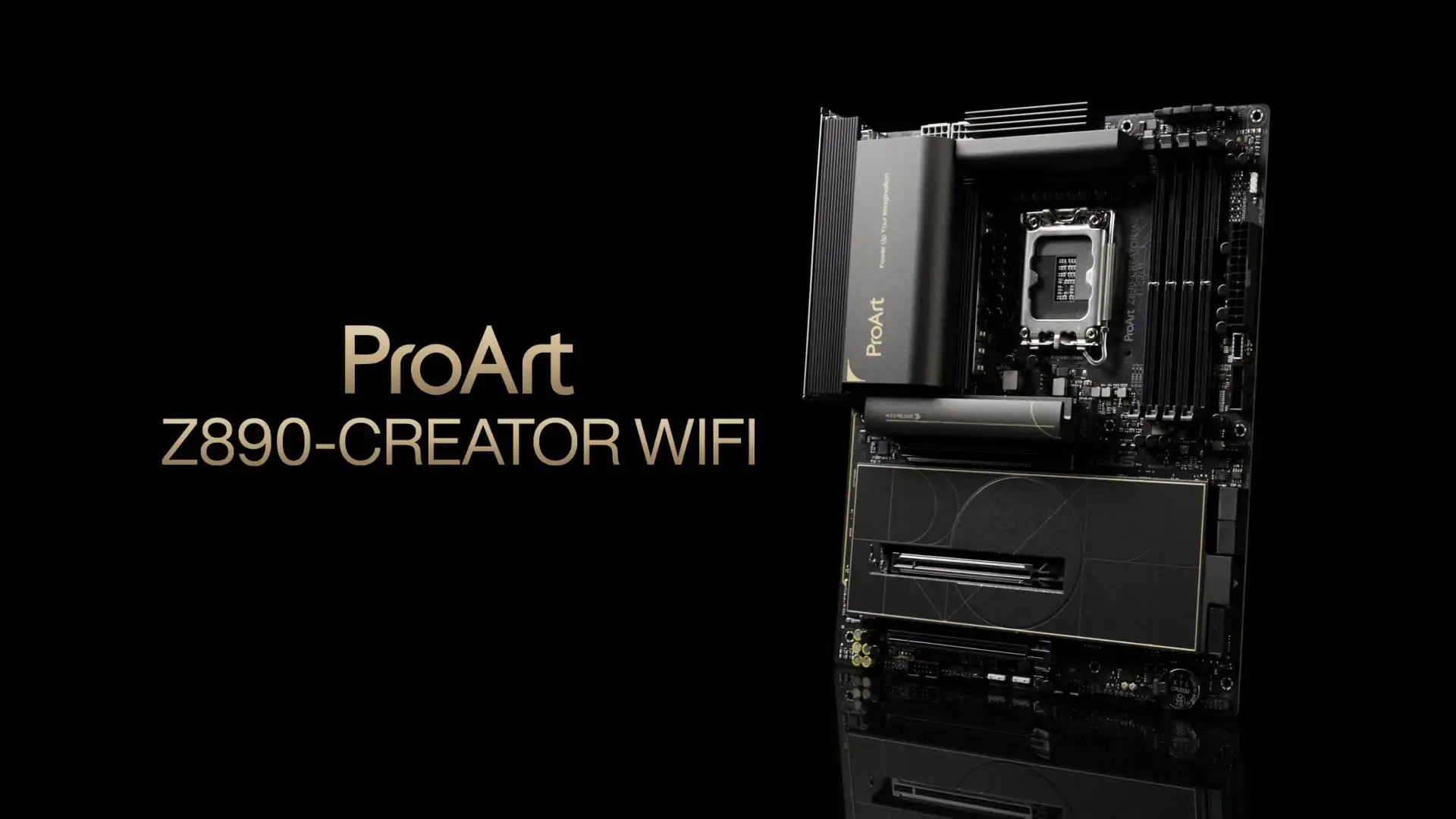

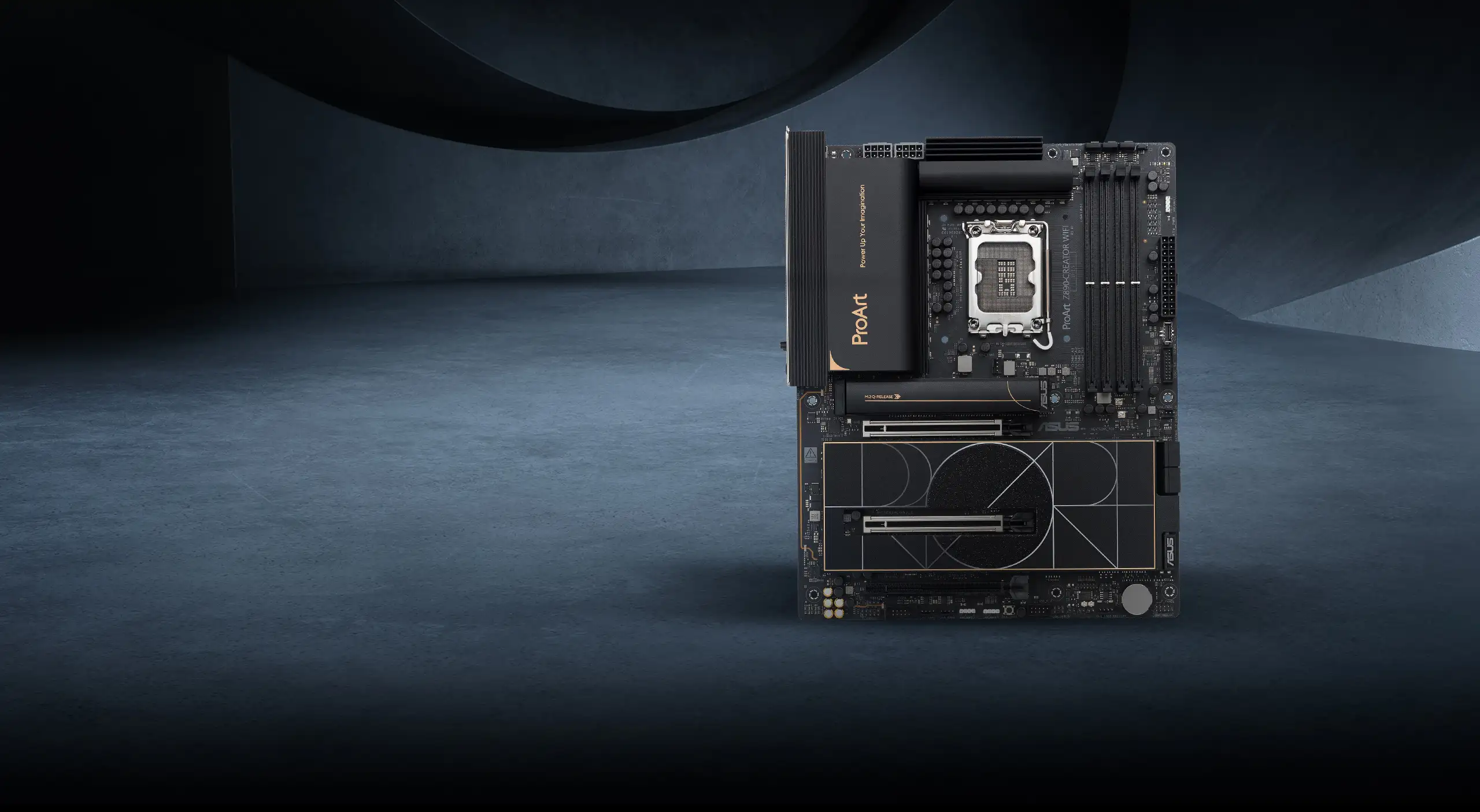

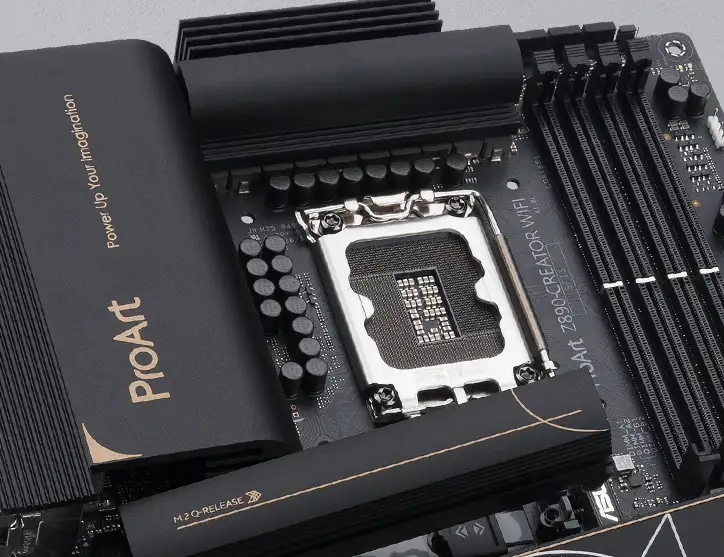

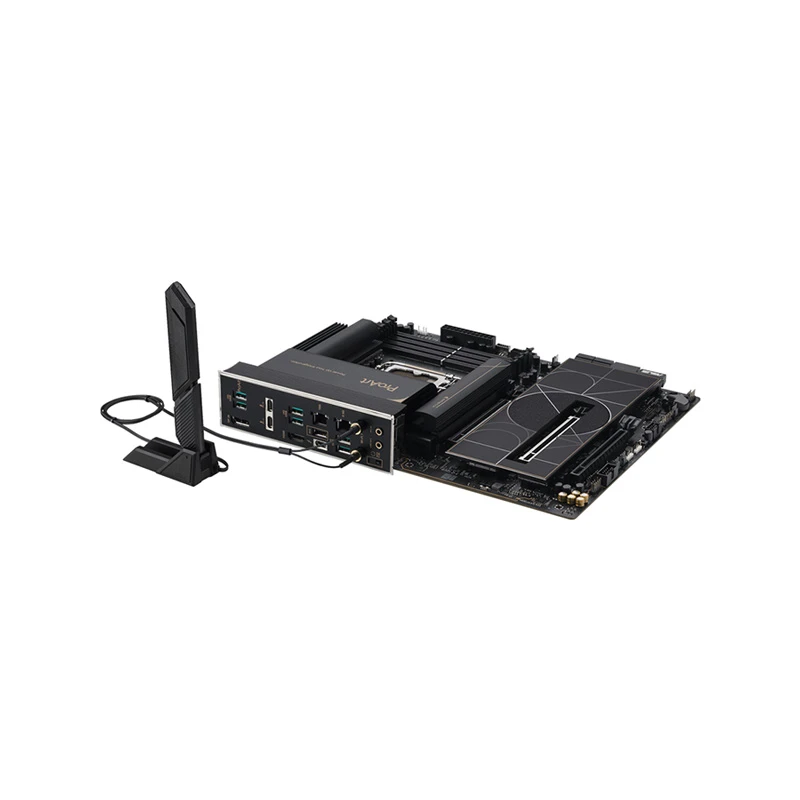

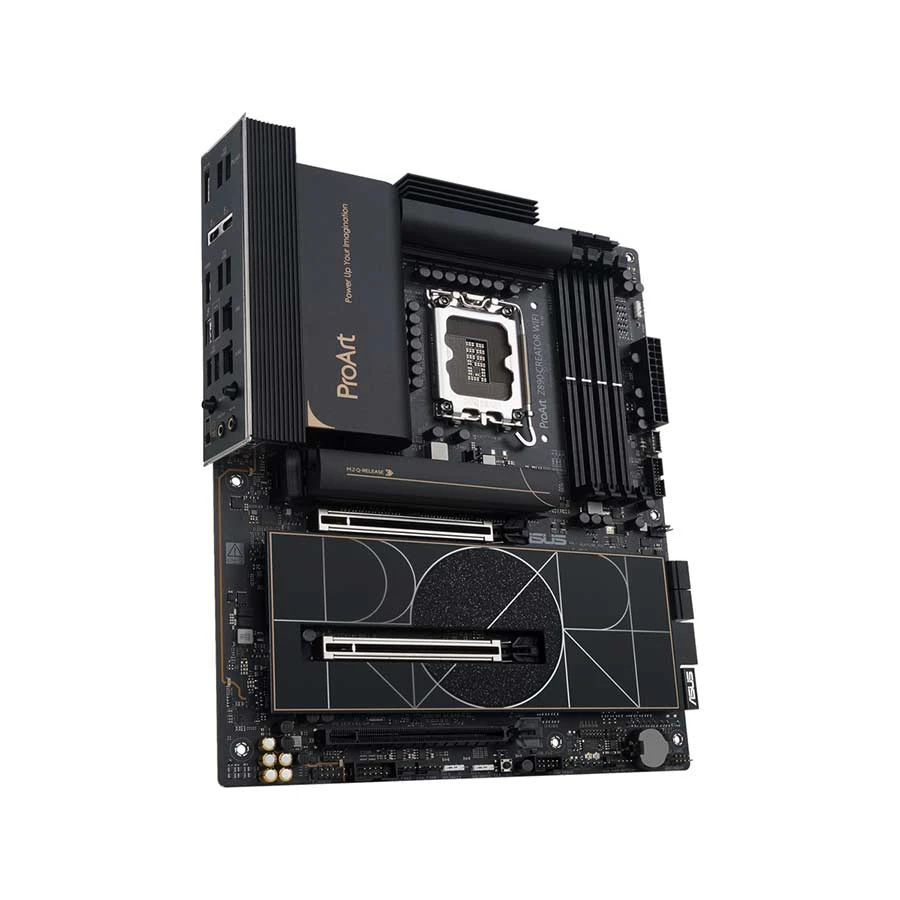

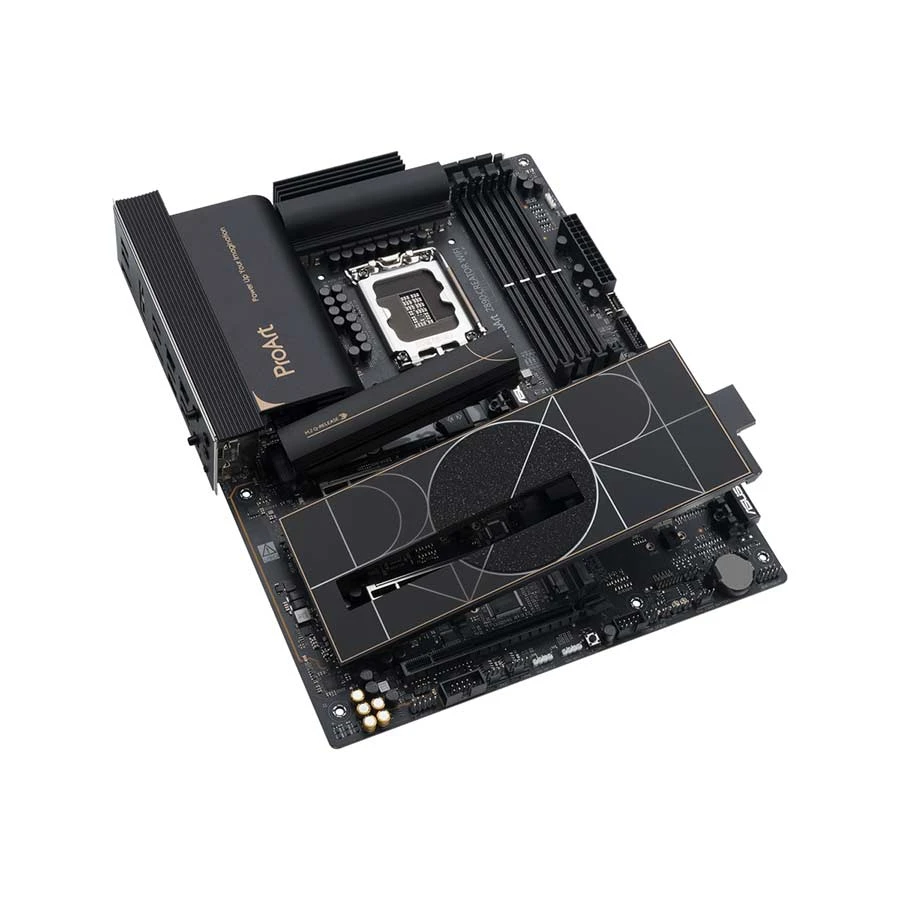

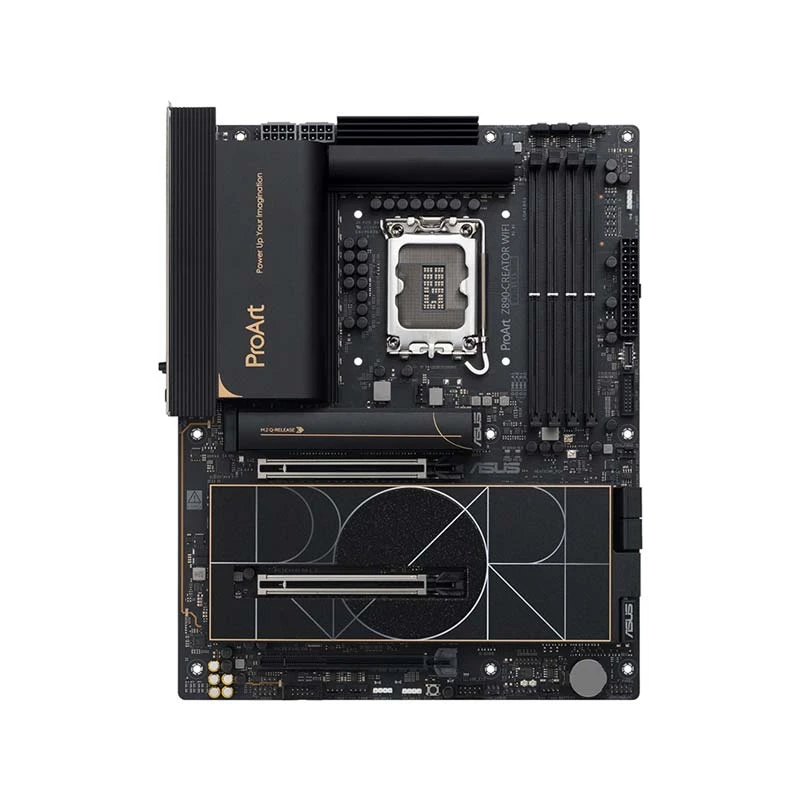

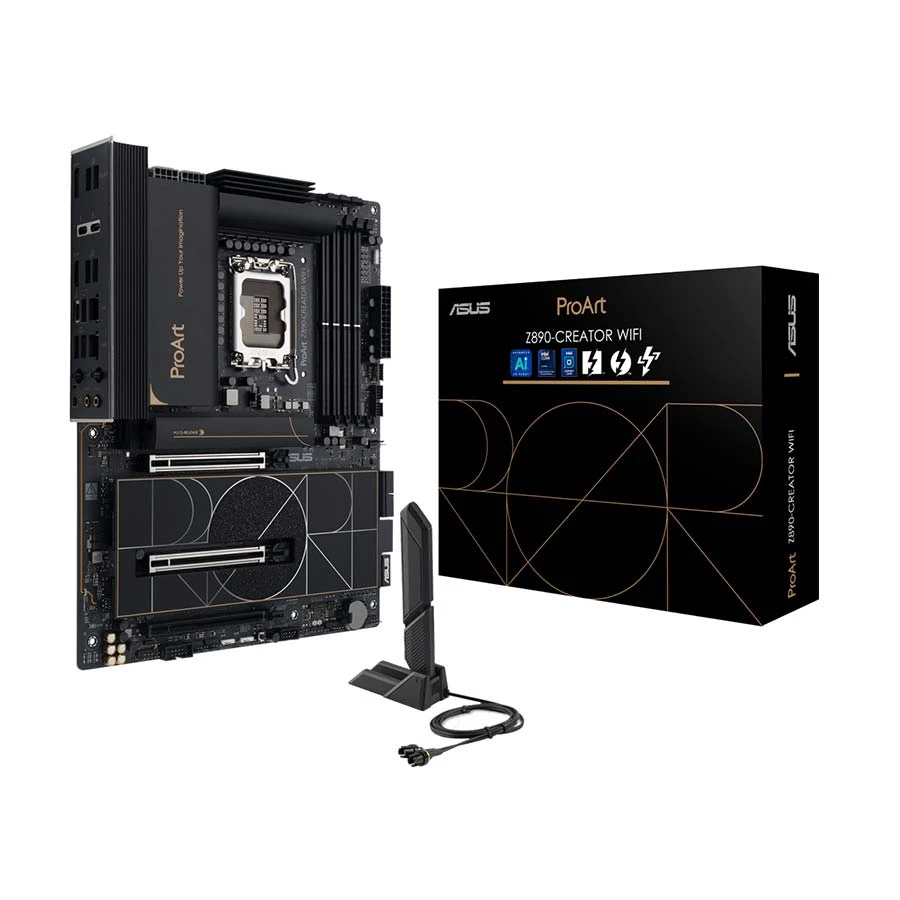

Asus ProArt Z890-CREATOR (Wi-Fi 7) DDR5 Motherboard #ProArt Z890-CREATOR WIFI
9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)
Memory Channel
Dual
Memory Slot
4
Memory Max.
256GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
5
M.2/SSD Expansion Slot Details
5 x M.2 (M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes), M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
No
PCI Express Slot
2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
Audio & Video
Audio Chipset
Realtek ALC1220P
Audio Channel
7.1
Network & Connectivity
LAN Chipset
1 x Marvell AQtion 10Gb Ethernet, 1 x Intel 2.5Gb Ethernet
LAN Speed (Mbps)
10/ 100/ 1000/ 2500Mbps
WiFi
Yes
WiFi Technology
Wi-Fi 7 (802.11be) 2x2
Bluetooth
Bluetooth 5.4

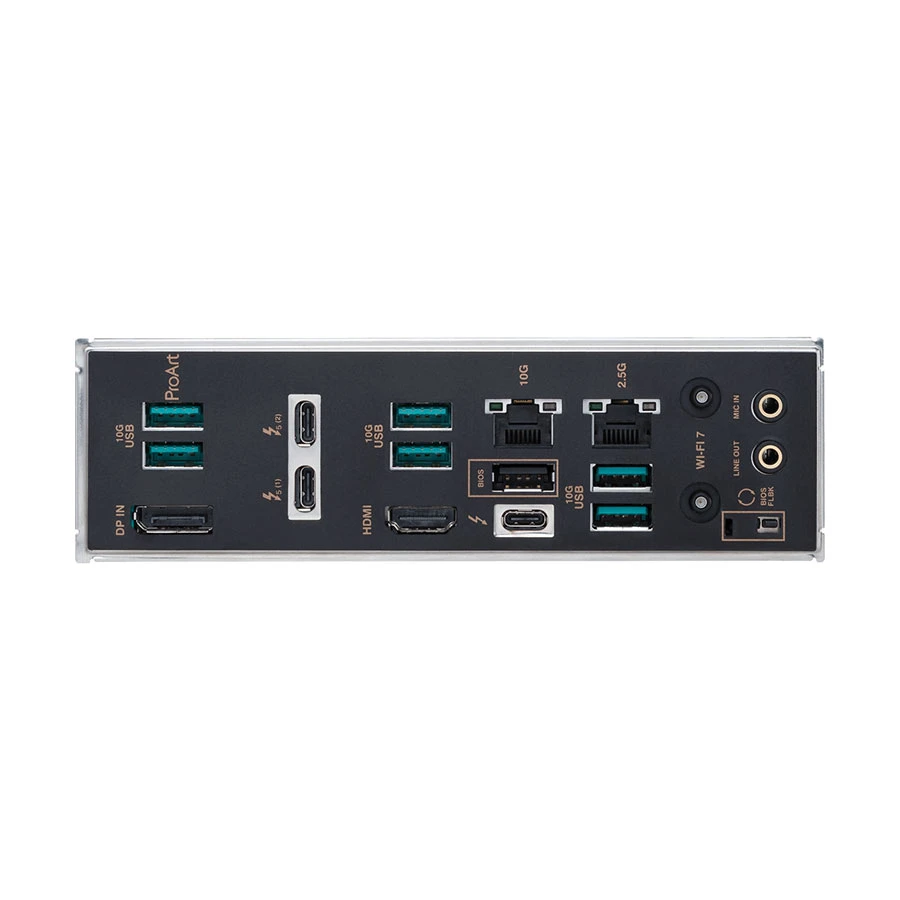

Ports
USB Port
1 x USB Type-A 2.0, 6 x USB Type-A, 1 x Thunderbolt 4 port, 2 x Thunderbolt 5 port
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
1
SATA Port
4 x SATA
Thunderbolt
3
TPM Port
1
COM Port
1
Technical Info
Back-Connect Design
No
Cable Management
Front
Heatsink
Yes
CrossFire Support
No
Sli Support
No
Raid Support
0, 1, 5, 10
RGB Support
ARGB
RGB Sync
Aura Sync
RGB Connector
3 x Addressable Gen2 headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
256 Mb Flash ROM
BIOS Model
UEFI AMI BIOS
Compatibility
Supported Operating System
Windows 11
Compatible Products
Compatible with LGA1851 Sockets Intel Core Ultra Processors (Series 2)
Warranty
Warranty Details
3 year
Additional Info
Feature
DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna etc.
Others
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, Supports Intel Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMP III), Support DIMM Fit, Support DIMM Flex, High Definition Audio CODEC, Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback Audio Features, Gold-plated audio jacks, Premium audio capacitors, Dedicated audio PCB layers, Back Panel I/O Ports: 2 x Gold-plated audio jacks, 1 x BIOS FlashBack button, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, Power Related: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, Miscellaneous: 1 x Clear CMOS button, 1 x CPU Over voltage jumper, 1 x Chassis Intrusion header, 1 x Front Panel Audio header (F_AUDIO), 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header.
Country Of Origin
Taiwan
Made in/ Assemble
China
