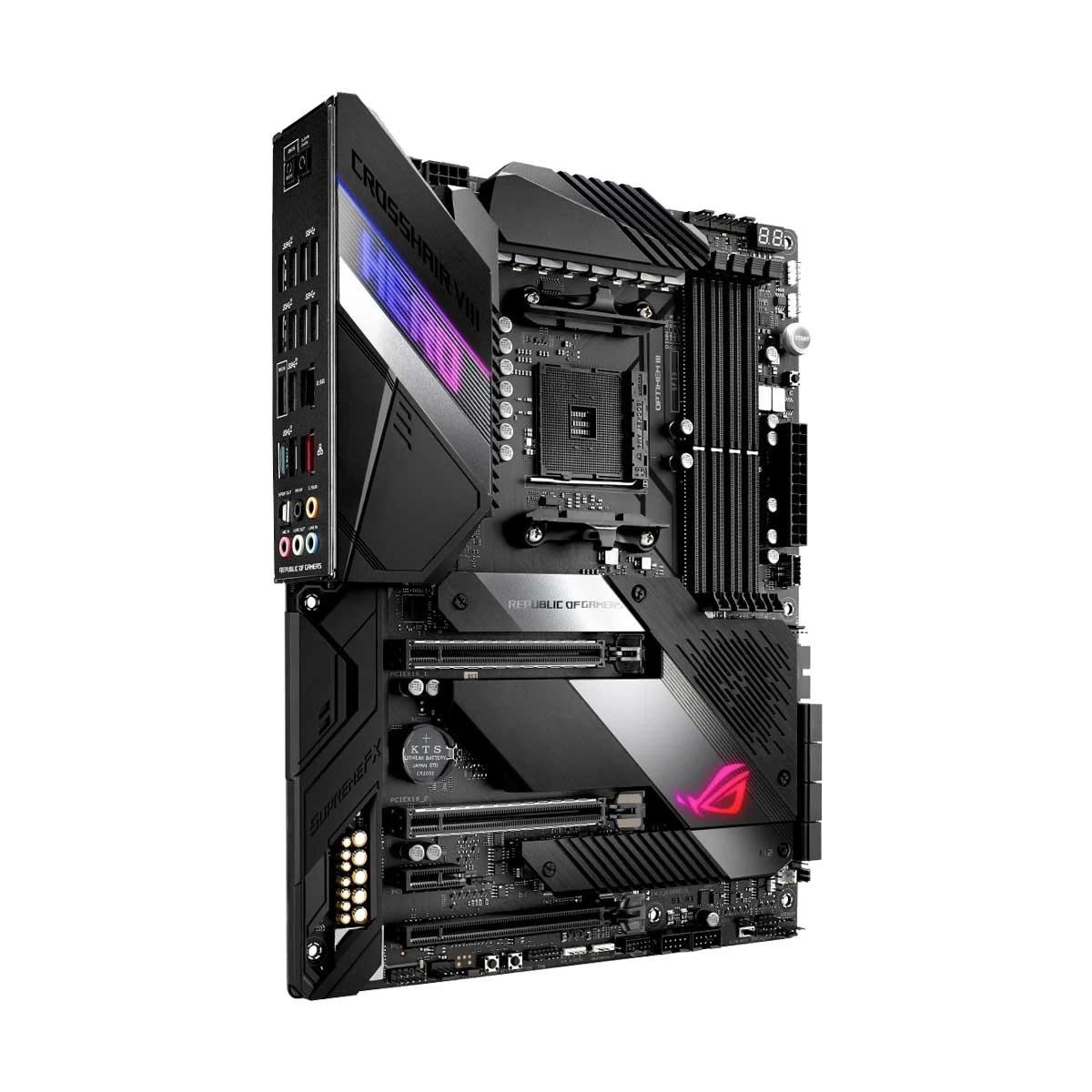

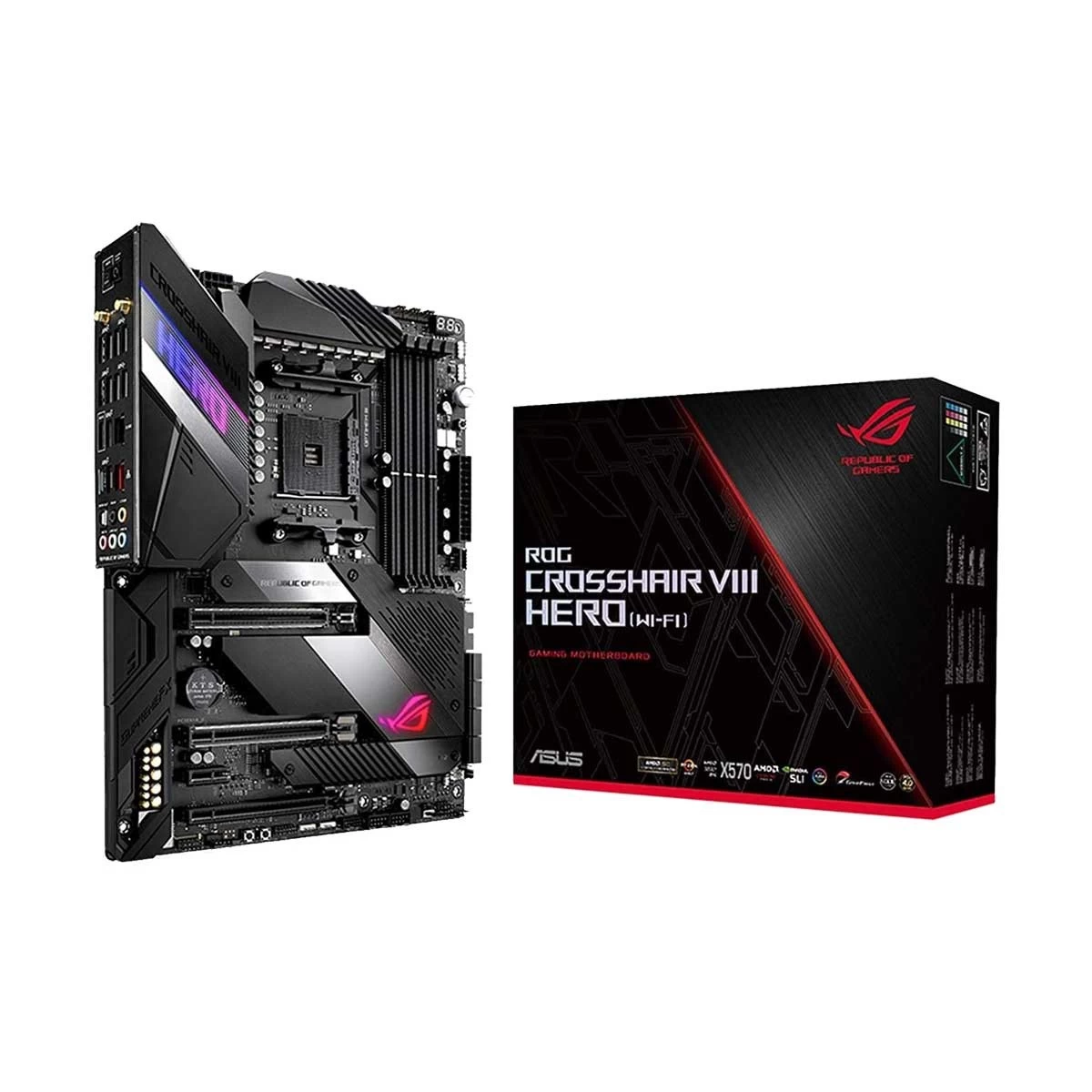

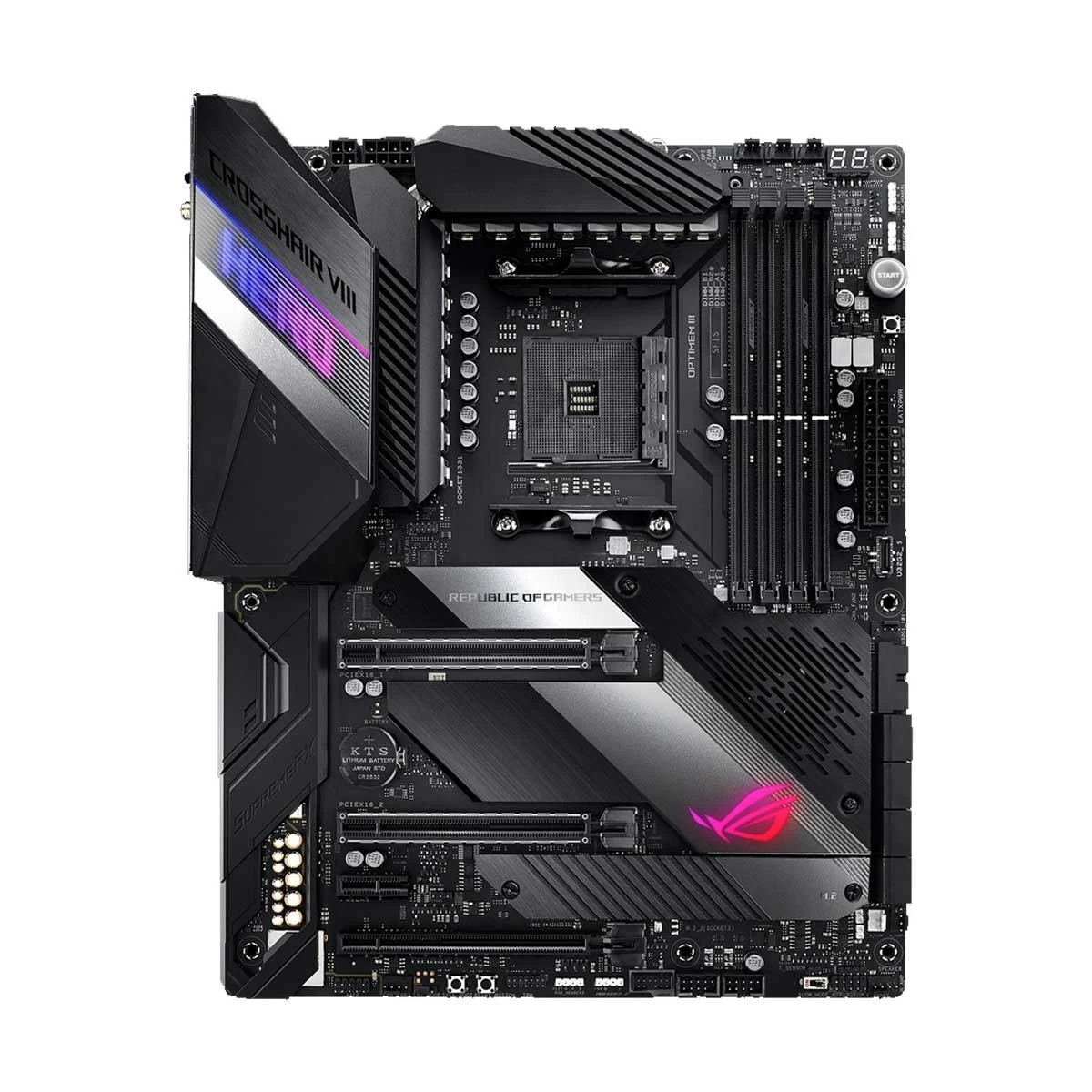

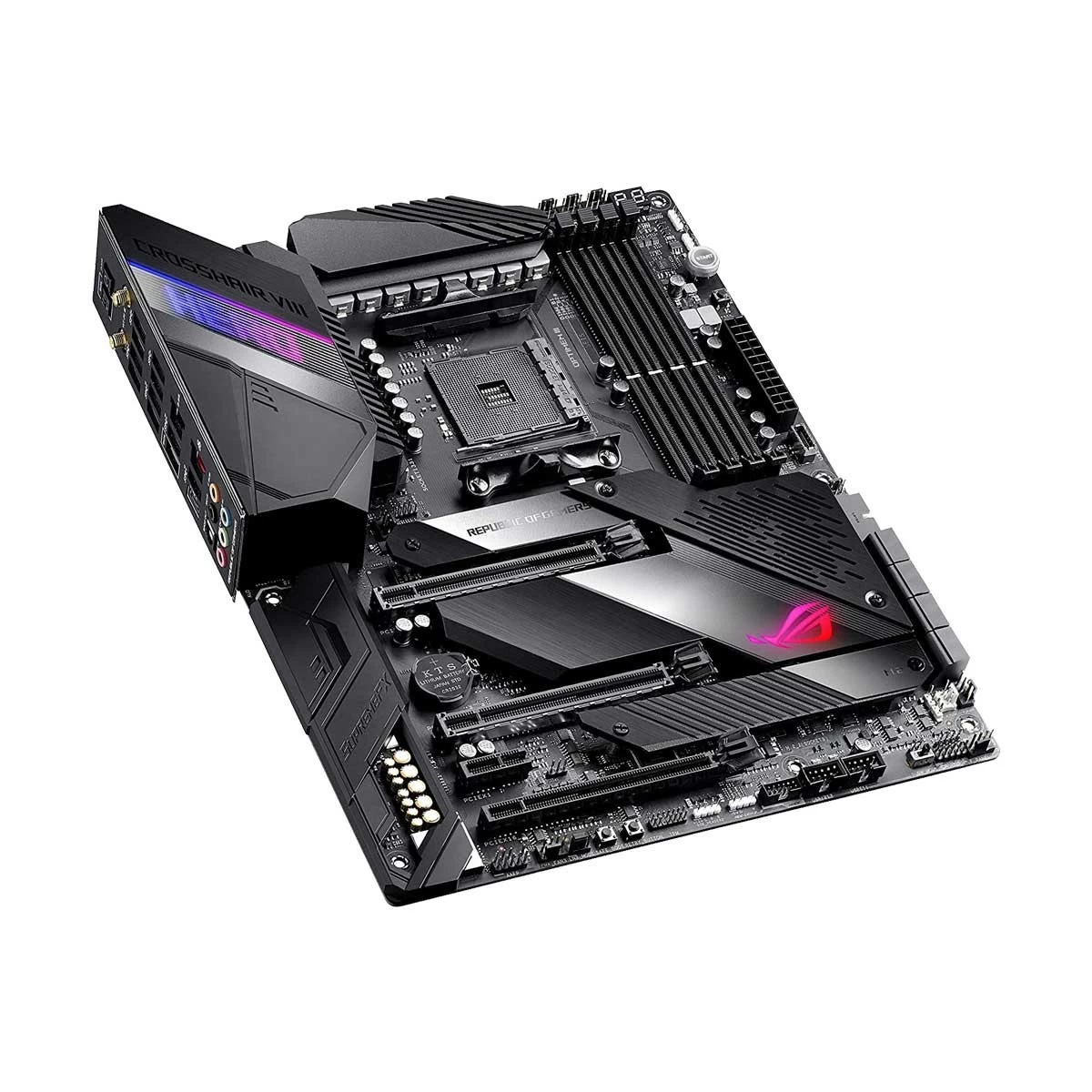

Asus ROG Crosshair VIII Hero (Wi-Fi 6) X570 Chipset DDR4 AMD AM4 Socket Gaming Motherboard

Product Id: 02.02.006.299

Brand Asus

Regular Price Tk 0
Special Price Tk 0
Out Of Stock

See similar model

Quick Overview

  • Chipset - AMD X570
  • Sockets Supported - AM4
  • Supported CPU - AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors
  • Generation - Not Applicable
  • Memory Slot - 4
  • Memory Max. - 128GB
General
Brand
Asus

Model
Asus ROG Crosshair VIII Hero (WI-FI)

Body Color
Black


CPU
Chipset Brand
AMD

Chipset
AMD X570

Sockets Supported
AM4

Built-in Processor
No

Supported CPU
AMD Ryzen 1st/2nd/3rd Generation / Ryzen with Radeon Vega Graphics Processors

Generation
Not Applicable


Memory Support
Memory Type
DDR4

Memory MHz
4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133MHz

Memory Channel
Dual

Memory Slot
4

Memory Slot (Additional Info)
4 x DDR4 DIMM

Memory Max.
128GB

Memory Max. (Additional Info)
128GB

Optane Memory Support
No


Storage
Storage Interface
6.0Gb/s

M.2/SSD Expansion Slot
2

M.2/SSD Expansion Slot Details
2 x M.2 (1 x M.2 socket 3 (M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes)/M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)), 1 x M.2 socket 3 (M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes)))


Graphics
Graphics
Integrated

Graphics Chipset
Integrated With Processor

Multi-GPU Support
2-Way NVIDIA SLI, 3-Way & 2-Way AMD CrossFireX

PCI Express Slot
2 x PCIe 4.0 x16 Safeslots (x16, x8/x8), 1 x PCIe 4.0 x16 slot (x4), 1 x PCIe 4.0 x1


Audio & Video
Audio Chipset
ROG SupremeFX

Audio Channel
8


Network & Connectivity
LAN Chipset
Intel I211-AT & Realtek RTL8125-CG

LAN Speed (Mbps)
10/100/1000 & 2.5G

WiFi
Yes

WiFi Technology
Intel Wi-Fi 6 AX200, Supports channel bandwidth: HT20/HT40/HT80/HT160, Up to 2.4Gbps transfer speed

Bluetooth
Bluetooth 5


Ports

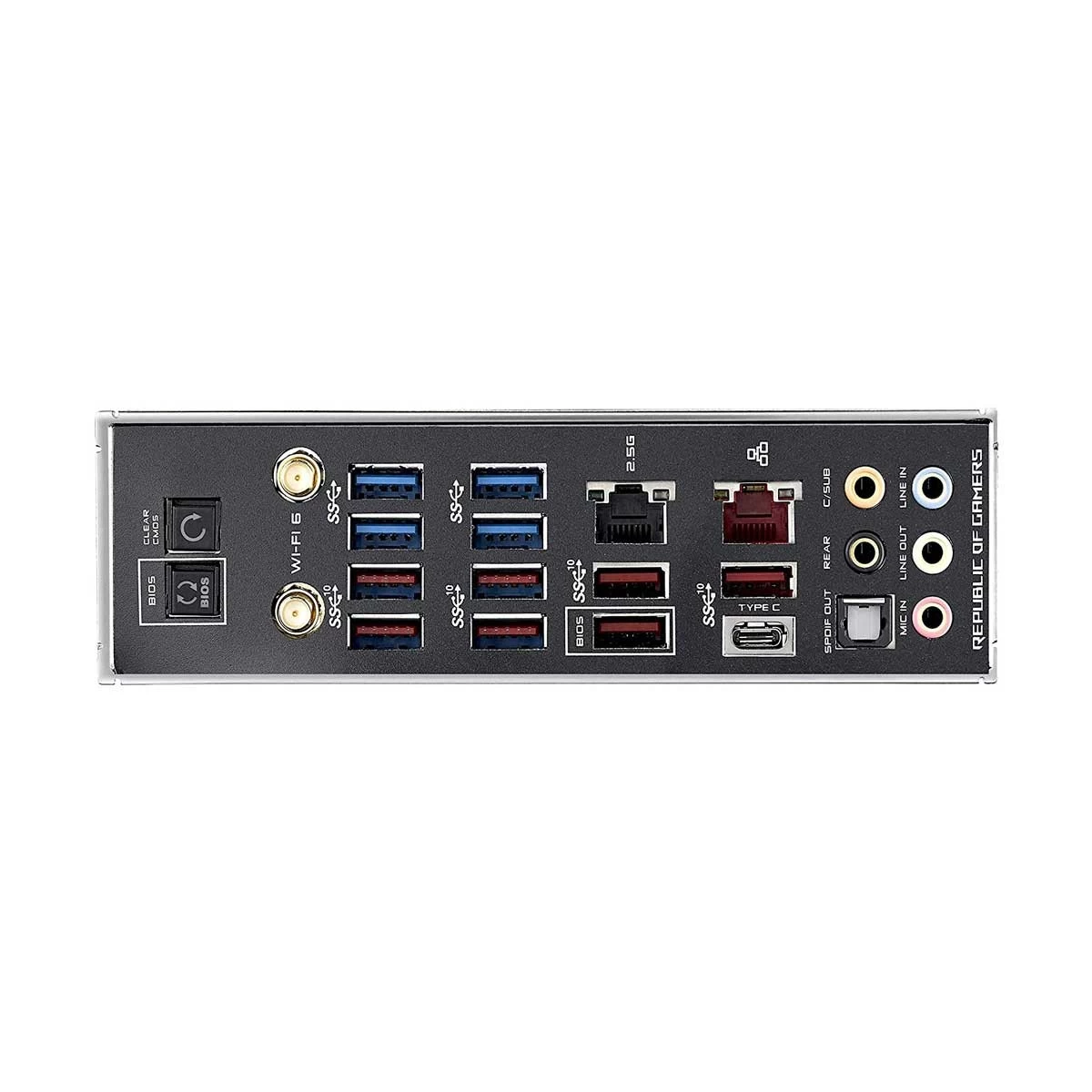

USB Port
9 x USB3.2 Gen 2, 5 x USB3.2 Gen 1, 2 x USB2.0

VGA Port
No

DVI Port
No

HDMI Port
No

DisplayPort (DP)
No

IDE Port
No

SATA Port
8 x SATA

Thunderbolt
No

TPM Port
Yes

COM Port
No


Technical Info
FireWire
No

CrossFire Support
Yes

Sli Support
Yes

Raid Support
0, 1, 10

RGB Support
RGB

RGB Sync
Aura Sync

RGB Connector
2 x Aura RGB Strip Headers

Approx. Power Consumption
90W

Form Factor
ATX


Bios Information
BIOS Type
1 x 256 Mbit Flash ROM

BIOS Model
UEFI AMI BIOS

BIOS Version
PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2


Compatibility
Supported Operating System
Windows 10

Compatible Products
Sockets Supported AM4: AMD Ryzen 1st/2nd/3rd Generation


Warranty
Warranty
3 Year

Warranty Details
3 Years Replacement Warranty


Additional Info
Feature
ATX gaming motherboard with PCIe 4.0, 16 power stages , OptiMem III, on-board Wi-Fi 6 (802.11ax), 2.5 Gbps LAN, USB 3.2, SATA, M.2 and Aura Sync RGB lighting, Comprehensive thermal design, Active chipset heatsink, M.2 aluminum heatsink and ROG Cooling Zone, Robust power delivery, Designed power solution with 14+2 IR3555 PowIRstages, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors, High-performance networking, On-board Wi-Fi 6 (802.11ax) with MU-MIMO support, 2.5 Gbps Ethernet and Gigabit Ethernet, both with ASUS LANGuard protection, and support for GameFirst V software, 5-Way Optimization, Automated system-wide tuning, providing overclocking and cooling profiles that are tailor made for rig, DIY Friendly Design, Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack and premium components for maximum endurance, Unmatched personalization, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and addressable Gen 2 RGB headers, Industry-leading ROG audio, ROG SupremeFX S1220 is combined with the venerable ESS ES9023P to deliver high-fidelity audio to headsets and exotic cans

Others
2 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 1 x TPM connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 1 x Slow Mode switch(es), 1 x Reset button(s), 1 x Node Connector(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x System panel connector, 1 x T_Sensor Connector, 1 x Speaker connector, 1 x Clear CMOS button(s), 1 x Anti-surge 2.5G LAN (RJ45) port, 1 x ASUS Wi-Fi Module, 5 x Gold-plated audio jacks, 1 x USB BIOS FlashBack Button(s), Wireless Data Network: Intel Wi-Fi 6 AX200, Bluetooth 5.0

Country Of Origin
Taiwan

Made in/ Assemble
China


N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
