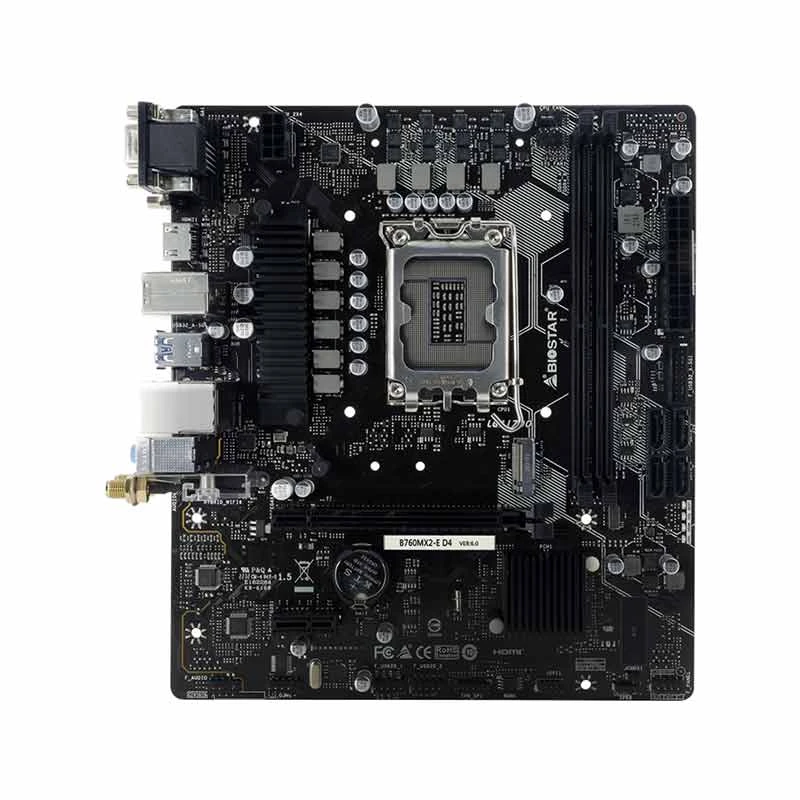

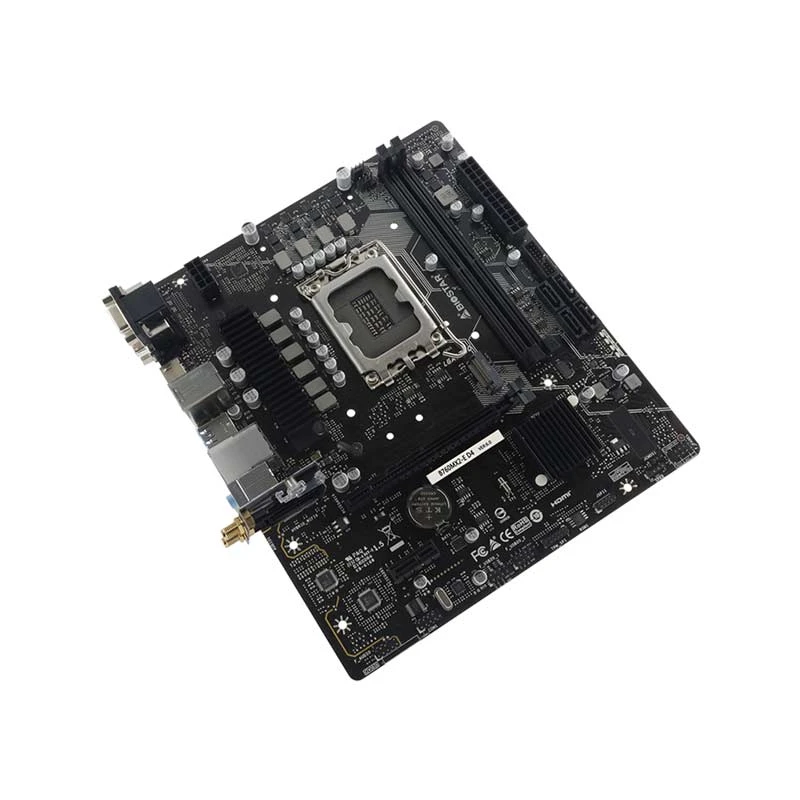

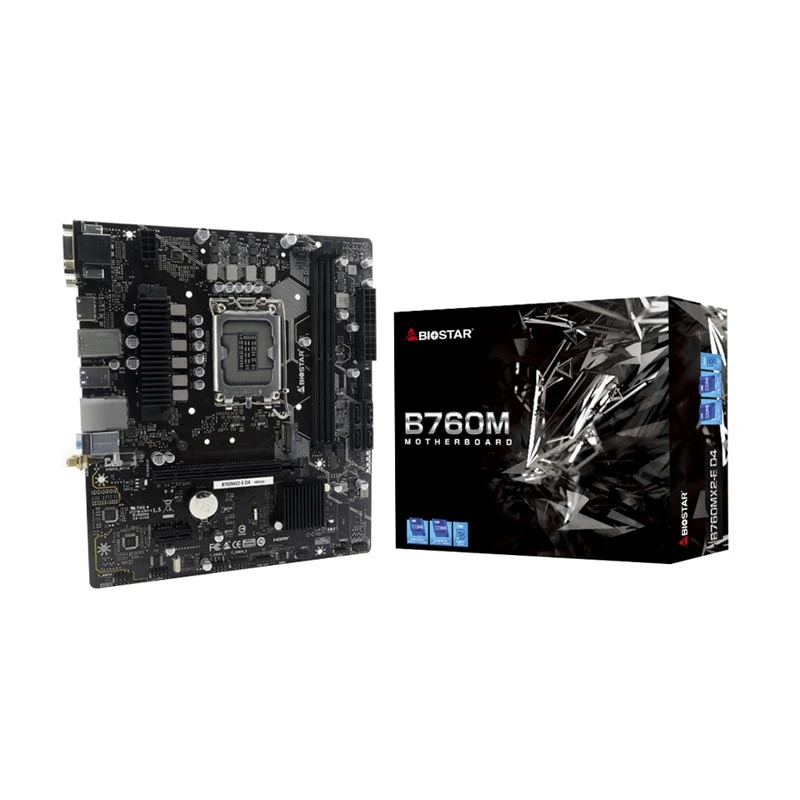

Item: BIOSTAR B760MX2-E D4 DDR4 Intel Motherboard
Rating: 5
Author: Verified Buyer

Brand

Biostar

Model

Biostar B760MX2-E D4

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Generation

12th/13th/14th

Back-Connect Design

Memory Type

DDR4

Memory Slot

Memory Max.

64GB

Optane Memory Support

Graphics

Integrated

Graphics Chipset

Integrated With Processor

M.2/SSD Expansion Slot

WiFi

Bluetooth

Form Factor

Micro-ATX

Supported Operating System

Windows 10 / 11

Body Color

Gray

Warranty

3 year

General

Brand

Biostar

Model

Biostar B760MX2-E D4

Body Color

Gray

CPU

Chipset Brand

Intel

Chipset

Intel B760

Sockets Supported

LGA1700

Built-in Processor

Supported CPU

12th/13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors

Generation

12th/13th/14th

Memory Support

Memory Type

DDR4

Memory MHz

1866/ 2133/ 2400/ 2666/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC)/ 4400+(OC) non-ECC

Memory Channel

Dual

Memory Slot

Memory Max.

64GB

Optane Memory Support

Storage

Storage Interface

6.0Gb/s

M.2/SSD Expansion Slot

M.2/SSD Expansion Slot Details

1 x M.2 ((1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module)

M.2/SSD Slot Gen

Up to Gen 4

Graphics

Integrated

Graphics Chipset

Integrated With Processor

Multi-GPU Support

PCI Express Slot

1 x PCIe 4.0 x16 Slot (x16 mode), 1 x PCIe 3.0 x1 Slot

Audio & Video

Audio Chipset

ALC897 High Definition Audio

Audio Channel

7.1

Network & Connectivity

LAN Chipset

RTL8125B

LAN Speed (Mbps)

10/ 100/ 1000/ 2500Mbps

WiFi

Bluetooth

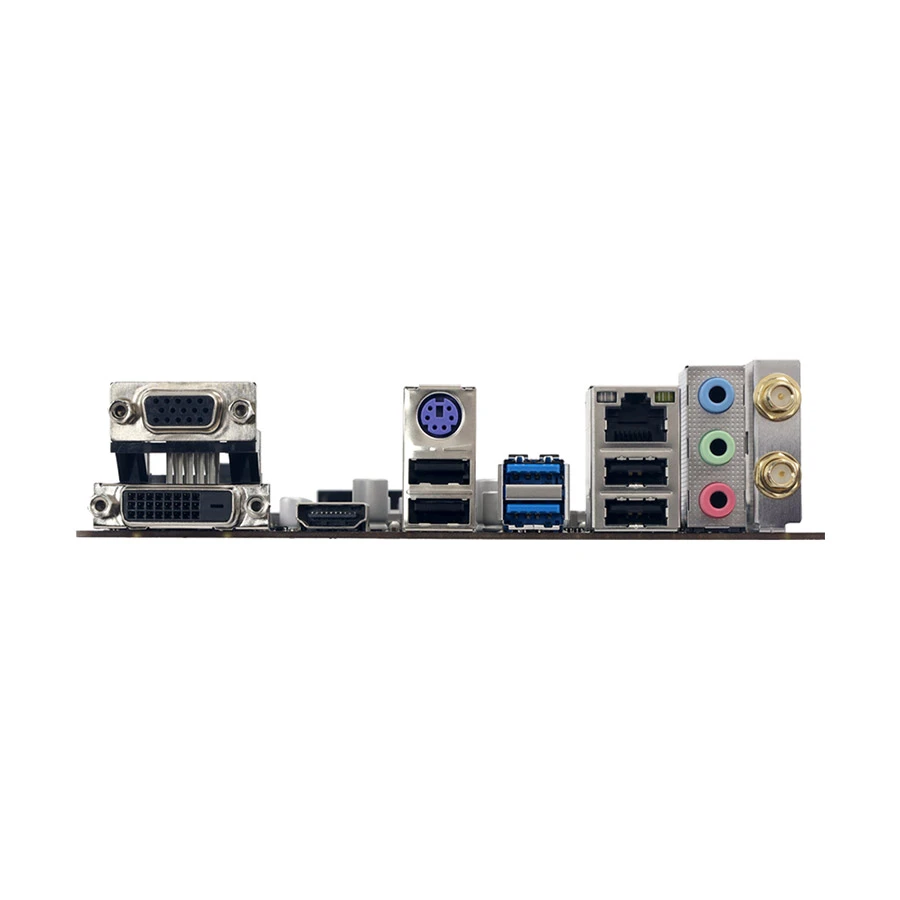

Ports

USB Port

2 x USB 3.2 (Gen1), 4 x USB 2.0

VGA Port

DVI Port

HDMI Port

DisplayPort (DP)

SATA Port

Thunderbolt

TPM Port

Technical Info

Back-Connect Design

Cable Management

Front

Heatsink

CrossFire Support

Sli Support

Raid Support

0, 1, 5, 10

RGB Support

Approx. Power Consumption

60W

Form Factor

Micro-ATX

Bios Information

BIOS Model

UEFI BIOS

Compatibility

Supported Operating System

Windows 10 / 11

Compatible Products

Core i9 14900T/ 14900KF/ 14900K/ 14900F/ 14900/ 13900KF, Core i7 14700/ 13700T/ 13700KF/ 13700F

Warranty

3 year

Additional Info

Feature

Integrated HDMI with HDCP: Onboard HDMI connector allows full video & audio support. It has industryleading high definition video quality, SATAIII 6Gbps: SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which, is 2x faster than the SATA II. 2.5Guard, UEFI BIOS, Unified Extensible Firmware Interface (UEFI) is a brand new framework that provides a revolutionary interface. It is a modern clear and easy-to-use graphical user interface. The UEFI comes with a colorful easy-understand icons leads users into the setup layer directly.

Others

Debug LED: Debug LED helps you identify any issues going with your board or hardware. When error occurs, the corresponding LED lights will inform you on the status of your board or hardware to shorten the test time effectively. Smart Update: Biostar Smart Update is a utility that can help users run online update. It can download the drivers for your motherboard from Biostar official website and install them automatically.

Country Of Origin

Taiwan

Made in/ Assemble

China

Details

Features of Biostar B760MX2-E D4 Motherboard In Bangladesh

The Biostar B760MX2-E D4 DDR4 Intel Motherboard is designed for those who demand reliable performance without breaking the bank. This motherboard is ideal for users who need a solid foundation for their Intel 12th Gen processors. With its advanced features and affordable price, it is a top choice for building a capable and budget-friendly gaming or content creation PC.

Benefits & Features

Intel B760 Chipset: This Intel motherboard comes with the B760 chipset, ensuring compatibility with the latest 12th Gen Intel processors.
DDR4 Support: The motherboard supports DDR4 RAM, offering a balance between performance and cost.
PCIe 4.0 Ready: Equipped with PCIe 4.0 support, it provides faster data transfer speeds, crucial for gaming and high-performance tasks.
M.2 Slots: Dual M.2 slots allow for high-speed NVMe SSDs, enhancing storage capabilities.
USB 3.2 Gen 2: The USB 3.2 Gen 2 ports offer faster connectivity for external devices.

What You Need to Know Before Hitting 'Add to Cart'

Compatibility: Ensure your CPU is compatible with the Biostar B760MX2-E D4. It supports 12th Gen Intel processors.
RAM Capacity: The motherboard can handle multiple RAM slots, providing flexibility in memory upgrades.
BIOS Update: Keep the BIOS updated for optimal performance and compatibility with new hardware.
Form Factor: It's a Micro ATX board, so ensure your case supports this size.
Cooling Features: Advanced cooling solutions are available on this Biostar motherboard, essential for maintaining performance during intense use.

A Complete Guide to Setting Up

Install the CPU: Carefully place your Intel processor onto the socket, aligning it properly.
Add RAM: Insert DDR4 memory sticks into the appropriate slots, ensuring they click into place.
Connect Storage: Install your NVMe SSD into the M.2 slots for fast storage performance.
Attach Power Supply: Connect the power supply cables to the motherboard and other components.
BIOS Configuration: Upon first boot, enter the BIOS to configure settings for optimal performance.

Why Choose Ryans Computer Ltd?

Competitive Pricing: We offer the best Biostar motherboard deals in Bangladesh.
Quality Assurance: All our products are genuine and come with a warranty.
Customer Support: Our team is always ready to assist with any questions or issues.
Fast Delivery: Get your Biostar B760MX2-E D4 delivered quickly anywhere in Bangladesh.
Convenient Shopping: Enjoy a seamless online shopping experience with Ryans Computer Ltd.

Sum it up

The Biostar B760MX2-E D4 DDR4 Intel Motherboard is a solid choice for anyone looking to build a powerful yet affordable PC. With its advanced features, compatibility with 12th Gen Intel processors, and the best pricing at Ryans Computer Ltd, this motherboard is a wise investment for both gamers and content creators.

What is the price of Biostar B760MX2-E D4 Motherboard In Bangladesh?

The price of Biostar B760MX2-E D4 Motherboard starts from 10,900 . The price may vary due to your customization and product availability. You can buy Biostar B760MX2-E D4 Motherboard from our website or visit our showrooms nearby.
